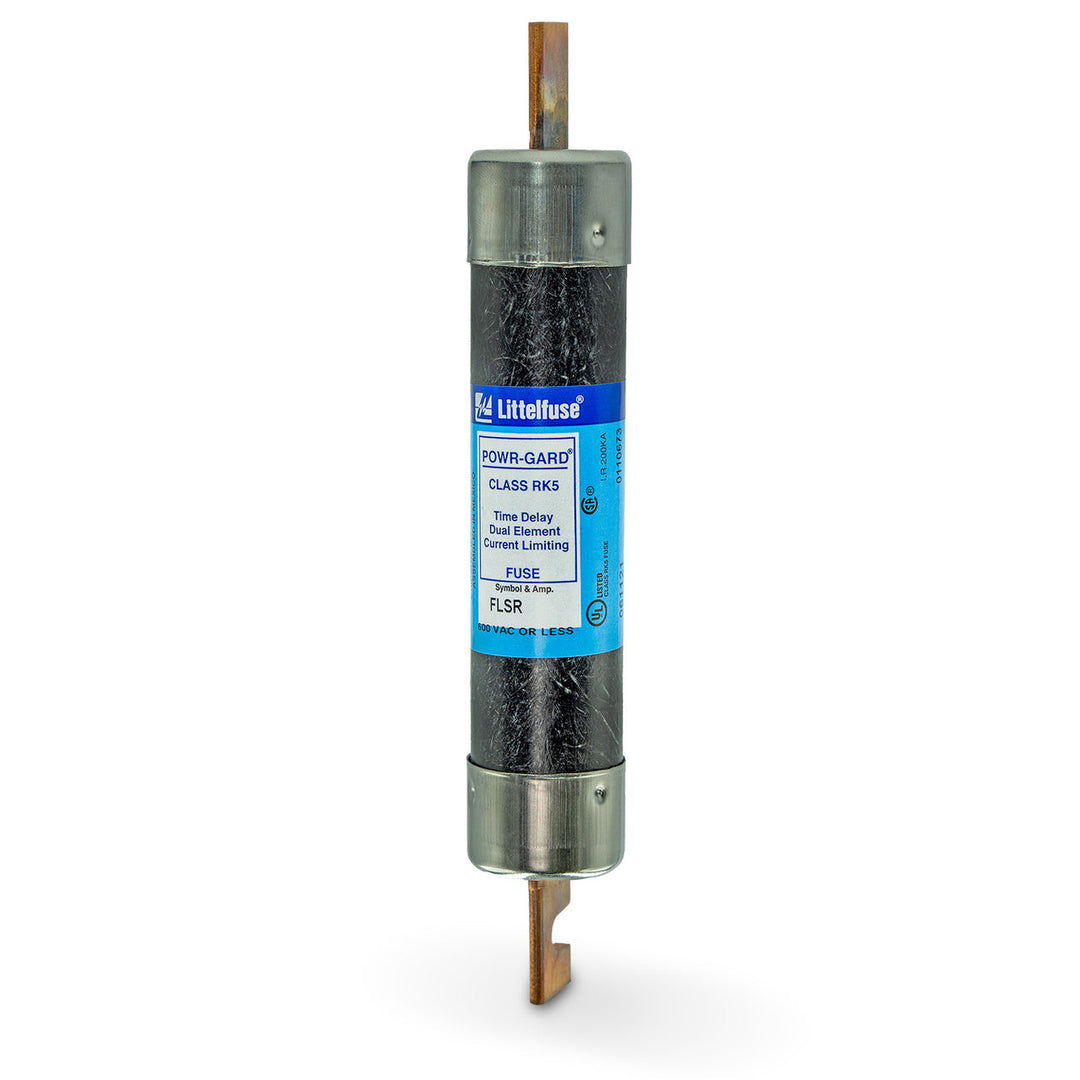

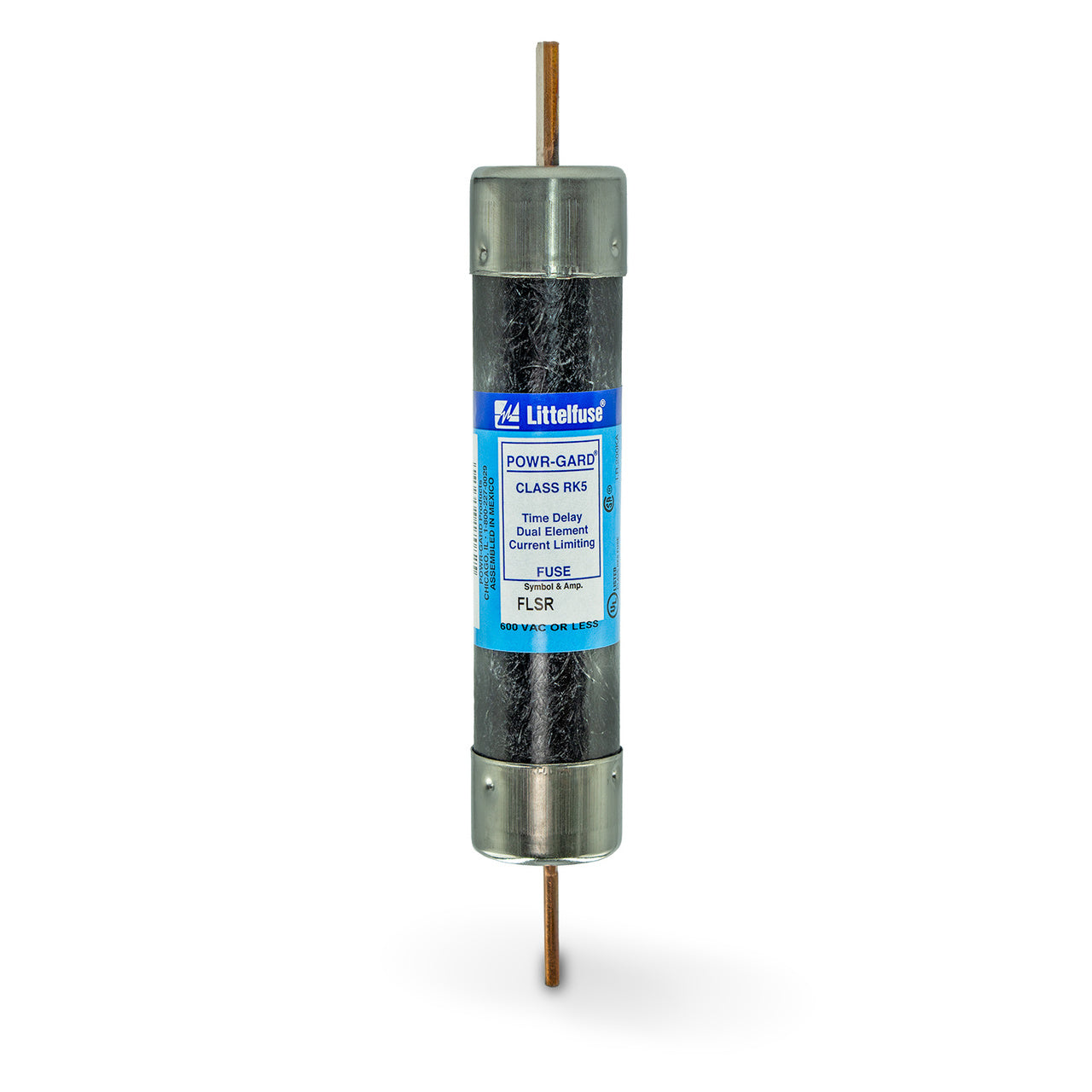

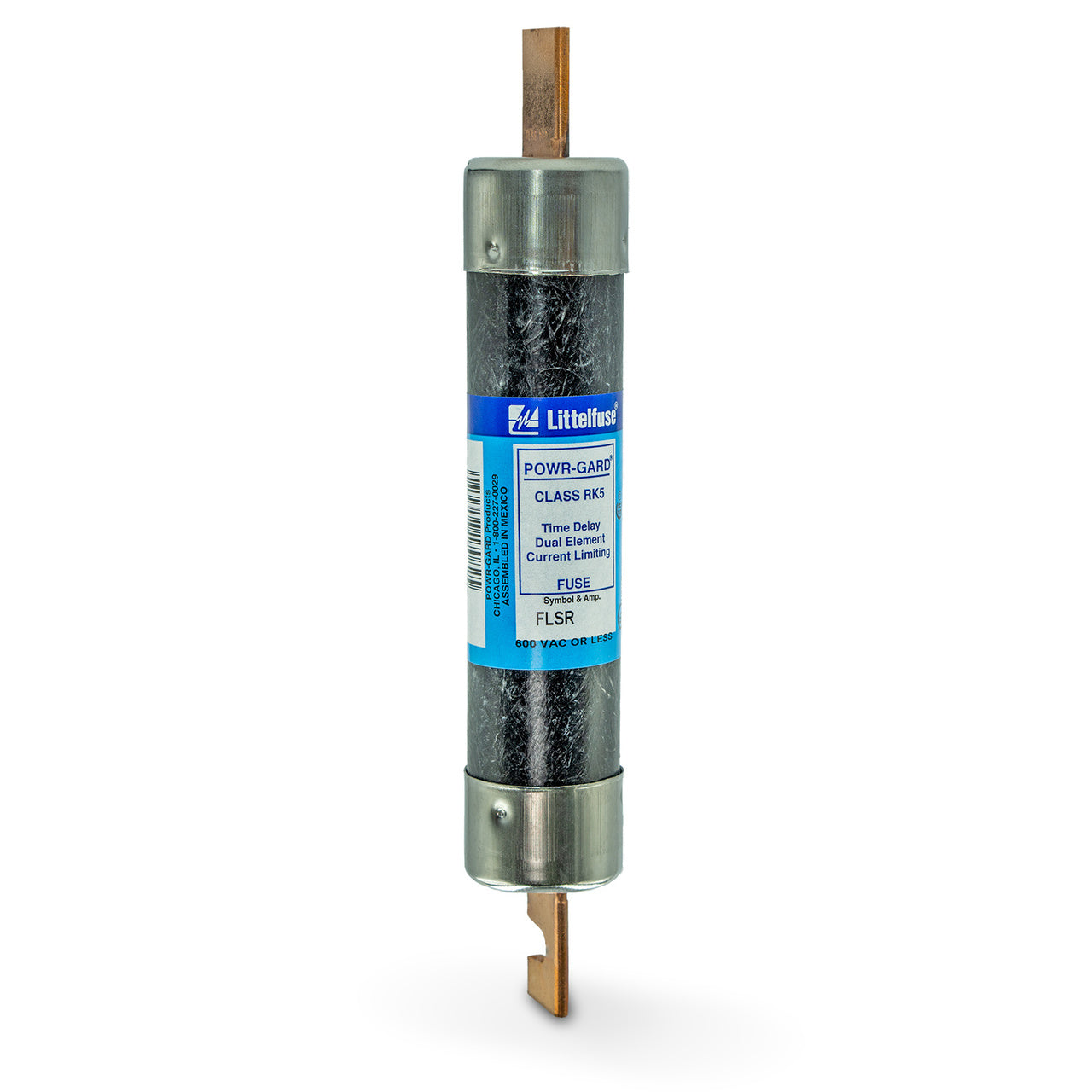

Littelfuse FLSR-070 - RK5 Class Fuse 70A 600V (200kA AIC)

Littelfuse FLSR-070 is a low voltage current-limiting fuse from the Powr-Gard family designed to provide reliable overcurrent protection in industrial electrical systems. It features a 70A current rating and 600V voltage rating with a high 200kA interrupting capacity at 600VAC for effective short-circuit protection. The fuse construction utilizes a single-barrel design with plug-in connection type and measures 1.31 inches in diameter, weighing 5.19 lb for robust industrial use. This RK5 class fuse meets industry standards for current-limiting performance and safety requirements. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high-interrupting capacity protection is essential.

Key Features & Specifications

• Type: Low Voltage Current-Limiting Fuse, Single Barrel, Plug-In Connection
• Voltage Rating: 600V AC
• Current Rating: 70A
• Dimensions: 1.31" Diameter
• Standards: RK5 Class Rating
• Applications: Motor Branch Circuits, Feeder Circuits, Industrial Control Panels
• AIC Rating: 200kA@600V
• Connection: Plug-In
• Barrels: 1
• Class Rating: RK5
• Diameter: 1.31 inches
• Weight: 5.19 lb

Product Identification

• UPC: 07945817079
• GTIN: 00079458170795
