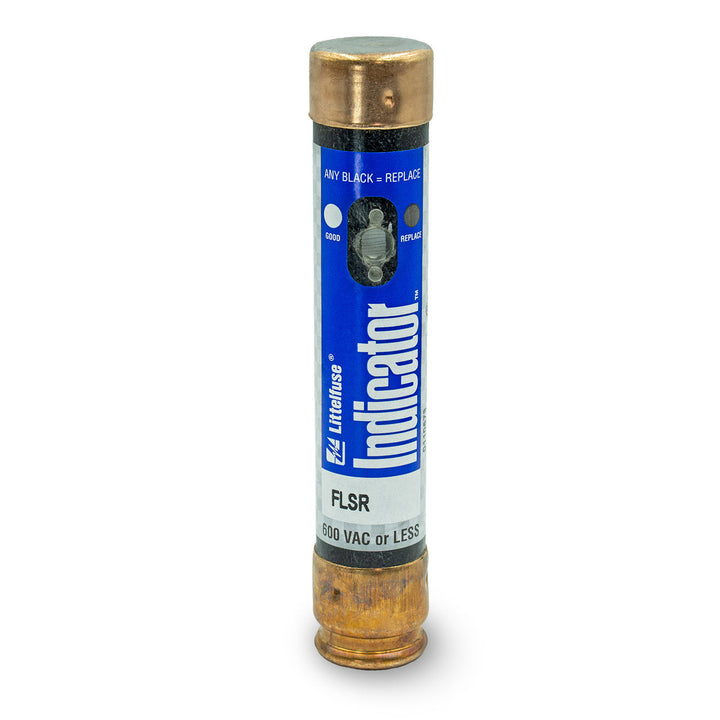

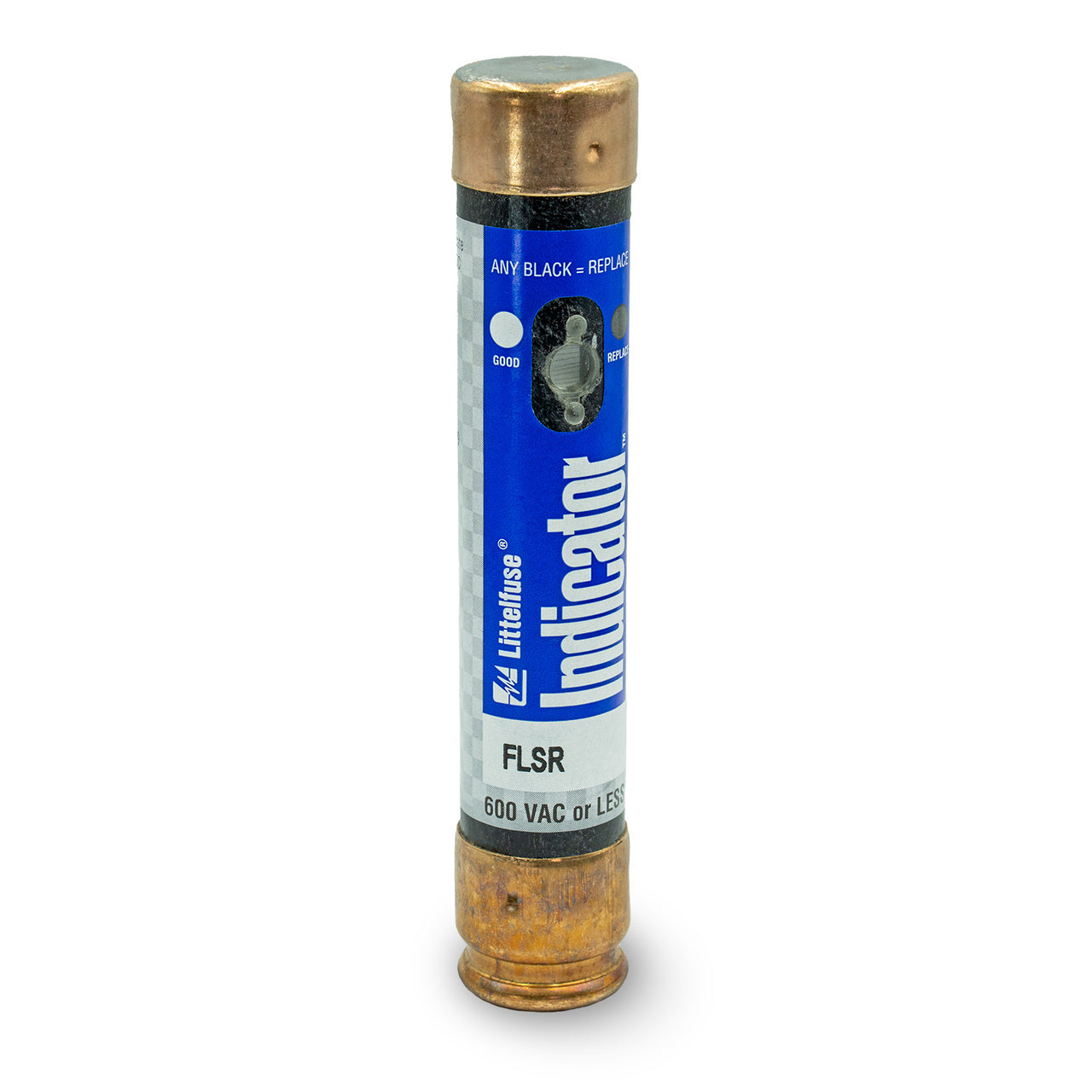

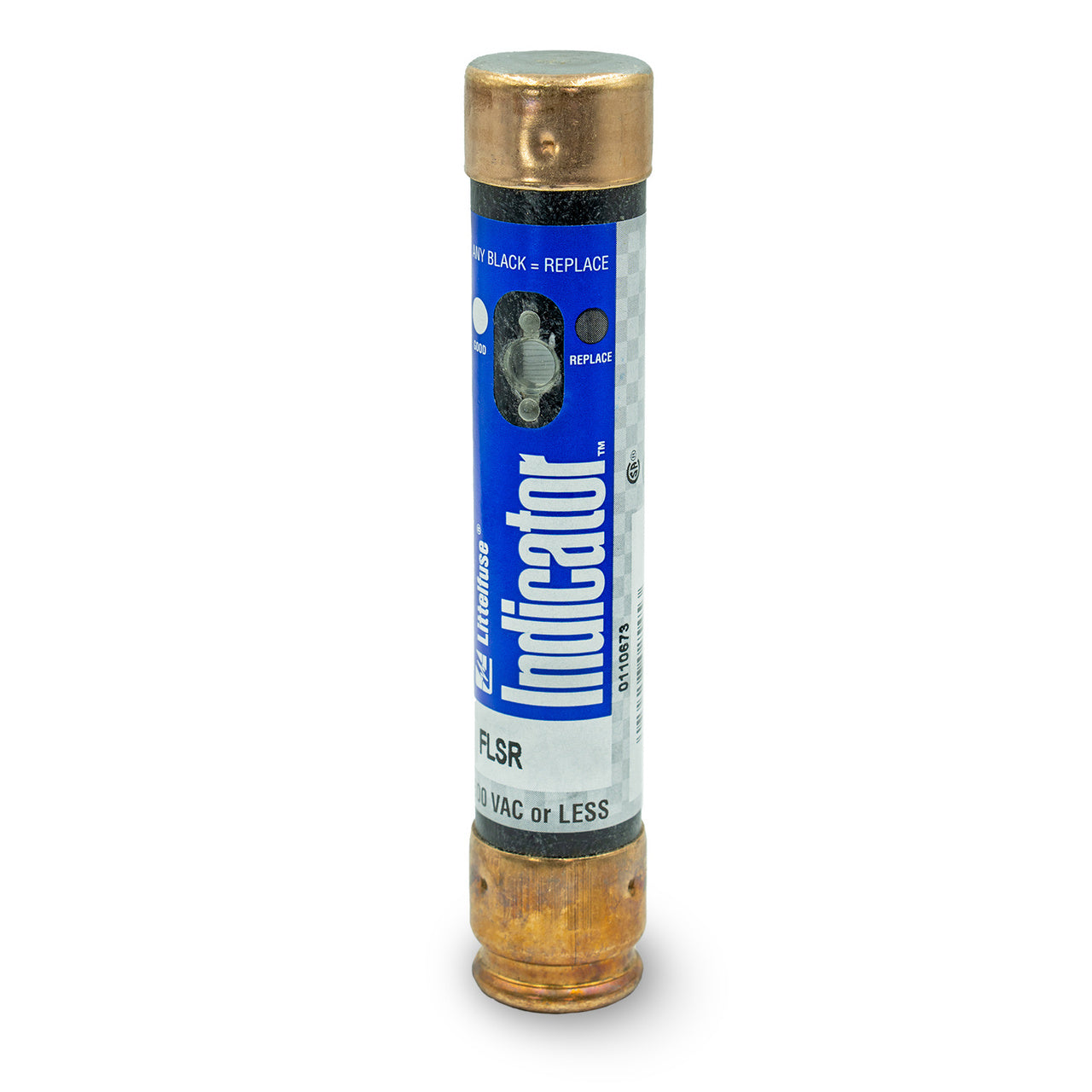

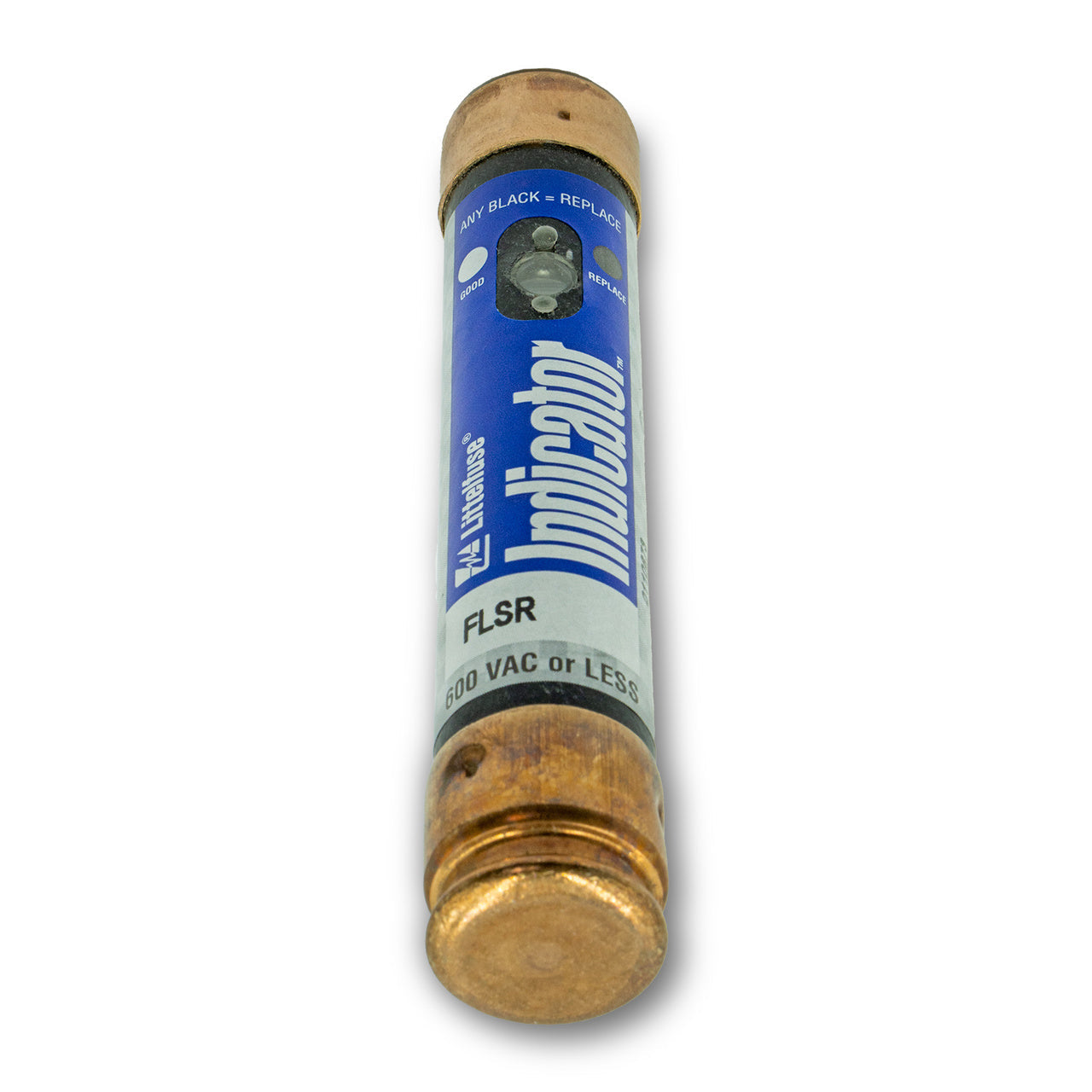

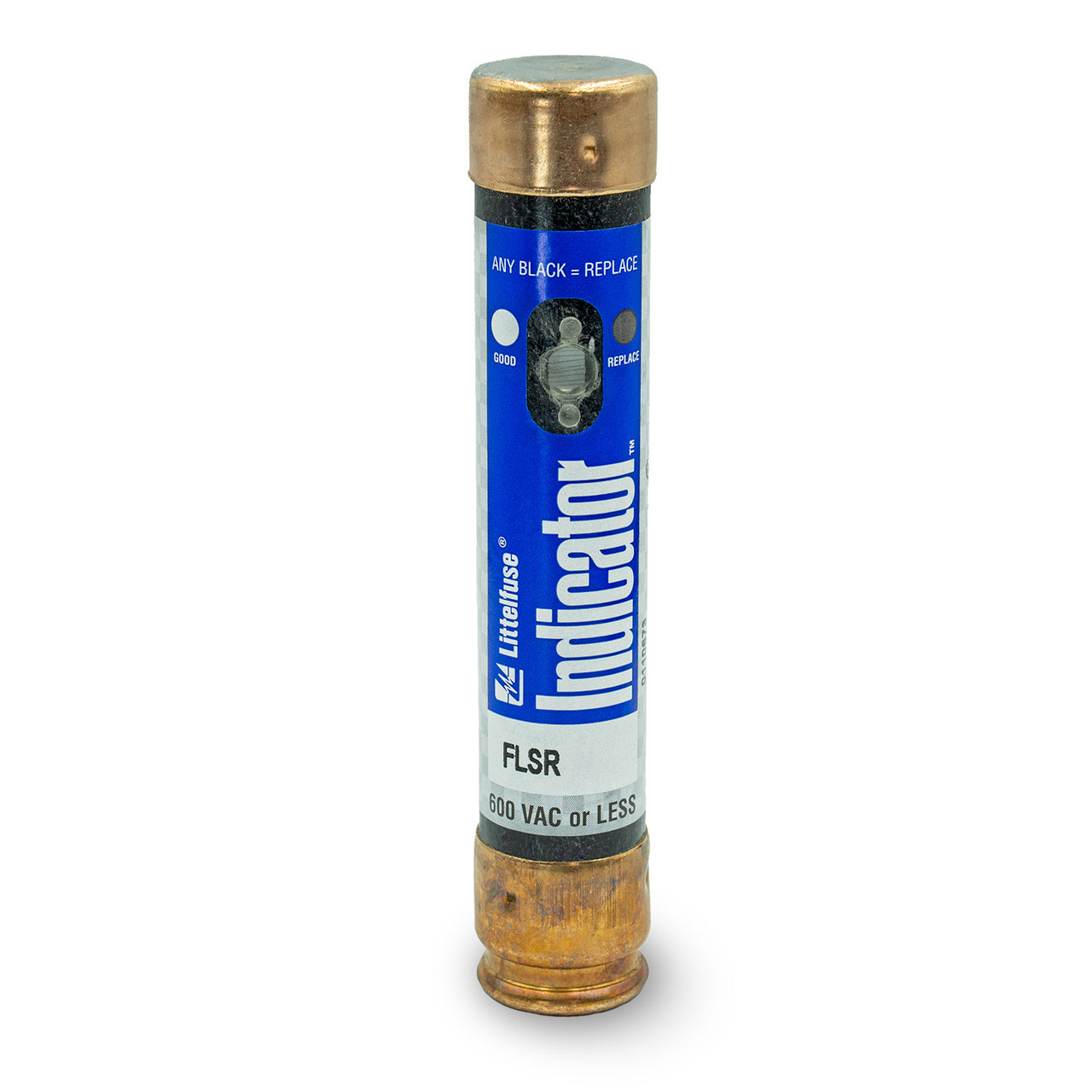

Littelfuse FLSR-035ID is a low voltage current-limiting fuse from the Powr-Gard family designed to provide reliable overcurrent protection in industrial electrical systems. It features a 35A current rating and 600V AC voltage rating with a high interrupting capacity of 200kA at 600V. The fuse construction includes a single-barrel design with ferrule connections and measures 1.06 inches in diameter, built to RK5 class specifications for time-delay characteristics. This fuse complies with industry standards for current-limiting protection and is typically applied in motor branch circuits, transformers, and power distribution equipment where coordinated overload protection is required.
Key Features & Specifications
Type: Low Voltage Current-Limiting Time-Delay Fuse, RK5 Class, Single Barrel
Voltage Rating: 600V AC
Current Rating: 35A
Dimensions: 1.06" Diameter
Standards: UL/CSA Listed
Applications: Motor Branch Circuits, Transformer Protection, Power Distribution
