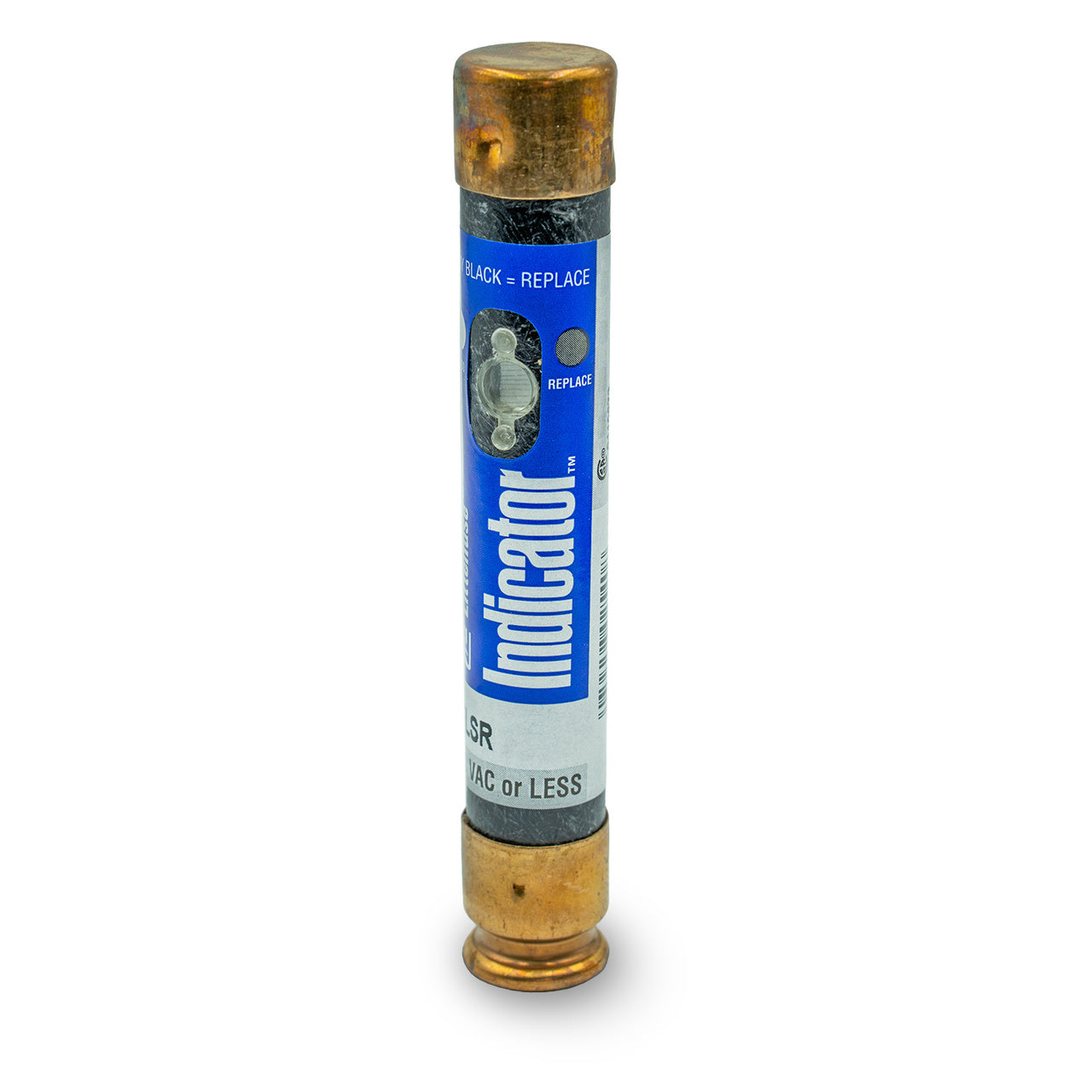

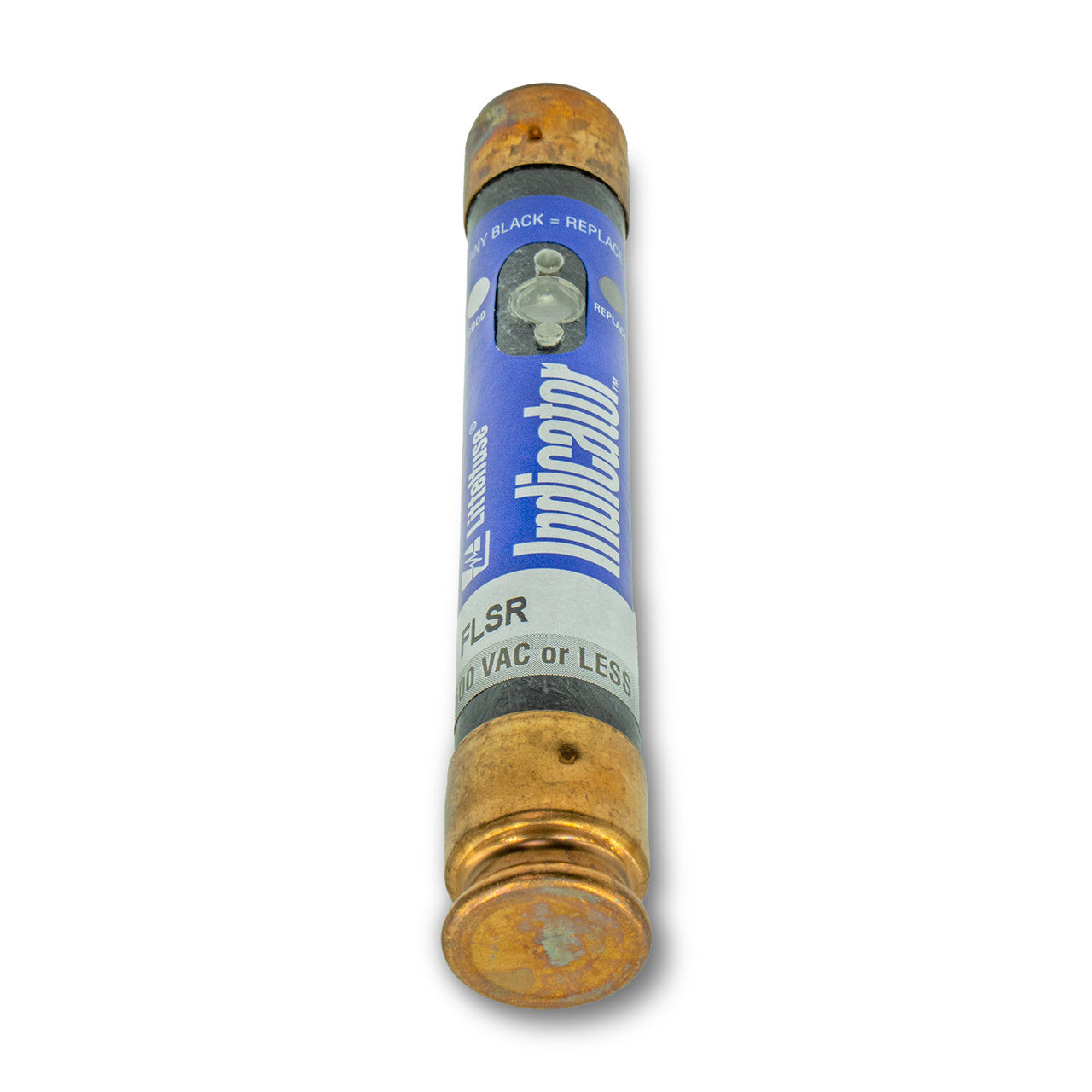

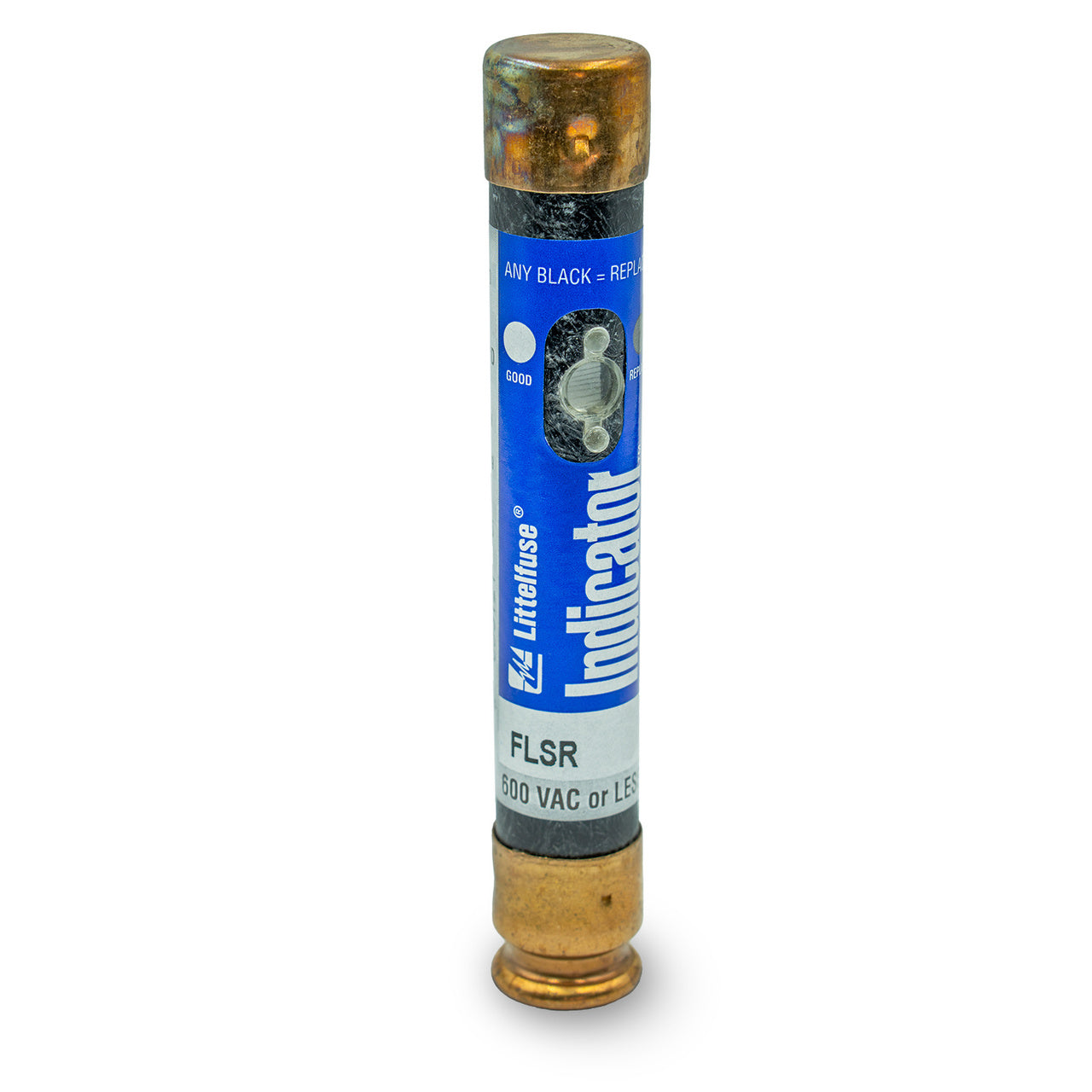

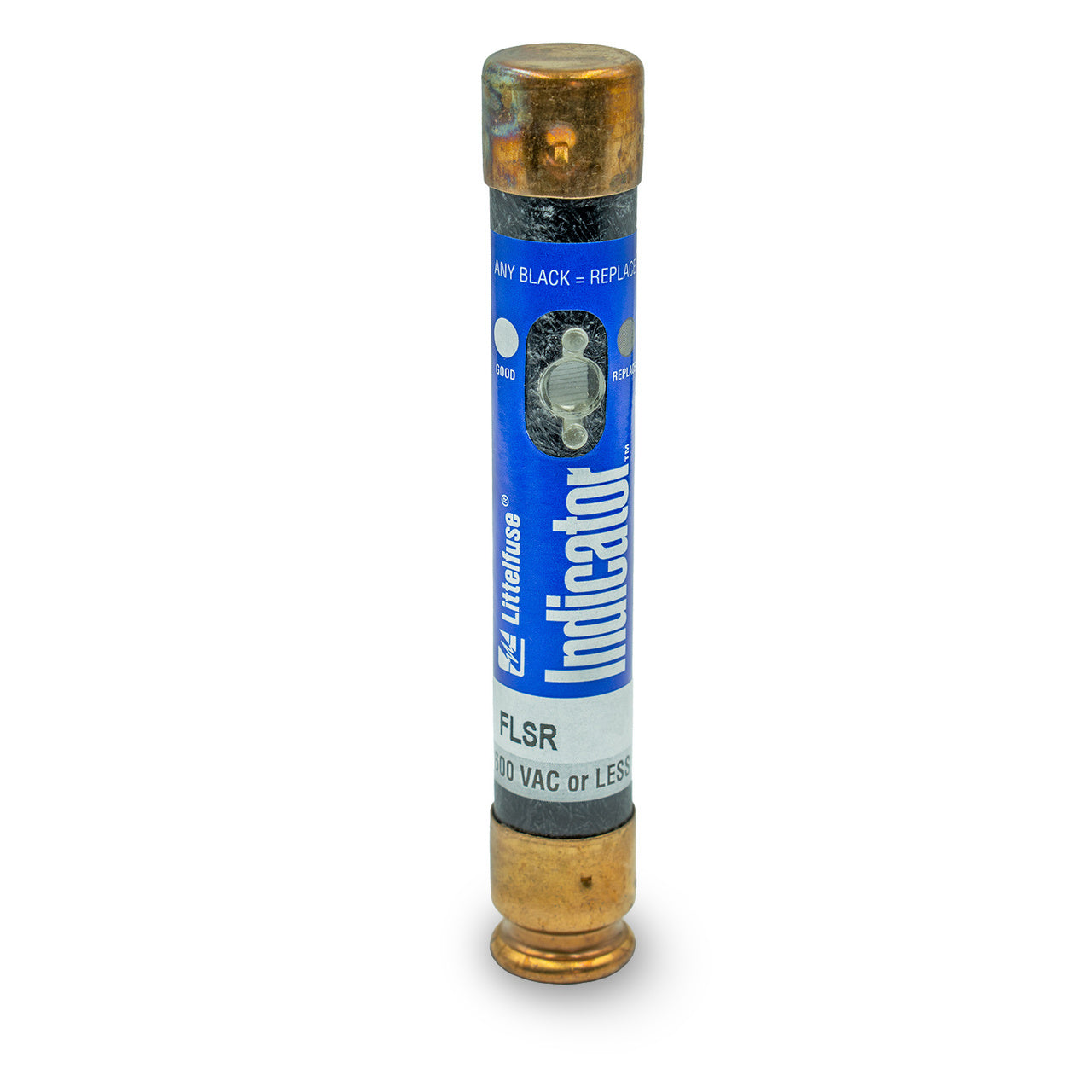

Littelfuse FLSR-015ID - RK5 Time-Delay Fuse 15A 600V

Price
Regular price $9.85
Regular price $50.20 Sale price $9.85
Save $40.35
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Littelfuse FLSR-015ID is a low-voltage current-limiting fuse designed for branch circuit protection in industrial power distribution systems. It features a 600V AC rating and a 15A current rating to safeguard against overcurrents and short circuits. The fuse is constructed with a single-barrel, ferrule-connected design, has a diameter of 0.81 inches, and carries an RK5 class rating for time-delay performance. It complies with industry standards for high interrupting capacity, rated for 200kA at 600V. Typical applications include the protection of motor circuits, transformers, and other electrical equipment where reliable, time-delay overcurrent protection is required.

Key Features & Specifications
  • Type: Powr-Gard FLSR_ID, RK5 Class, Time-Delay, Current-Limiting, Low-Voltage Fuse
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 0.81 in Diameter (Ferrule Connection)
  • Standards: UL Listed; 200kA Interrupting Rating (AIC) at 600V
  • Applications: Motor Branch Circuits, Transformer Protection, Industrial Power Distribution
  • Connection: Ferrule
  • Barrels: 1
  • AIC rating: 200kA @ 600V
  • Class Rating: RK5
  • Weight: 0.2 lb


Product Identification
  • UPC: 07945802536
  • GTIN: 00079458025361
