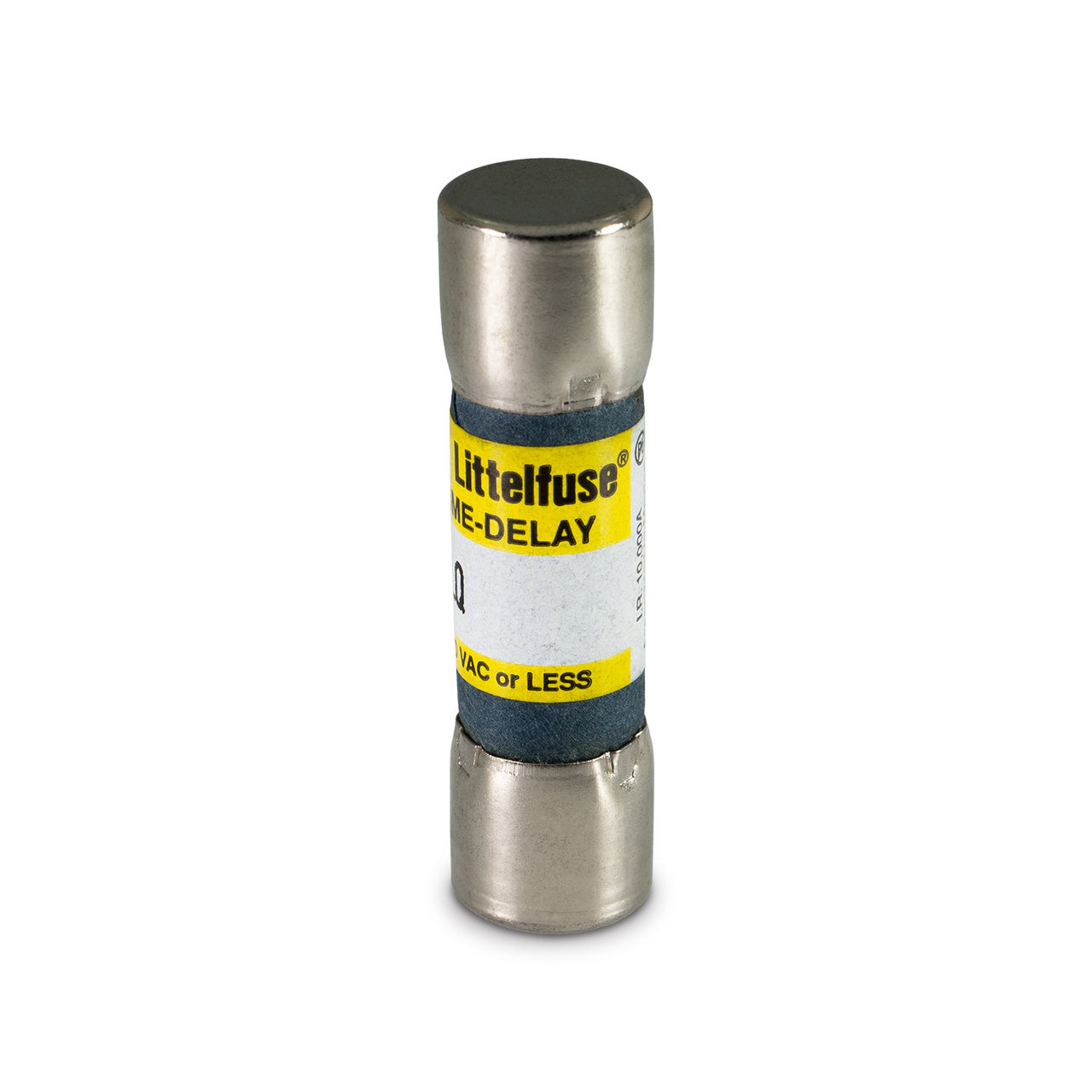

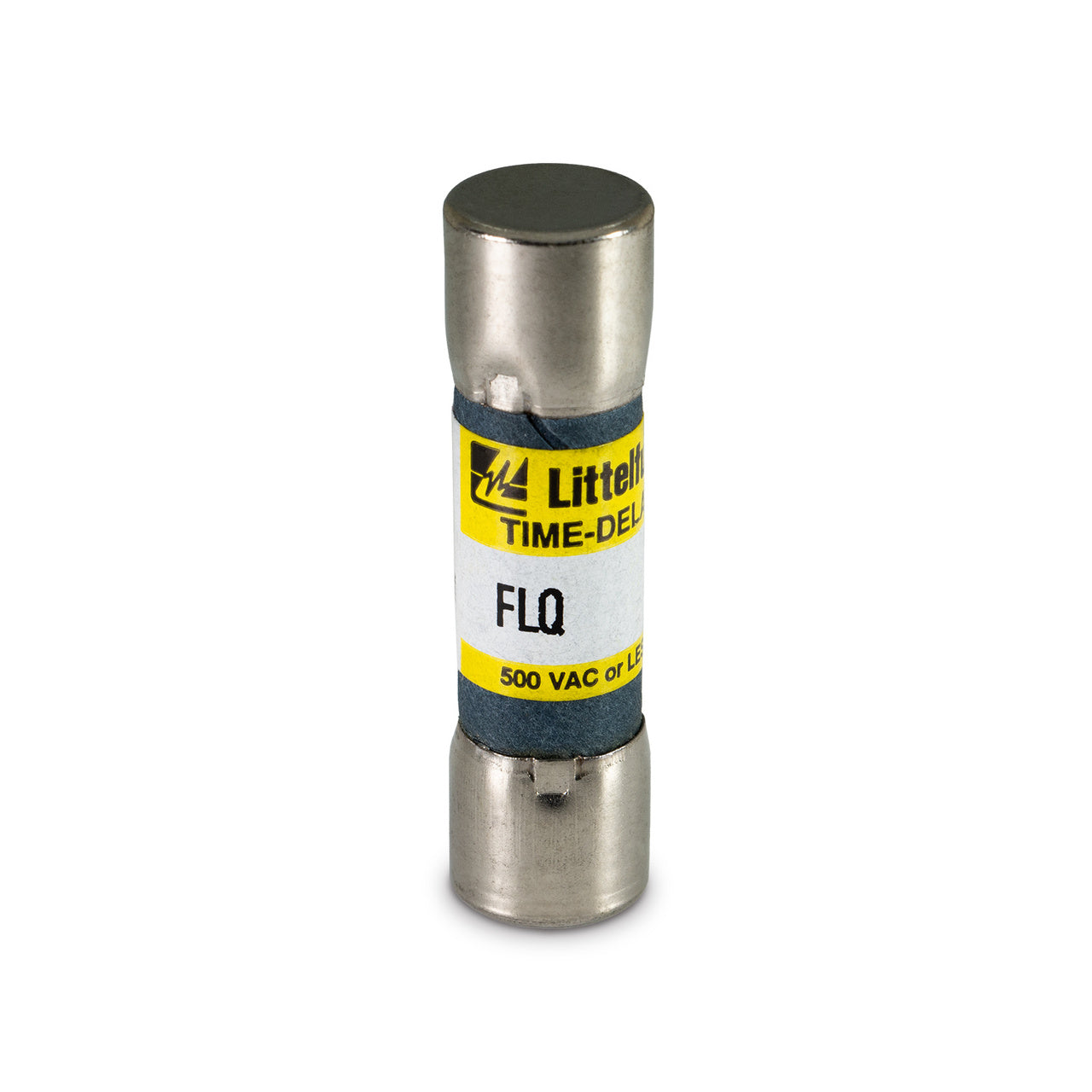

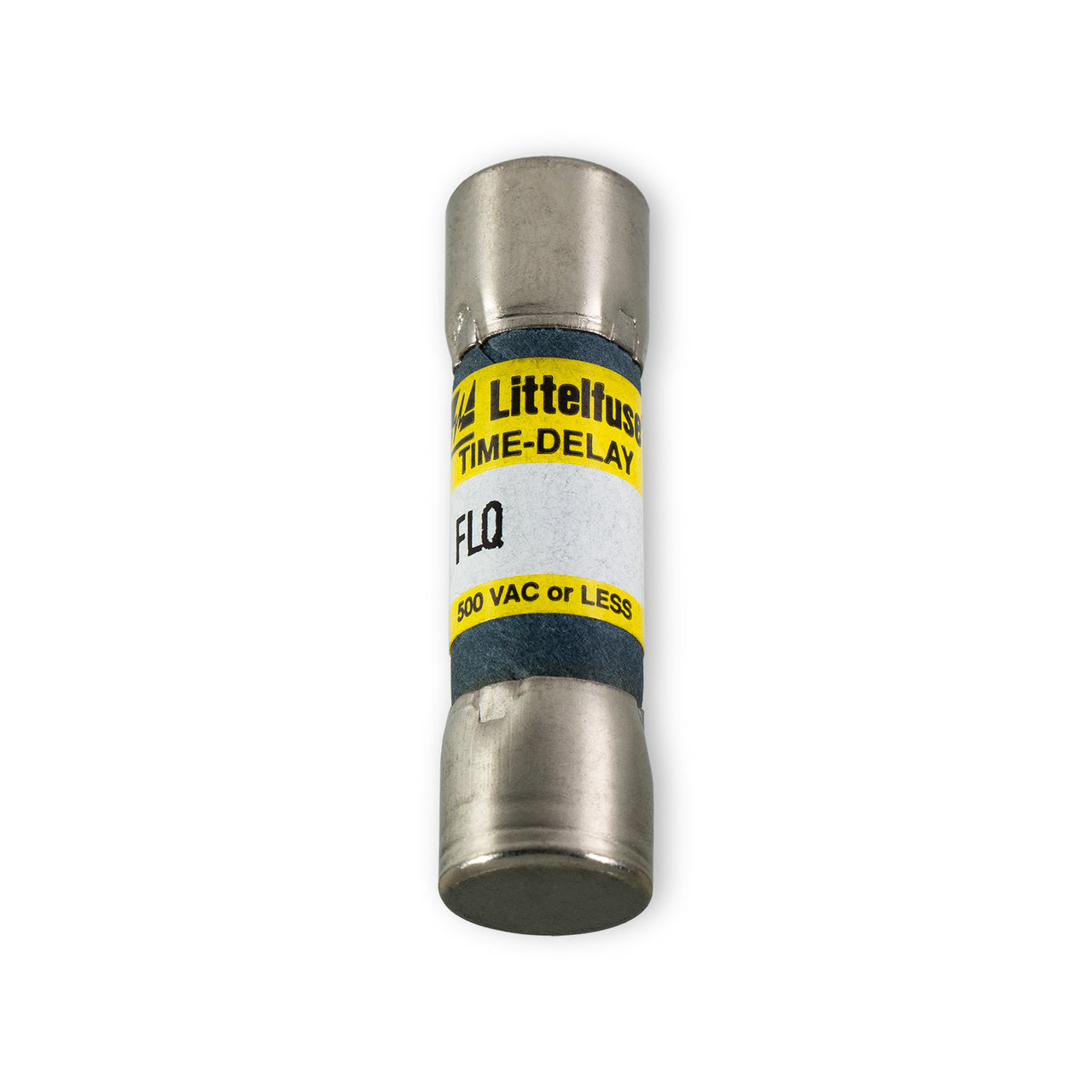

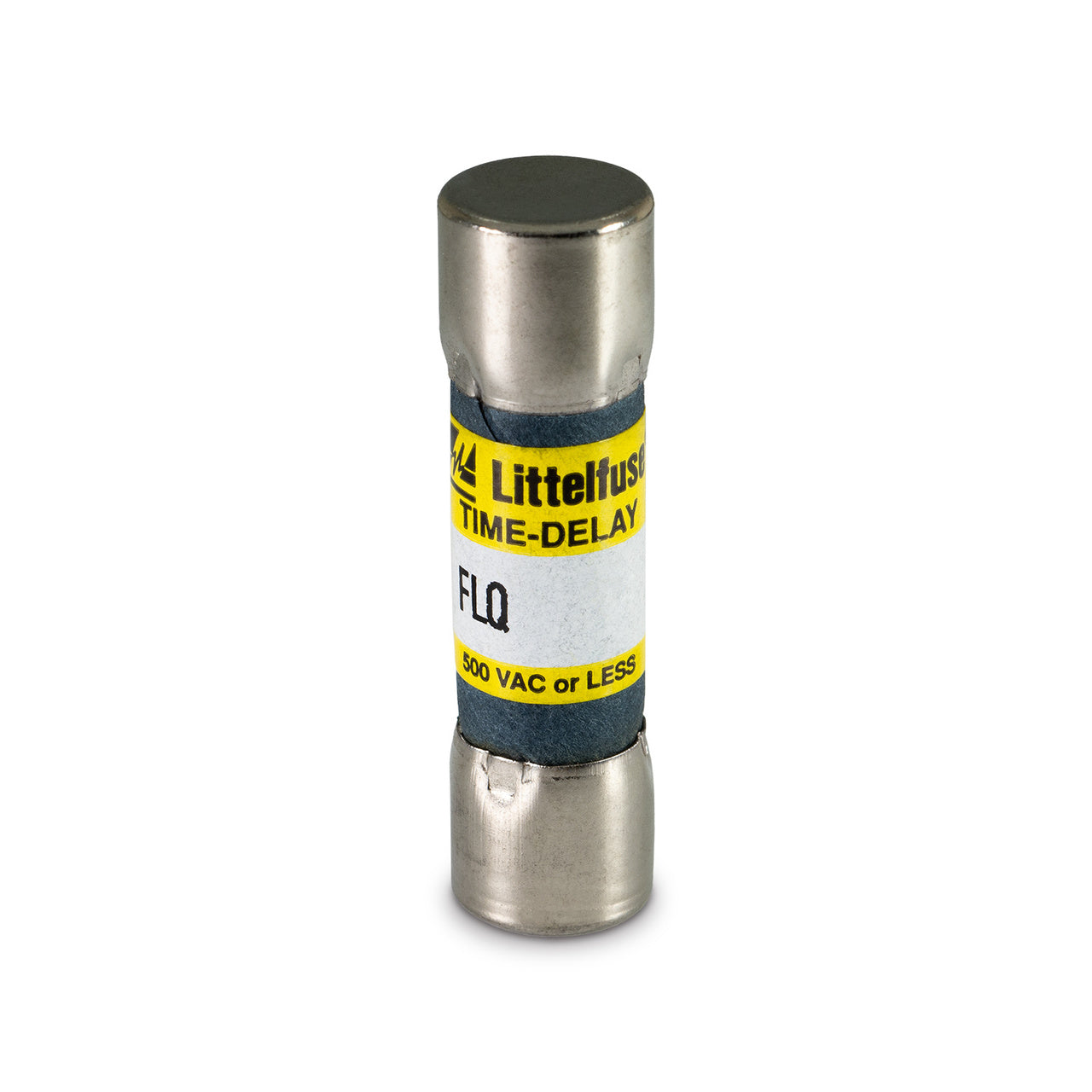

Littelfuse FLQ002 - Time-Delay Midget Fuse 2A 500V (10kA AIC)

Littelfuse FLQ002 is a time-delay midget fuse designed for circuit protection in low-voltage applications. It features a 500V AC/DC voltage rating and 2A current rating with a 10kA interrupting capacity at 500V for reliable overcurrent protection. The compact 1-1/2 inch ferrule-style fuse has a 0.41-inch diameter and 6.9 lb weight, constructed with time-delay characteristics for inrush current tolerance. UL Listed, CSA Certified, and RoHS compliant, this fuse meets stringent industry standards for electrical safety. Typical applications include industrial control panels, transformers, and motor circuits requiring durable protection.

Key Features & Specifications

• Type: Time-delay midget fuse with ferrule non-rejection connection
• Voltage Rating: 500V AC/DC
• Current Rating: 2A
• Dimensions: 1-1/2 in length, 0.41 in diameter
• Standards: UL Listed, CSA Certified, RoHS compliant
• Applications: Industrial controls, transformers, motor circuits
• Class Rating: Midget
• Connection: Ferrule Non-Rejection
• Barrels: 1
• Velocity: TD - Time Delay
• AIC rating: 10kA@500V
• Weight: 6.9 lb

Product Identification

• UPC: 079458160413
• GTIN: 00079458160413
