Littelfuse FLNR600ID - RK5 Time-Delay Fuse 600A/250V (200kA AIC)
FLNR600ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 600A Fuse - Essential Electric Supply
FLNR600ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 600A Fuse - Essential Electric Supply
FLNR600ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 600A Fuse - Essential Electric Supply
FLNR600ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 600A Fuse - Essential Electric Supply
FLNR600ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 600A Fuse - Essential Electric Supply
FLNR600ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 600A Fuse - Essential Electric Supply
Littelfuse FLNR600ID - RK5 Time-Delay Fuse 600A/250V (200kA AIC)

Littelfuse FLNR600ID - RK5 Time-Delay Fuse 600A/250V (200kA AIC)

Littelfuse
Price
Save $154.25
/
Title
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price

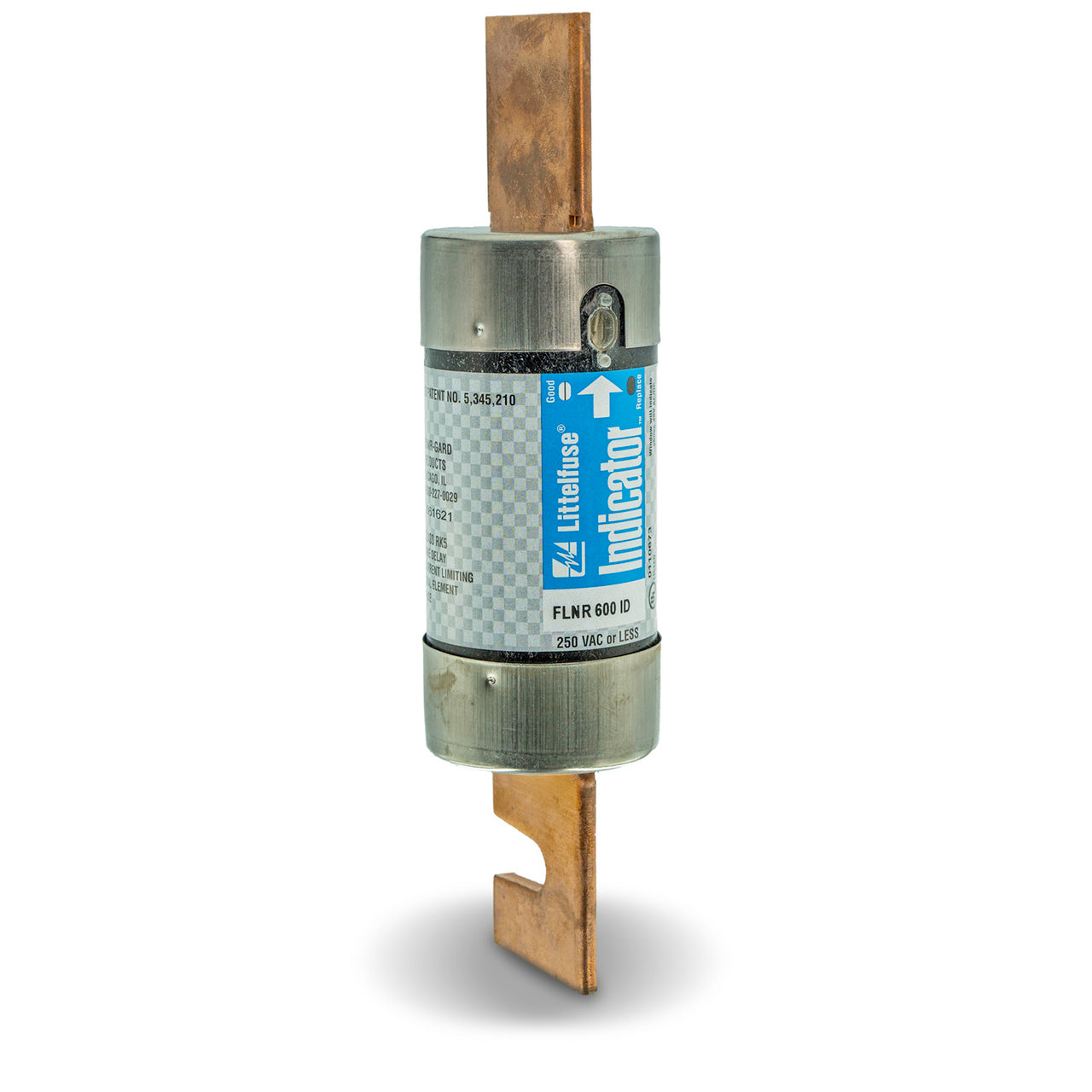

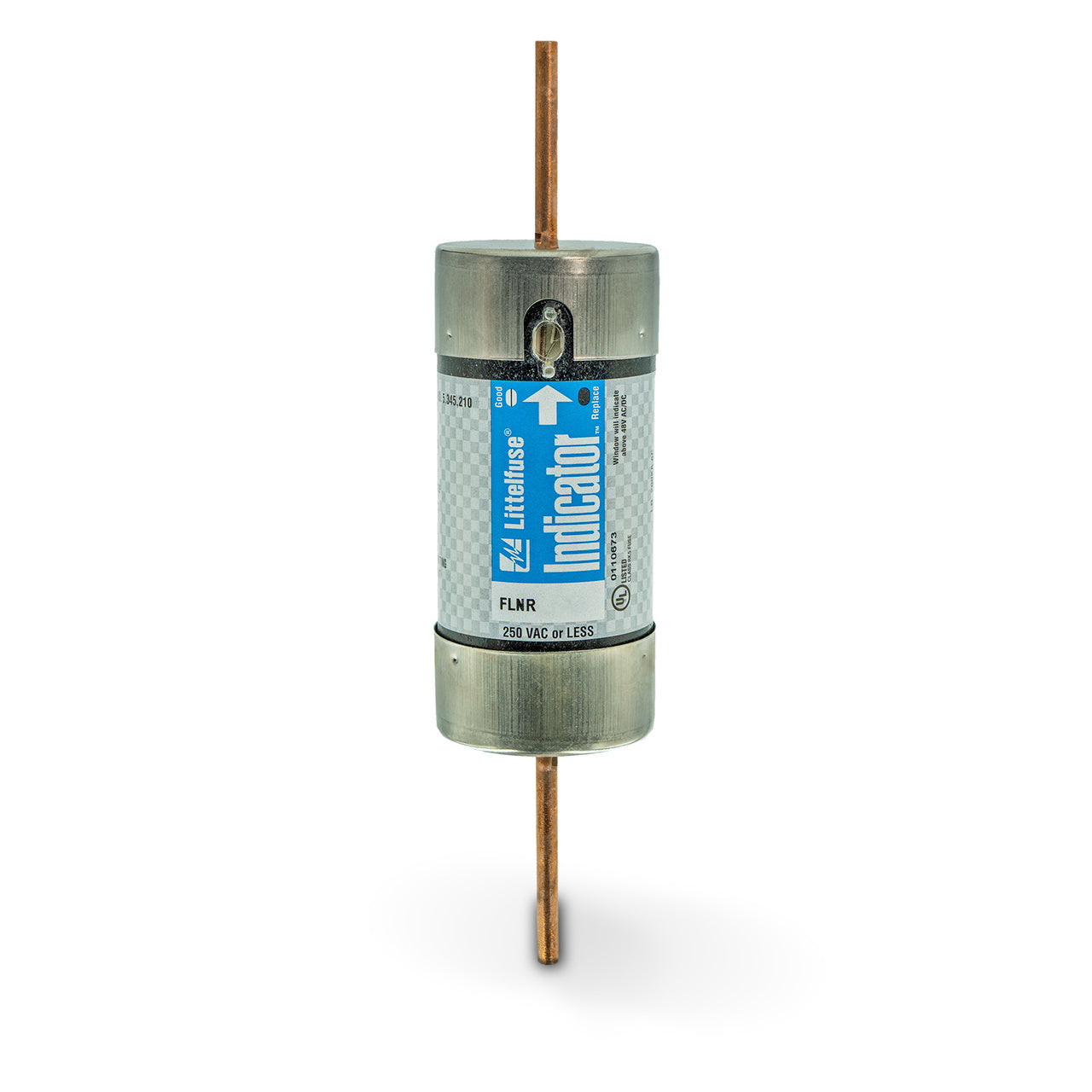

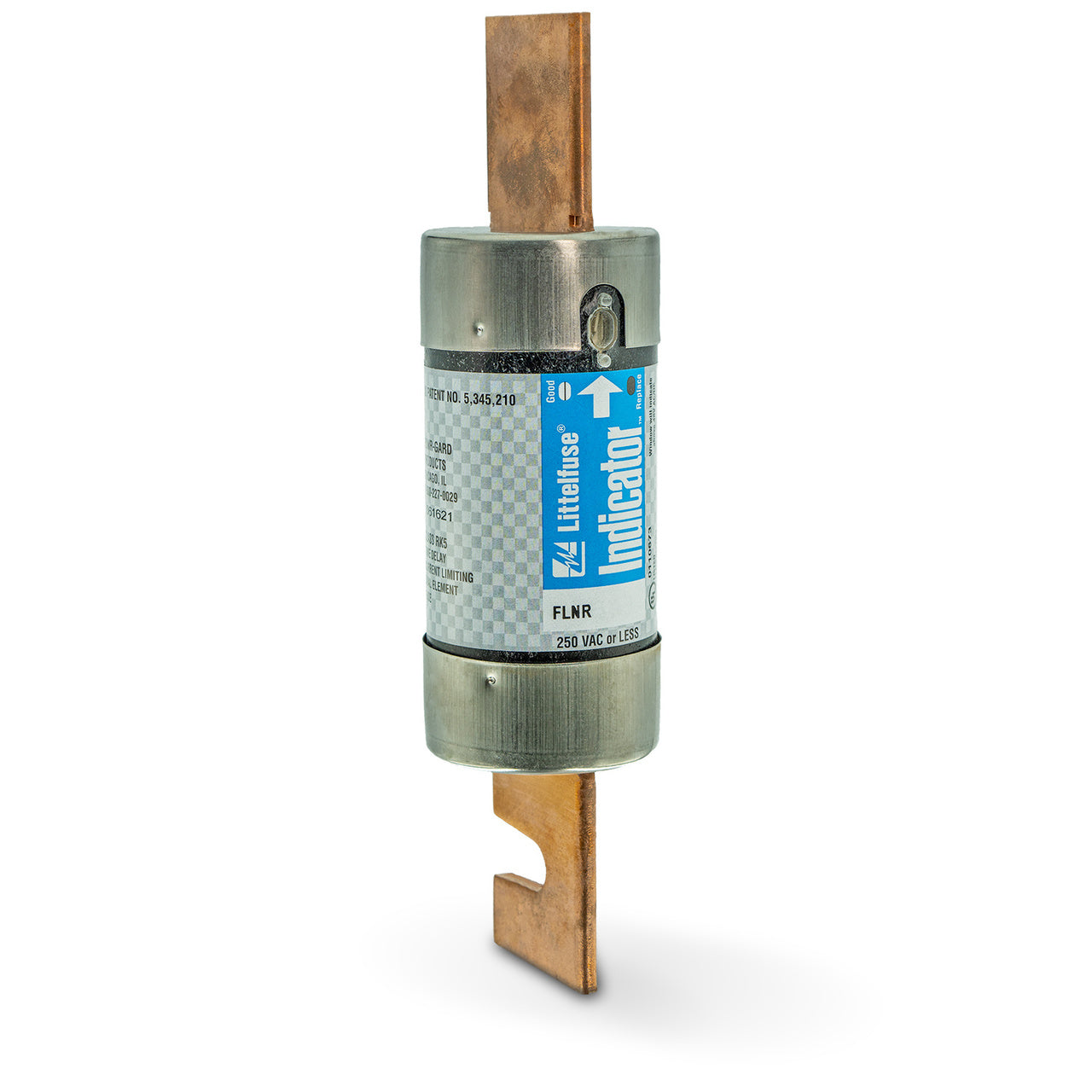

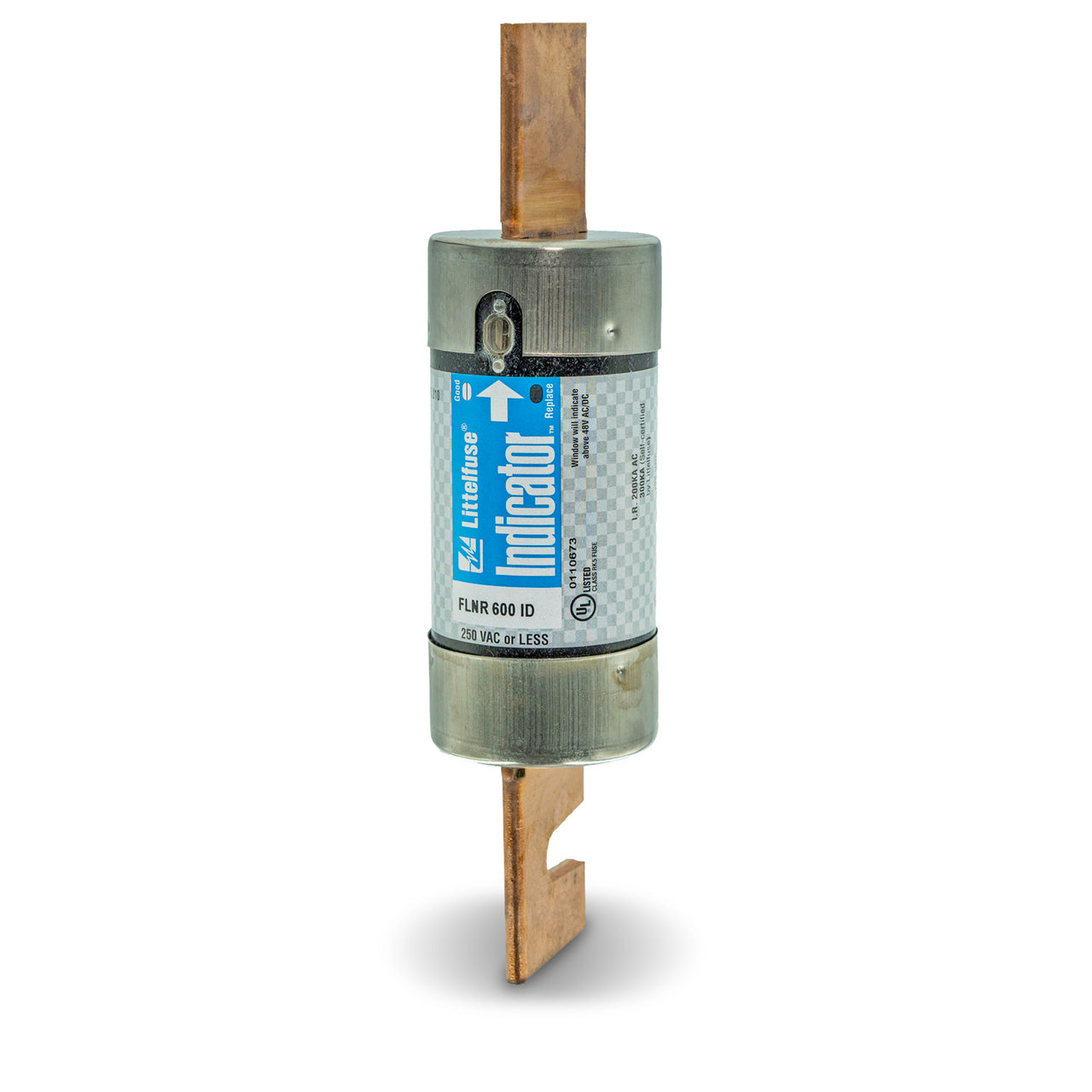

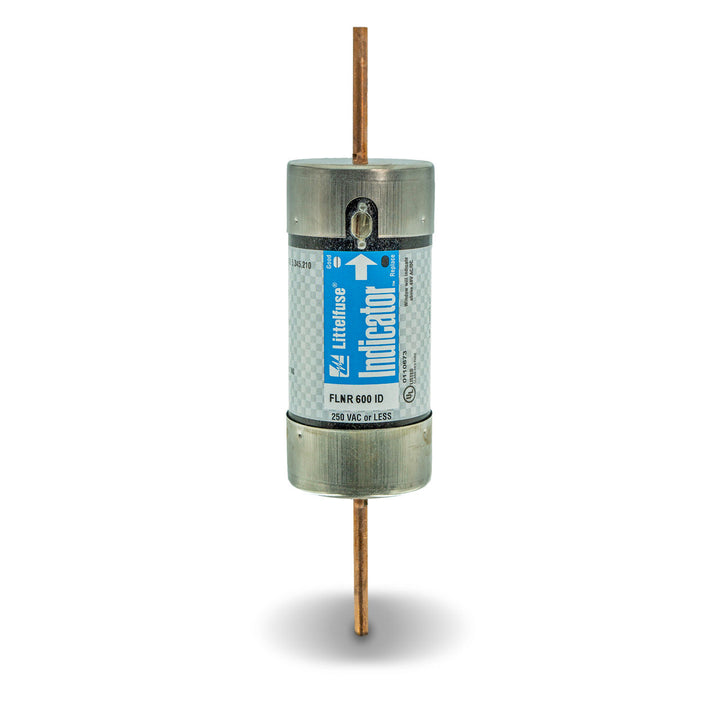

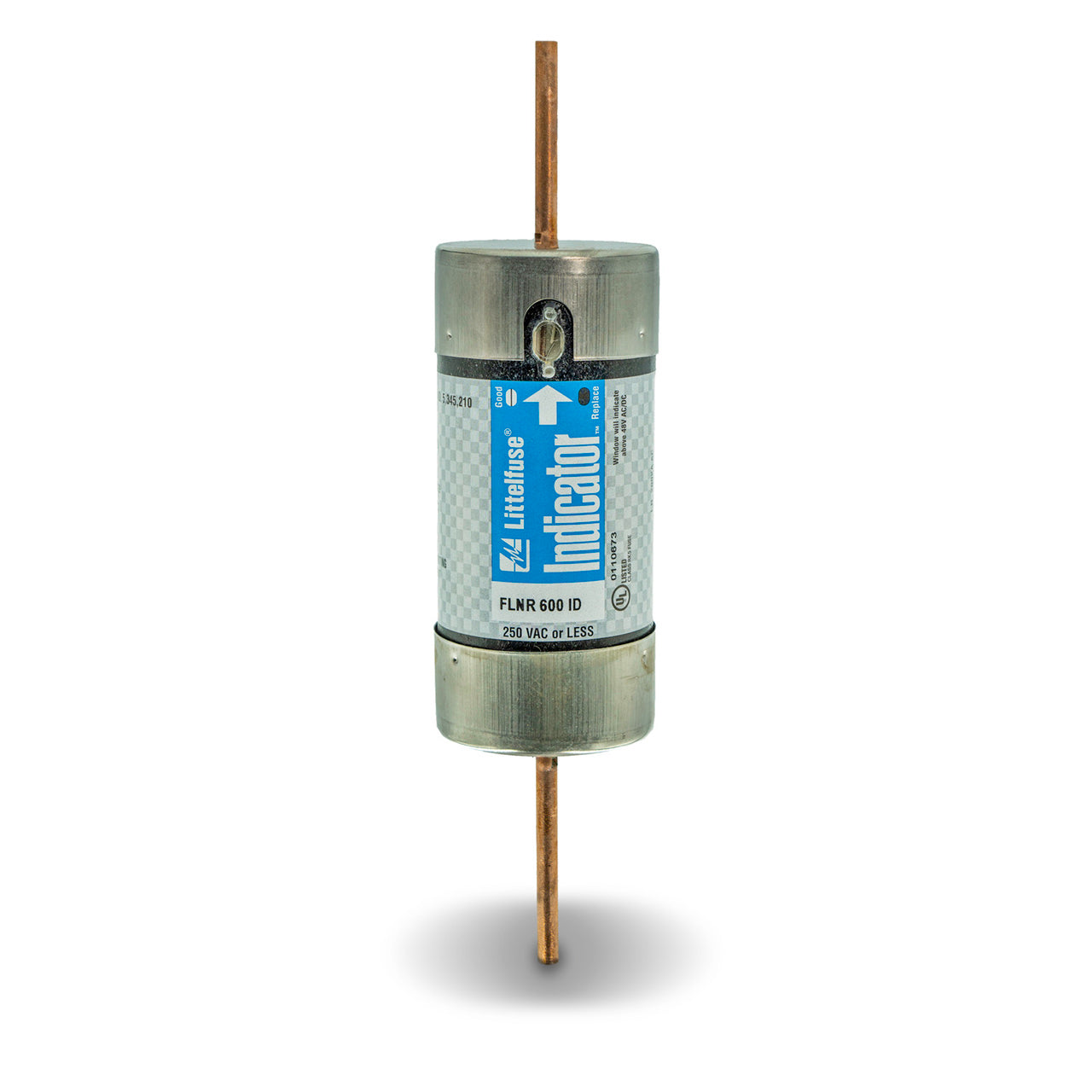

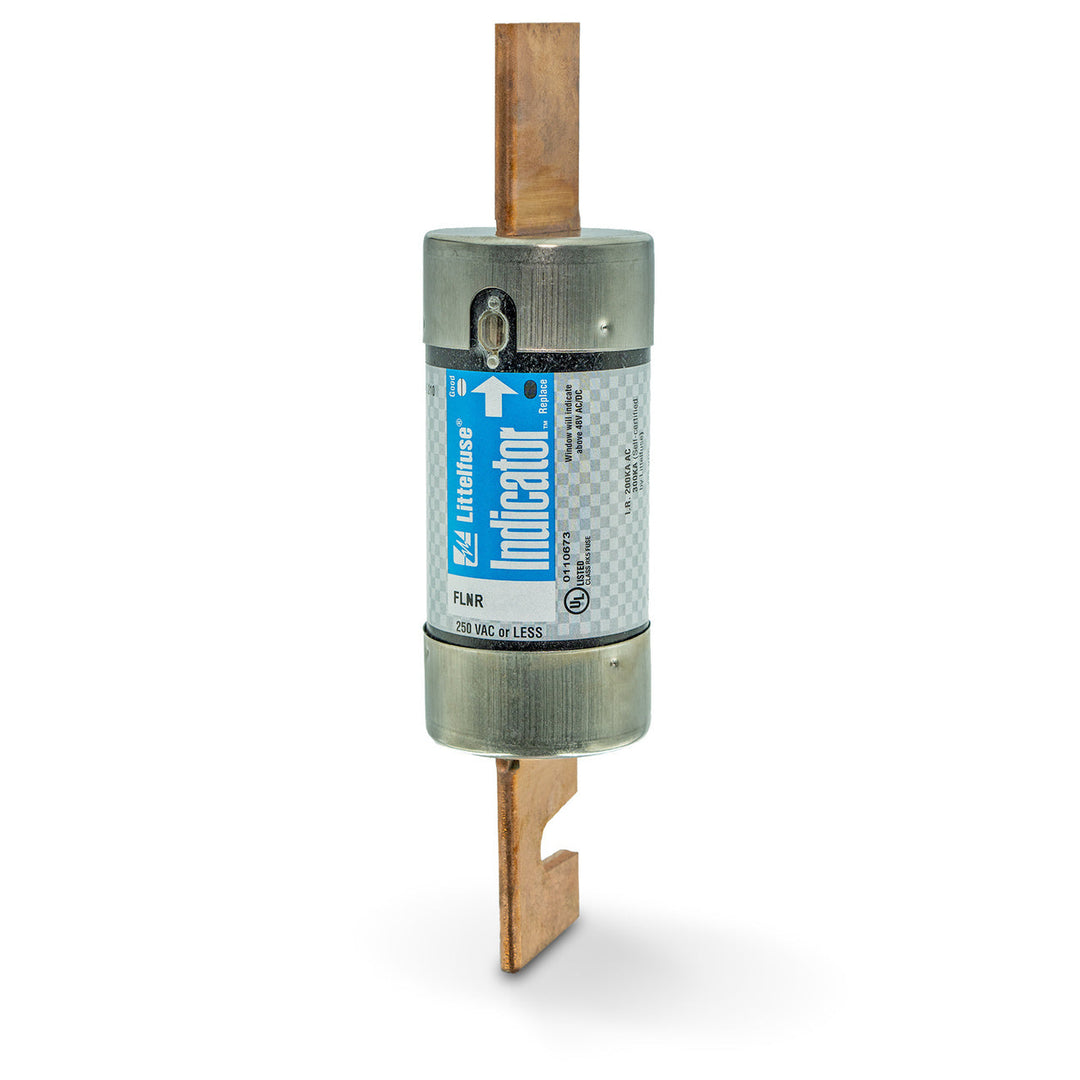

Littelfuse FLNR600ID is a UL Class RK5 dual-element time-delay fuse with visual indication, designed for overcurrent protection in low-voltage industrial circuits. Rated for 600A at 250V AC with a 200kA interrupting capacity, it features a rejection blade connection and time-delay (TD) operation for motor circuit protection. The fuse measures 10 3/8" in length with a 2.59" diameter and 2 lb weight, constructed with CSA/cUL/UL-certified components for reliable performance. Compliant with UL 248-5 standards, it's commonly used in motor control centers, industrial panels, and power distribution systems requiring high fault current protection.

Key Features & Specifications
  • Type: UL Class RK5 dual-element time-delay fuse with visual indication
  • Voltage Rating: 250V AC
  • Current Rating: 600A
  • Dimensions: 10 3/8" length x 2.59" diameter
  • Weight: 2 lb
  • Standards: CSA, cUL, UL 248-5
  • Applications: Motor control centers, industrial power distribution
  • Connection: Rejection blade
  • Barrels: 1
  • Velocity: Time-delay (TD)
  • AIC rating: 200kA@250V
  • Class Rating: RK5
  • Certification: CSA, cUL, UL


Product Identification
  • UPC: 079458024012
  • GTIN: 00079458024012
