Littelfuse FLNR250ID - UL Class RK5 Dual-Element Time-Delay Fuse 250A (200kA AIC @250V)

Littelfuse
Price
Save $138.79
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

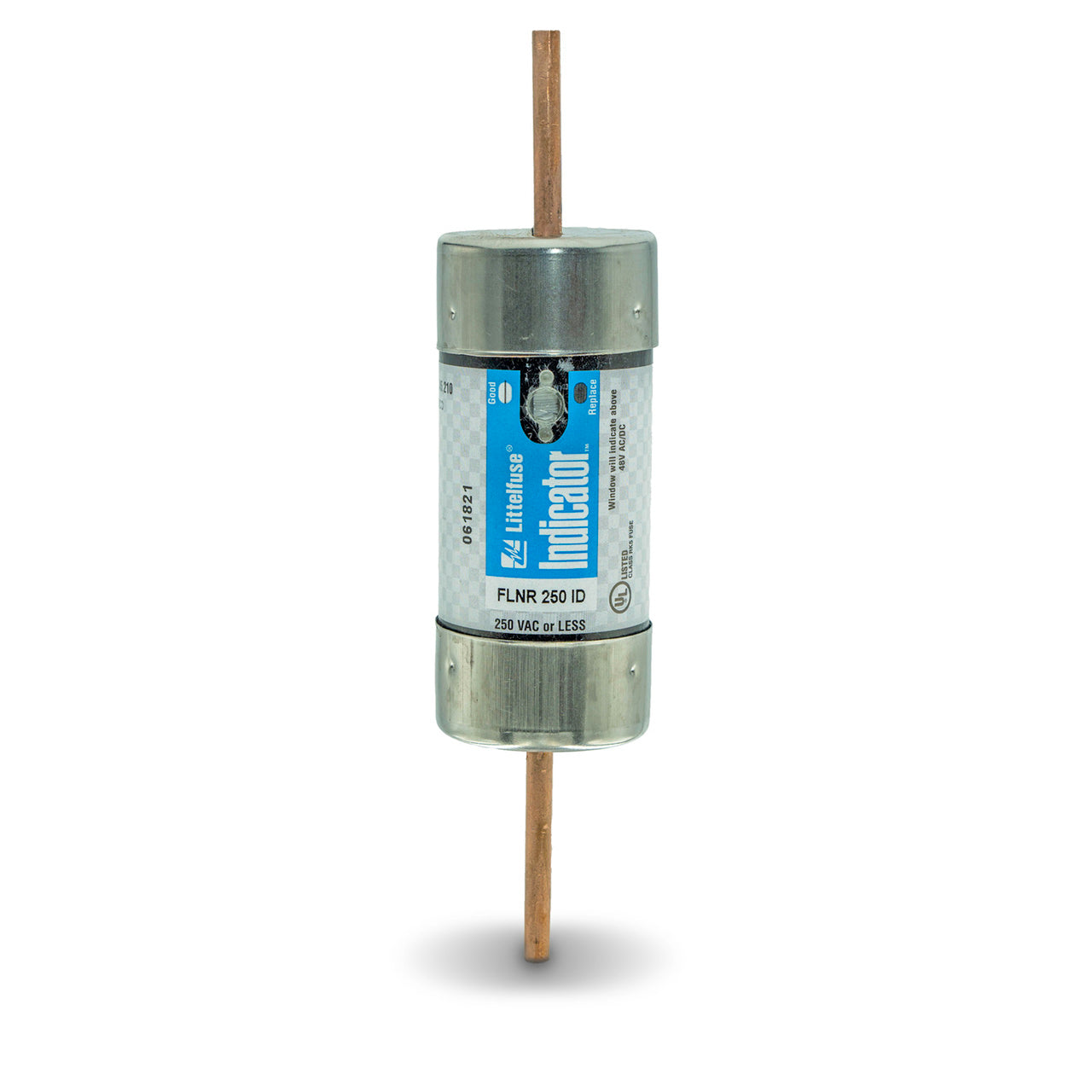

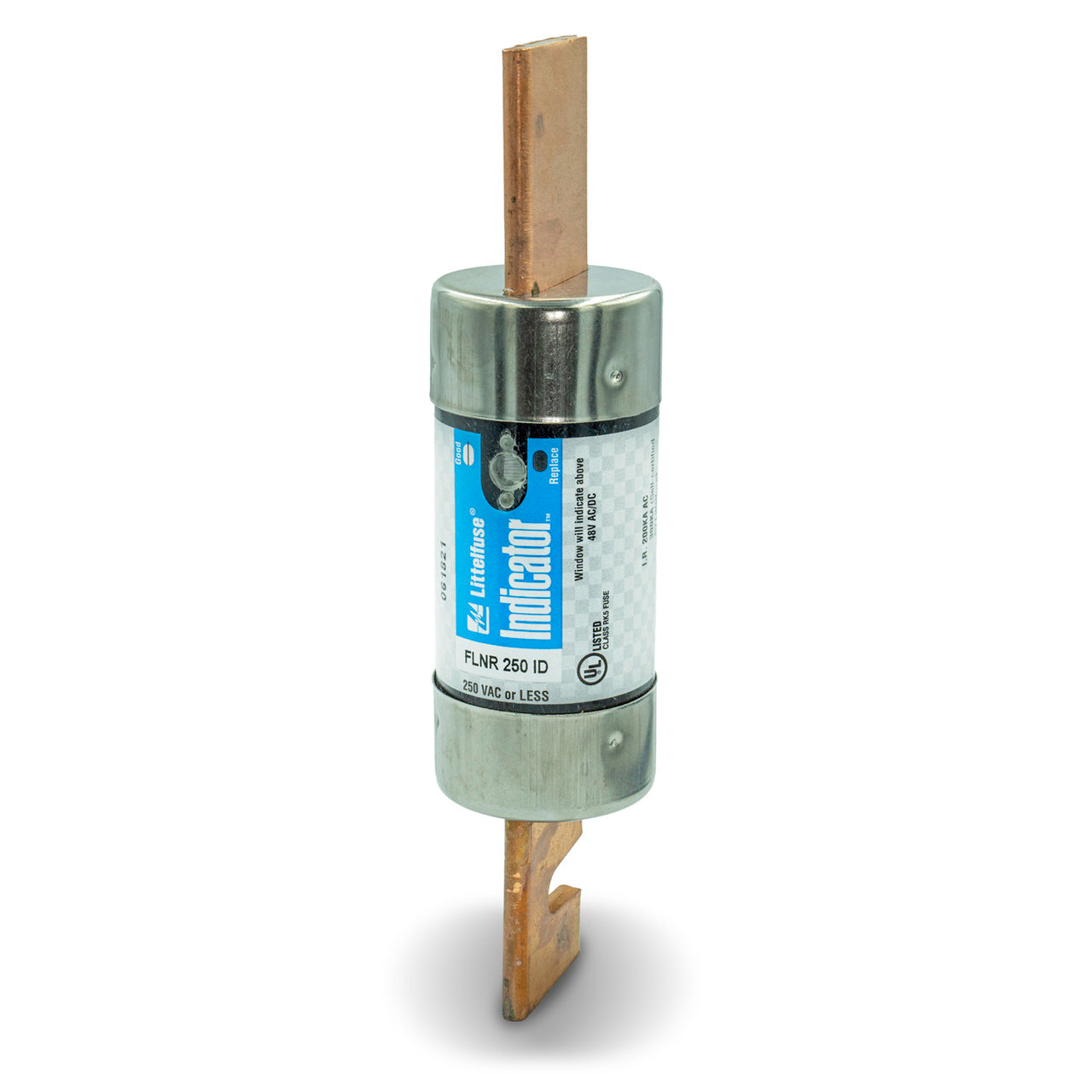

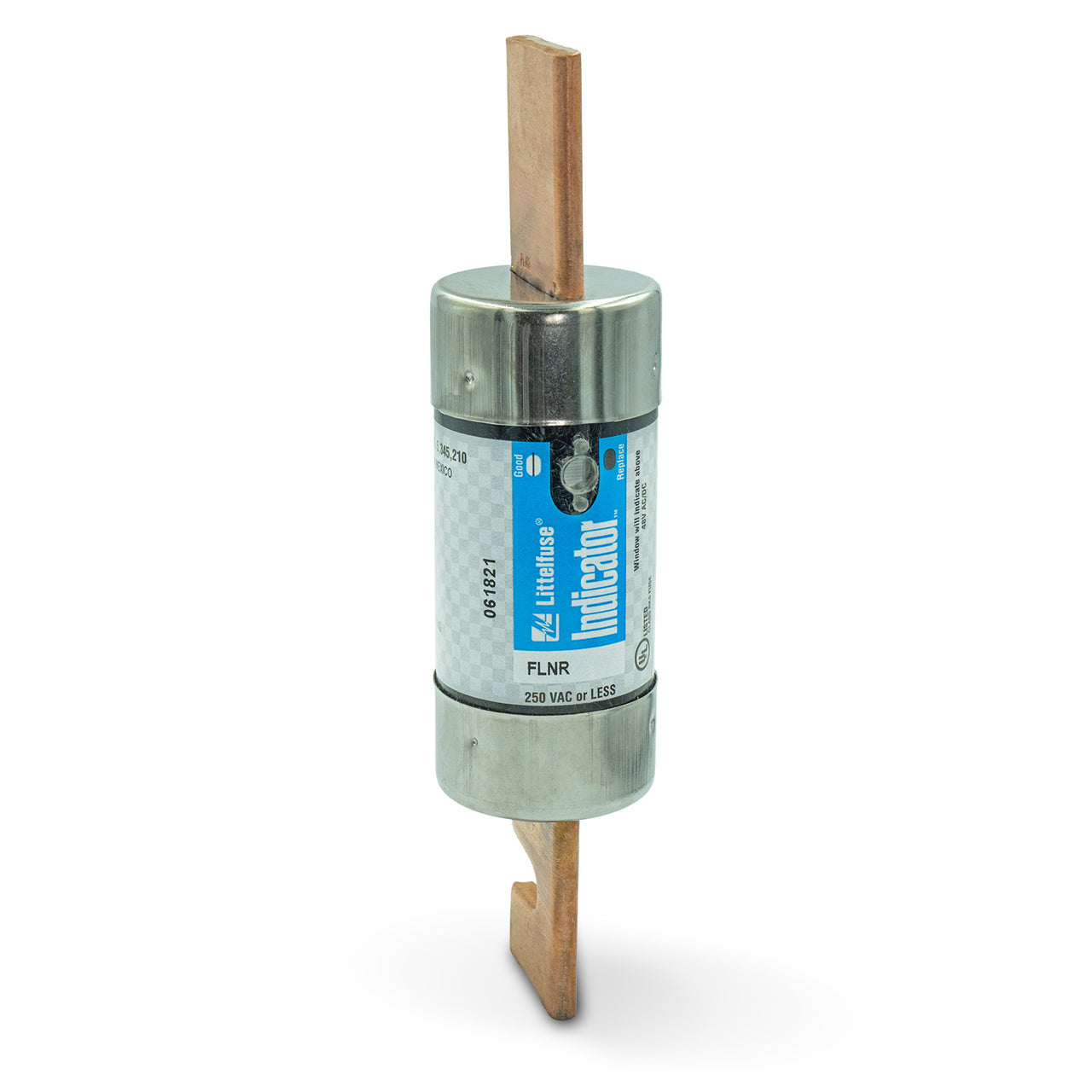

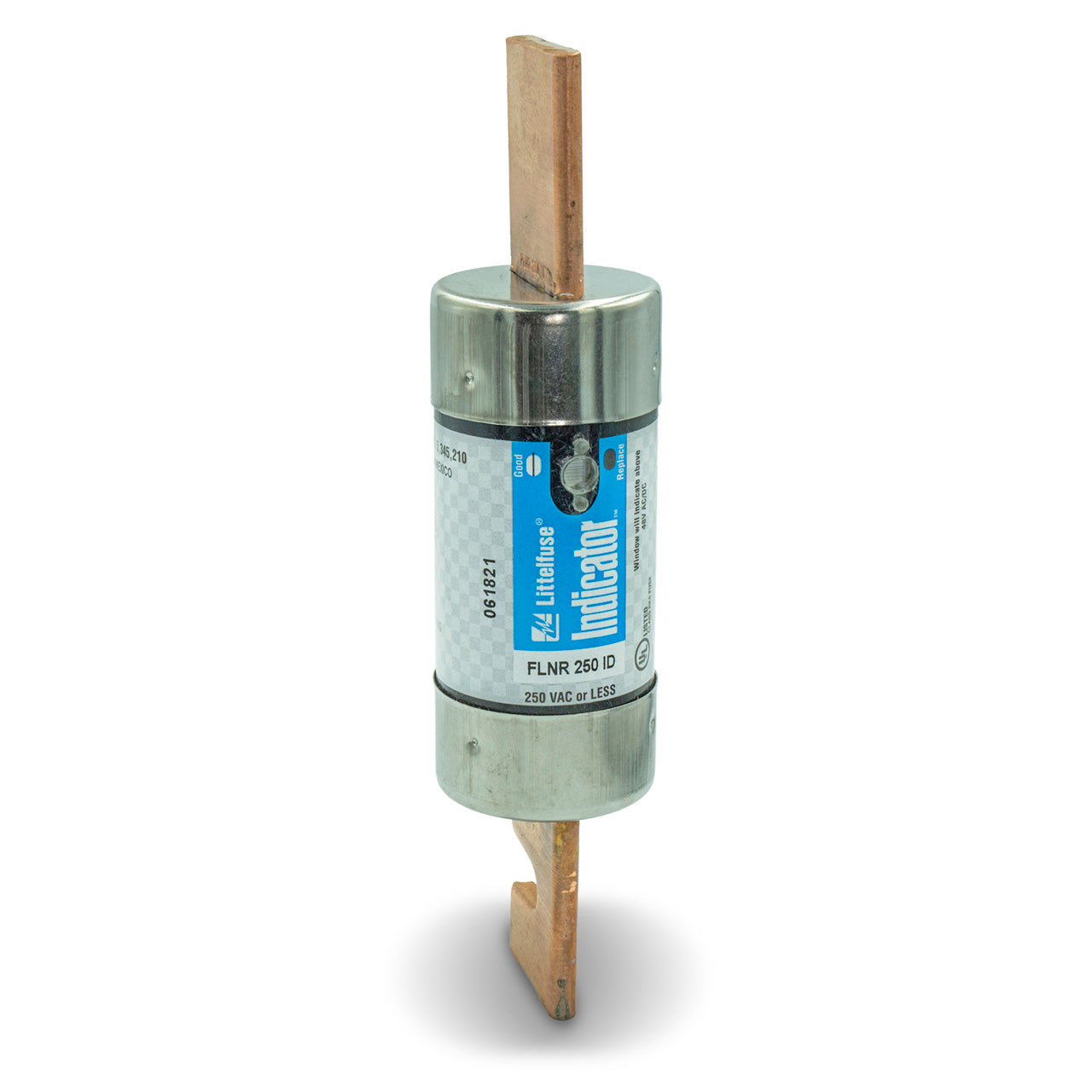

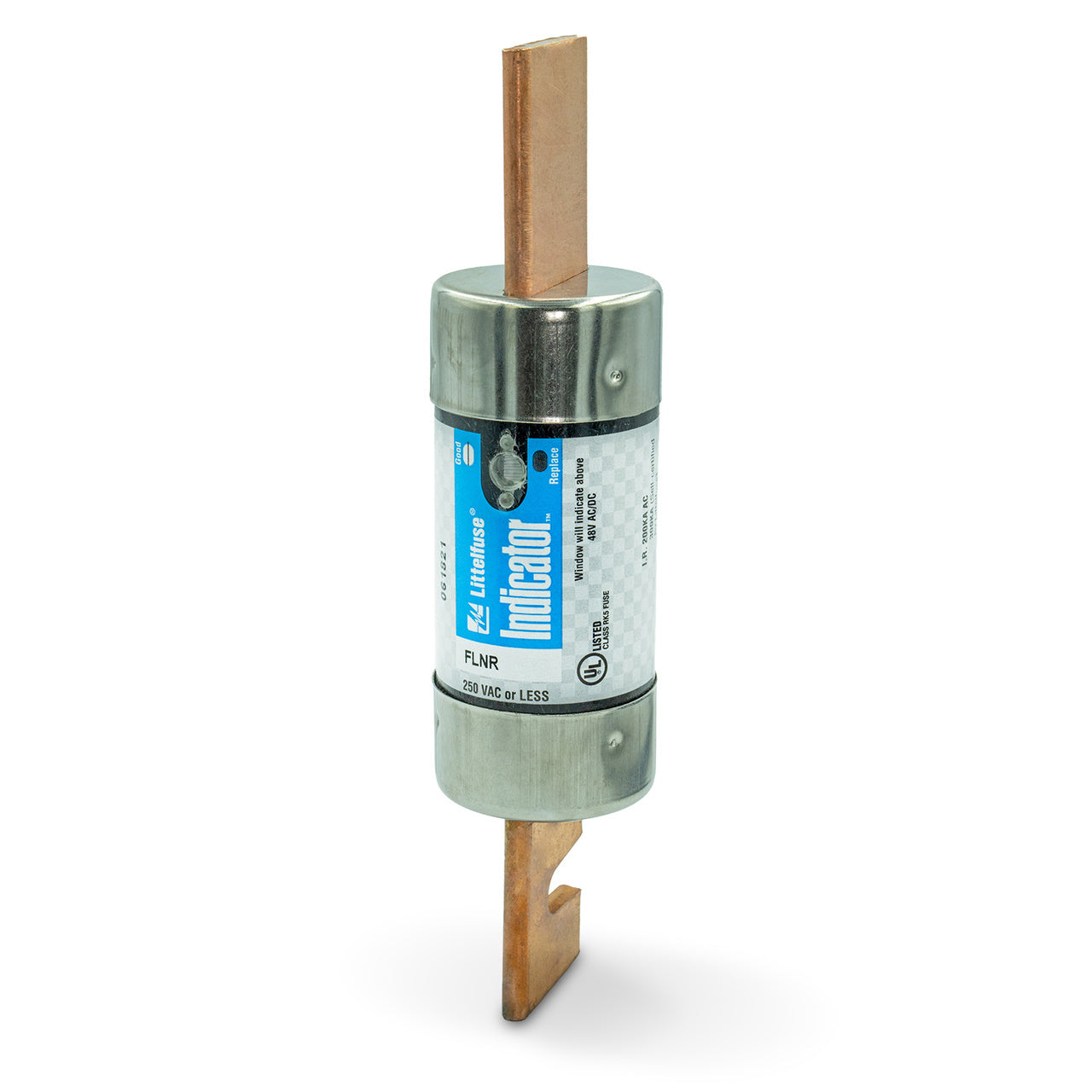

Littelfuse FLNR250ID is a UL Class RK5 dual-element time-delay fuse designed for industrial circuit protection with visual indication. Rated for 250V AC/DC systems with a 250A current capacity, it features a 200kA interrupting rating at 250V for high-fault protection. The fuse measures 8 5/8" in length with a 2.09" diameter rejection blade construction, weighing 1 lb, and complies with CSA, cUL, and UL standards. Its time-delay characteristic and dual-element design make it suitable for motor circuits, transformers, and feeder protection where inrush currents are present.

Key Features & Specifications
  • Type: UL Class RK5 dual-element time-delay fuse with visual indication
  • Voltage Rating: 250V AC/DC
  • Current Rating: 250A
  • Dimensions: 8 5/8" length, 2.09" diameter
  • Standards: CSA, cUL, UL
  • Applications: Motor circuits, transformers, feeder protection
  • Class Rating: RK5
  • Connection: Rejection blade
  • Barrels: 1
  • Velocity: Time-delay (TD)
  • AIC Rating: 200kA @ 250V
  • Weight: 1 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 079458023954
  • GTIN: 00079458023954
