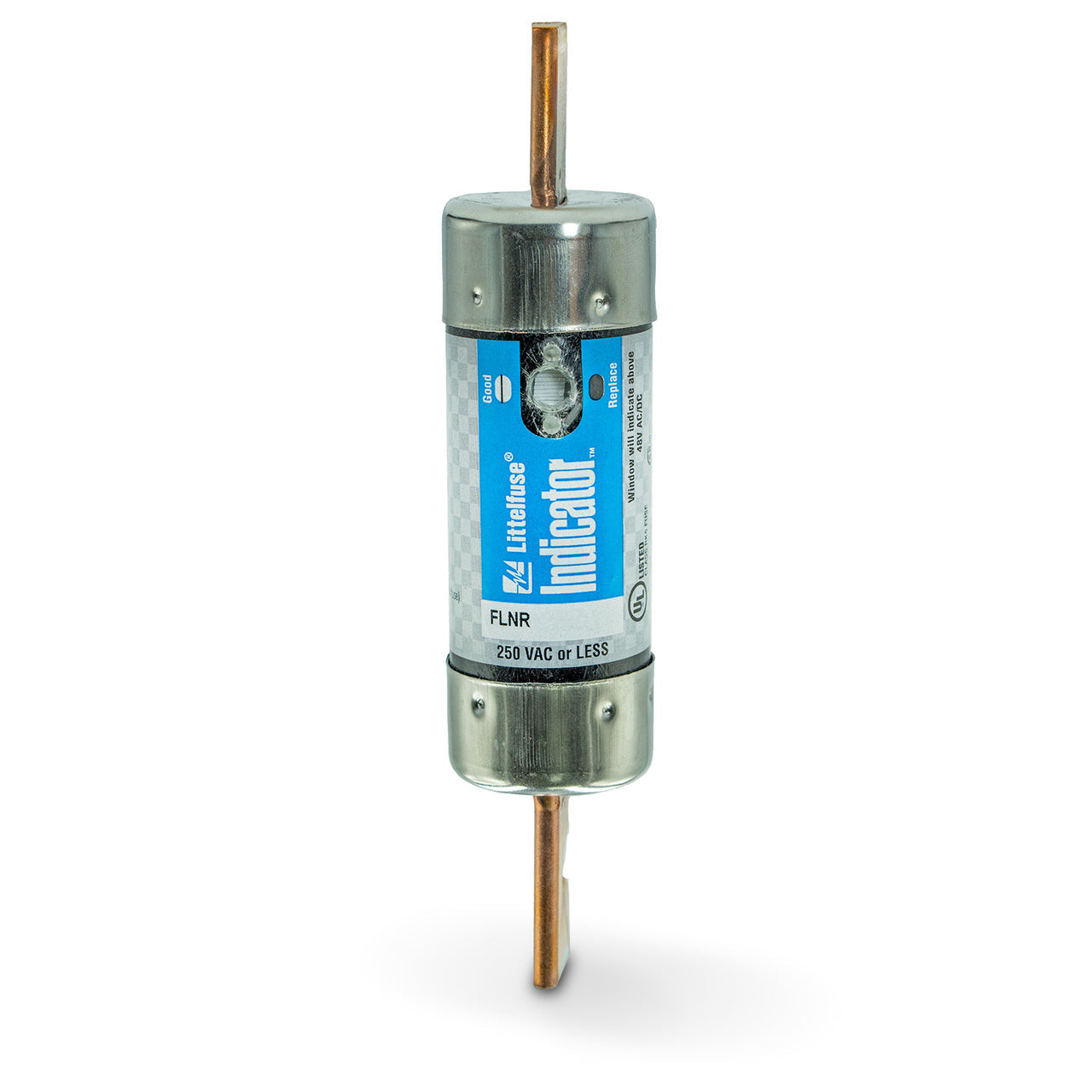

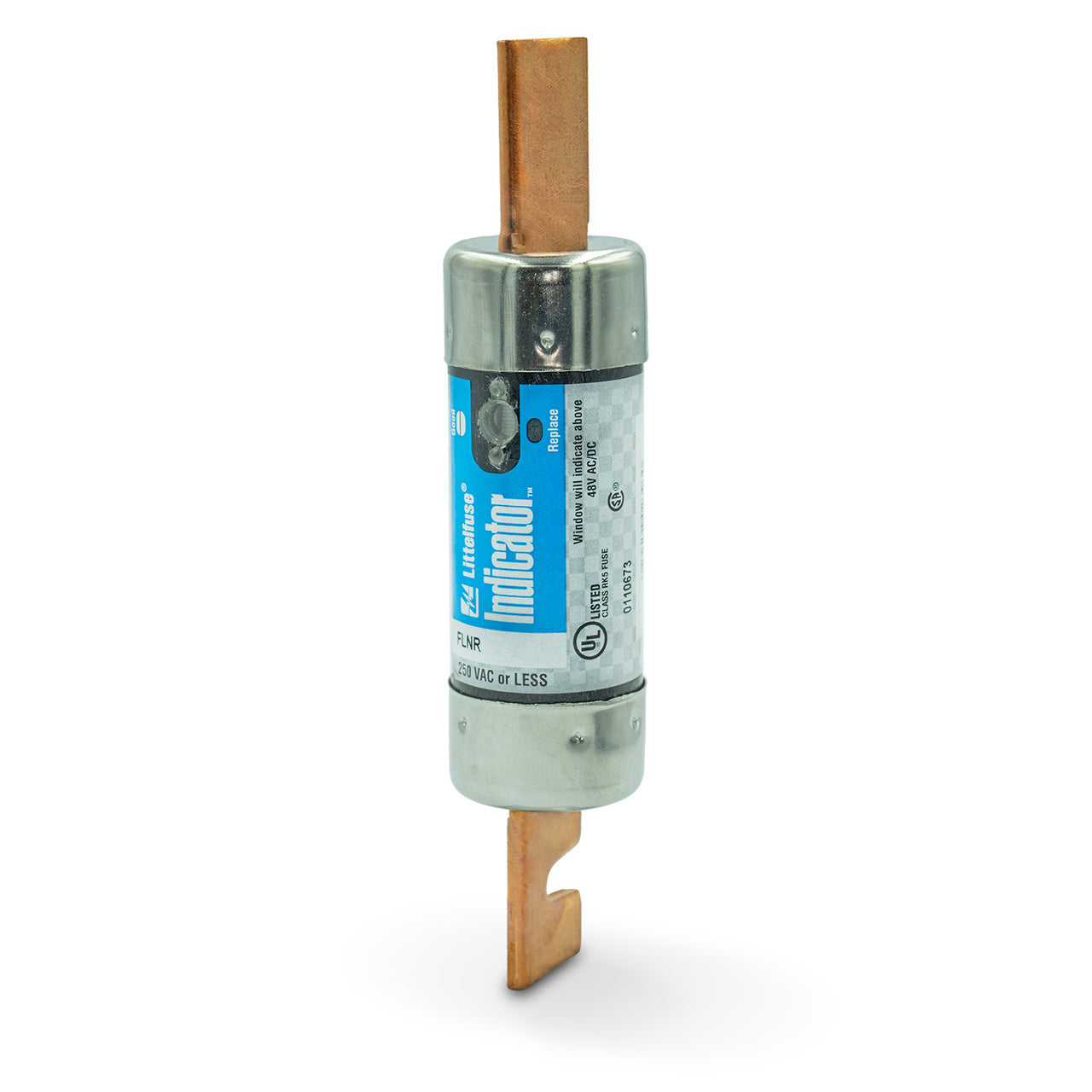

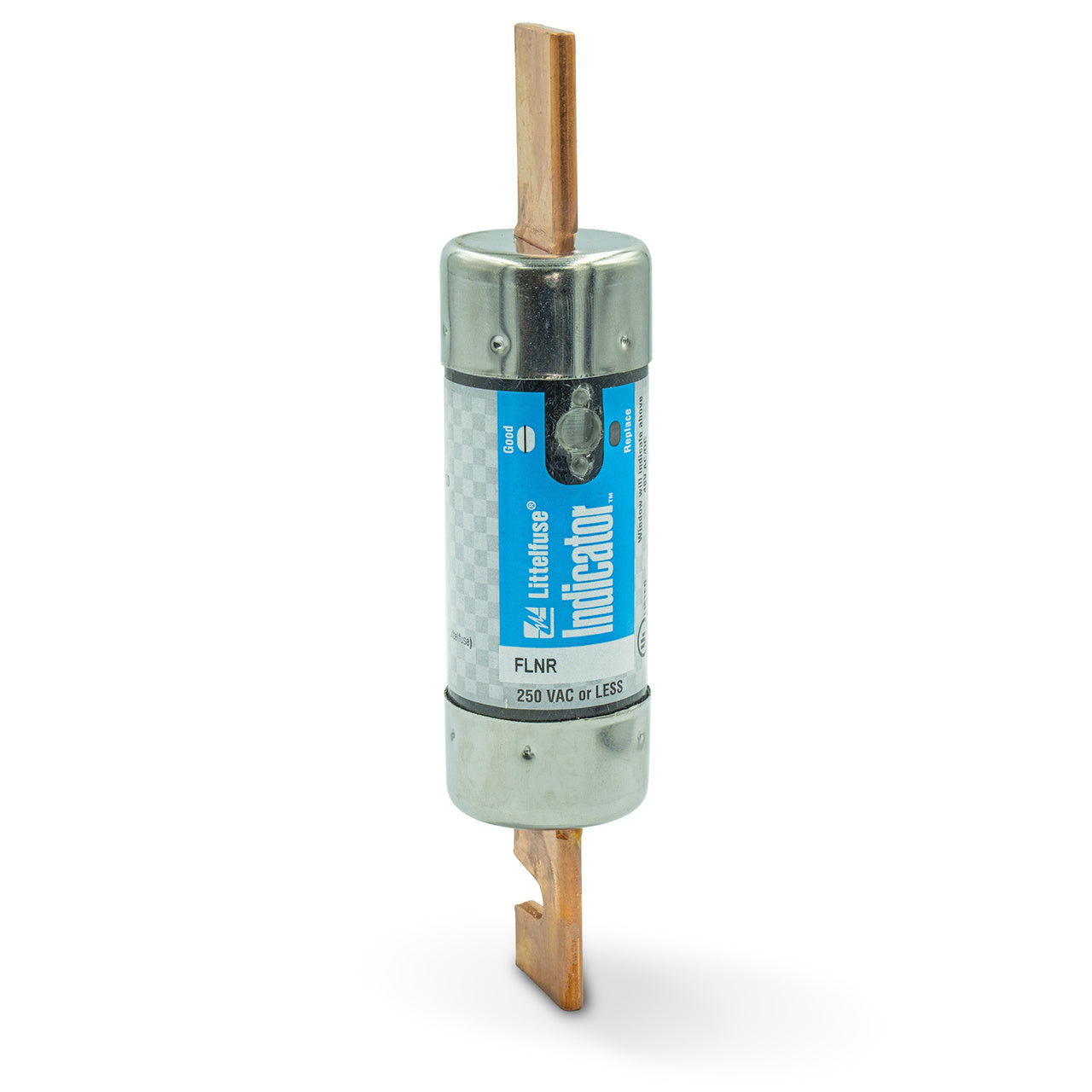

Littelfuse FLNR150ID - RK5 Time-Delay Fuse 150A@250V (200kA AIC)

Littelfuse FLNR150ID is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in low-voltage applications, featuring visual indication for fault detection. Rated for 250V AC systems with a 150A current capacity, it provides 200kA interrupting capacity at rated voltage for reliable overload and short-circuit protection. The fuse measures 7 1/8 inches in length with a 1.59-inch diameter rejection blade construction, weighing 1 lb for secure panel mounting. Certified to CSA, cUL, and UL standards, this Mexico-manufactured component meets industrial safety requirements for motor control centers, HVAC systems, and power distribution equipment where time-delay characteristics prevent nuisance tripping during inrush currents.

Key Features & Specifications

• Type: UL Class RK5 dual-element time-delay fuse with visual indication
• Voltage Rating: 250V AC
• Current Rating: 150A
• Dimensions: 7 1/8 in length x 1.59 in diameter
• Standards: CSA, cUL, UL listed
• Applications: Motor protection, power distribution, HVAC systems
• Class Rating: RK5
• Connection: Rejection blade
• Barrels: 1
• Velocity: Time-delay (TD)
• AIC rating: 200kA@250V
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 079458023916
• GTIN: 00079458023916
