Littelfuse FLNR070ID - RK5 Time-Delay Fuse 70A@250V (200kA AIC)

Littelfuse FLNR070ID - RK5 Time-Delay Fuse 70A@250V (200kA AIC)

Littelfuse
Price
Save $29.38
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

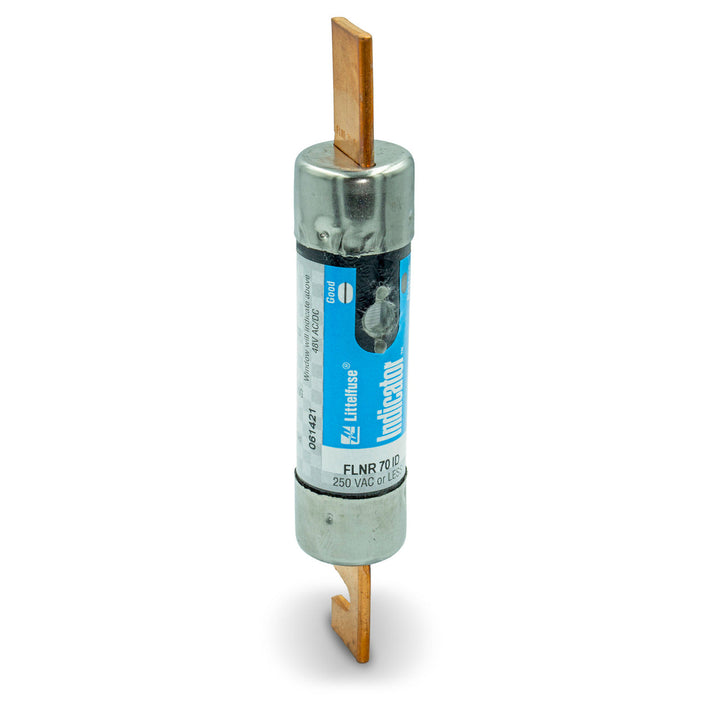

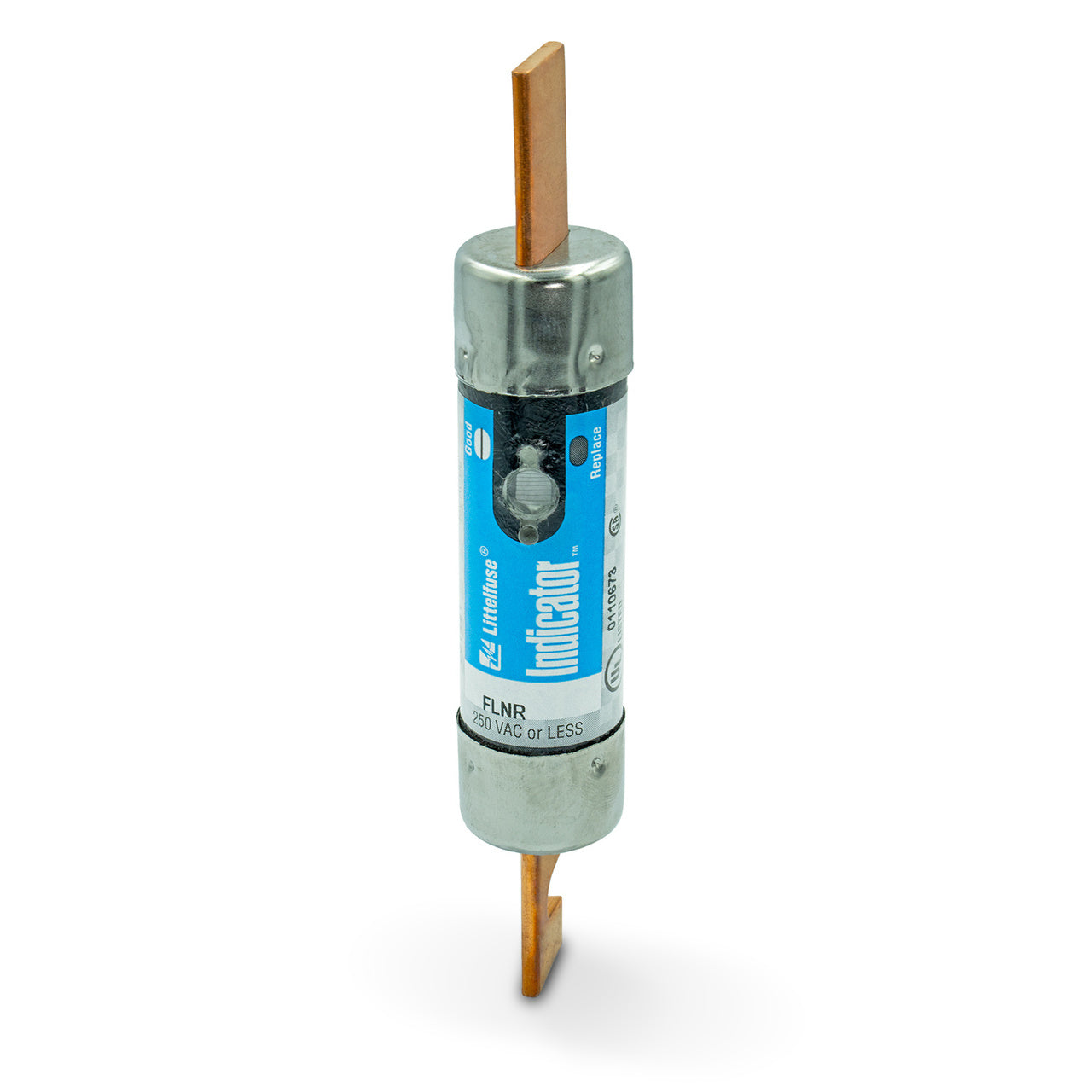

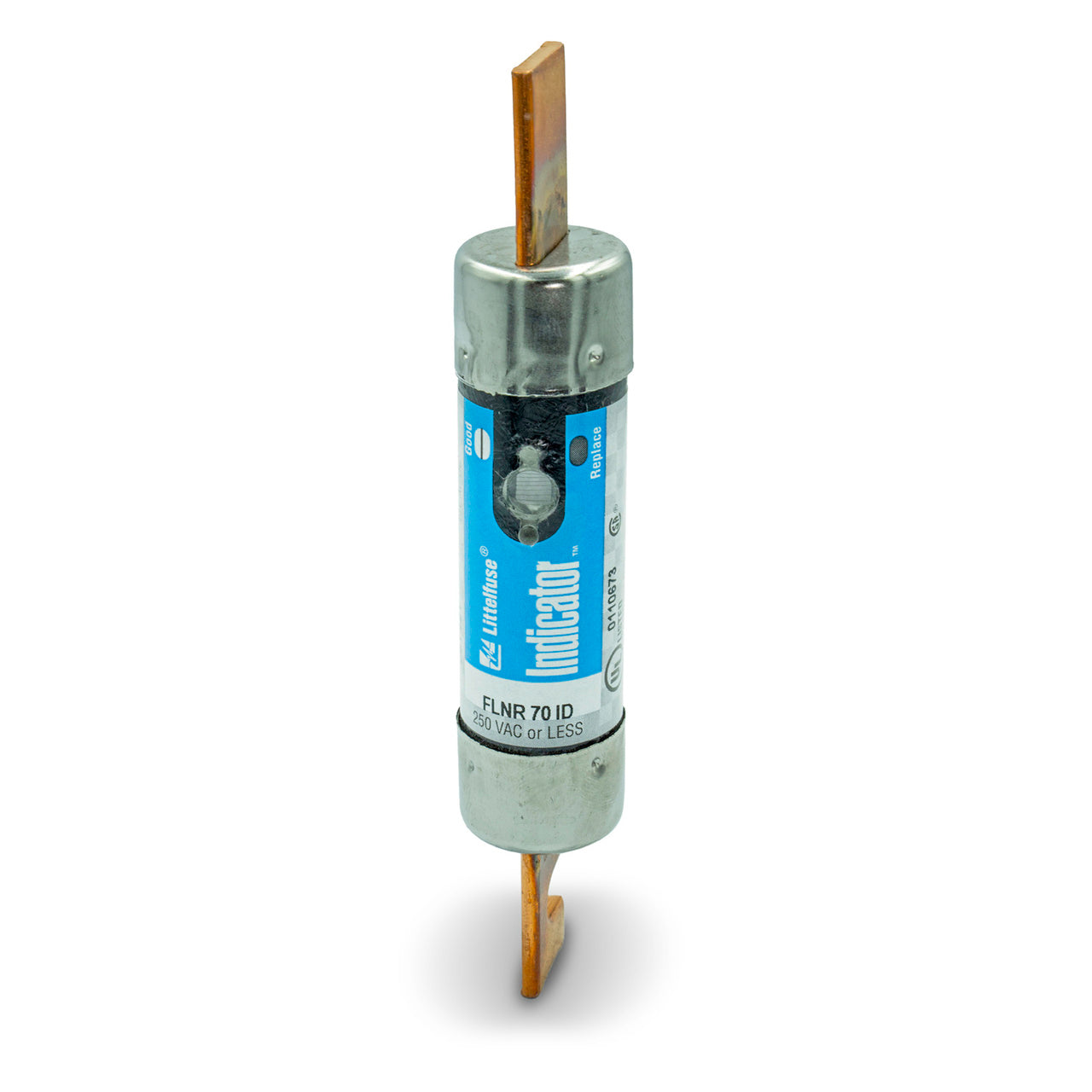

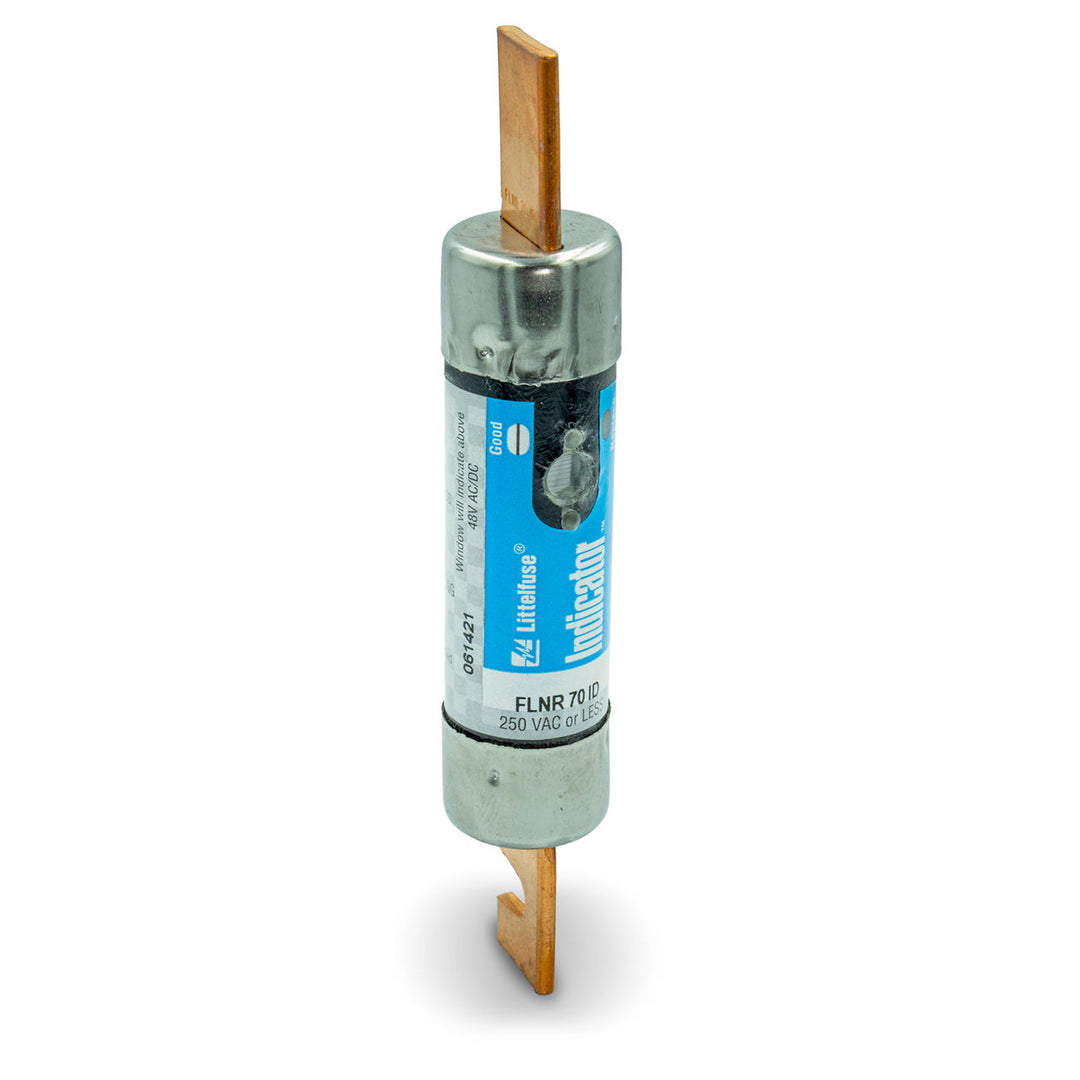

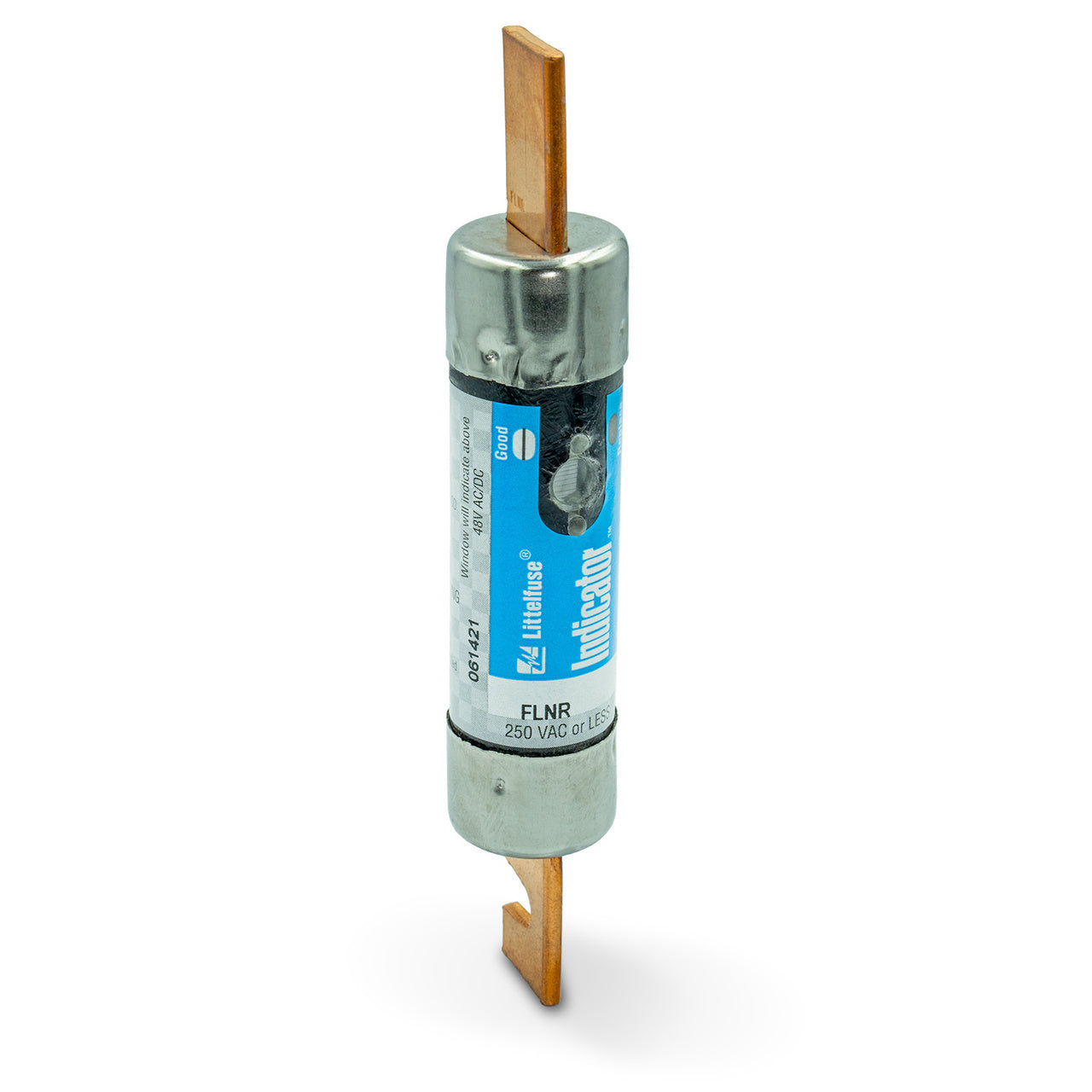

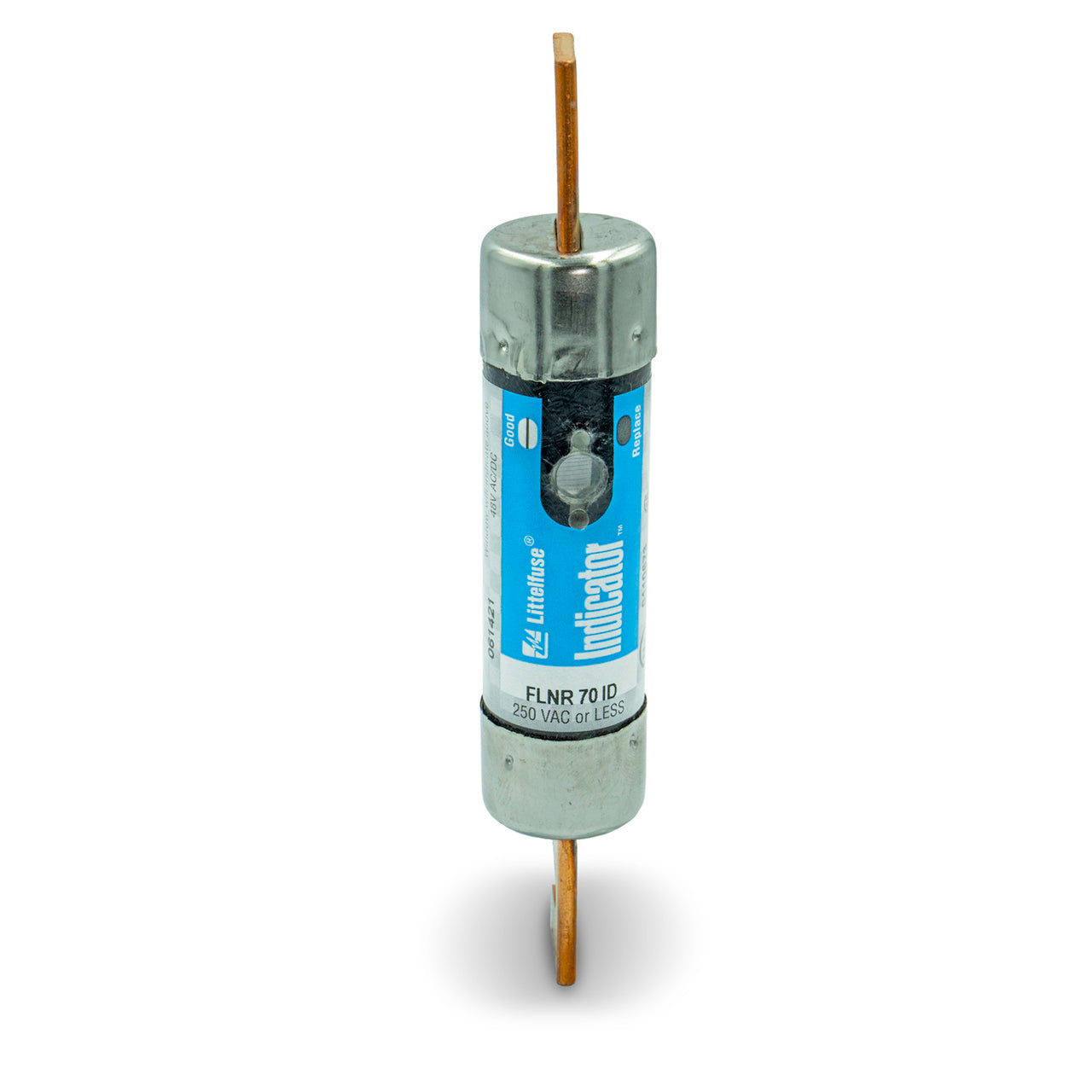

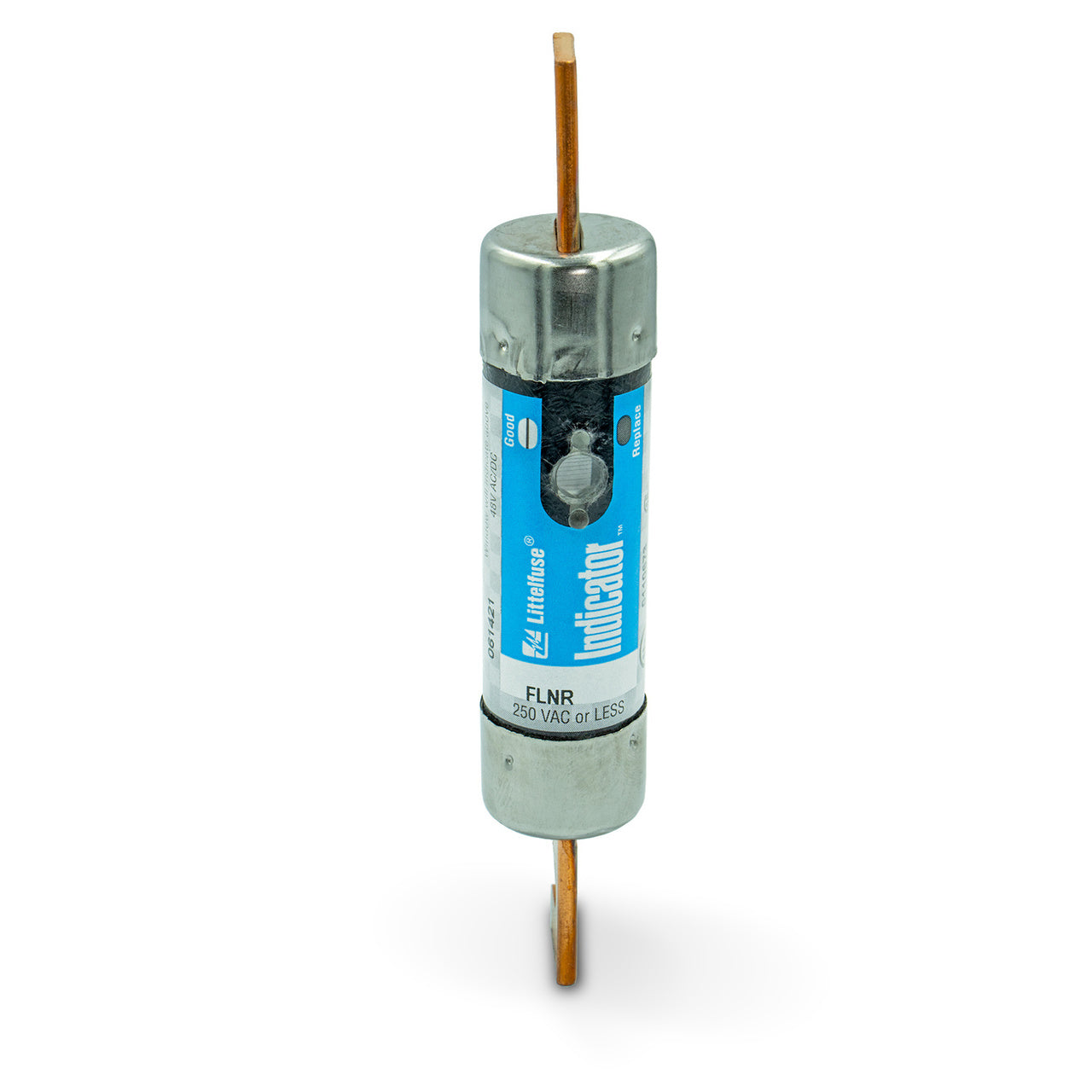

Littelfuse FLNR070ID is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial electrical systems. Rated for 250V AC/DC operation with a 70A current capacity, it features a rejection blade connection and time-delay characteristics for overload protection. The fuse measures 5-7/8" in length with a 1.06" diameter cylindrical body, constructed with indication capability for fault detection. Certified to CSA, cUL, and UL standards, it offers 200kA interrupting capacity at 250V for high-fault current applications. Typical uses include motor branch circuits, transformers, and power distribution equipment requiring selective coordination.

Key Features & Specifications
  • Type: UL Class RK5 dual-element time-delay fuse with indication
  • Voltage Rating: 250V AC/DC
  • Current Rating: 70A
  • Dimensions: 5-7/8" length x 1.06" diameter
  • Weight: 1.73 lb
  • Connection: Rejection blade
  • Barrels: 1
  • Velocity: Time-delay (TD)
  • Certification: CSA, cUL, UL
  • AIC Rating: 200kA@250V
  • Class Rating: RK5
  • Country of Origin: Mexico
Product Identification
  • UPC: 079458023855
  • GTIN: 00079458023855
