Littelfuse FLNR040ID - RK5 Time-Delay Fuse 40A 250V (200kA AIC)
FLNR040ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 40A Fuse - Essential Electric Supply
FLNR040ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 40A Fuse - Essential Electric Supply
FLNR040ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 40A Fuse - Essential Electric Supply
FLNR040ID Littelfuse FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 40A Fuse - Essential Electric Supply
Littelfuse FLNR040ID - RK5 Time-Delay Fuse 40A 250V (200kA AIC)

Littelfuse FLNR040ID - RK5 Time-Delay Fuse 40A 250V (200kA AIC)

Littelfuse
Price
Save $16.30
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

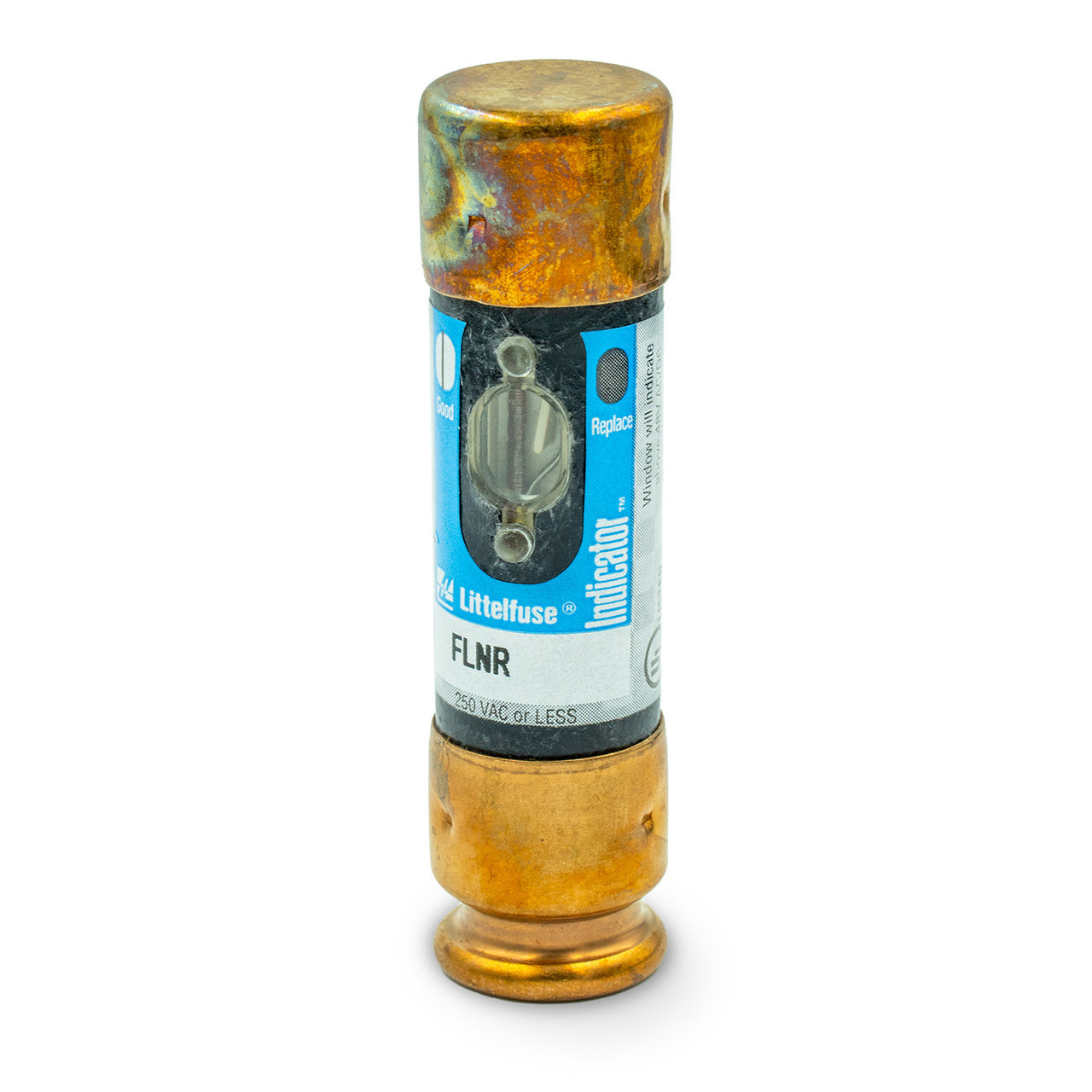

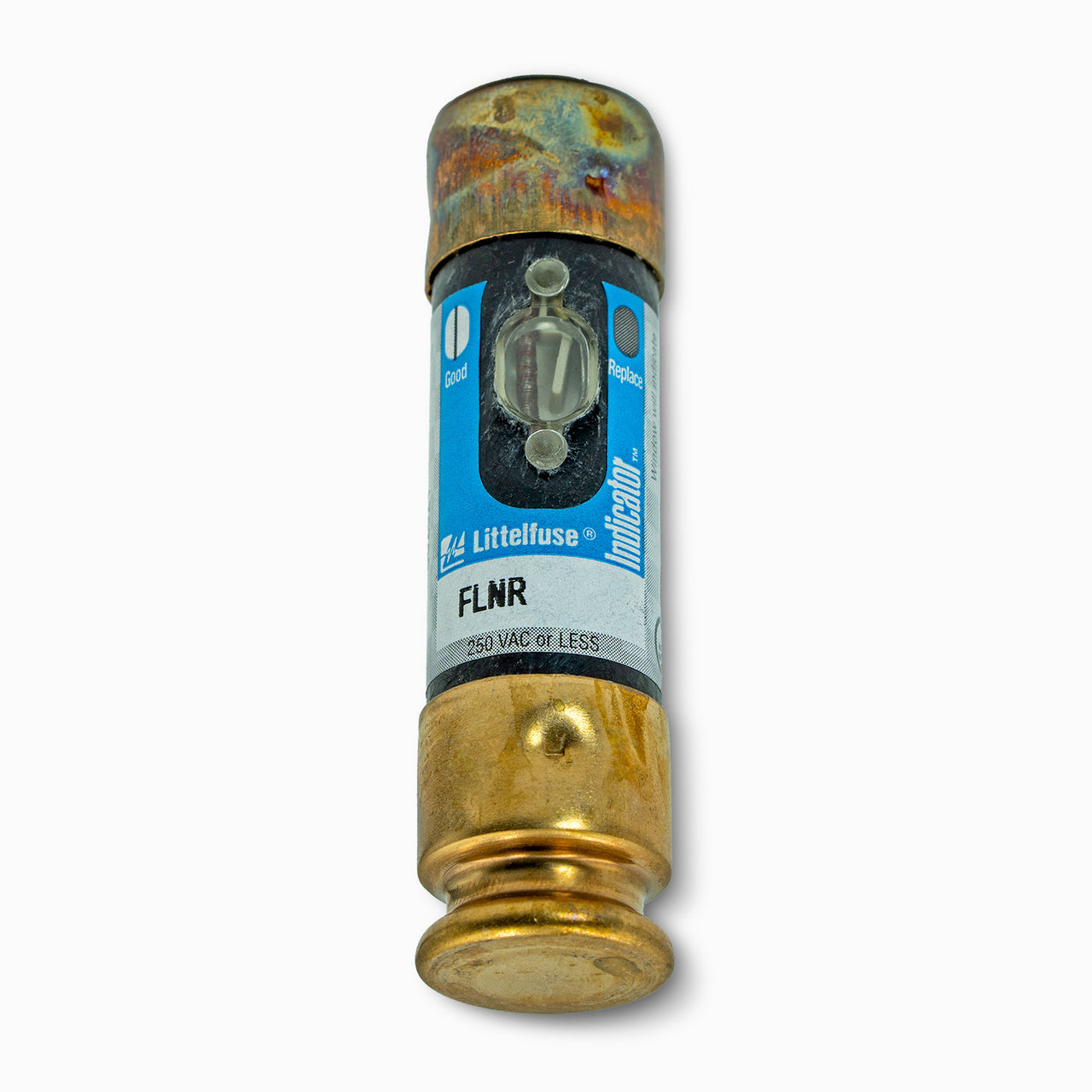

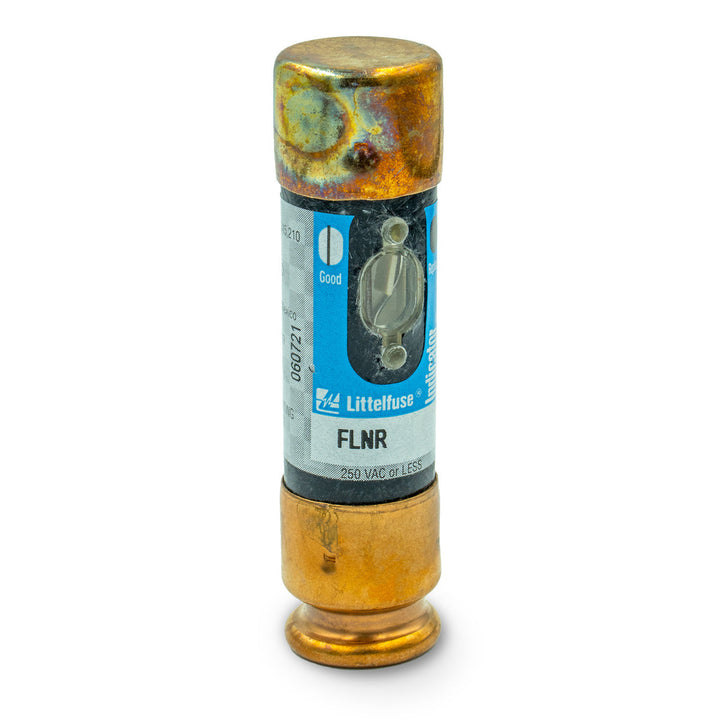

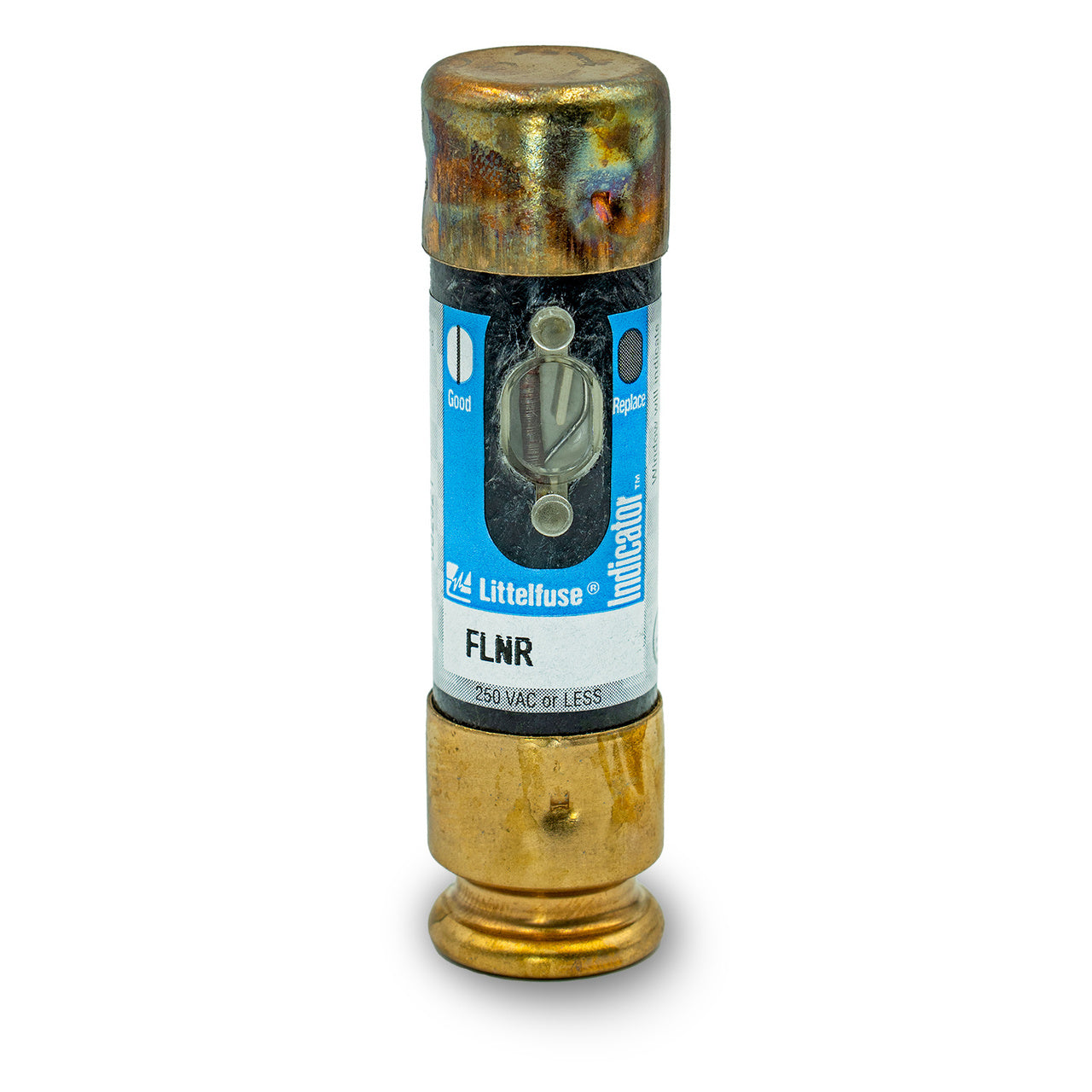

Littelfuse FLNR040ID is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial applications. It features a 250V AC voltage rating and 40A current rating with a 200kA interrupting capacity at rated voltage. The fuse measures 0.81" in diameter with ferrule rejection terminals and time-delay characteristics for motor circuit protection. Certified to CSA, cUL, and UL standards, this Mexico-manufactured fuse is commonly used in motor control centers, industrial control panels, and power distribution systems requiring reliable overload and short-circuit protection.

Key Features & Specifications
  • Type: UL Class RK5 dual-element time-delay fuse with visual indication
  • Voltage Rating: 250V AC
  • Current Rating: 40A
  • Dimensions: 0.81" diameter x 3" length
  • Weight: 0.12 lb
  • Standards: CSA, cUL, UL
  • Applications: Motor control centers, industrial control panels, power distribution
  • Class Rating: RK5
  • Connection: Ferrule rejection
  • Barrels: 1
  • Velocity: Time-delay (TD)
  • AIC rating: 200kA@250V
  • Country of Origin: Mexico
Product Identification
  • UPC: 079458023817
  • GTIN: 00079458023817
