Littelfuse FLNR010 - RK5 Time-Delay Fuse 10A 250V (200kA AIC)

Littelfuse FLNR010 - RK5 Time-Delay Fuse 10A 250V (200kA AIC)

Littelfuse
Price
Save $10.02
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

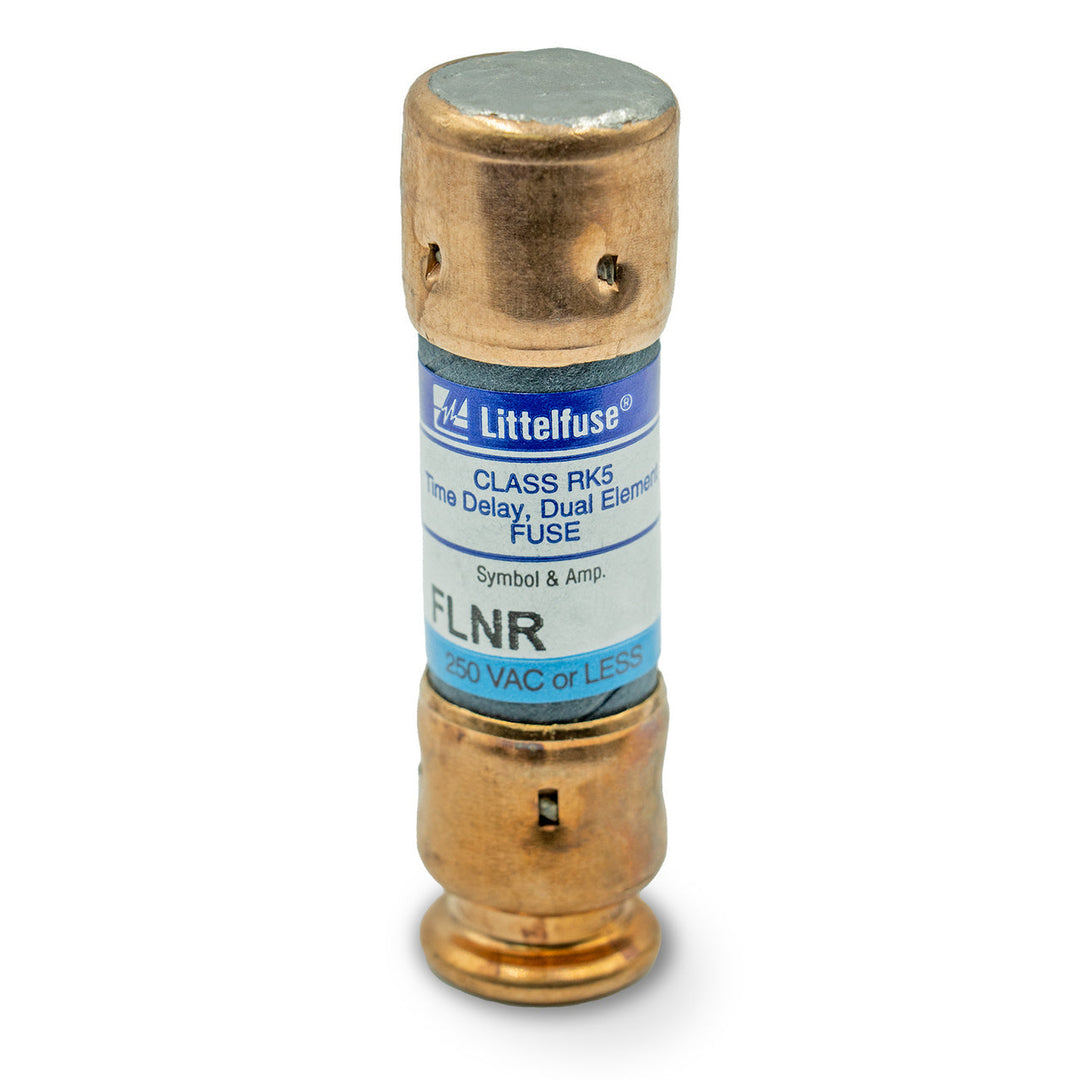

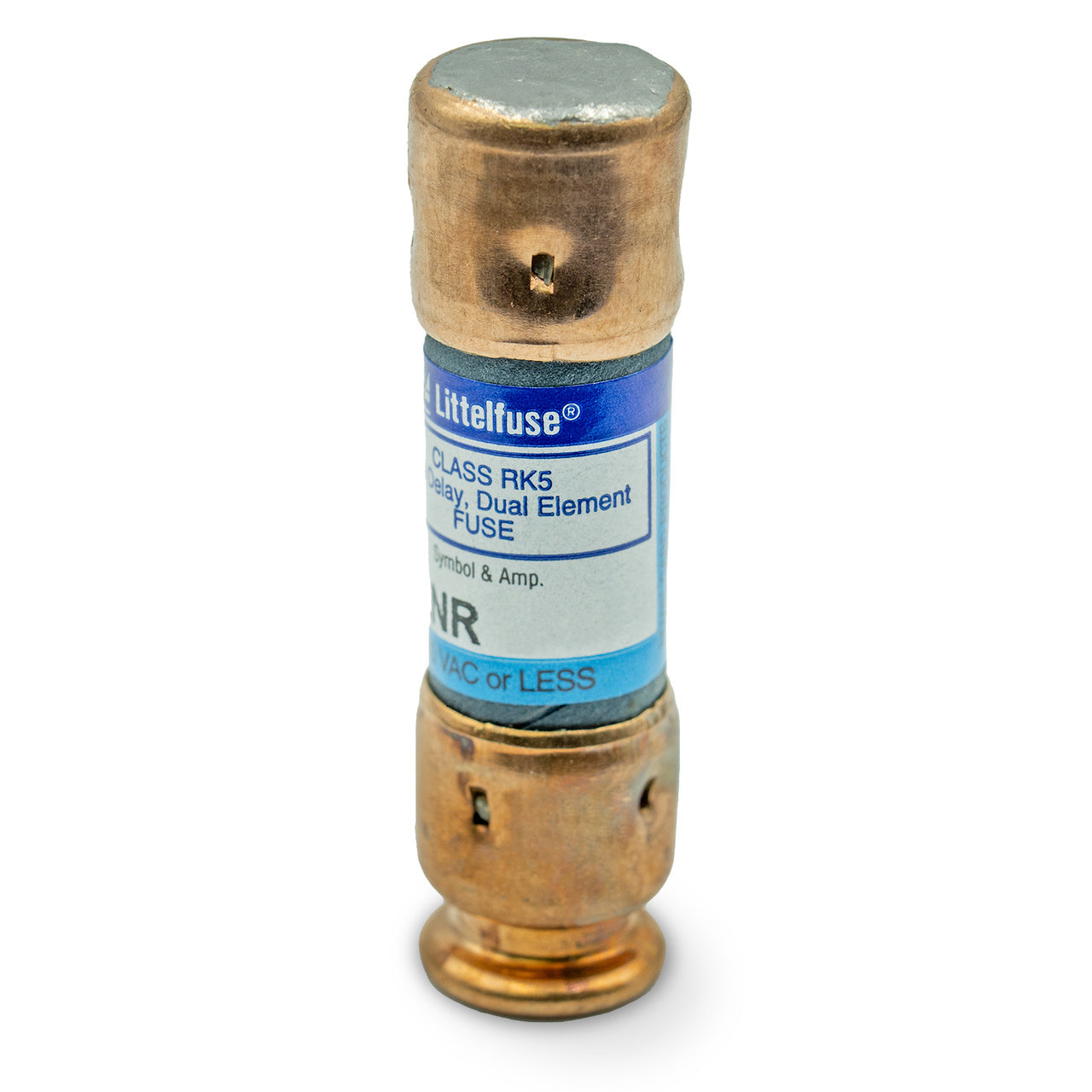

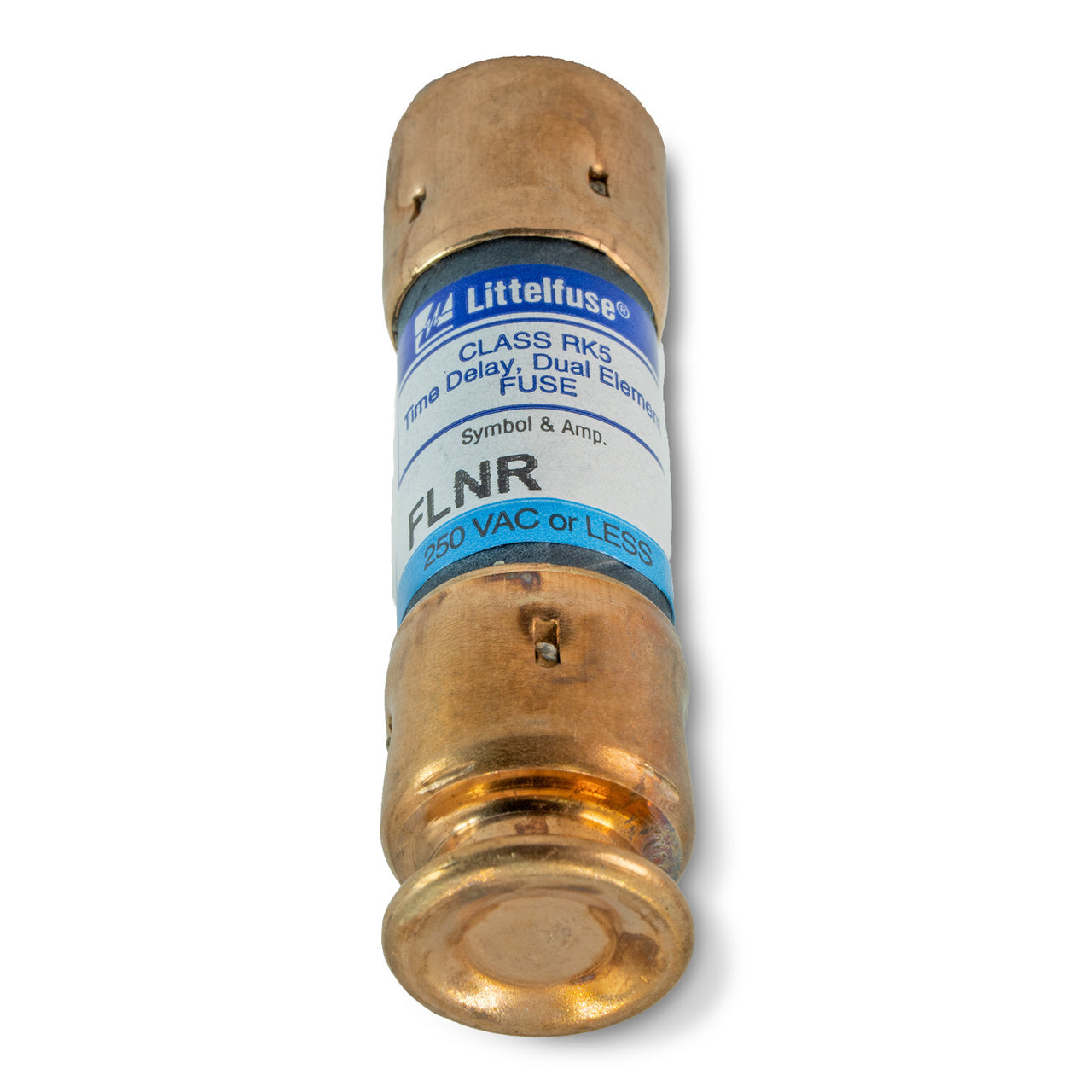

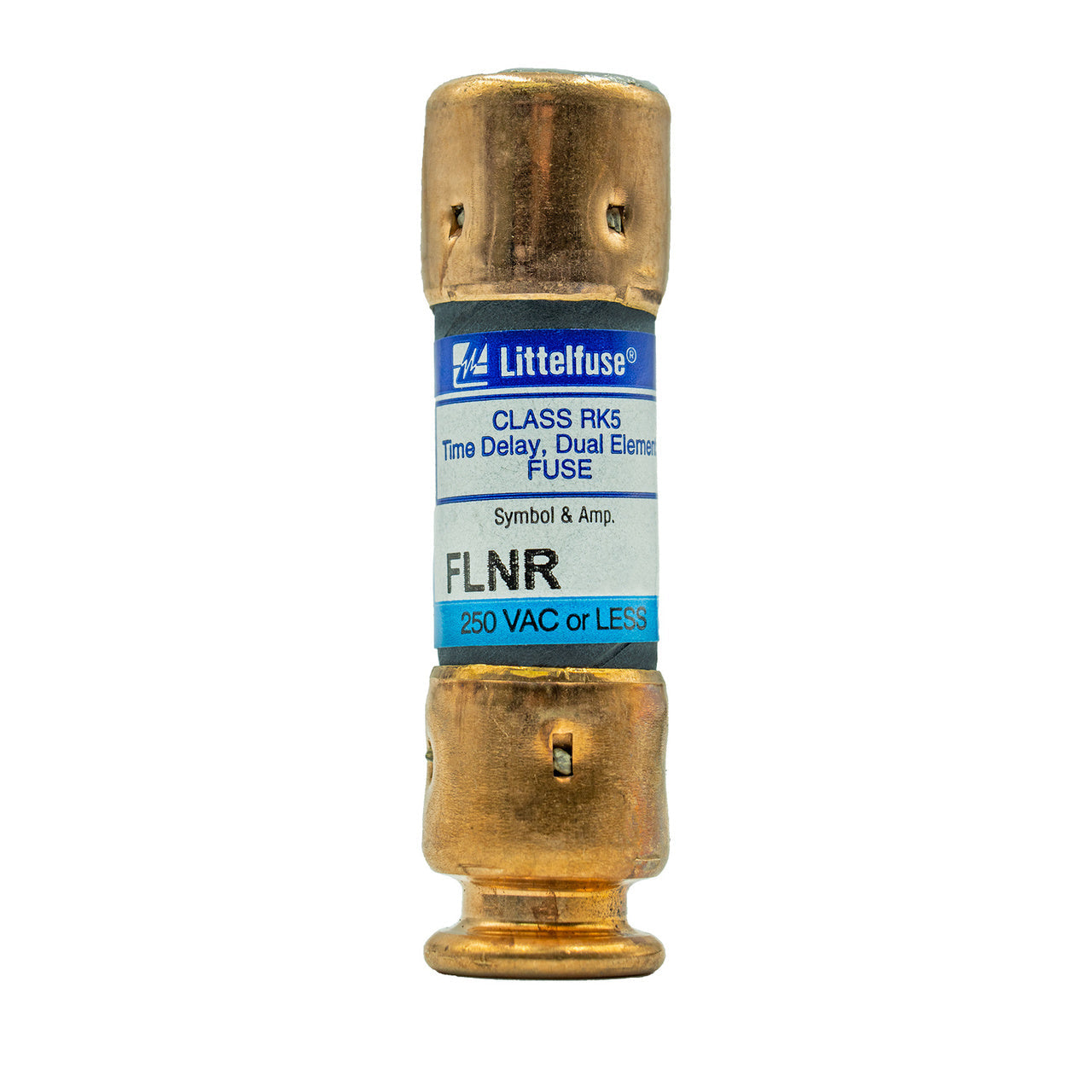

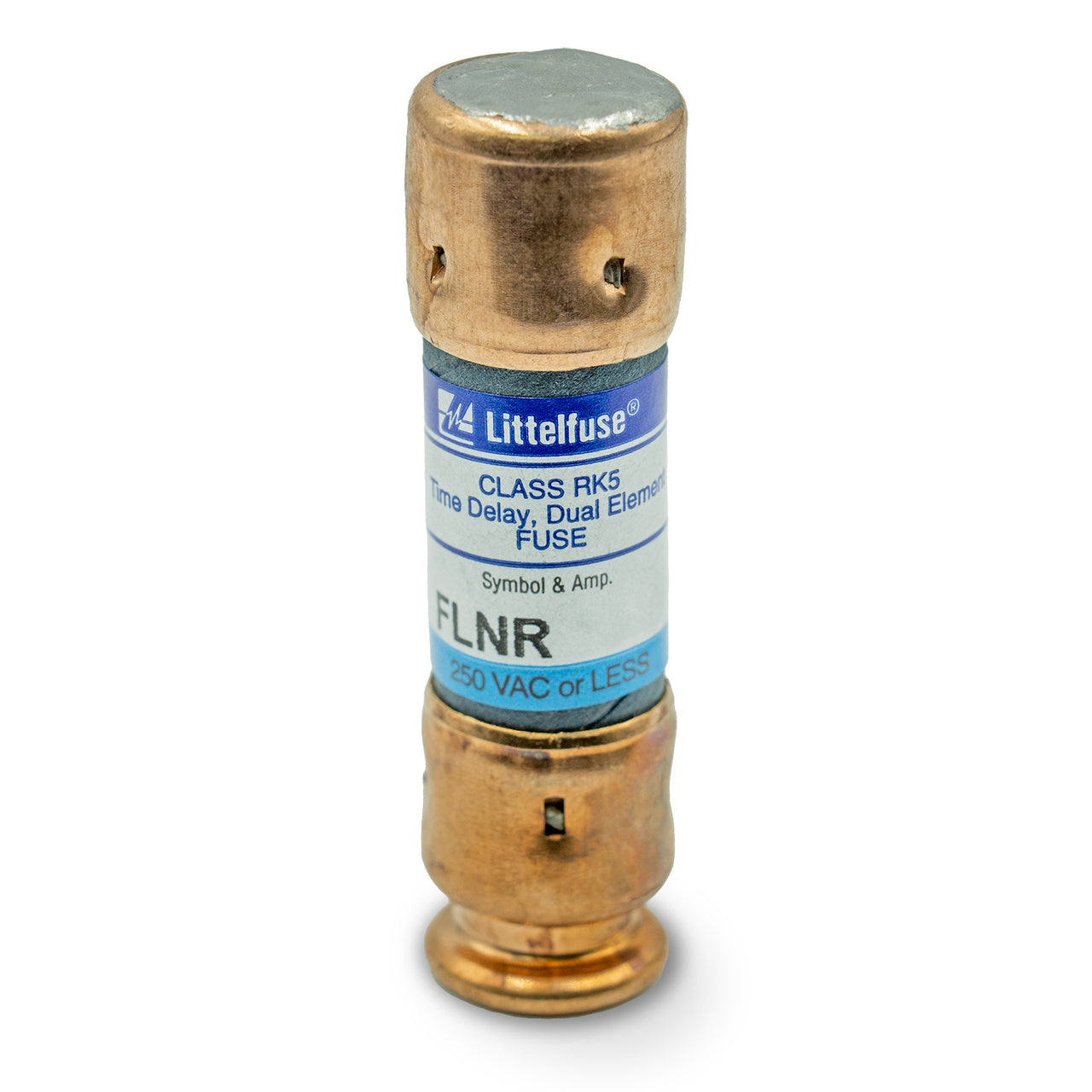

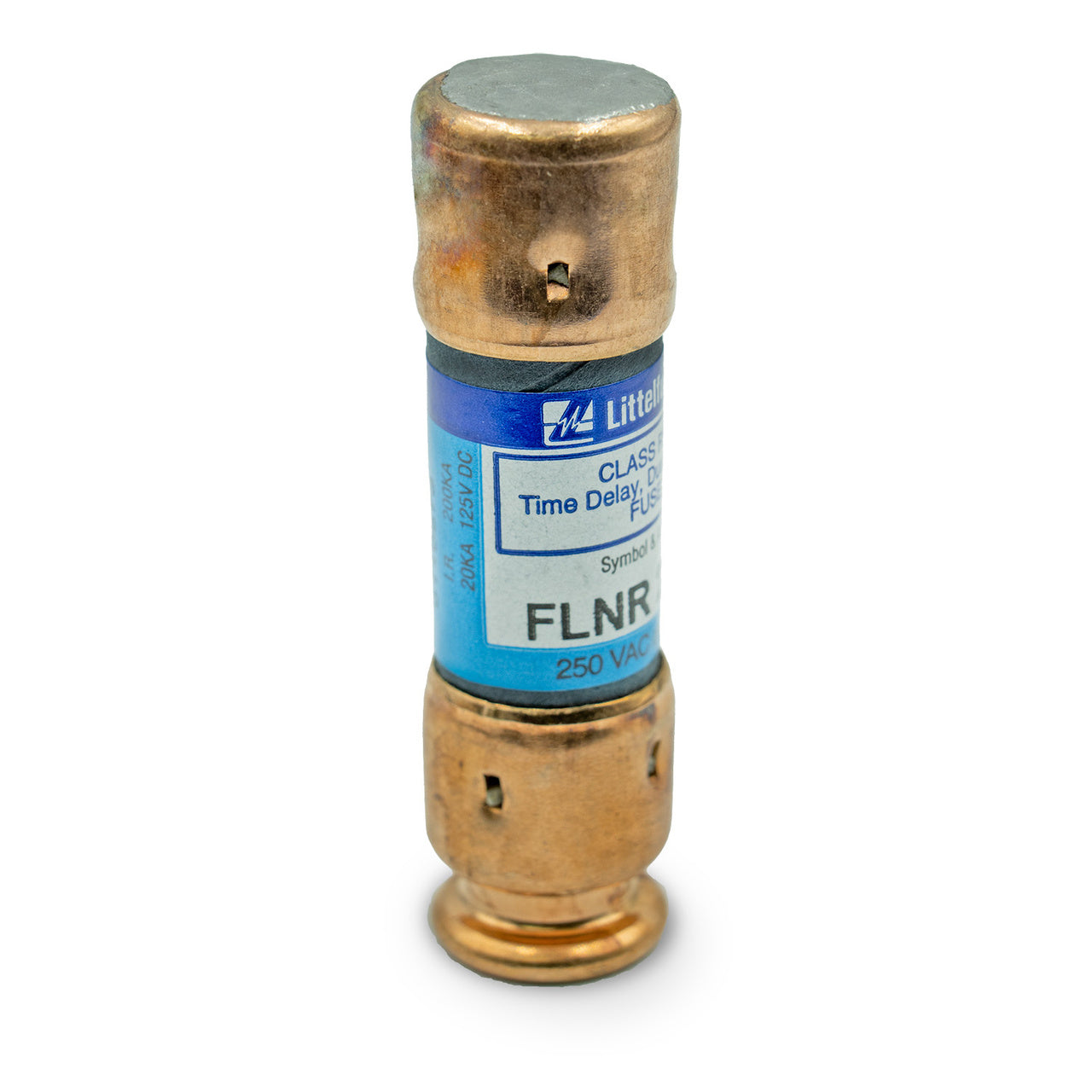

Littelfuse FLNR010 is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial and commercial applications. Rated for 250V AC systems with a 10A current capacity, it features a ferrule rejection connection and time-delay characteristics for inrush current tolerance. The compact 0.56" diameter x 2" cylindrical body meets UL 248-12 Class RK5, CSA, and QPL-W-F-1814 standards with a 200kA interrupting rating at 250V. Its dual-element construction provides reliable overload and short-circuit protection for motor circuits, transformers, and power distribution equipment.

Key Features & Specifications
  • Type: UL Class RK5 dual-element time-delay fuse
  • Voltage Rating: 250V AC
  • Current Rating: 10A
  • Dimensions: 0.56" diameter x 2" length
  • Standards: CE, UL 248-12 Class RK5, CSA, QPL-W-F-1814
  • Applications: Motor circuits, transformers, power distribution
  • Class Rating: RK5
  • Connection: Ferrule rejection
  • Barrels: 1
  • Velocity: Time-delay (TD)
  • AIC rating: 200kA@250V
  • Weight: 21.79 lb


Product Identification
  • UPC: 079458150650
  • GTIN: 00079458150650
