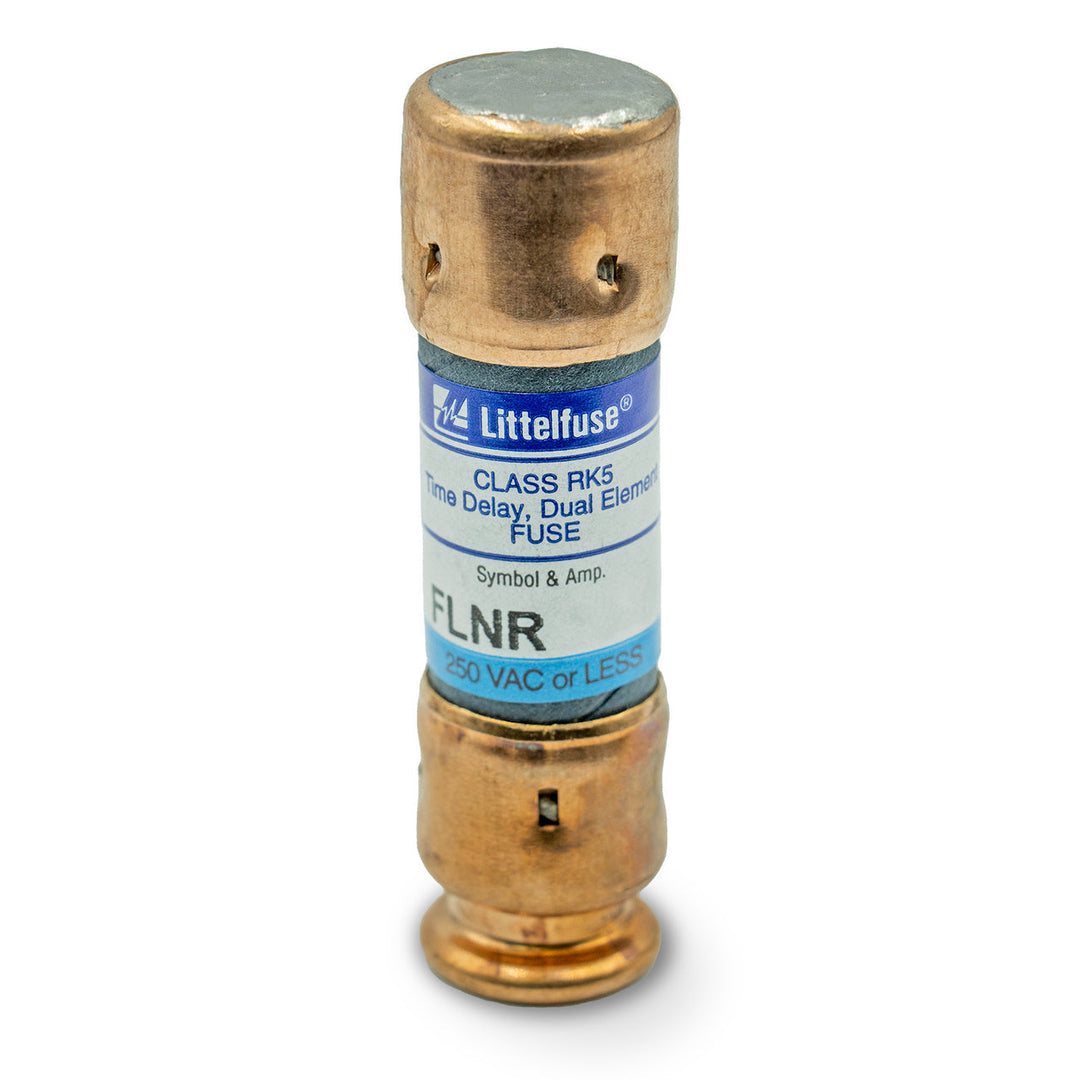

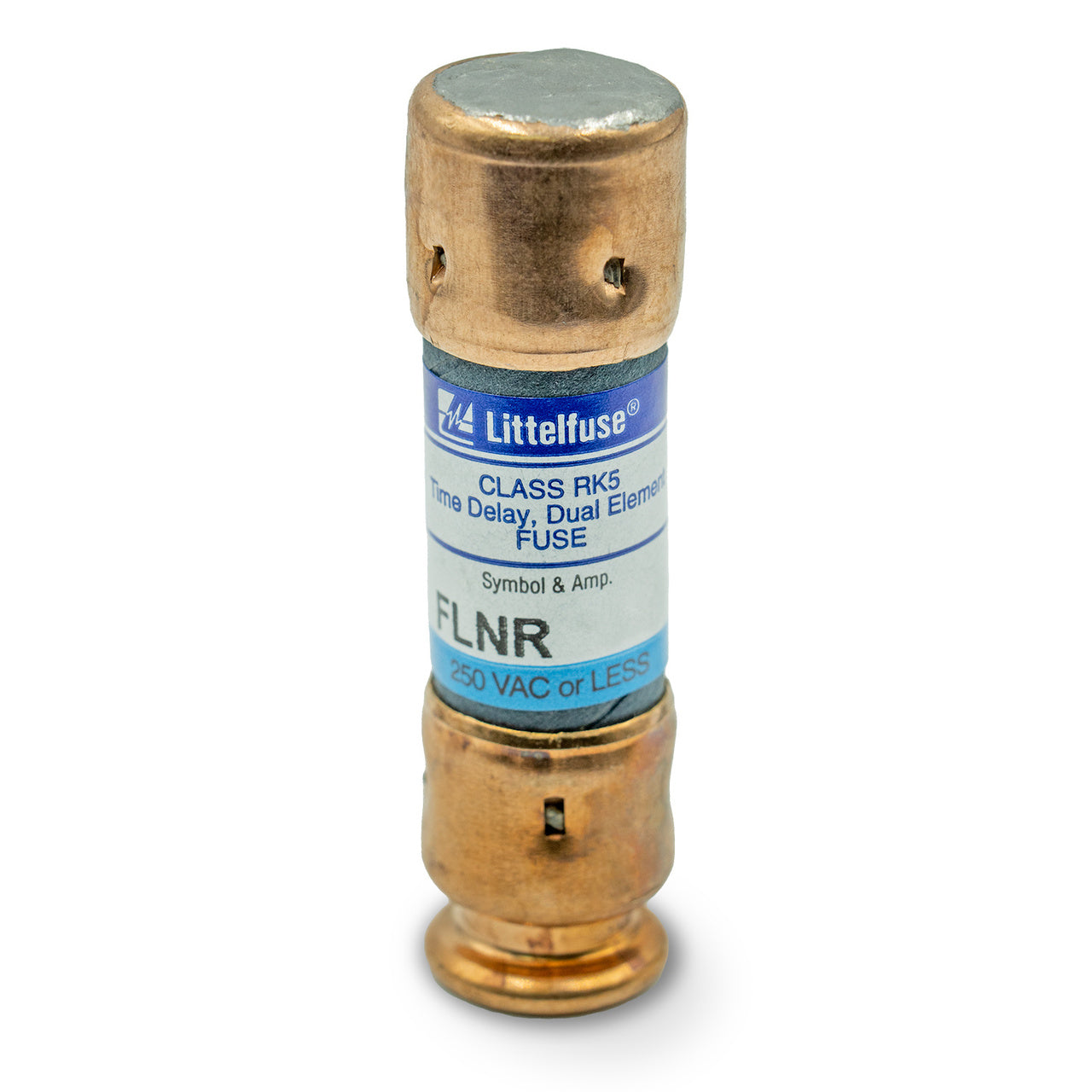

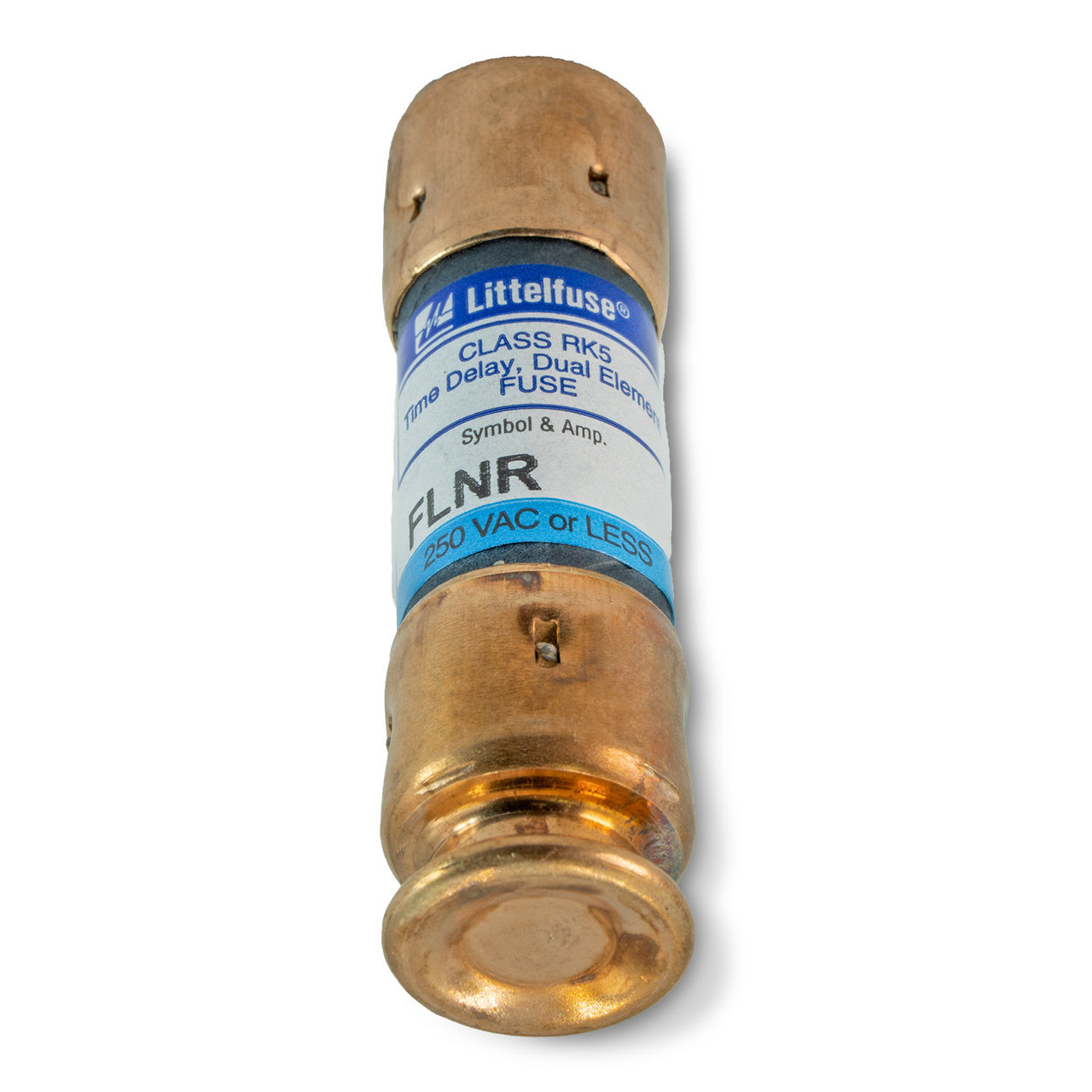

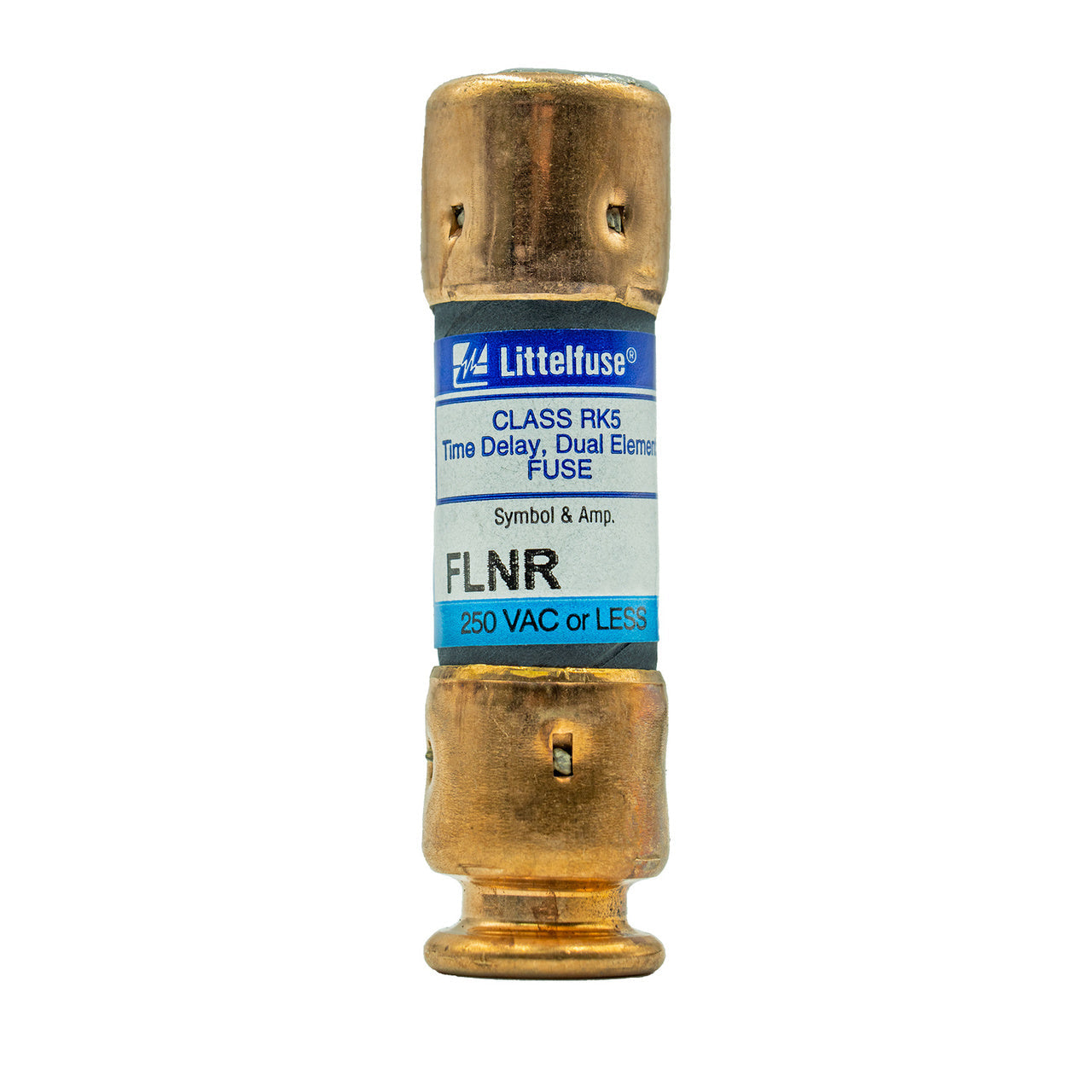

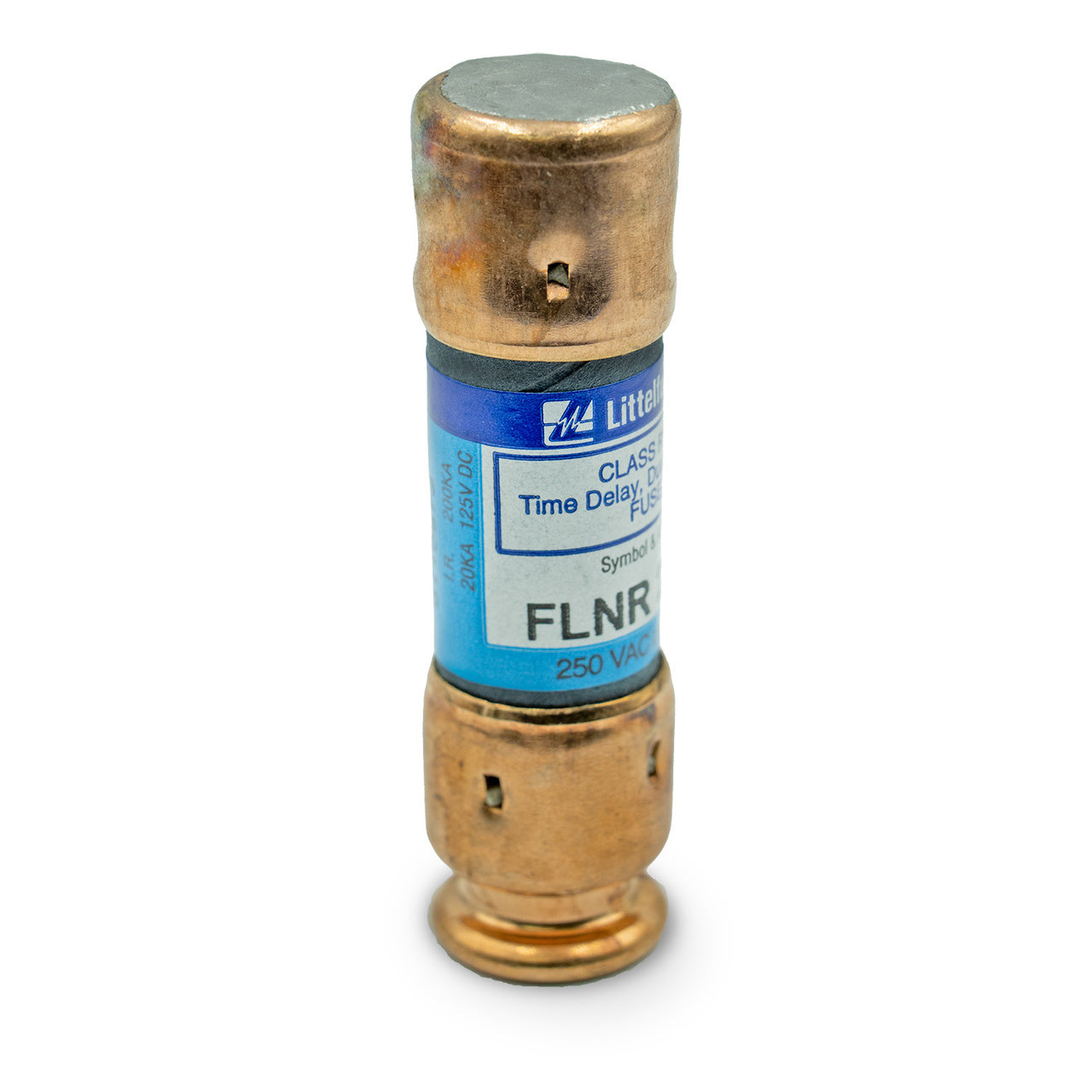

Littelfuse FLNR005 - RK5 Time-Delay Fuse 5A 250V (200kA AIC)

Littelfuse FLNR005 is a UL Class RK5 dual-element time-delay fuse designed for circuit protection in industrial applications. It features a 250V AC voltage rating and 5A current rating with a 200kA interrupting capacity, housed in a compact 0.56-inch diameter ferrule rejection package with time-delay characteristics. The fuse meets UL 248-12, CSA, and CE standards with its durable construction and precise overload protection. Typical applications include motor branch circuits, transformers, and power distribution systems requiring reliable fault isolation.

Key Features & Specifications

• Type: UL Class RK5 dual-element time-delay fuse
• Voltage Rating: 250V AC
• Current Rating: 5A
• Dimensions: 0.56" diameter x 2" length
• Weight: 18.6 lb
• Connection: Ferrule rejection
• Certification: UL 248-12 Class RK5, CSA, CE, QPL-W-F-1814
• AIC Rating: 200kA@250V
• Operating Characteristics: Time-delay (TD)
• Country of Origin: Mexico

Product Identification

• UPC: 079458150551
• GTIN: 00079458150551
