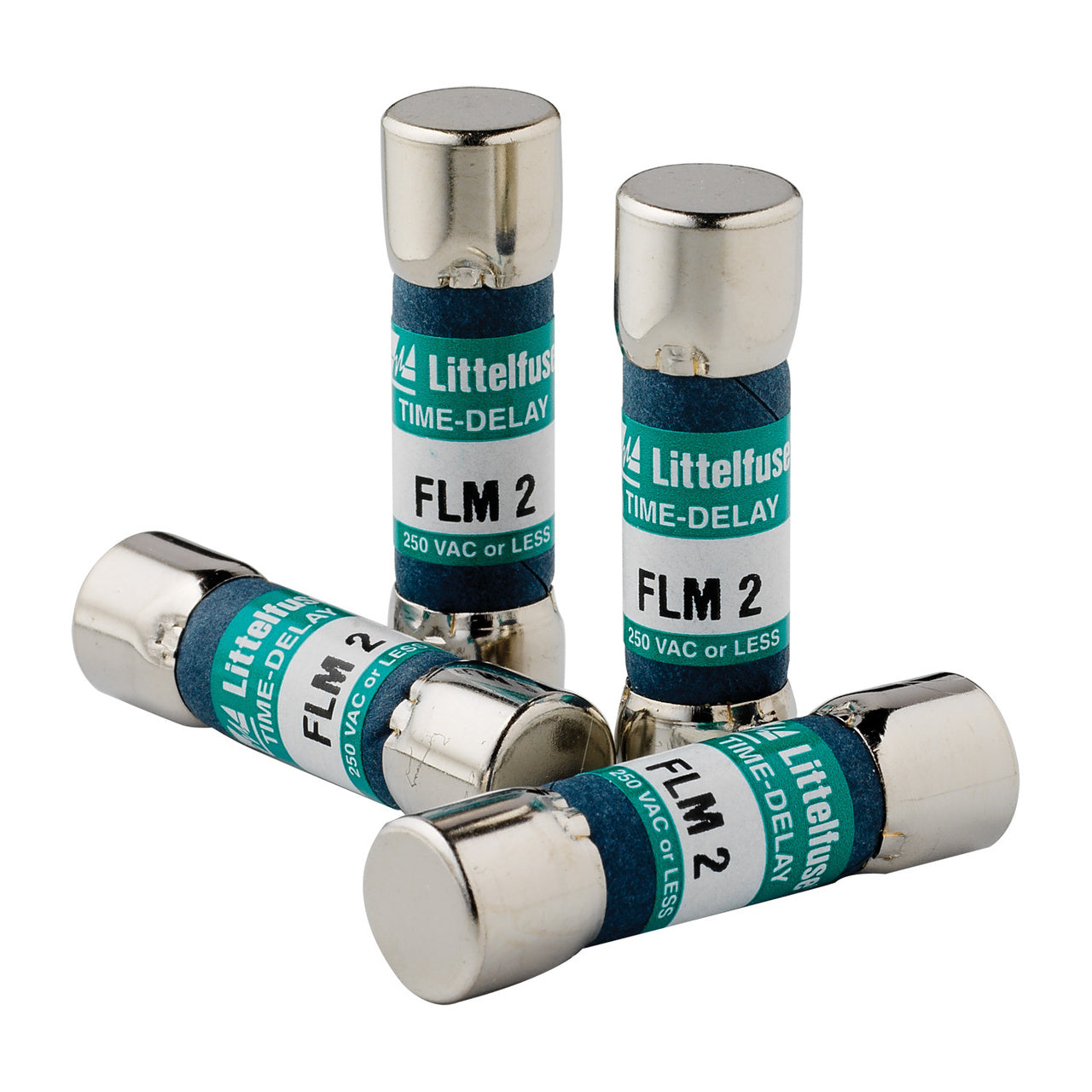

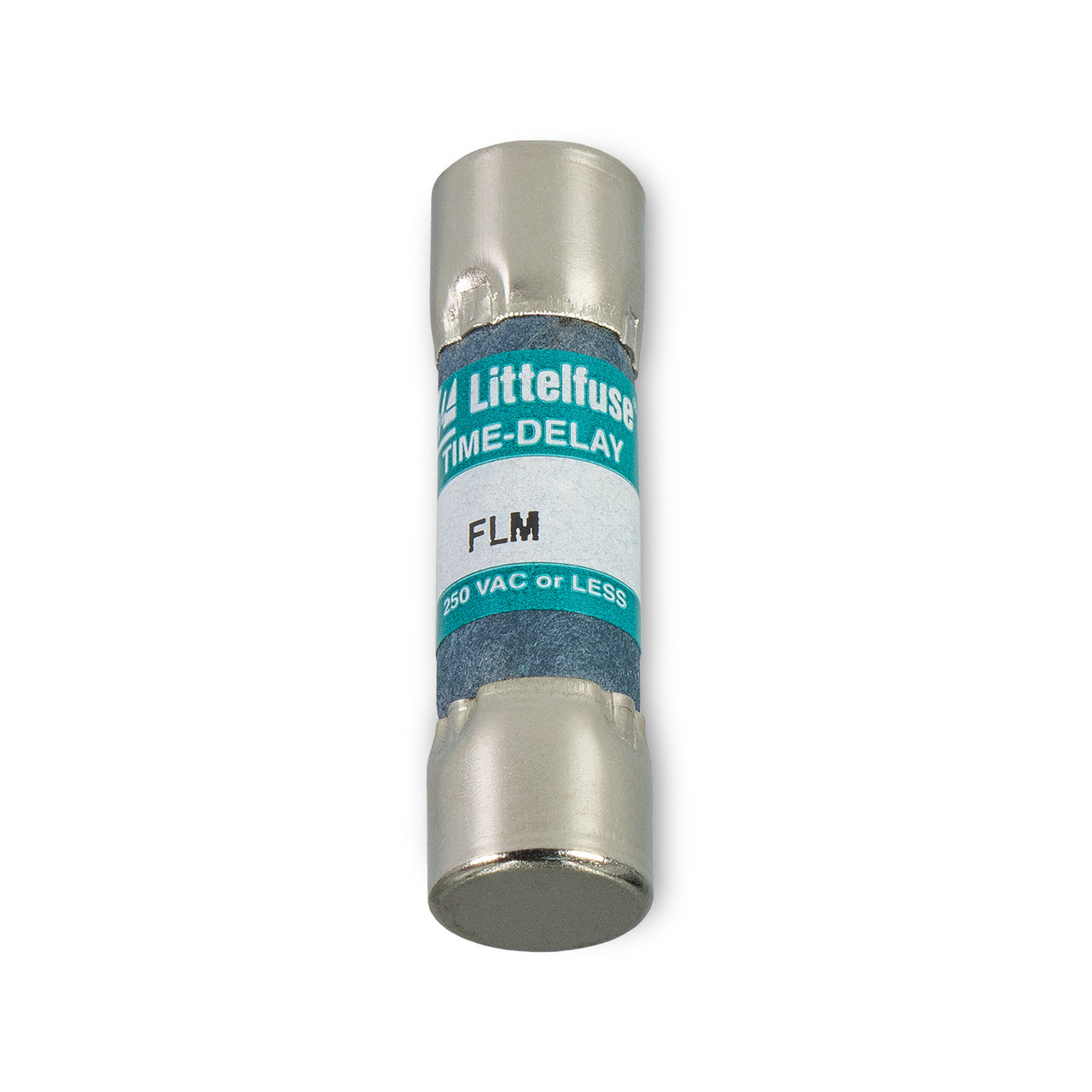

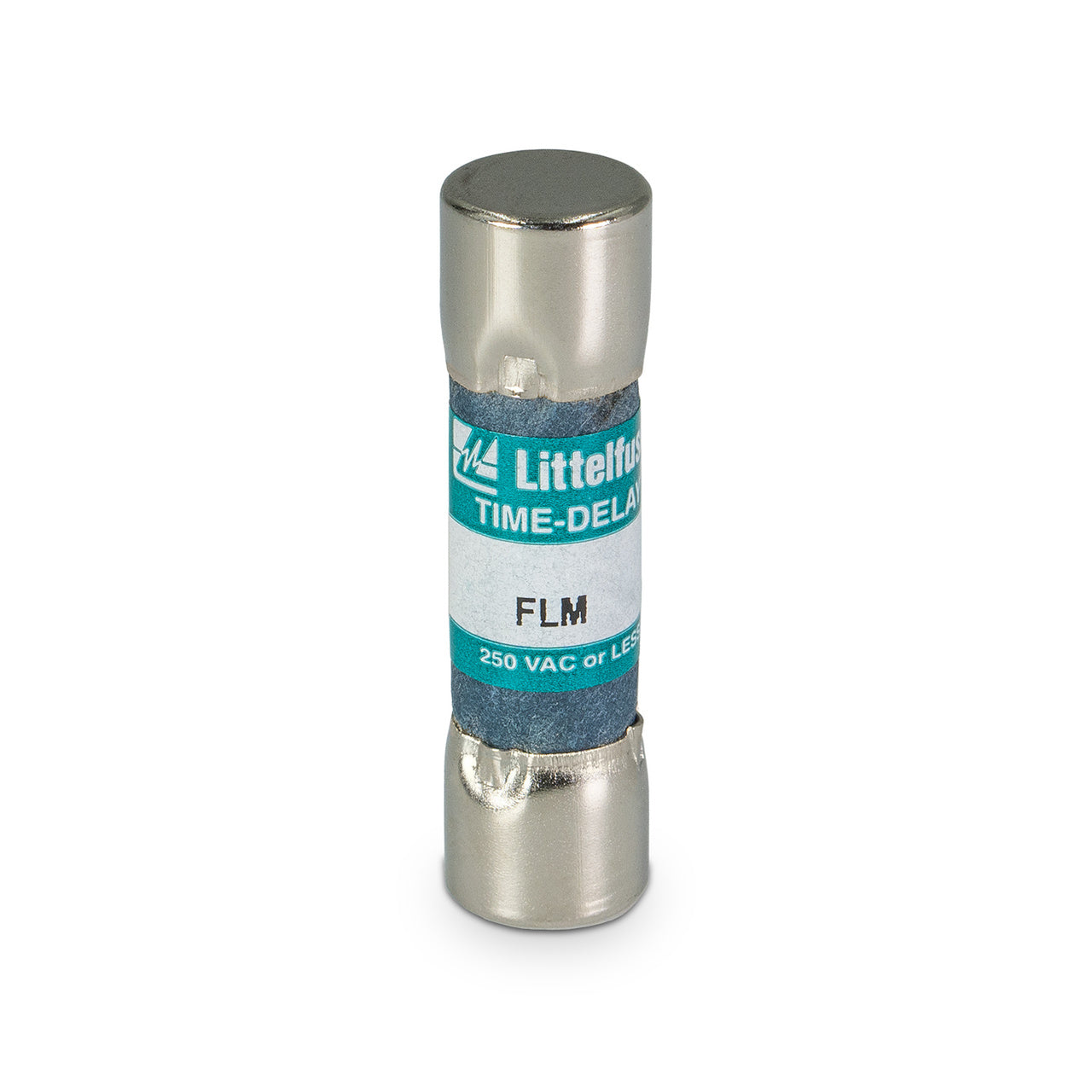

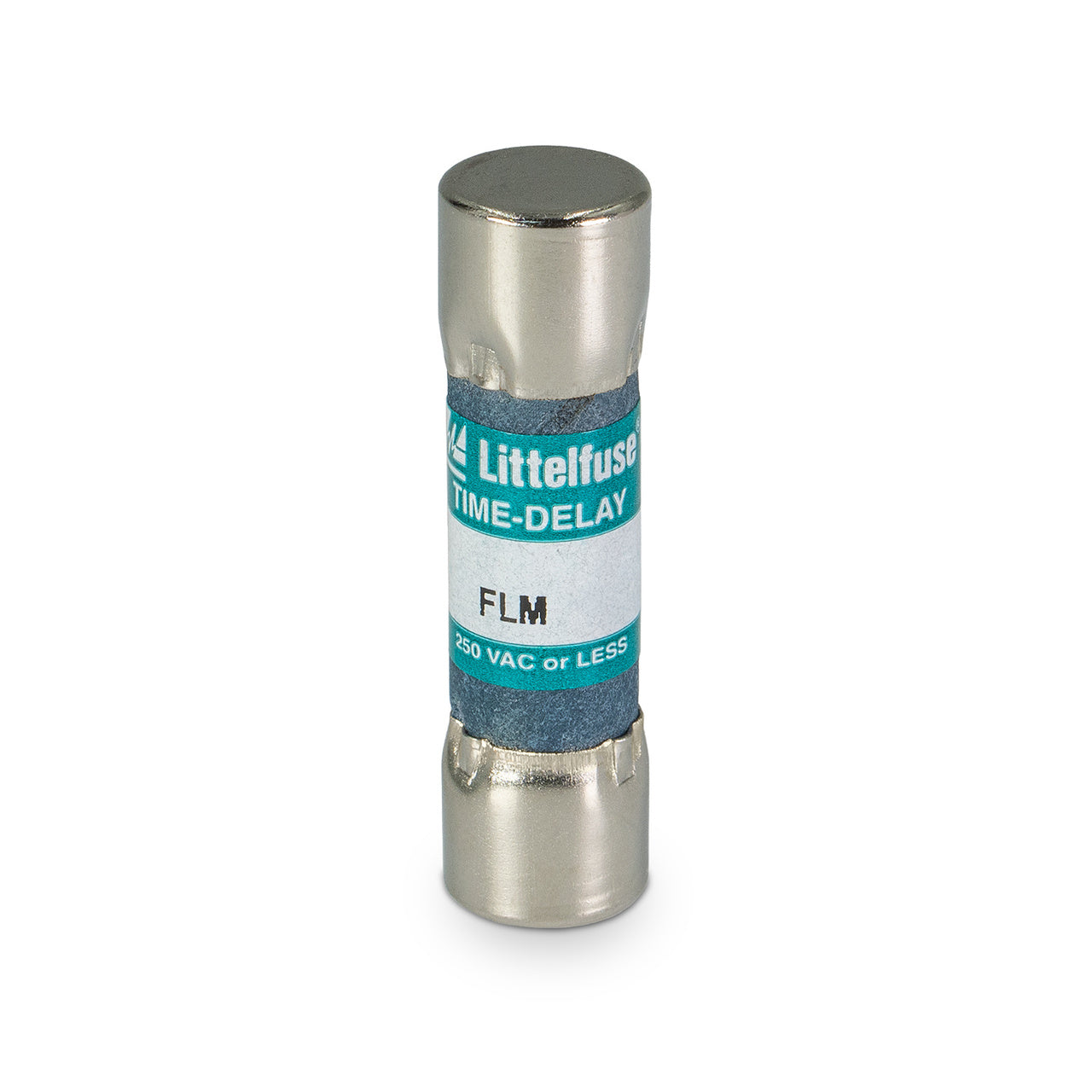

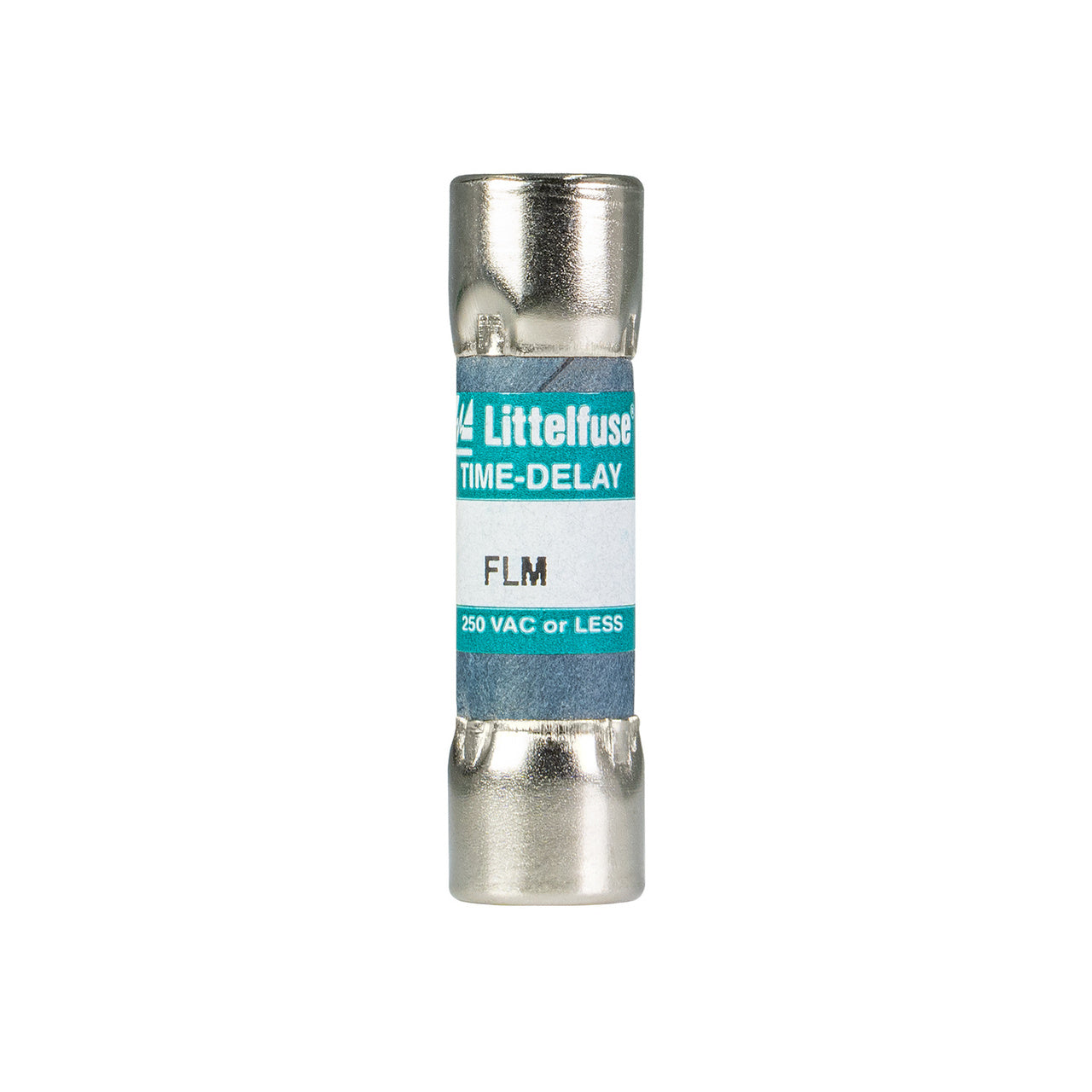

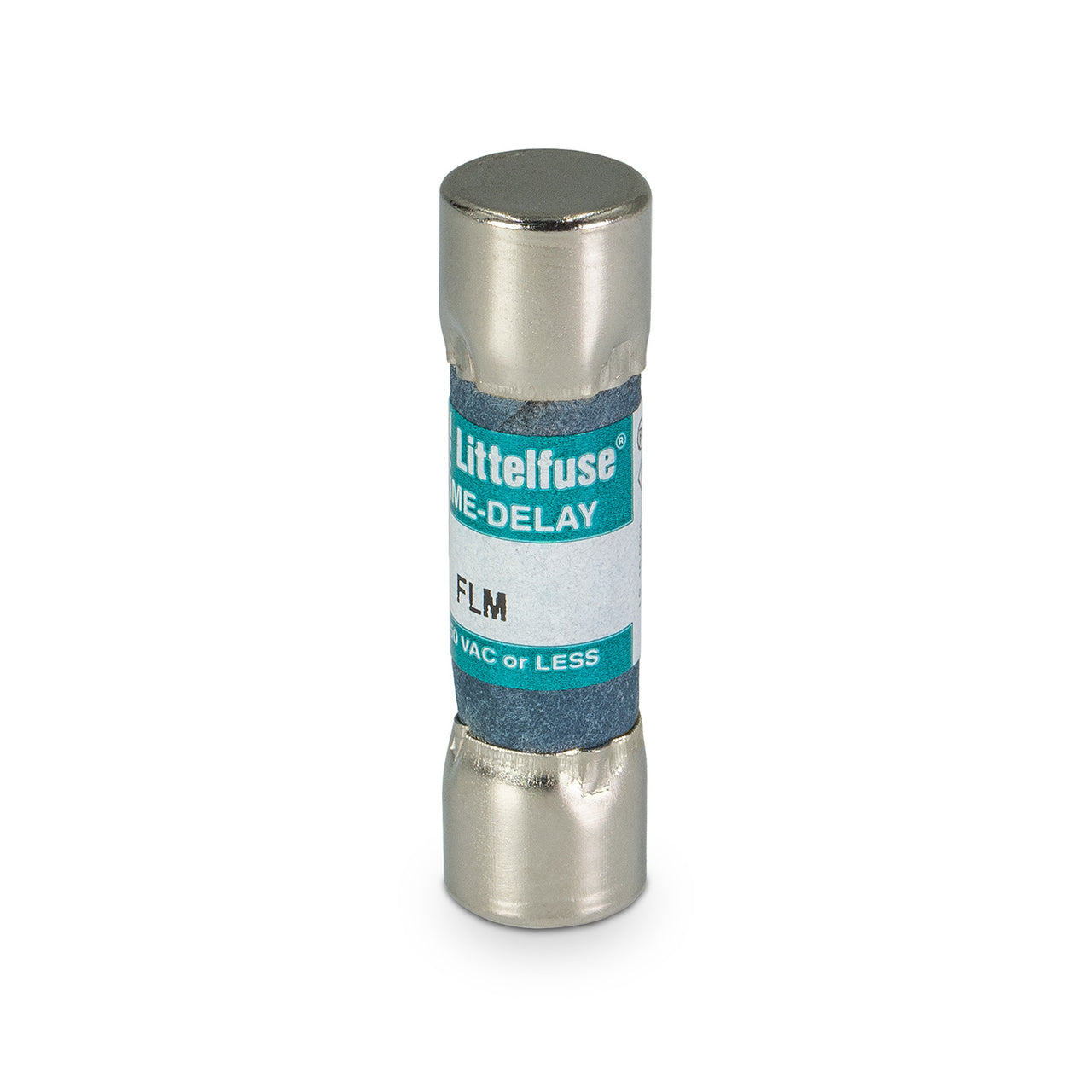

Littelfuse FLM03.5 - Time-Delay Midget Fuse 3.5A (250V, 10kA AIC)

Littelfuse FLM03.5 is a time-delay midget fuse designed for circuit protection in low-voltage applications, featuring a 3.5A current rating and 250V voltage rating for reliable overcurrent protection. Its compact 1-1/2-inch ferrule non-rejection design with a 0.41-inch diameter and 5.1 lb weight ensures space-efficient installation in tight panels. The fuse meets UL, CSA, QPL, and RoHS certifications with a 10kA@250V AIC rating for industrial safety compliance. Typical applications include control circuits, transformers, and motor loads requiring time-delay characteristics.

Key Features & Specifications

• Type: Time-delay midget fuse (TD) with ferrule non-rejection connection
• Voltage Rating: 250V AC/DC
• Current Rating: 3.5A
• Dimensions: 1-1/2 in length, 0.41 in diameter
• Standards: UL Listed, CSA Certified, QPL, RoHS
• Applications: Control circuits, transformers, motor protection
• Class Rating: Midget
• AIC Rating: 10kA@250V
• Connection: Ferrule Non-Rejection
• Barrels: 1
• Weight: 5.1 lb

Product Identification

• UPC: 079458140514
• GTIN: 00079458140514
