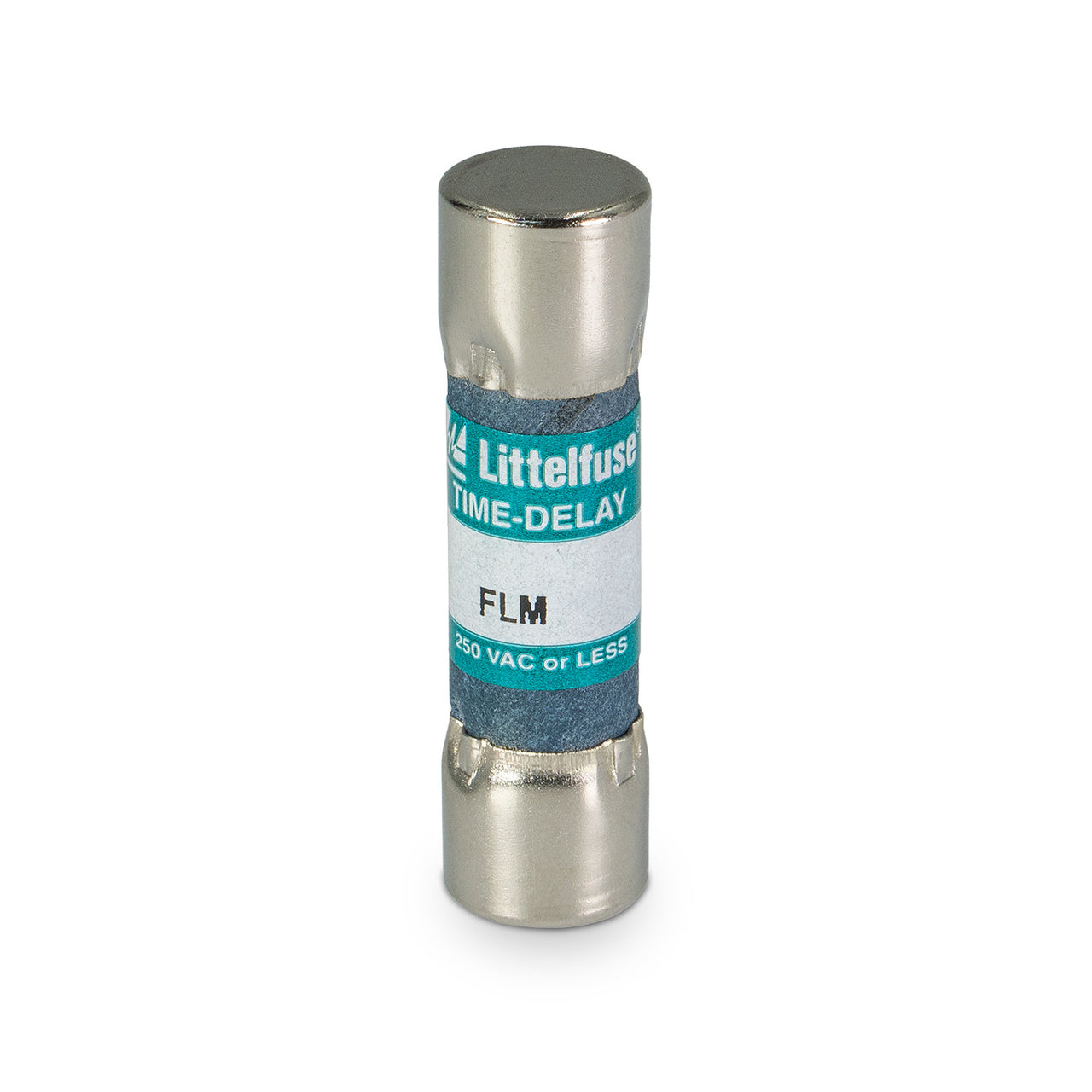

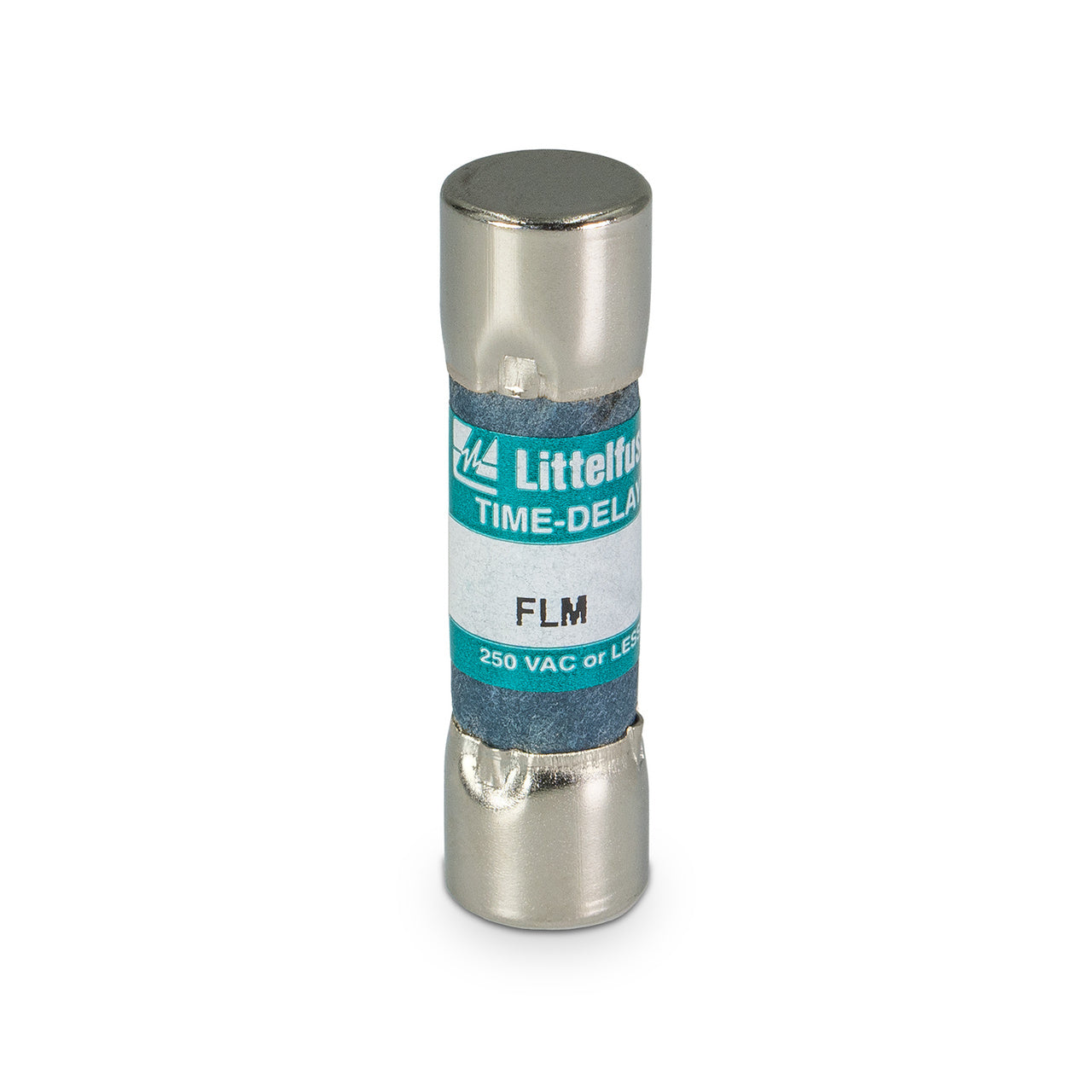

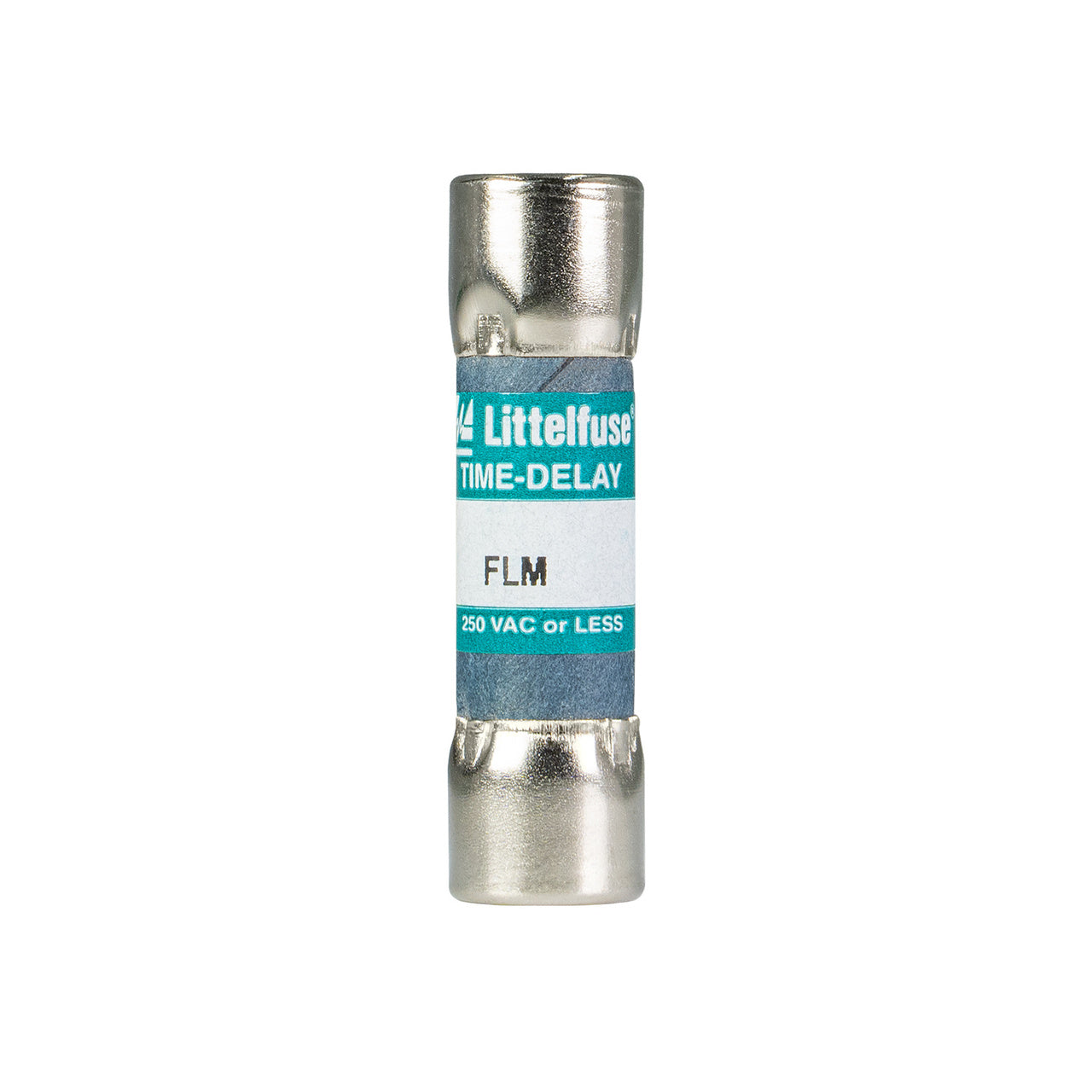

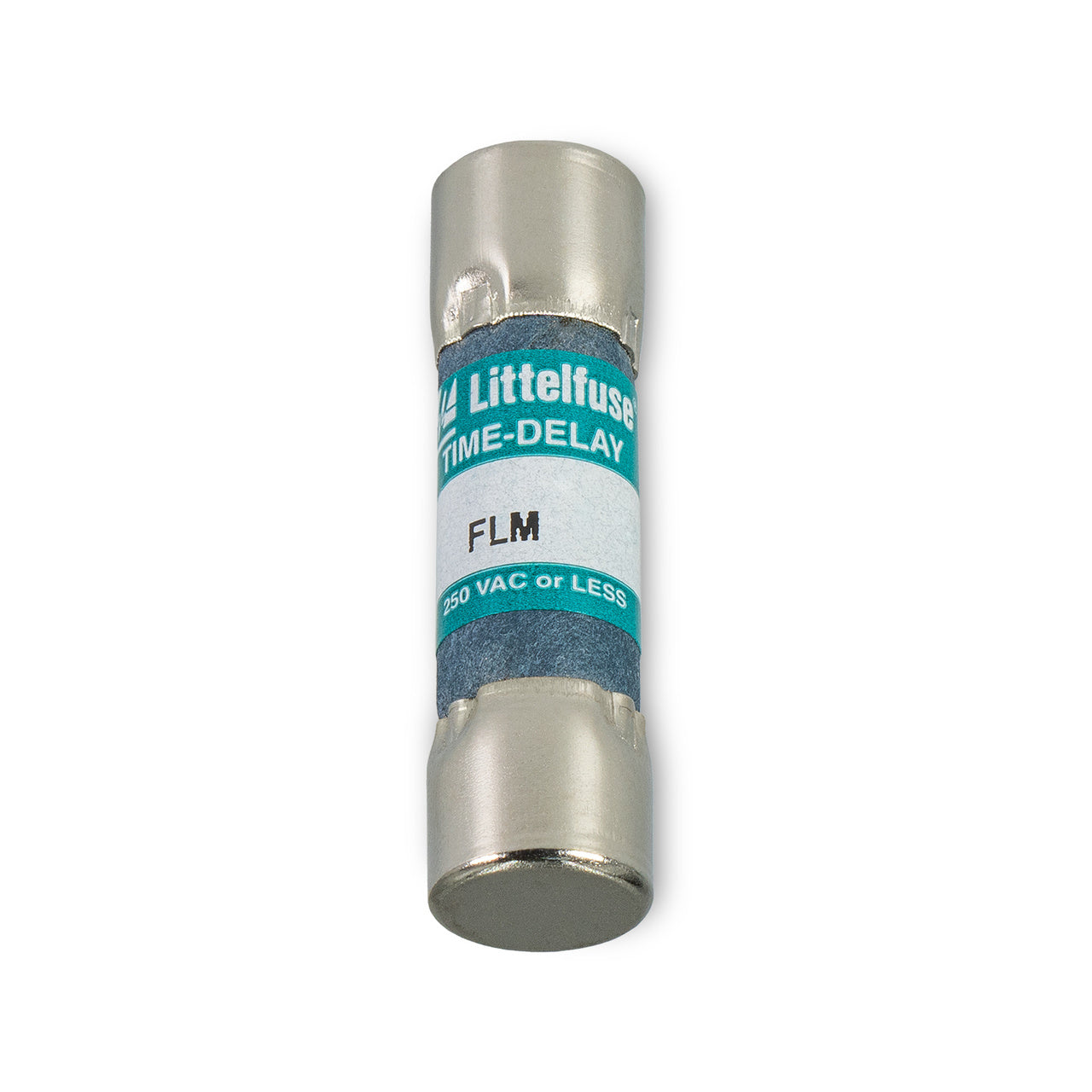

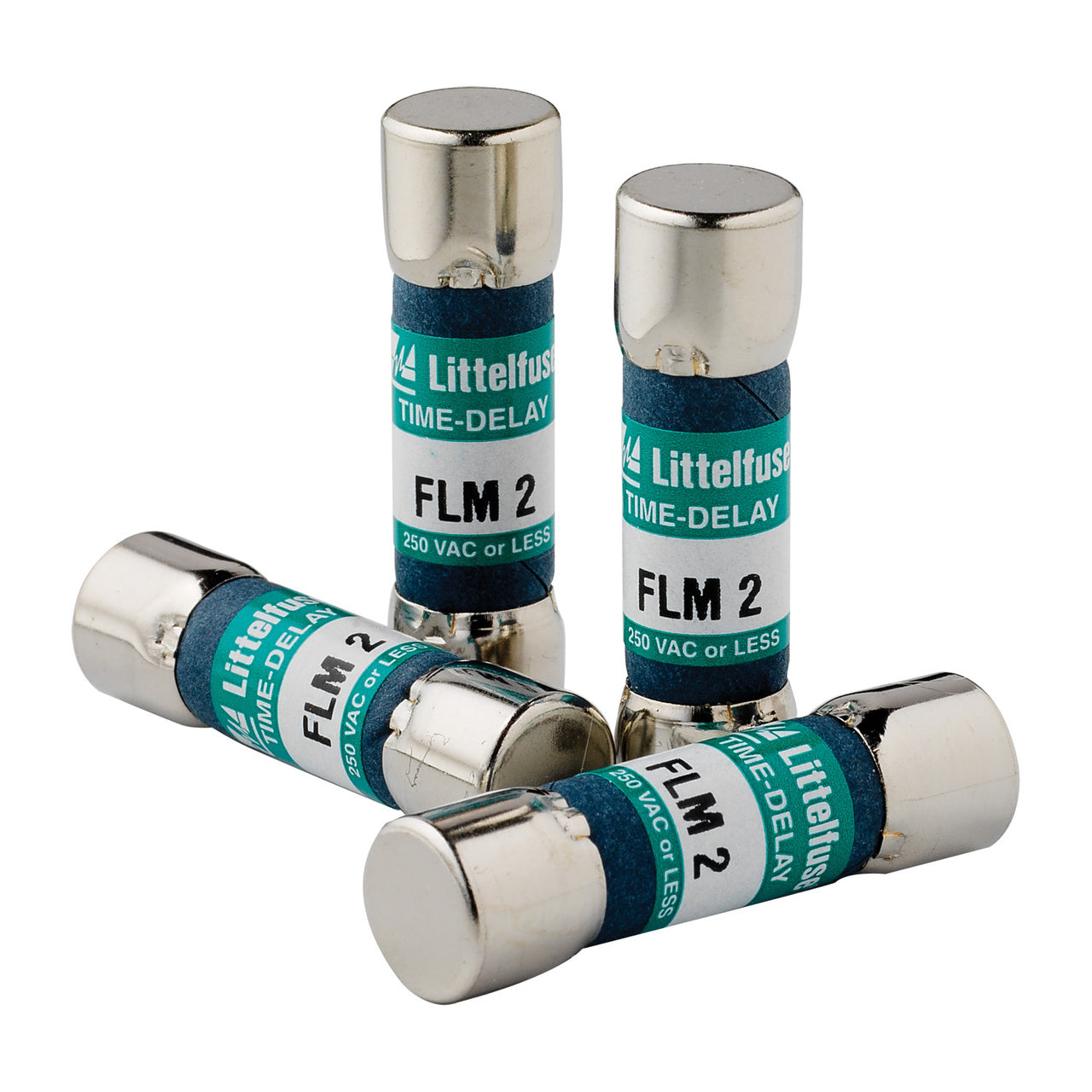

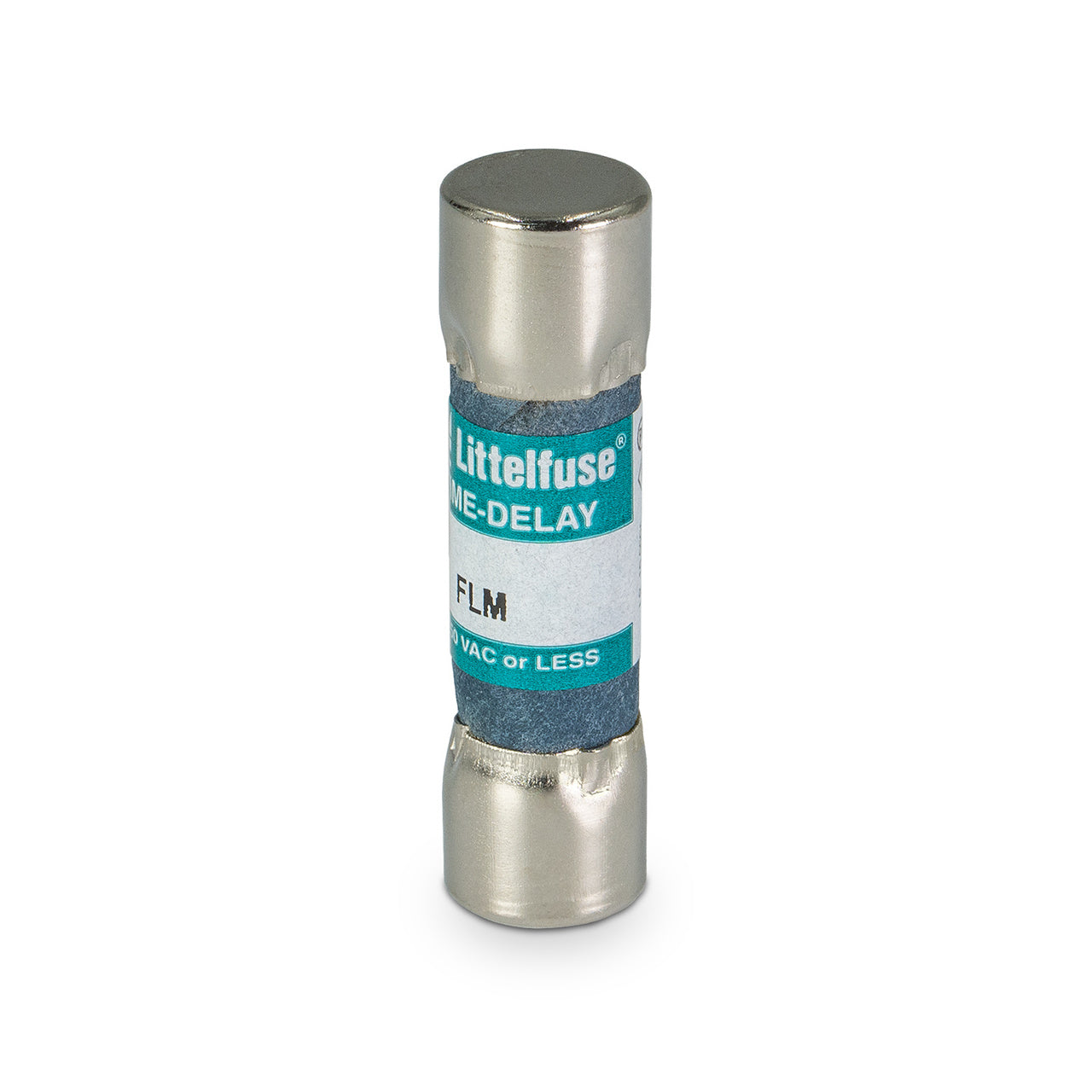

Littelfuse FLM015 - Time-Delay Midget Fuse 15A (10kA@250V Interrupt Rating)

Littelfuse FLM015 is a time-delay midget fuse designed for circuit protection in low-voltage applications. Rated for 250V AC/DC systems with a 15A current capacity, it features a compact ferrule non-rejection design measuring 1-1/2 inches in length and 0.41 inches in diameter. The UL Listed and CSA Certified fuse meets RoHS compliance while delivering 10kA interrupting capacity, with time-delay characteristics for inrush current tolerance. Typical applications include control transformers, PLCs, and industrial control circuits requiring reliable overload protection.

Key Features & Specifications

• Type: Time-delay midget fuse (TD) with ferrule non-rejection connection
• Voltage Rating: 250V AC/DC
• Current Rating: 15A
• Dimensions: 1-1/2" length x 0.41" diameter
• Standards: UL Listed, CSA Certified, QPL, RoHS
• Applications: Control transformers, PLCs, industrial circuits
• Class Rating: Midget
• Barrels: 1
• AIC rating: 10kA@250V
• Weight: 5.8 lb
• Country of Origin: Mexico

Product Identification

• UPC: 079458140682
• GTIN: 00079458140682
