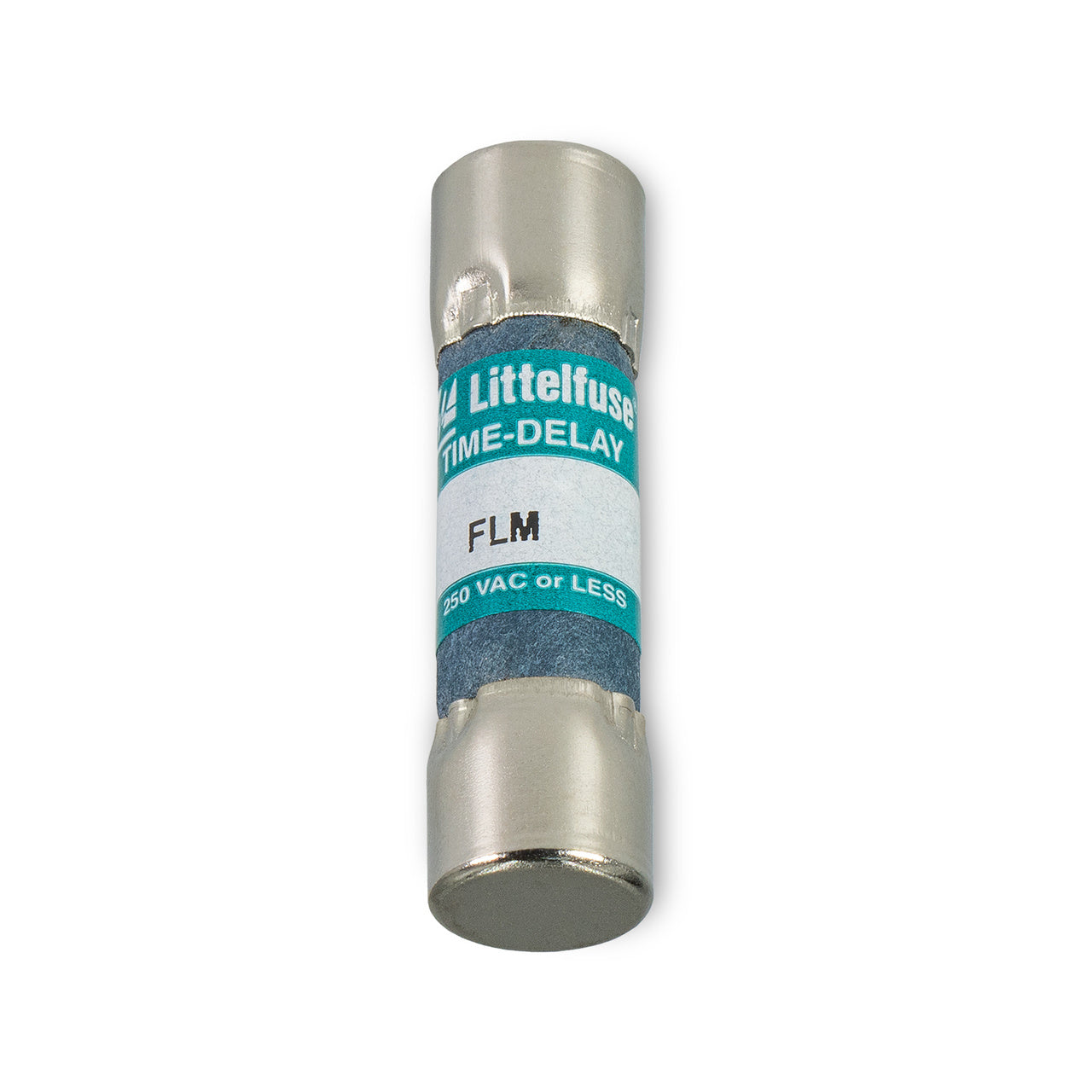

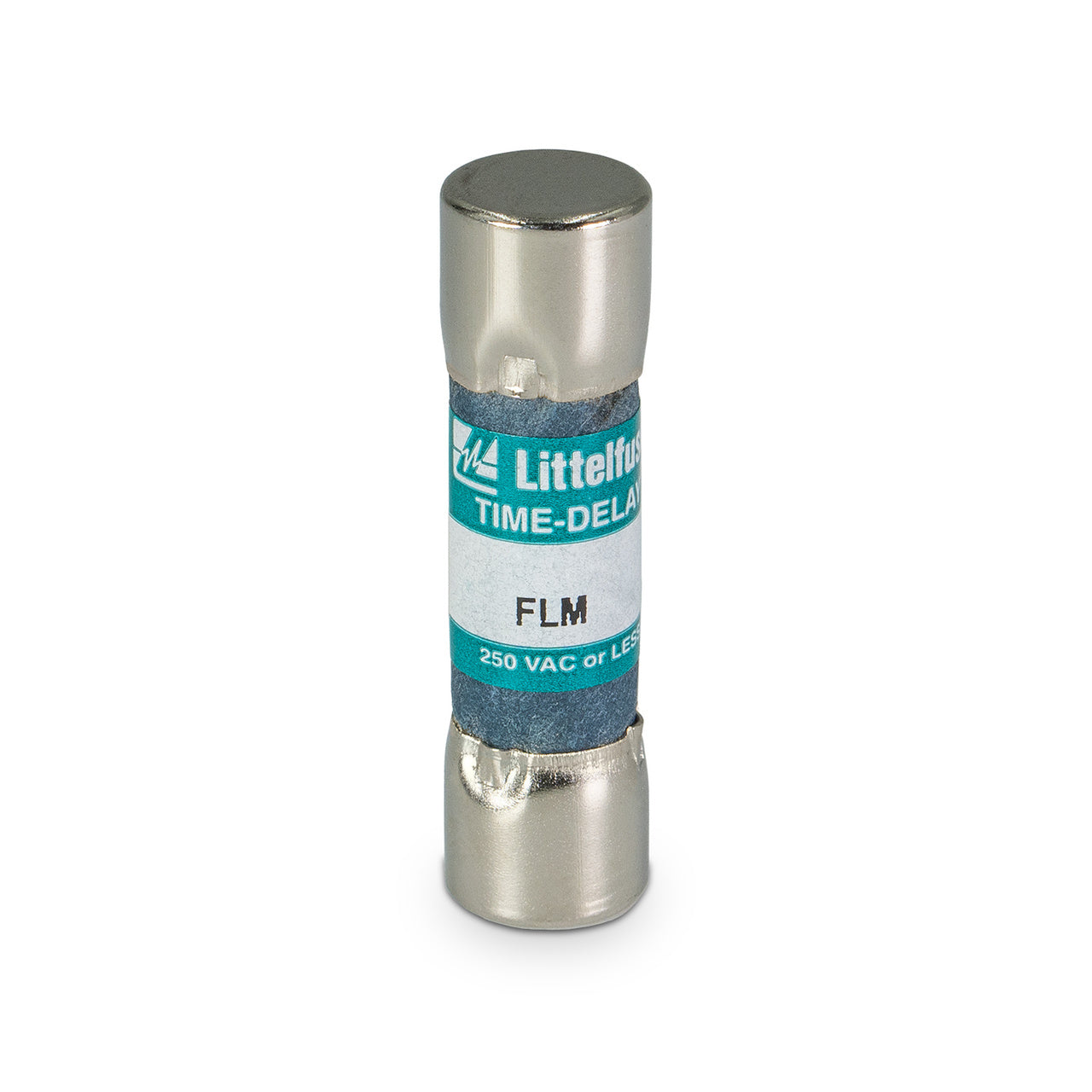

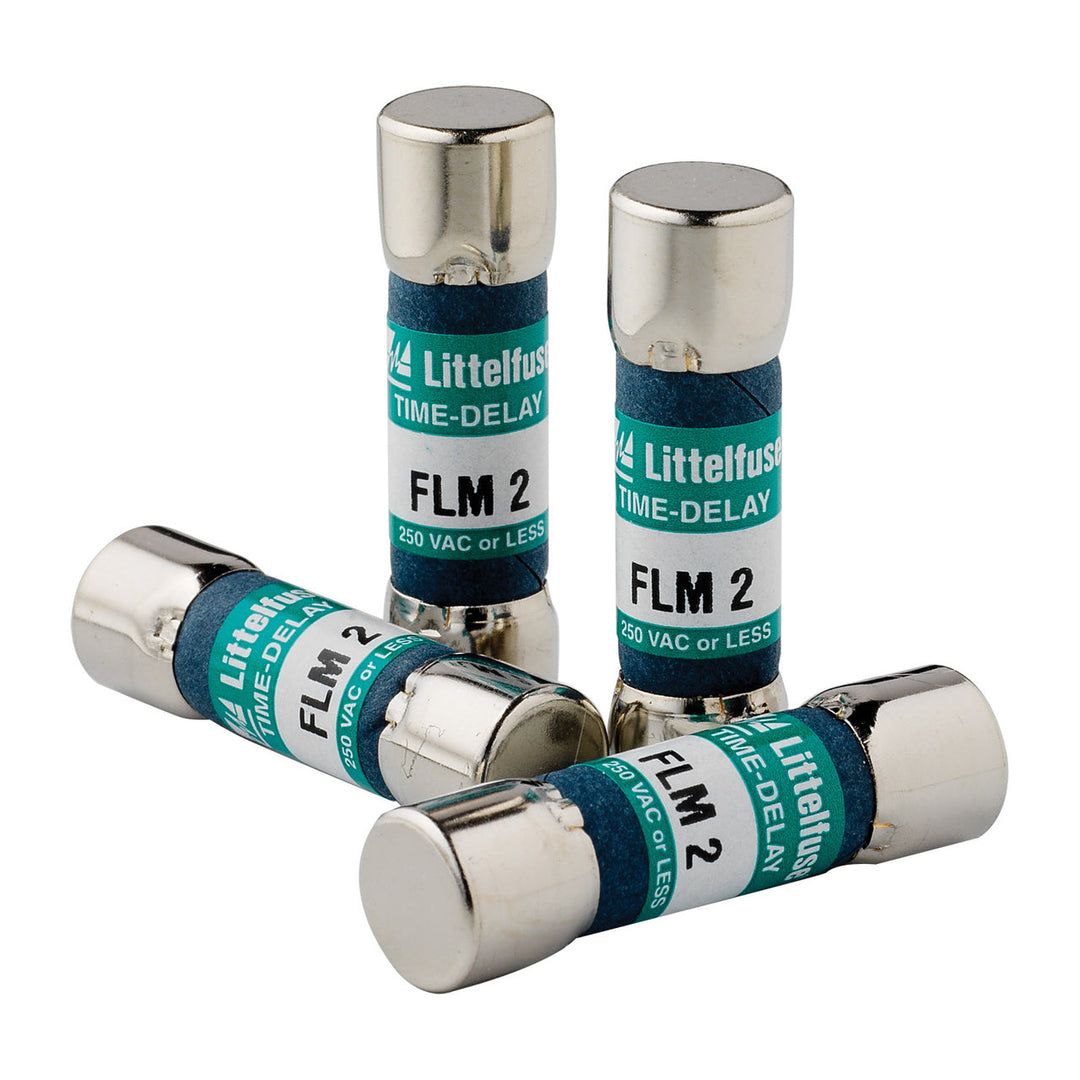

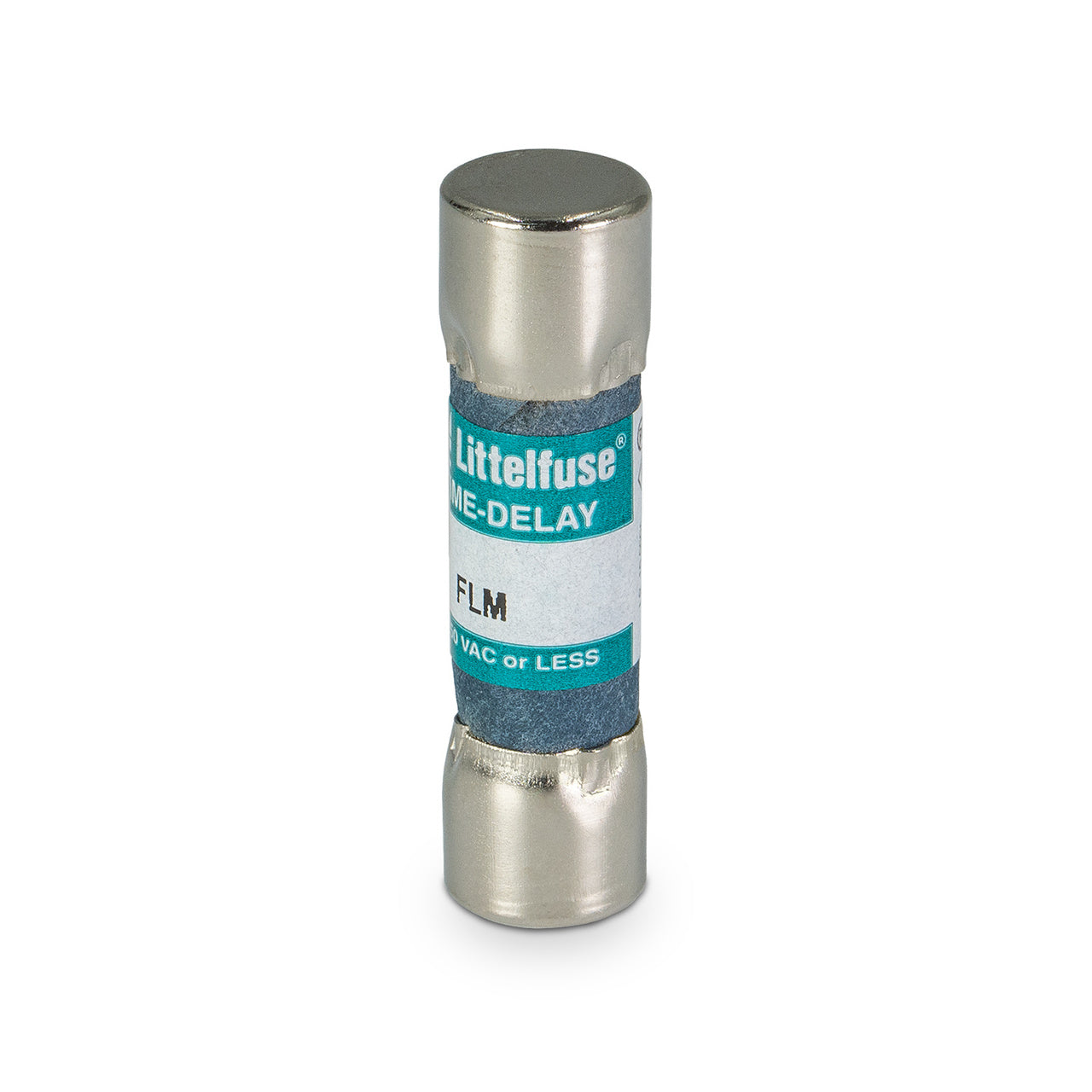

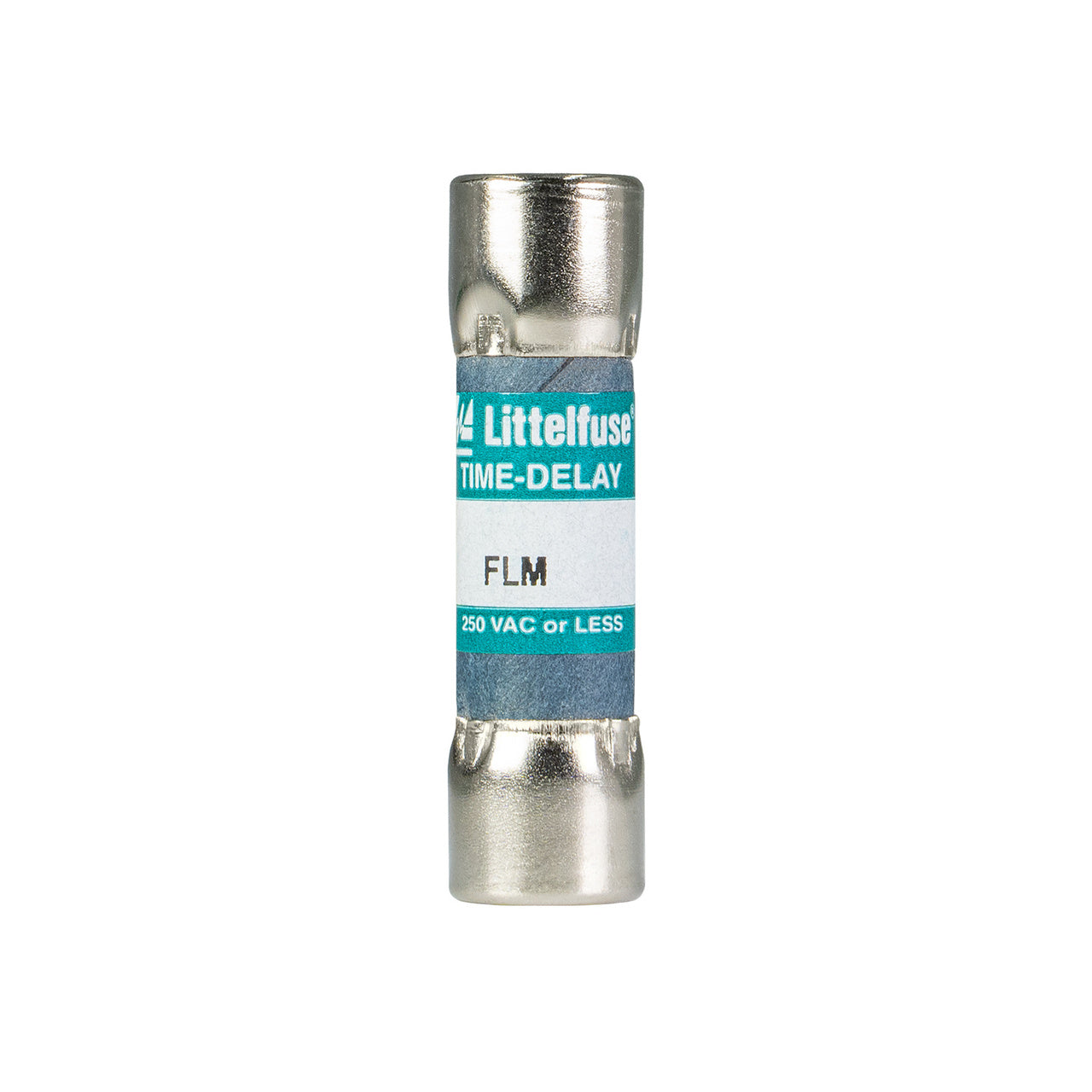

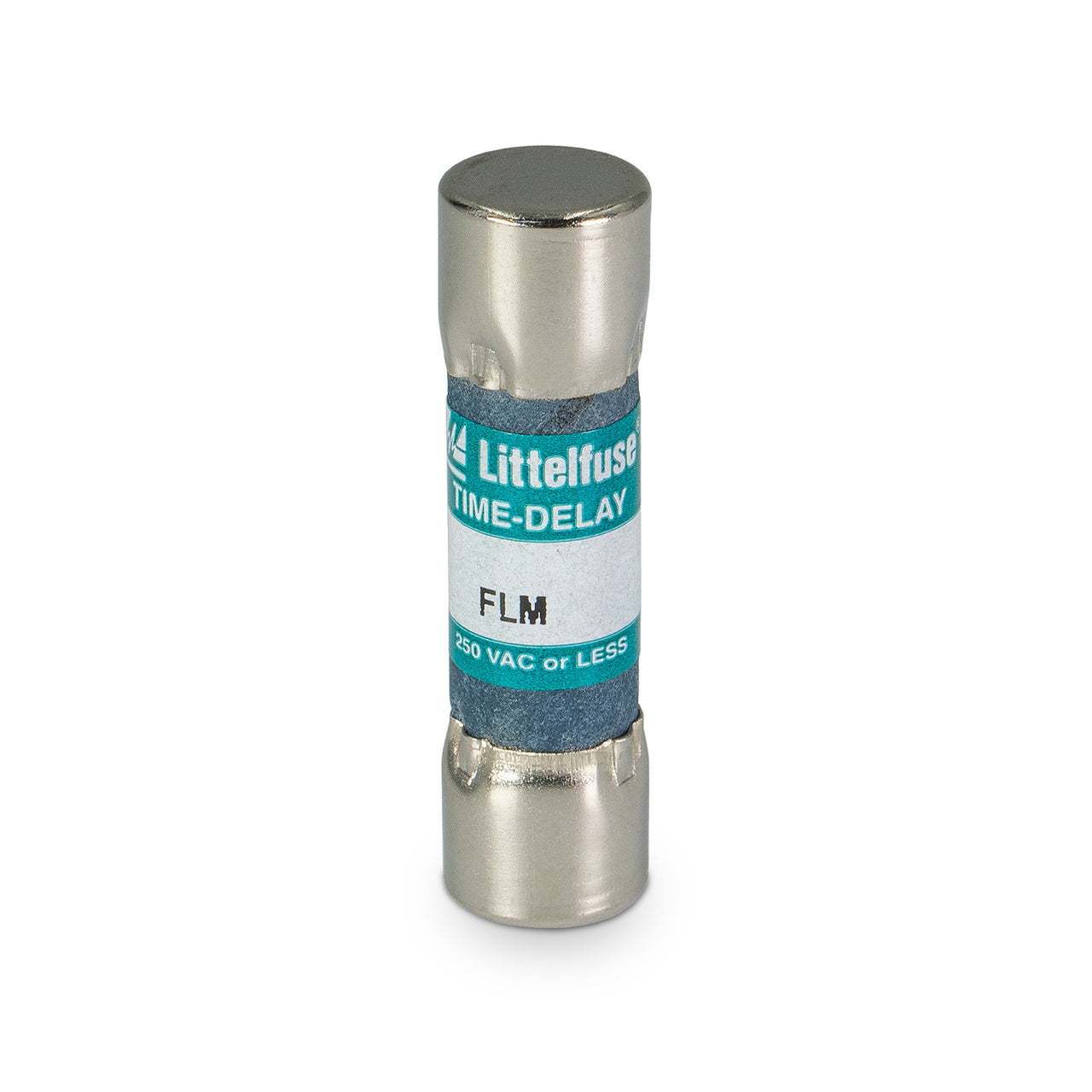

Littelfuse FLM006 - Time-Delay Midget Fuse 6A 250V (10kA AIC)

Littelfuse FLM006 is a time-delay midget fuse designed for circuit protection in low-voltage applications. Rated for 250V AC/DC systems with a 6A current capacity, it features a compact ferrule non-rejection design measuring 1-1/2 inches in length and 0.41 inches in diameter. The fuse meets UL, CSA, QPL, and RoHS certifications with a 10kA interrupting rating at 250V. Its time-delay (TD) characteristic provides reliable protection for motors, transformers, and control circuits in industrial environments.

Key Features & Specifications

• Type: Time-delay midget fuse with ferrule non-rejection connection
• Voltage Rating: 250V AC/DC
• Current Rating: 6A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: UL Listed, CSA Certified, QPL, RoHS
• Applications: Motor circuits, transformers, control panels
• Class Rating: Midget
• Barrels: 1
• Velocity: TD - Time Delay
• AIC rating: 10kA@250V
• Weight: 6.5 lb
• Country of Origin: Mexico

Product Identification

• UPC: 079458140583
• GTIN: 00079458140583
