Littelfuse FLM.800 - Time-Delay Midget Fuse 250V/0.8A (10kA AIC)
FLM.800 Littelfuse FLM Series - Time-Delay 250 V Midget Fuses Low Voltage Fuse 250V 0.8A Fuse - Essential Electric Supply
FLM.800 Littelfuse FLM Series - Time-Delay 250 V Midget Fuses Low Voltage Fuse 250V 0.8A Fuse - Essential Electric Supply
FLM.800 Littelfuse FLM Series - Time-Delay 250 V Midget Fuses Low Voltage Fuse 250V 0.8A Fuse - Essential Electric Supply
FLM.800 Littelfuse FLM Series - Time-Delay 250 V Midget Fuses Low Voltage Fuse 250V 0.8A Fuse - Essential Electric Supply
Littelfuse FLM.800 - Time-Delay Midget Fuse 250V/0.8A (10kA AIC)

Littelfuse FLM.800 - Time-Delay Midget Fuse 250V/0.8A (10kA AIC)

Littelfuse
Price
Save $26.95
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

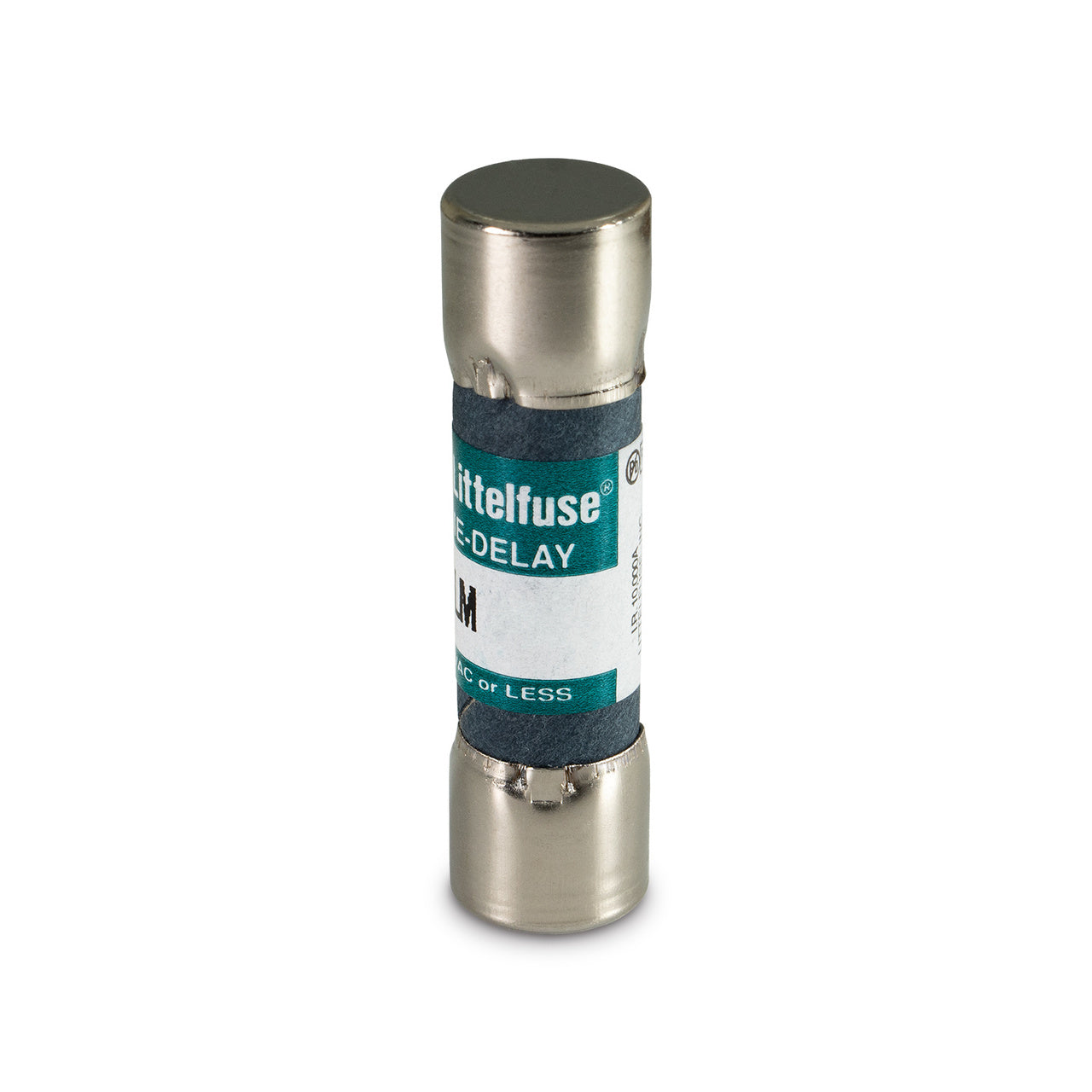

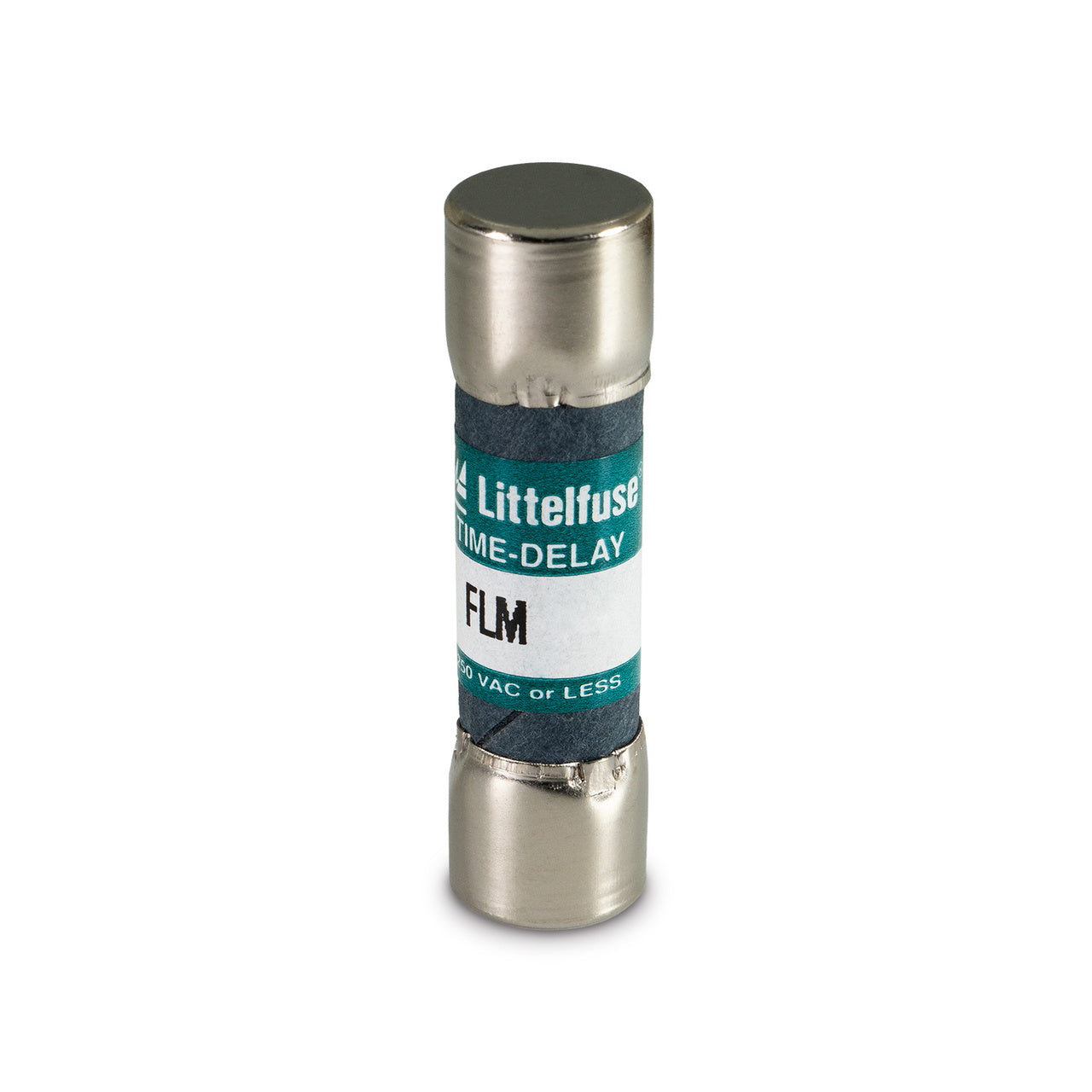

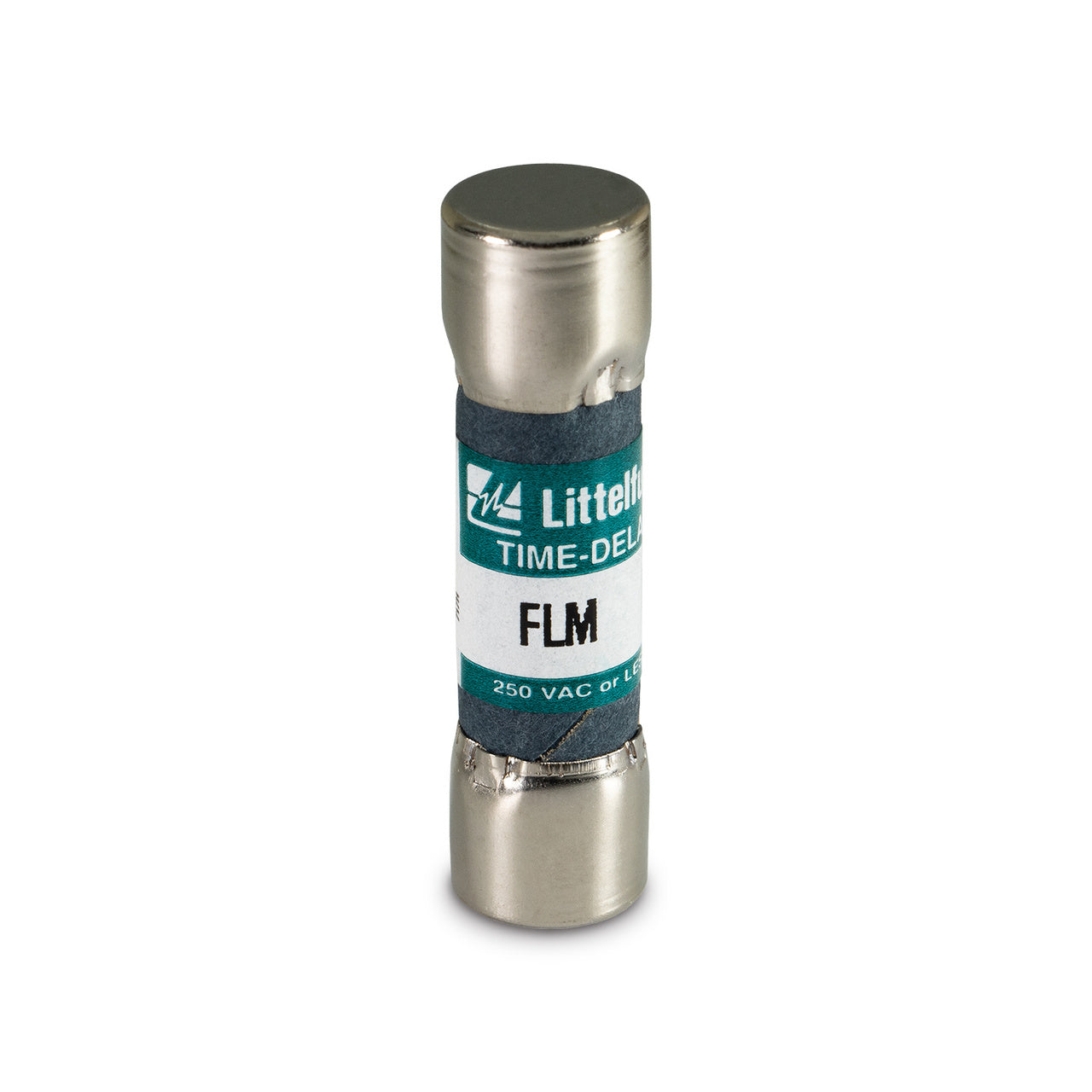

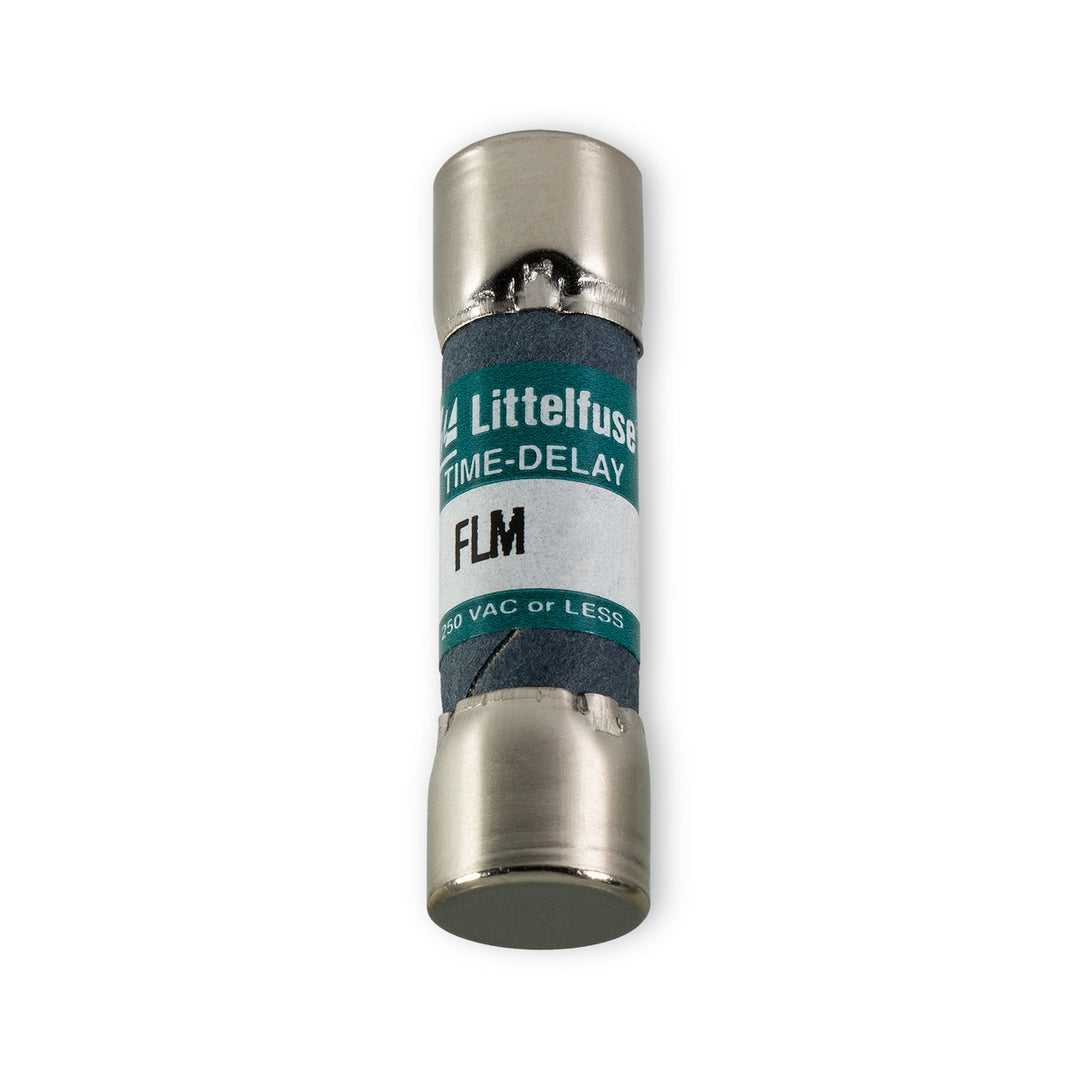

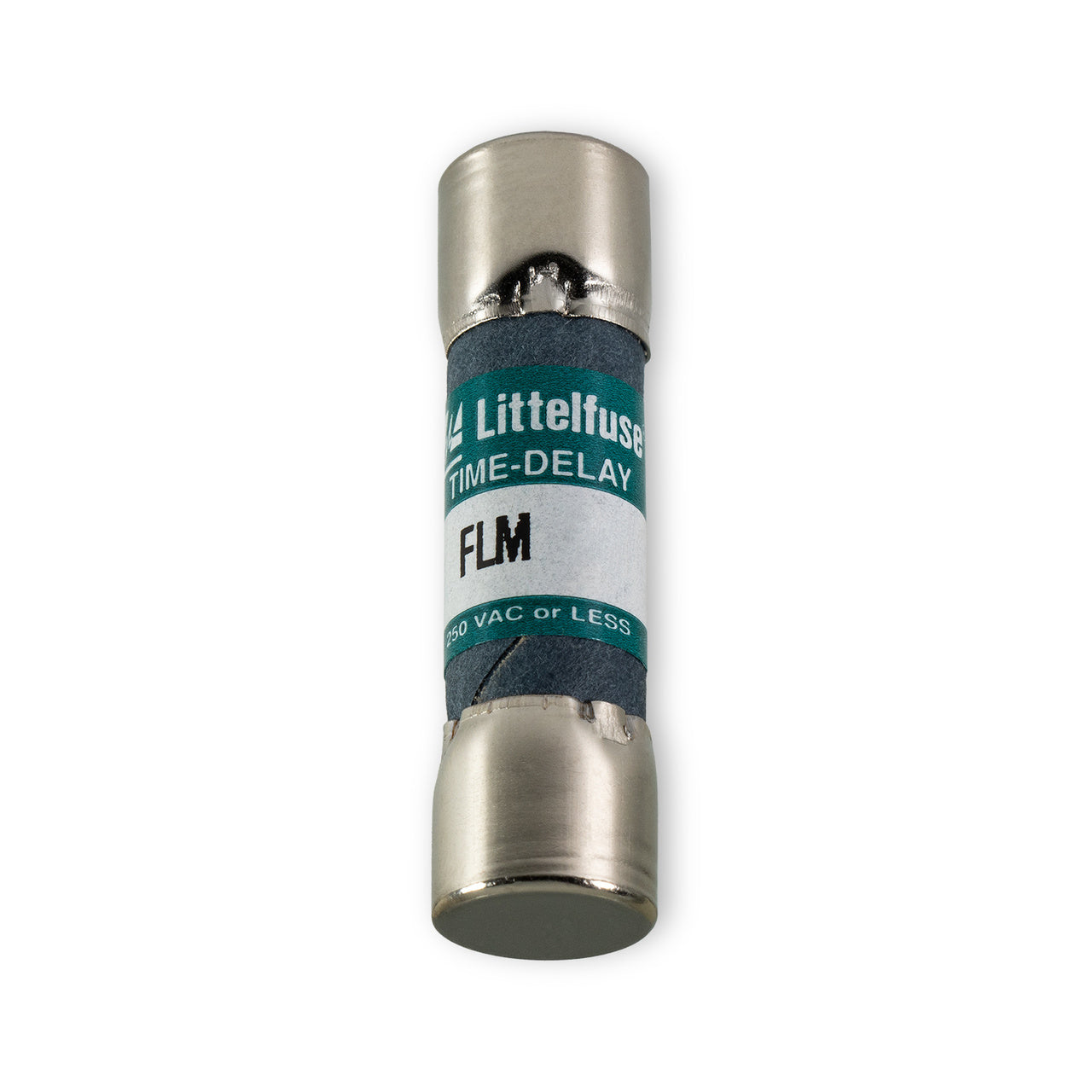

Littelfuse FLM.800 is a time-delay midget fuse designed for circuit protection in low-voltage applications. It features a 250V AC/DC voltage rating and 0.8A current rating with a 10kA interrupting capacity, housed in a compact 1-1/2" ferrule-style package with 0.41" diameter. The UL Listed, CSA Certified, and RoHS-compliant fuse utilizes time-delay (TD) characteristics for motor circuit protection, measuring 7.2 lb with non-rejection ferrule connections. Typical applications include industrial control panels, HVAC systems, and electrical equipment requiring reliable overcurrent protection.

Key Features & Specifications
  • Type: Time-delay midget fuse with ferrule non-rejection connection
  • Voltage Rating: 250V AC/DC
  • Current Rating: 0.8A
  • Dimensions: 1-1/2" length x 0.41" diameter
  • Standards: UL Listed, CSA Certified, QPL, RoHS
  • Applications: Motor circuits, control panels, HVAC systems
  • Class Rating: Midget
  • Barrels: 1
  • Velocity: TD - Time Delay
  • AIC rating: 10kA
  • Weight: 7.2 lb
  • Connection: Ferrule Non-Rejection
Product Identification
  • UPC: 079458000856
  • GTIN: 00079458000856
