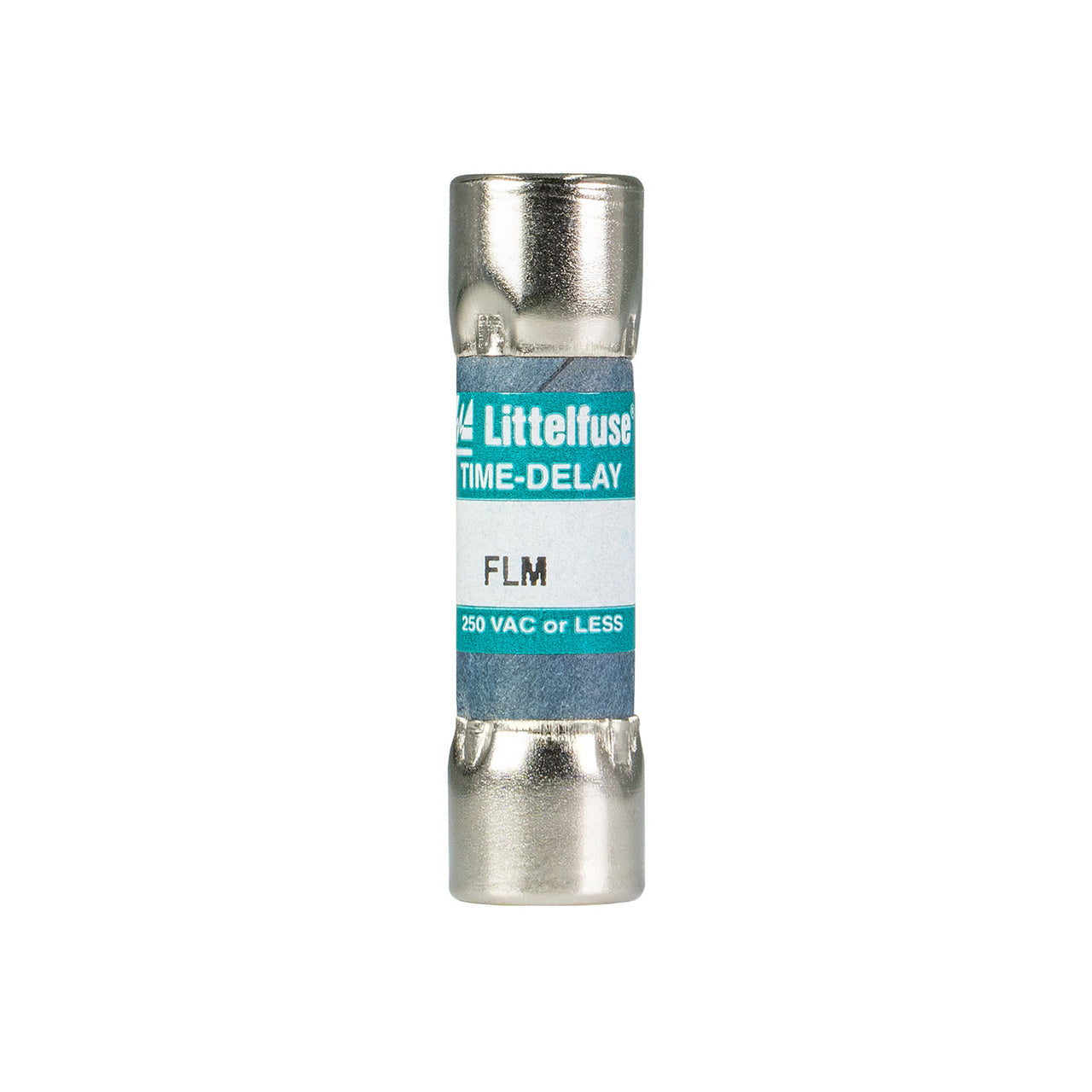

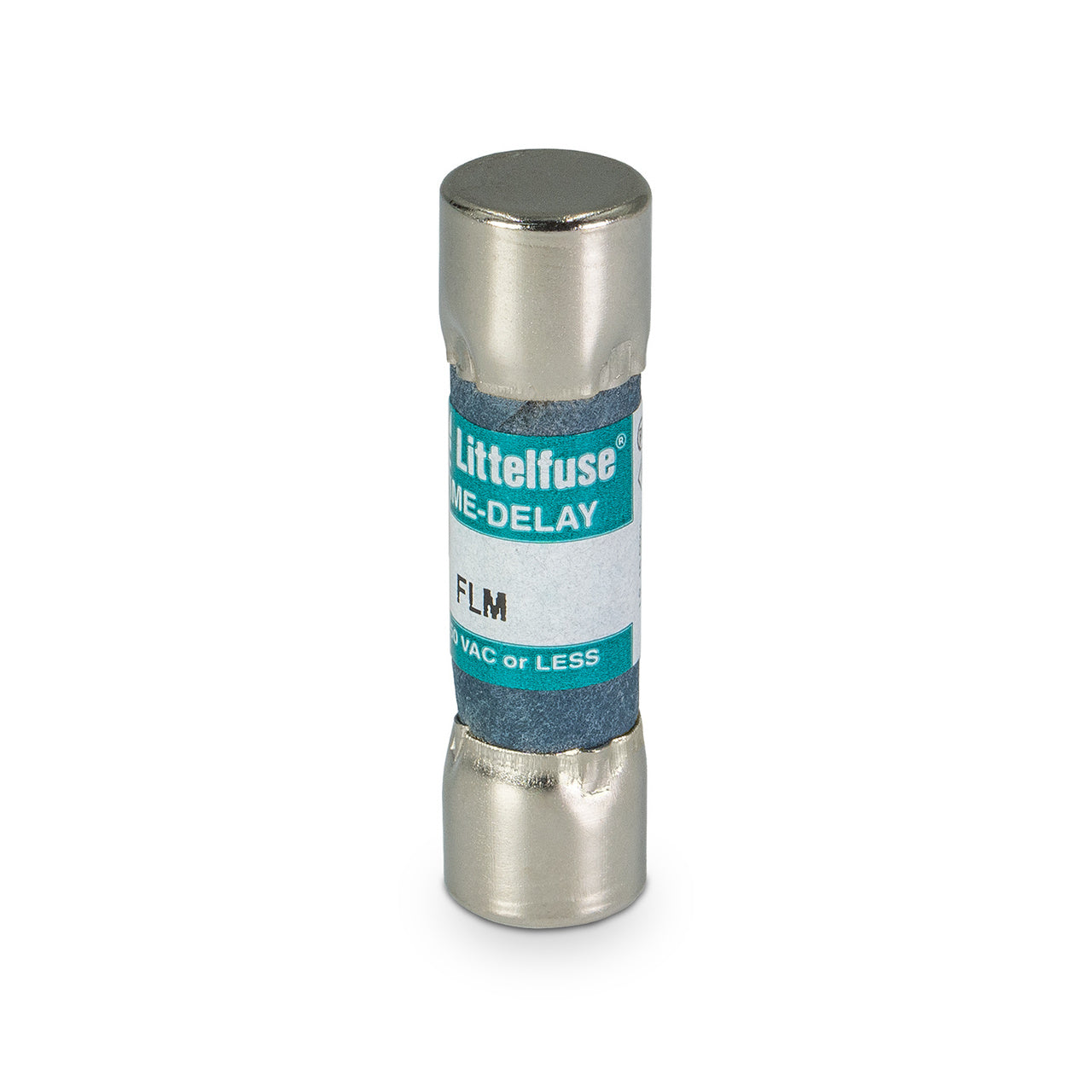

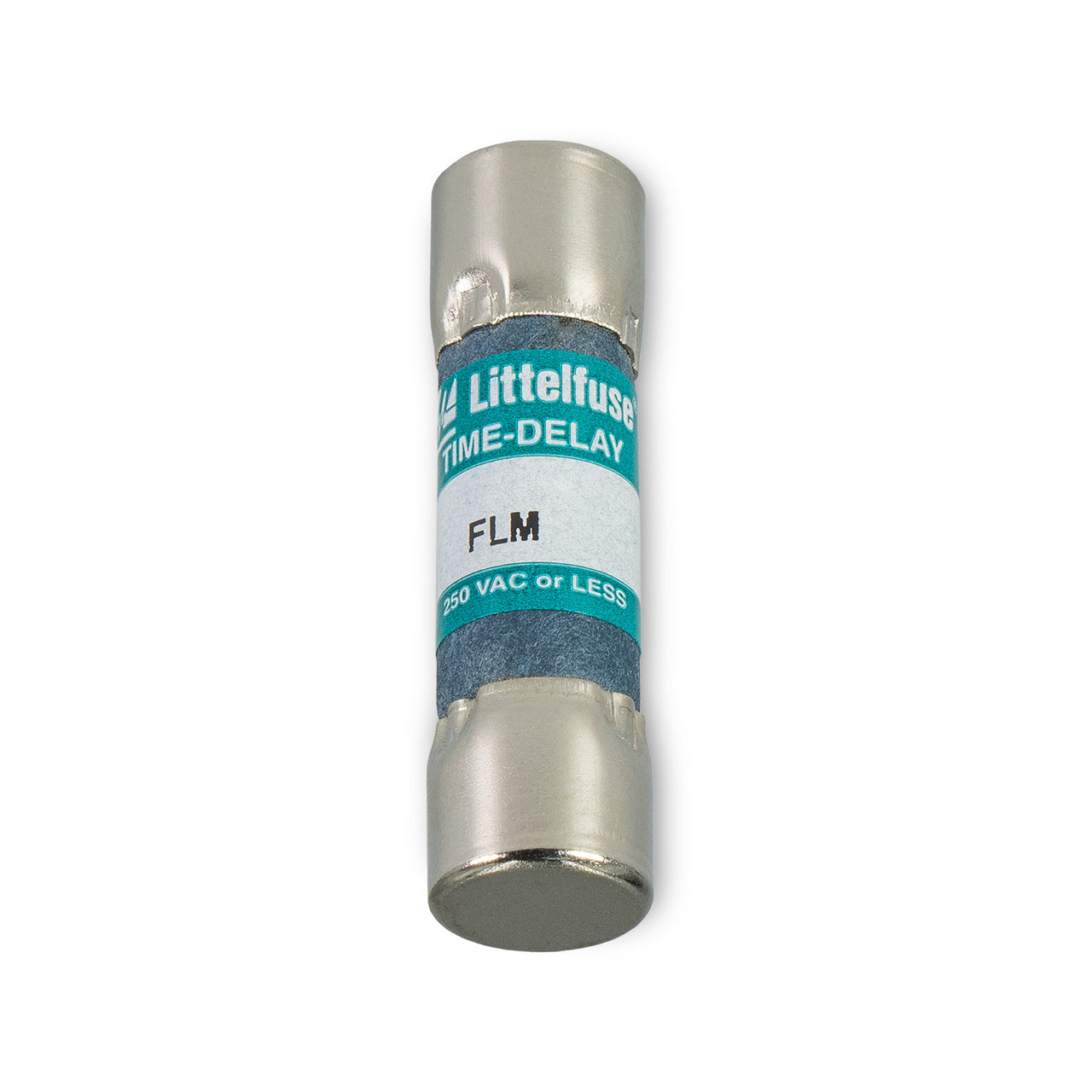

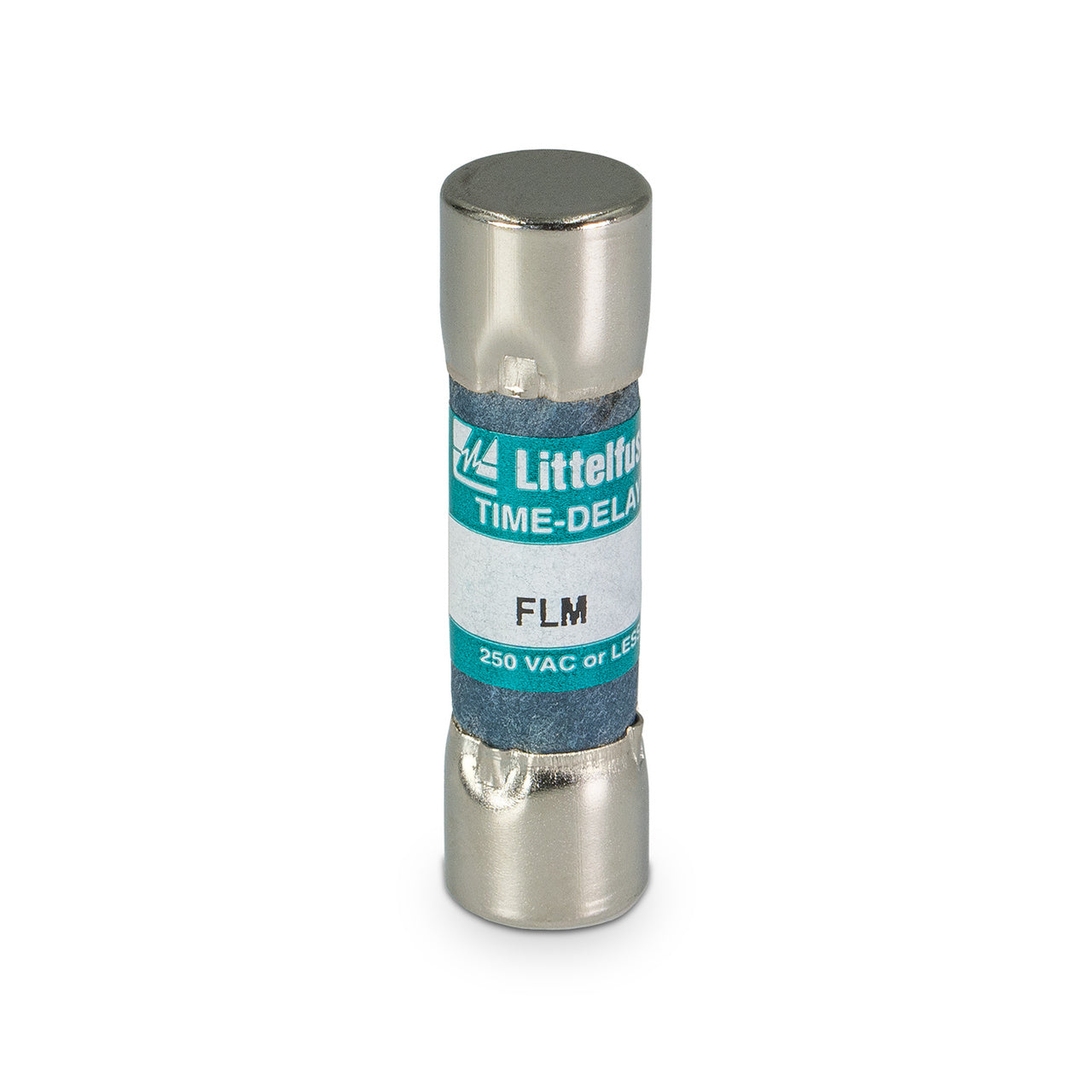

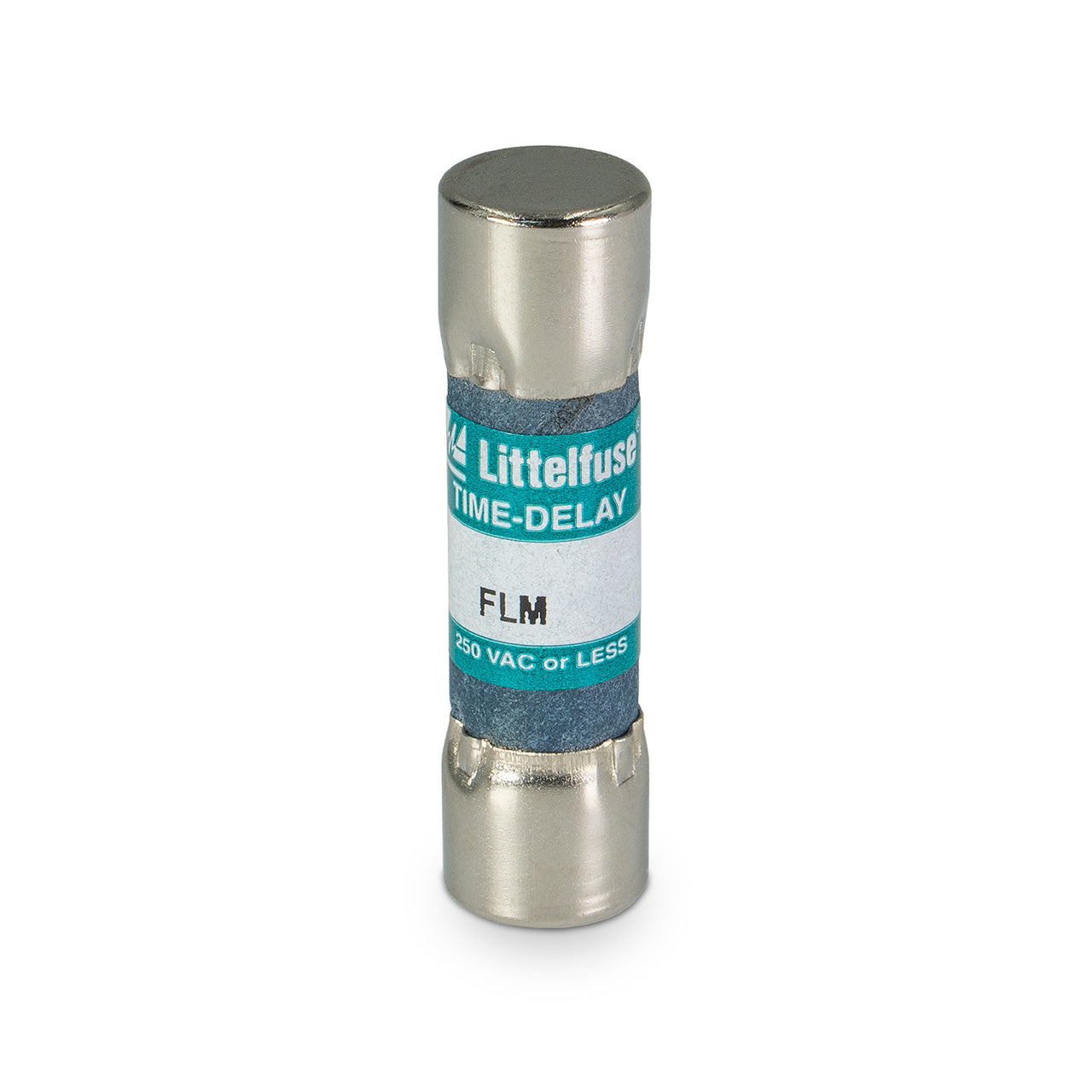

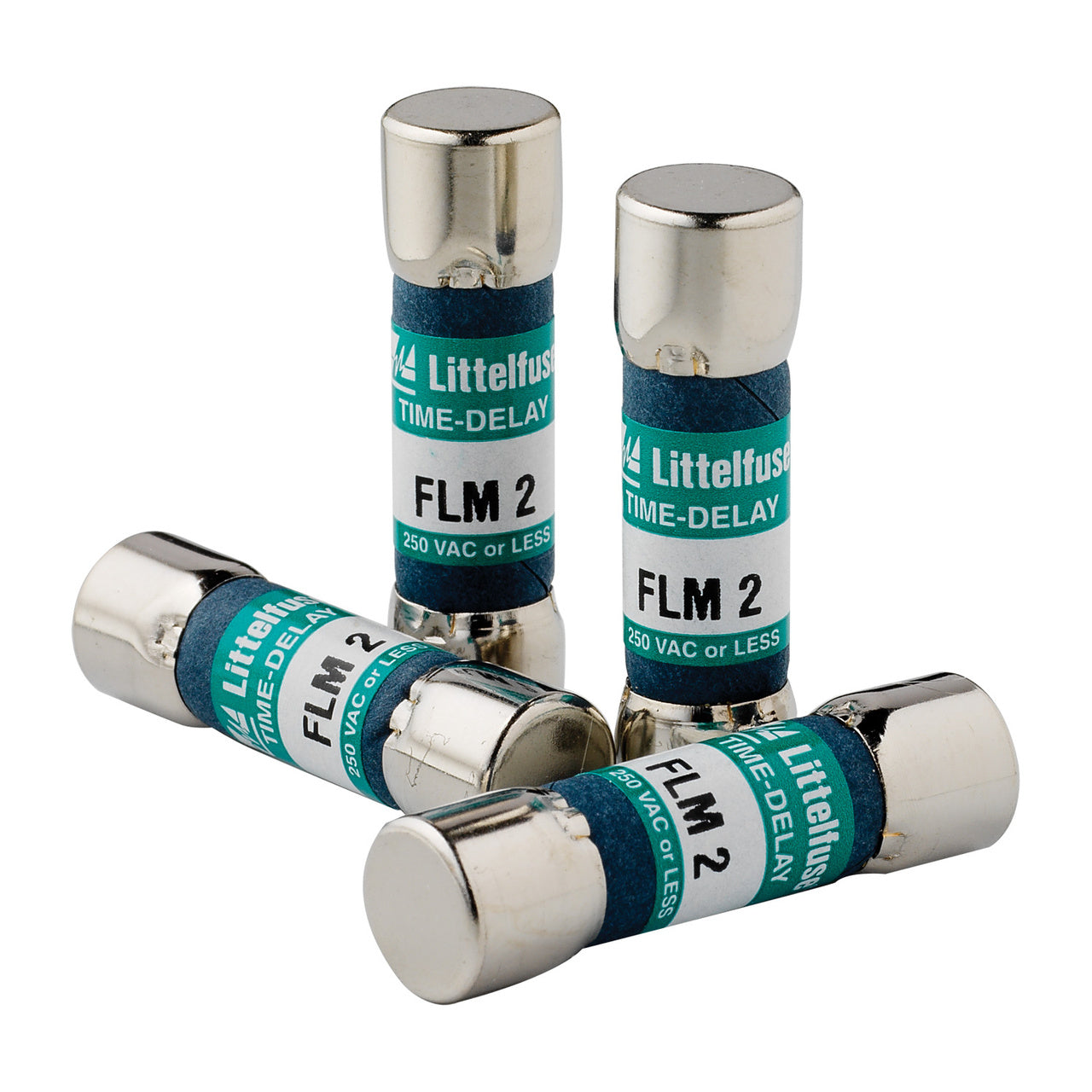

Littelfuse FLM-007 - Low Voltage Fuse 7A 600V (UL 248-14 Certified)

Littelfuse FLM-007 is a low-voltage fuse designed for circuit protection in industrial and commercial applications. It features a 600V AC/DC voltage rating and a 7A current rating, providing reliable overcurrent protection in demanding environments. The fuse is constructed with a durable ceramic body and silver-plated end caps for optimal conductivity and heat resistance. It complies with UL 248-14 and CSA standards, ensuring safety and performance in electrical systems. Typical applications include motor controls, transformers, and power distribution equipment where precise fault interruption is critical.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, ceramic body, silver-plated terminals
• Voltage Rating: 600V AC/DC
• Current Rating: 7A
• Dimensions: 10.3mm diameter x 38.1mm length
• Standards: UL 248-14, CSA certified
• Applications: Motor protection, transformers, power distribution panels
• Fuse Class: FLM series
• Interrupting Rating: 200kA
• Operating Temperature: -40°C to +125°C

Product Identification

• UPC: 079458140613
• GTIN: 00079458140613
