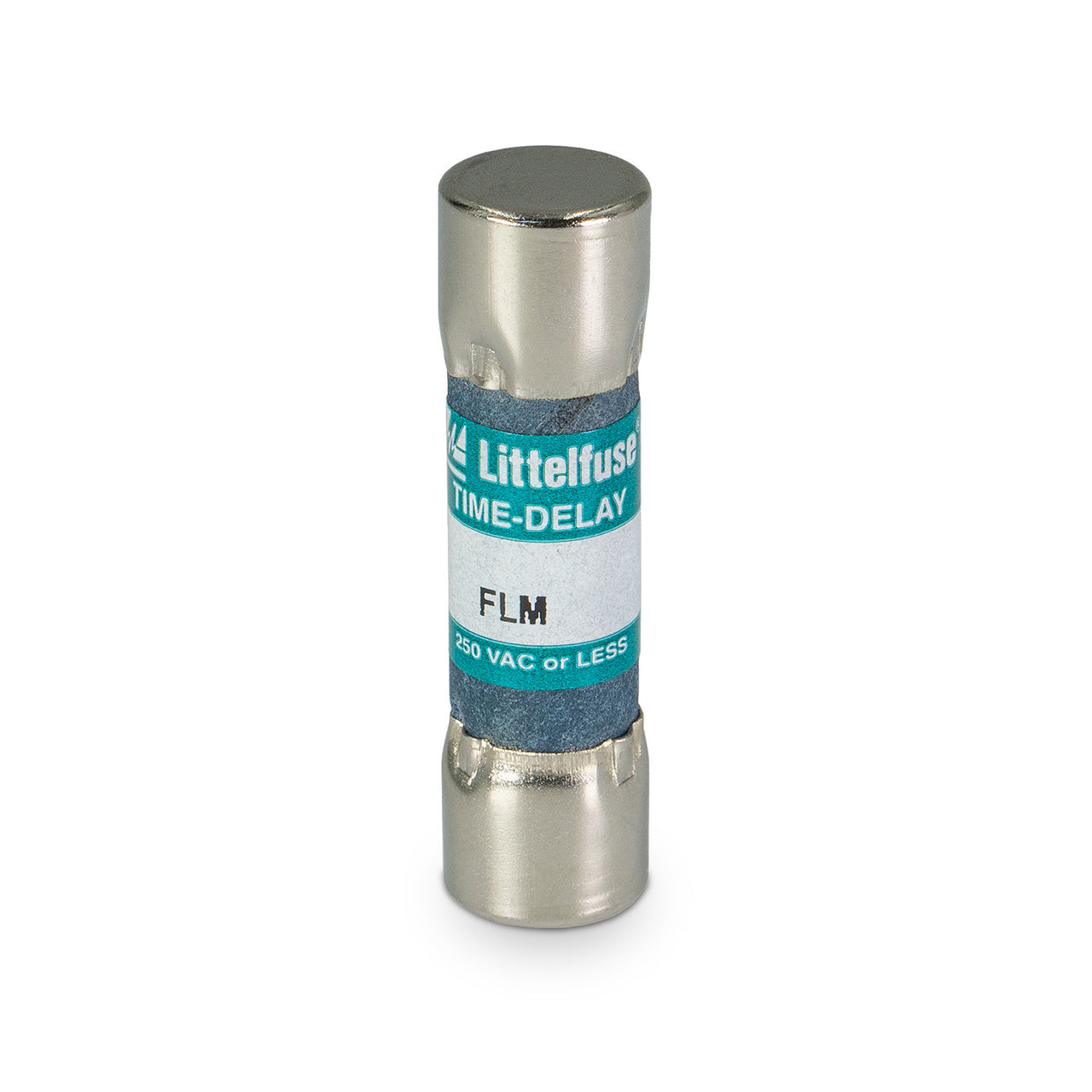

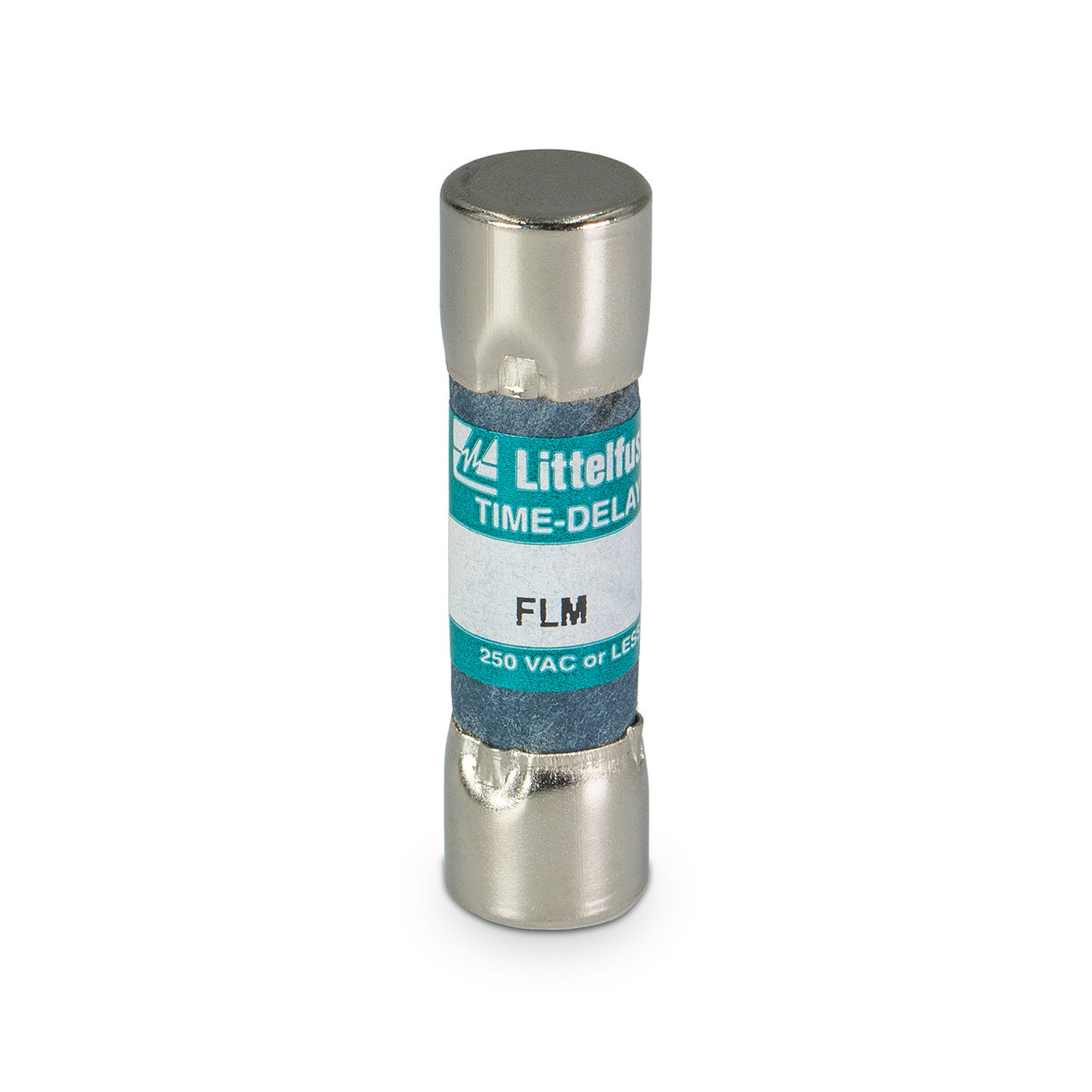

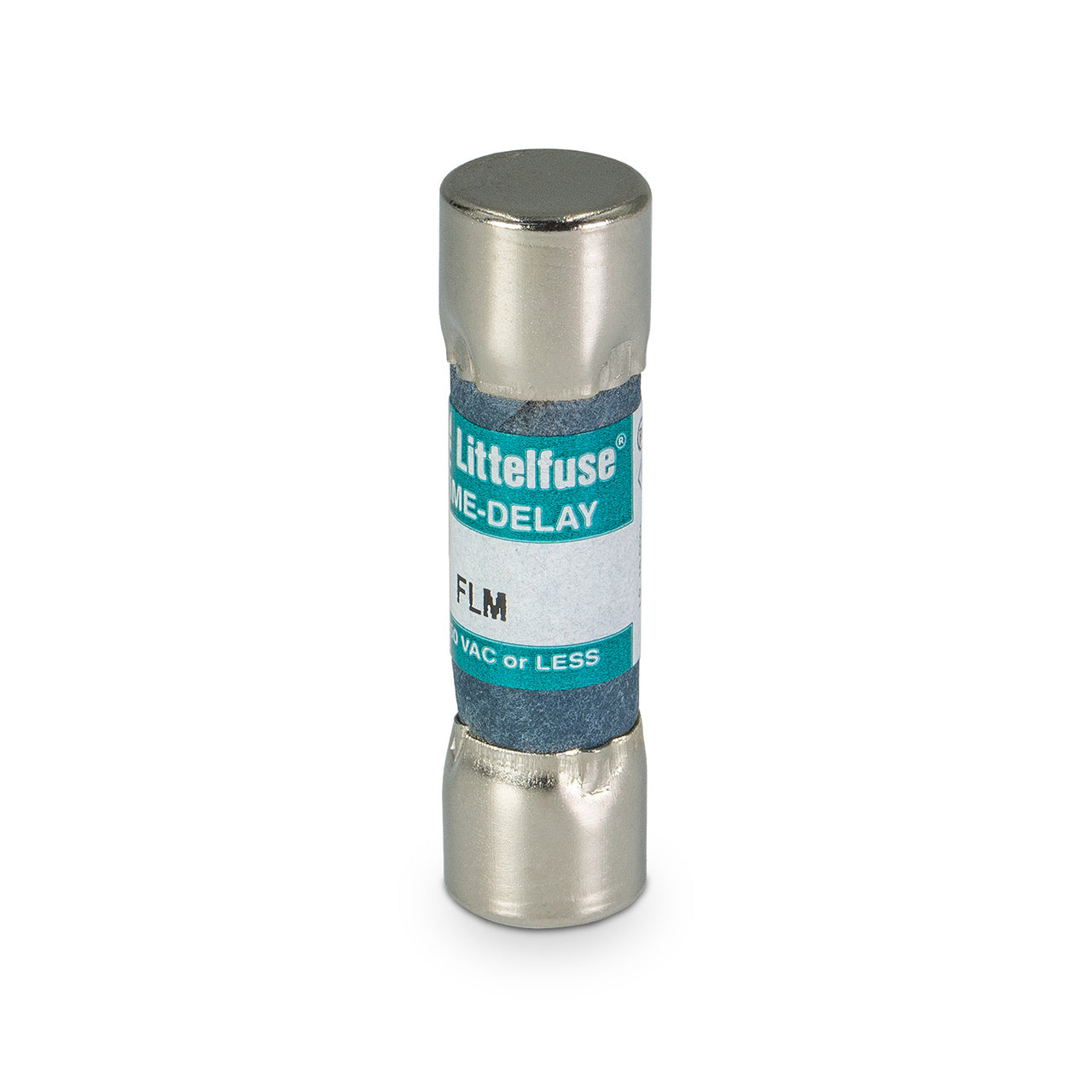

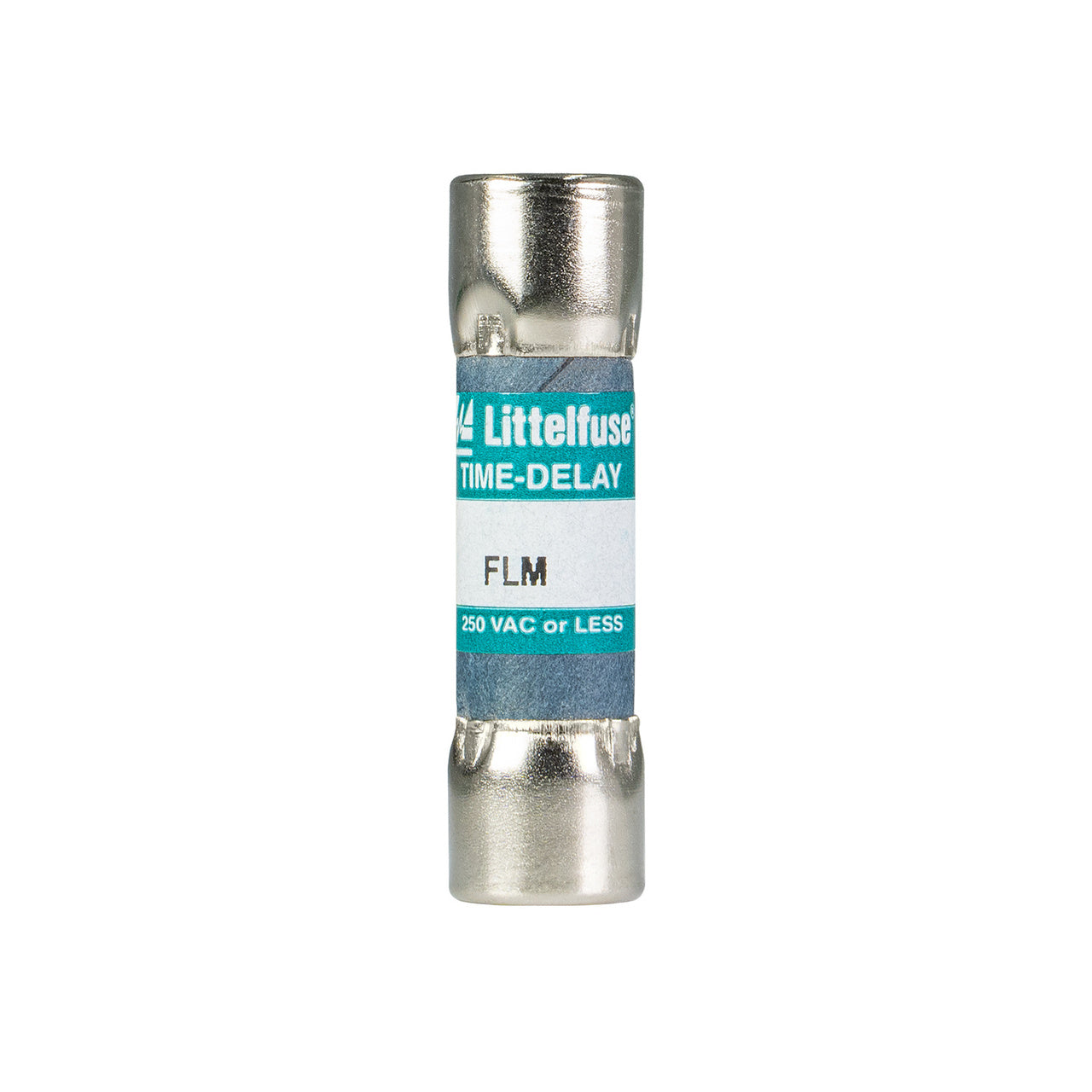

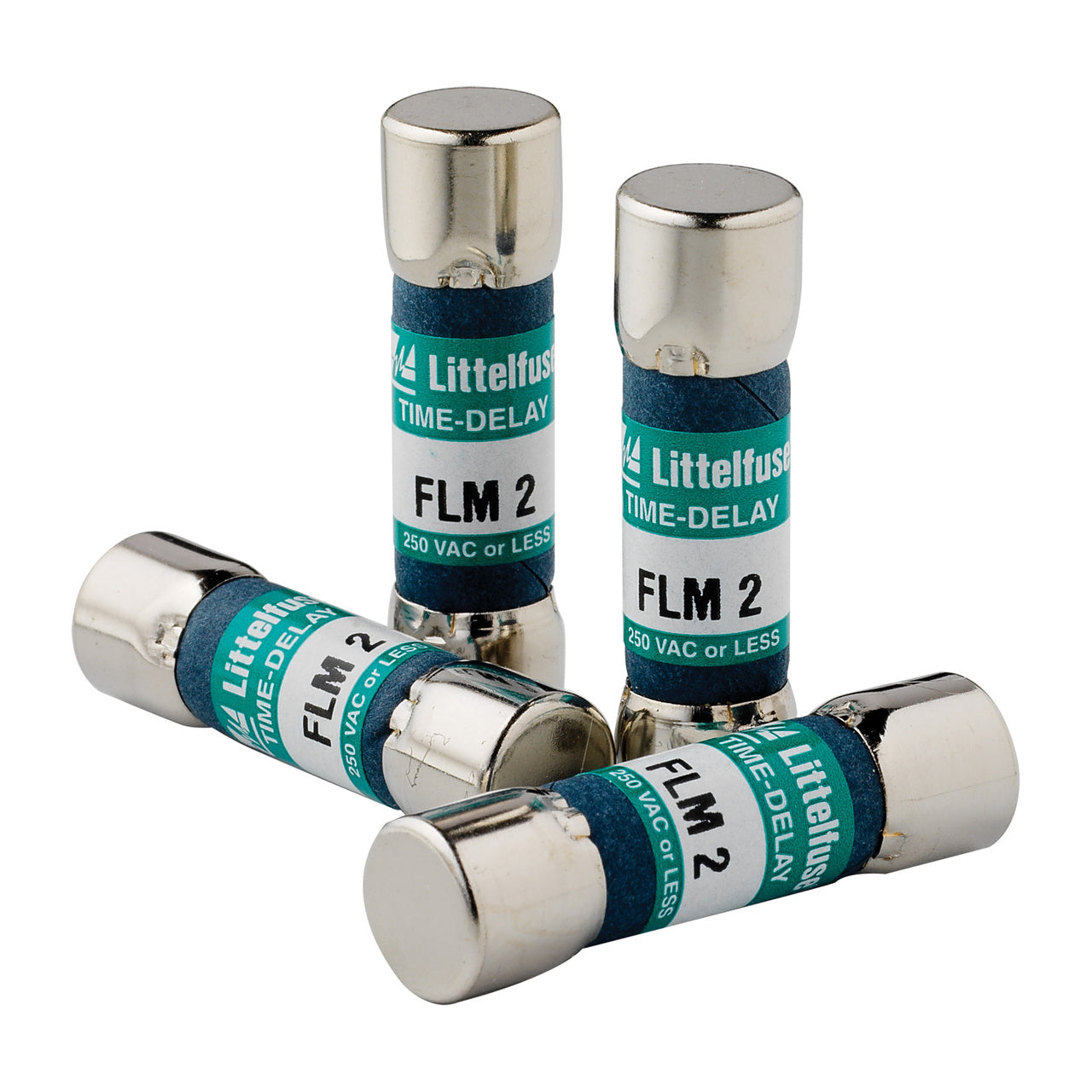

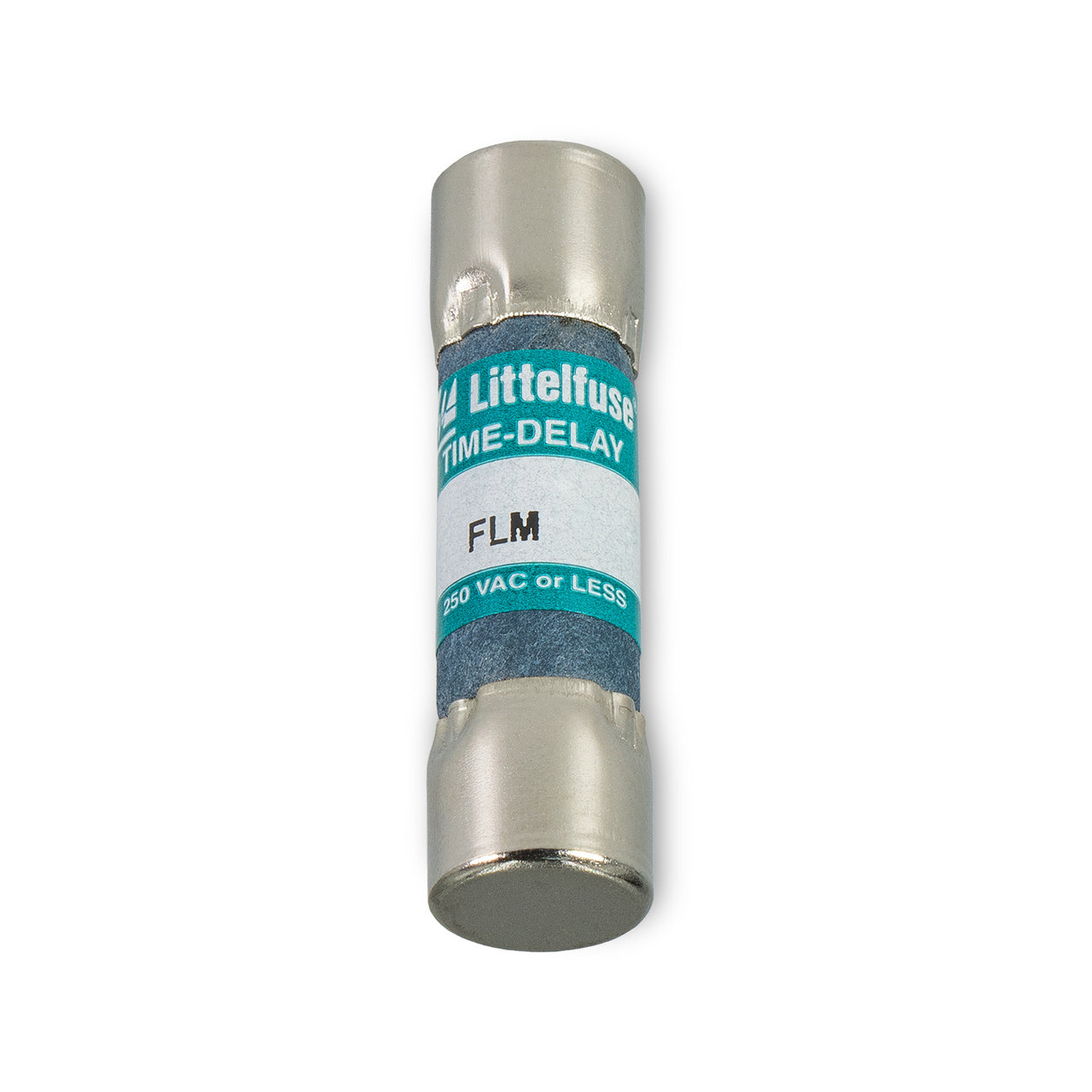

Littelfuse FLM002 Fuse - 2 Amp Midget Time-Delay Replacement
Not sure which fuse you need? If the part you pulled reads FLM002 or FLM 2A, you are in the right place. This is a 2 amp, 250 volt midget fuse made by Littelfuse, and it is a time-delay type, meaning it is built to tolerate a brief surge in current, like a transformer or motor starting up, without blowing right away.
It is UL Listed and CSA Certified, so it meets the safety standards inspectors and equipment manufacturers look for, and it fits any standard 10x38mm midget fuse block.
Common Applications
- Replacing a blown fuse in a control transformer
- Protecting solenoids or other coil-type components
- Supplemental protection on small motor circuits
- Any equipment panel that calls for a 2 amp midget time-delay fuse
Key Features
-
Right-sized protection: Rated at exactly 2 amps, so it protects the circuit without blowing on normal startup current.
-
Fits standard blocks: Built to the common 10x38mm midget size, so it drops into the holder already in your equipment.
-
Handles brief surges: The time-delay design rides through a short current spike instead of opening immediately.
-
Backed by UL and CSA: Certified to recognized safety standards for both US and Canadian equipment.
-
Built to last: Durable paper body and nickel-plated bronze end caps.
Specifications
-
Manufacturer: Littelfuse
-
Catalog Number: FLM002
-
Series: FLM POWR-GARD
-
Fuse Type: UL Supplemental (Midget), Time-Delay
-
Amperage Rating: 2A
-
Voltage Rating: 250 VAC / 125 VDC
-
Interrupting Rating: 10,000A AC / 10,000A DC (DC self-certified)
-
Nominal Cold Resistance: 0.2191 ohms
-
Body Material: Paper
-
End Caps: Nickel-plated bronze
-
Applicable Standard: UL 248-14
-
Approvals: UL Listed (File E10480); CSA Certified (File LR29862); CE; QPL to MIL-F-15160/9
-
Environmental: RoHS 2 Directive 2011/65/EU and Directive (EU) 2015/863; REACH
Product Identification
-
Country of Origin: Mexico
-
Dimensions: 1.50 in L x 0.406 in Dia (38.1 mm x 10.31 mm)
-
Weight: 0.010 lb (4.54 g)
-
UPC: 07945814041
FAQ
How do I know if the FLM002 is the right fuse for my equipment?
Check the fuse block or the old fuse for the catalog number FLM002 or the marking FLM 2A. If it matches, this is the correct replacement.
What does time-delay mean on a fuse?
It means the fuse can handle a short burst of higher current, like a motor or transformer starting up, without blowing. A fast-acting fuse would open right away in that same situation.
Is this fuse safe to use in place of my old one?
Yes, as long as the catalog number matches. The FLM002 is UL Listed and CSA Certified to the same standard as the original.
Will this fuse show me when it has blown?
No, the FLM002 is non-indicating. If you want a visual signal, pair it with an indicating fuse block.
