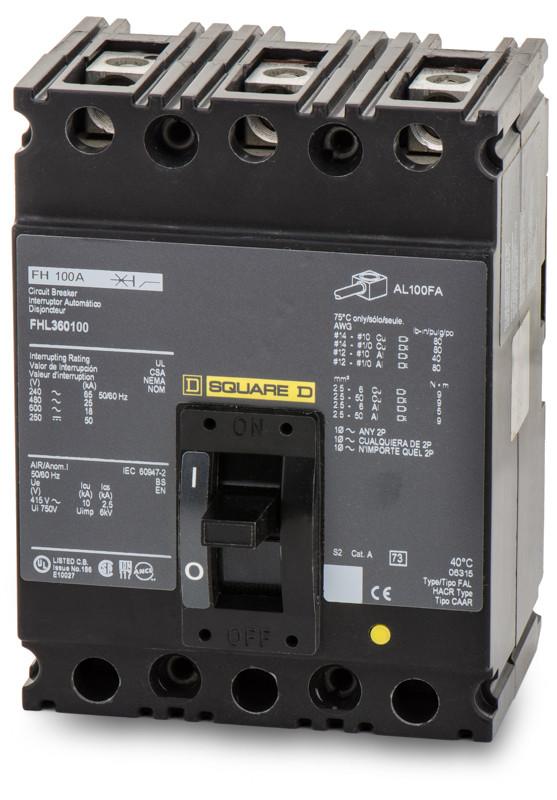

Square D FHL36100 - Molded Case Circuit Breaker 100A 600V 3P
Square D FHL36100 - Molded Case Circuit Breaker 100A 600V 3P

Square D FHL36100 - Molded Case Circuit Breaker 100A 600V 3P

Square D
Price
Save $2,366.95
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D FHL36100 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.689 lb. This thermal magnetic breaker is UL LISTED and provides protection through long-time and instantaneous (LI) trip functions with a 25kA interrupting capacity at 480V. Its feed-thru connection and three-pole configuration make it suitable for protecting feeders and branch circuits in industrial panels and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FHL Series, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL LISTED
  • Applications: Industrial power distribution, feeder and branch circuit protection
  • Phase: 3
  • AIC Rating: 25kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Weight: 4.689 lb


Product Identification
  • UPC: 785901241492
  • GTIN: 00785901241492
