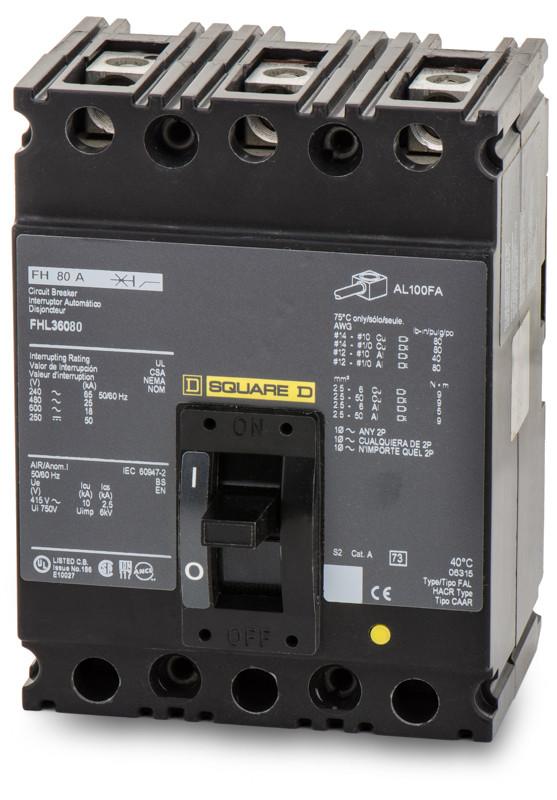

Square D FHL36080 - Molded Case Circuit Breaker (80A, 600V, 3P)
Square D FHL36080 - Molded Case Circuit Breaker (80A, 600V, 3P)

Square D FHL36080 - Molded Case Circuit Breaker (80A, 600V, 3P)

Square D
Price
Save $1,564.16
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D FHL36080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 80A continuous current at 600V AC with an interrupting capacity of 25kA at 480V. The breaker is constructed in a compact F-frame size with a feed-thru connection, measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5.07 lb. It is certified CSA-UL LISTED for compliance with North American safety standards and is typically applied in panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, FHL Series, Thermal Magnetic Protection with LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Standards: CSA-UL LISTED
  • Applications: Industrial power distribution, panelboards, switchboards, control panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC rating: 25kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Certification: CSA-UL LISTED
  • Weight: 5.07 lb


Product Identification
  • UPC: 785901563365
  • GTIN: 00785901563365
