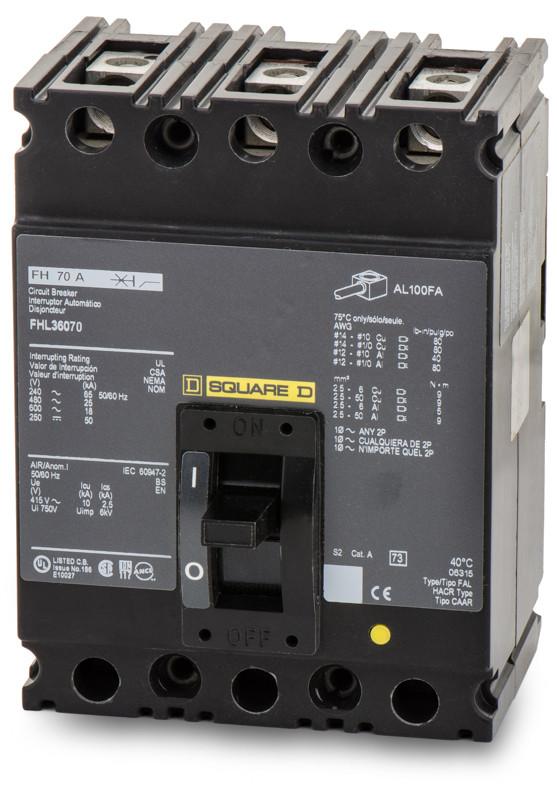

Square D FHL36070 - Molded Case Circuit Breaker 70A 600V 3P
Square D FHL36070 - Molded Case Circuit Breaker 70A 600V 3P

Square D FHL36070 - Molded Case Circuit Breaker 70A 600V 3P

Square D
Price
Save $1,564.16
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FHL36070 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 70A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 4.601 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and offers a 25kA interrupting capacity at 480V AC. It is UL Listed and CSA certified, ensuring compliance with North American safety standards for integration into panelboards and switchboards with feed-thru connections.

Key Features & Specifications
  • Type: Three-pole, molded case circuit breaker with thermal-magnetic protection and long-time/instantaneous (LI) trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL Listed, CSA Certified
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 25kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Breaker Type: Molded Case
  • Mounting: Fixed
  • Certification: UL LISTED-CSA
  • Terminal Connection: Feed-Thru
  • Standards: UL 489, CSA C22.2 No. 5
  • Family: FHL Series
  • Weight: 4.601 lb


Product Identification
  • UPC: 785901241478
  • GTIN: 00785901241478
