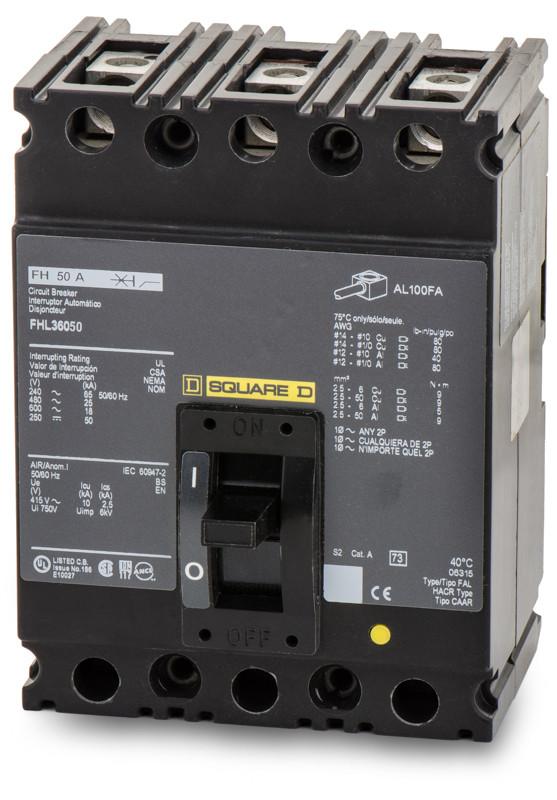

Square D FHL36050 - Molded Case Circuit Breaker, 50A 600V 3P
Square D FHL36050 - Molded Case Circuit Breaker, 50A 600V 3P

Square D FHL36050 - Molded Case Circuit Breaker, 50A 600V 3P

Square D
Price
Save $1,225.95
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D FHL36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 5.031 lb. The breaker is CSA and UL listed, ensuring compliance with North American safety standards, and its 25kA interrupting rating at 480V AC makes it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: FHL Series, Molded Case, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Standards: CSA-UL LISTED
  • Applications: Industrial power distribution, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • AIC Rating: 25kA @ 480V AC
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Weight: 5.031 lb


Product Identification
  • UPC: 785901241454
  • GTIN: 00785901241454
