Square D
Price
Save $-59.05
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price

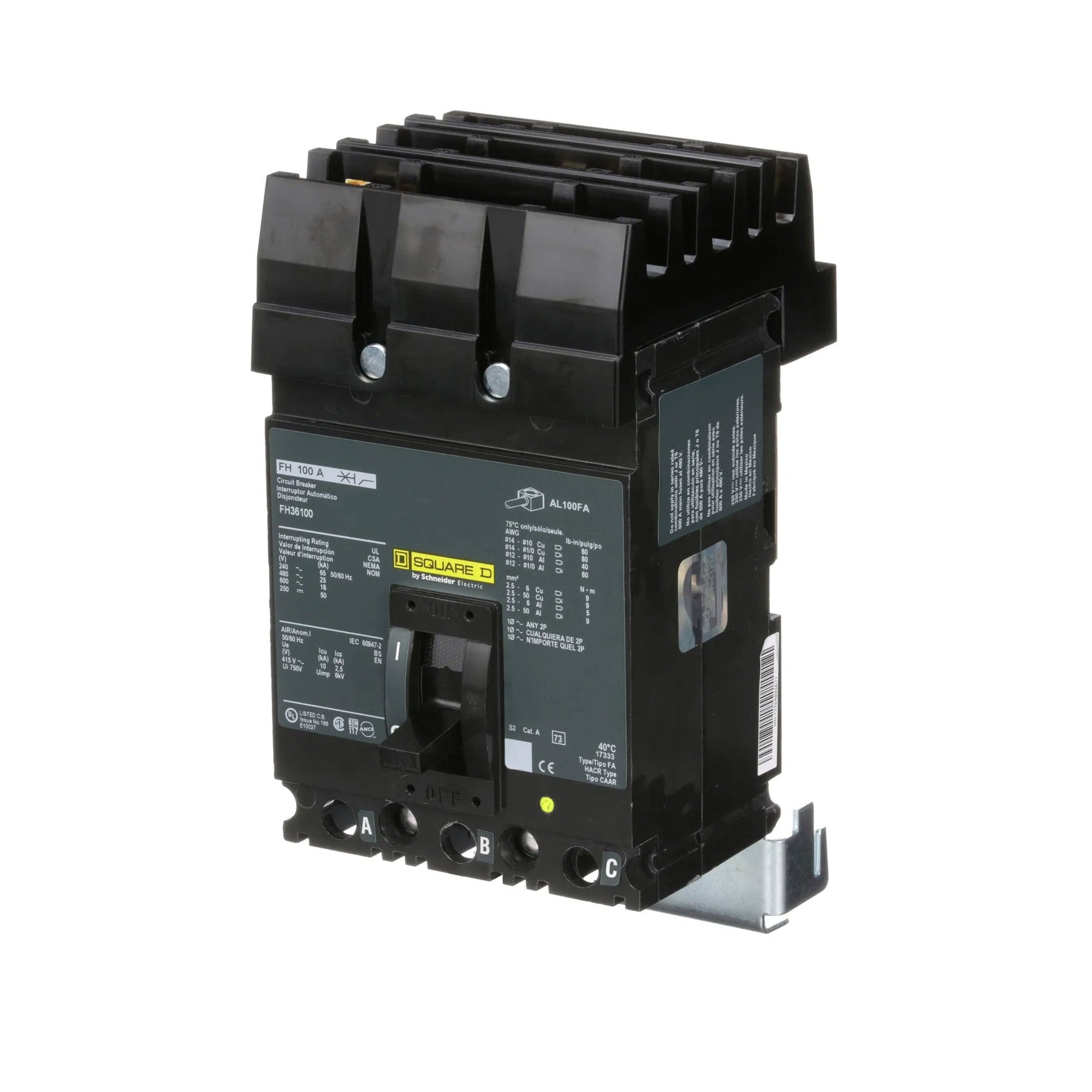

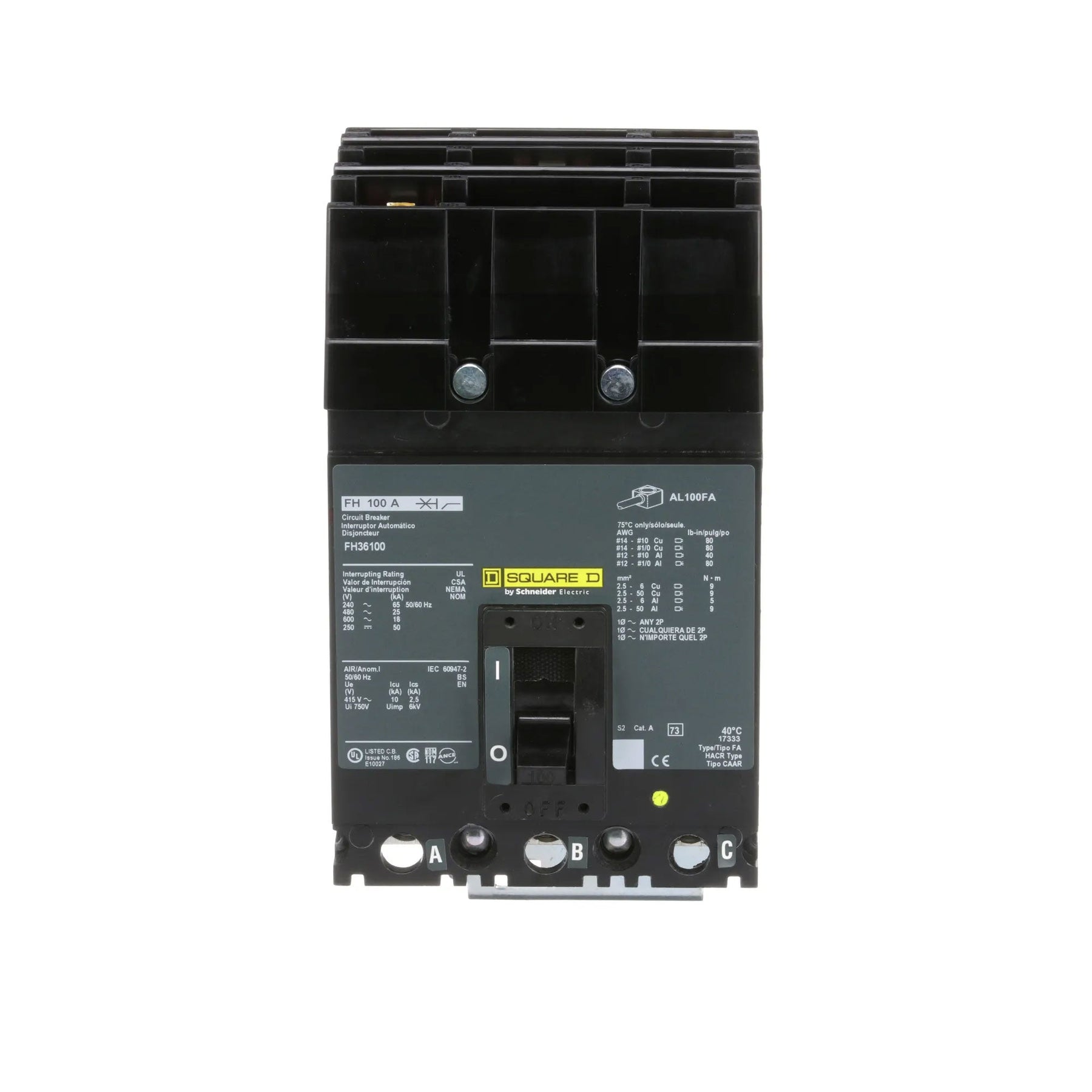

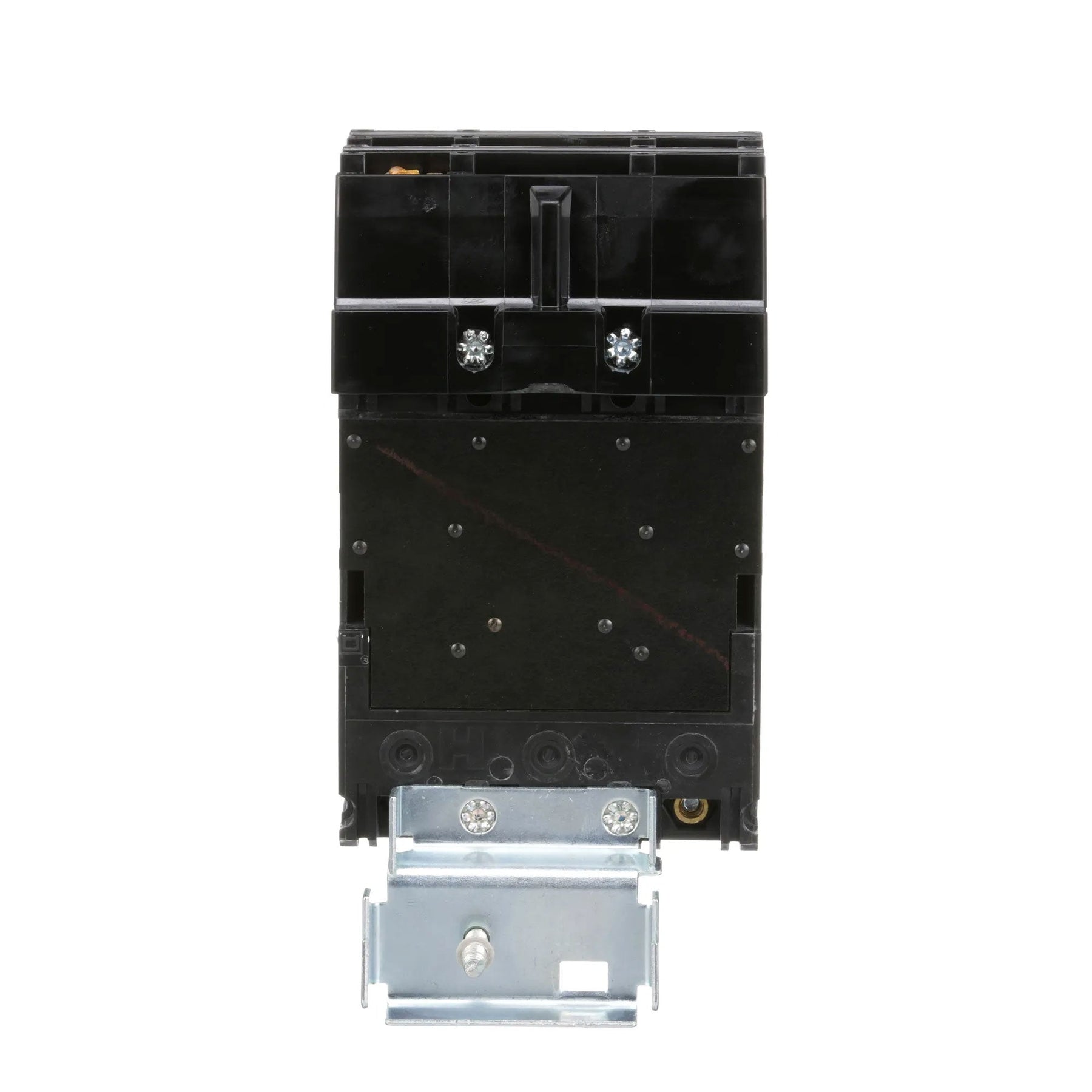

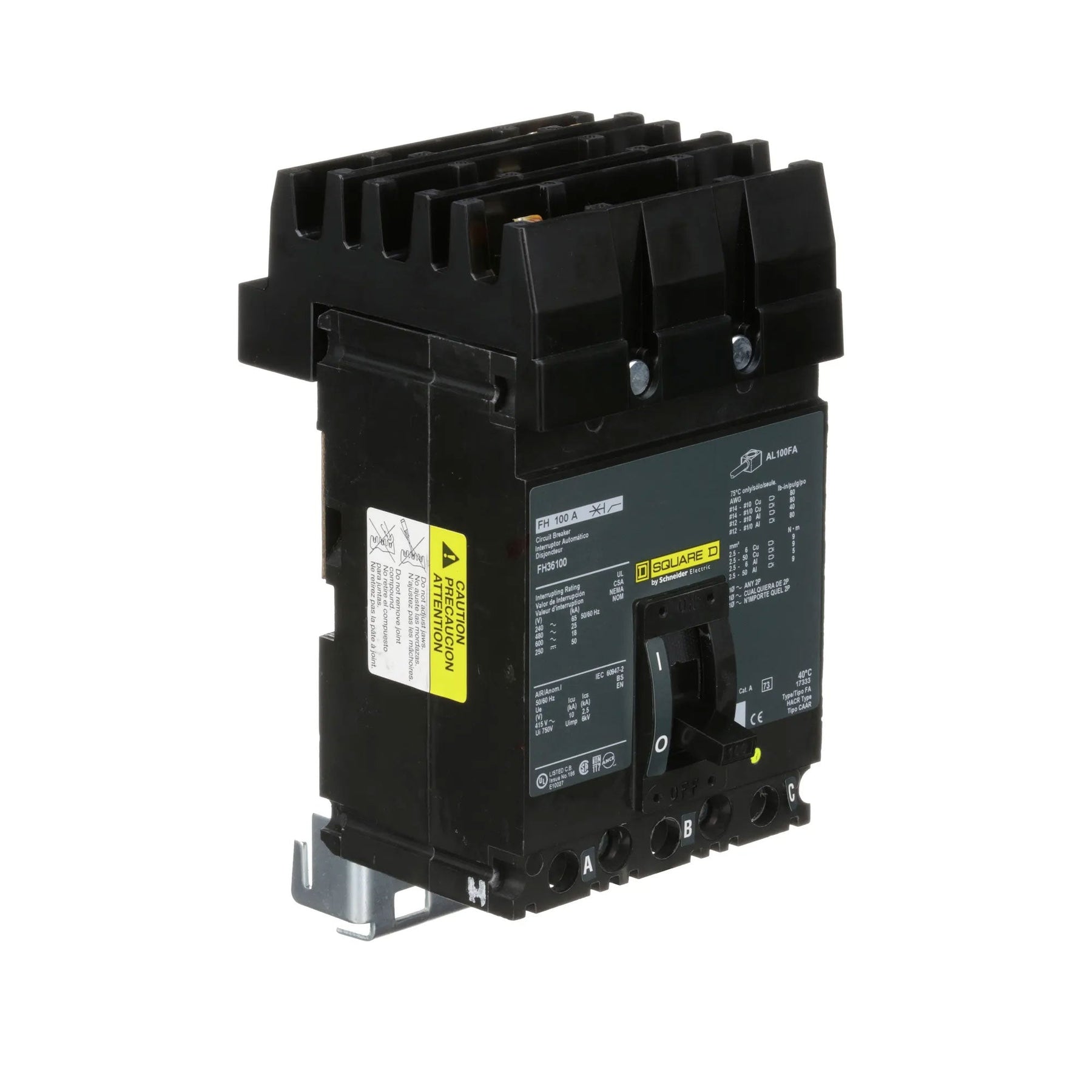

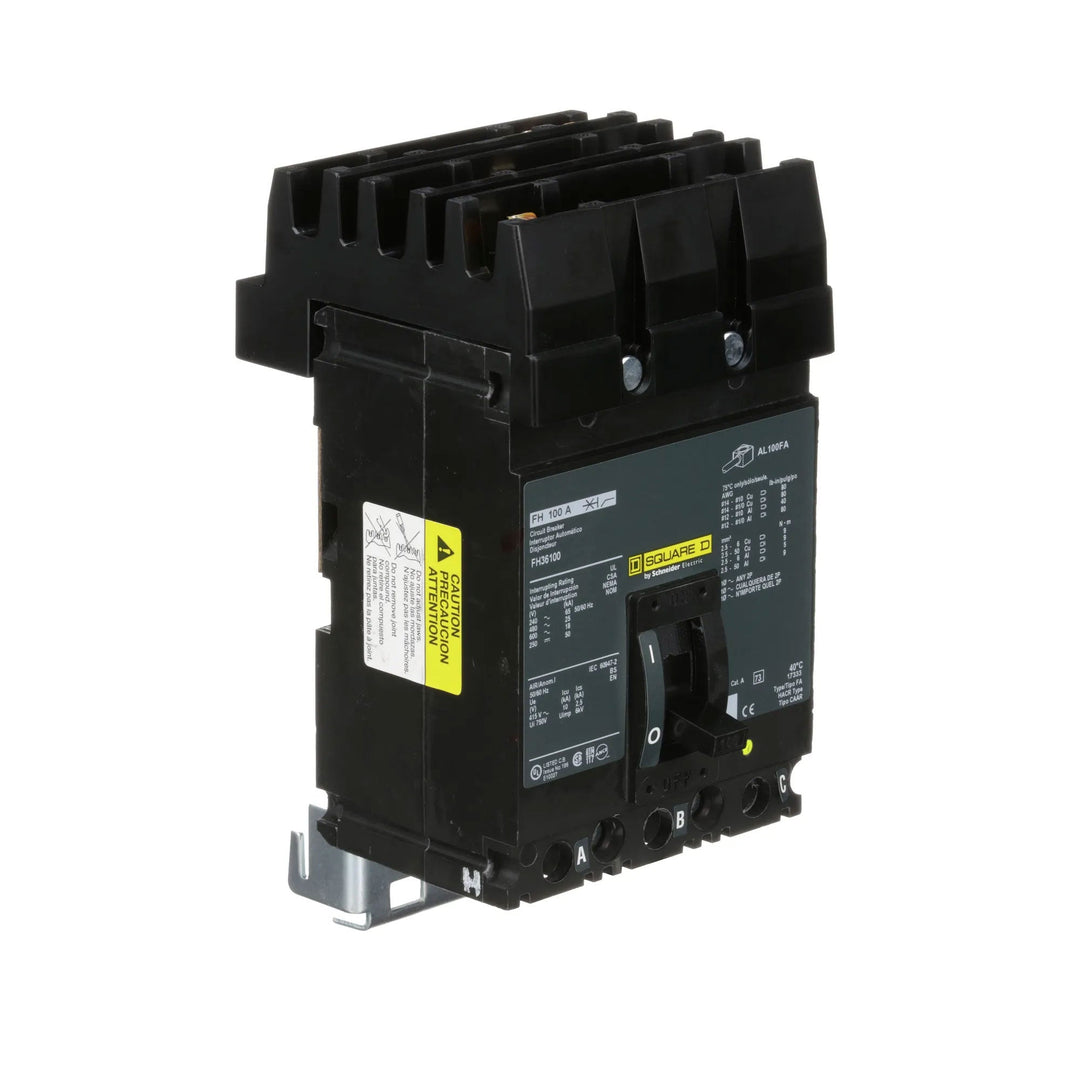

Square D FH36100 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V voltage rating, housed in a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D and weighing 6 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and offers a 25kA interrupting capacity at 480V, operating effectively within a temperature range of -25 to 70 °C. Its I-Line style plug-in connection facilitates straightforward installation in compatible panelboards, making it suitable for a wide range of commercial and industrial applications requiring robust circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (162.6 mm) H x 4.5 in (114.3 mm) W x 4.13 in (104.90 mm) D
  • Weight: 6 lb
  • Frame Size: F Frame
  • Poles: 3
  • Phase: 3
  • AIC Rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Trip Type: Thermal Magnetic
  • Temp Rating: -13–158 °F (-25–70 °C)
  • Family: I-Line


Product Identification
  • UPC: 785901241409
  • GTIN: 00785901241409
