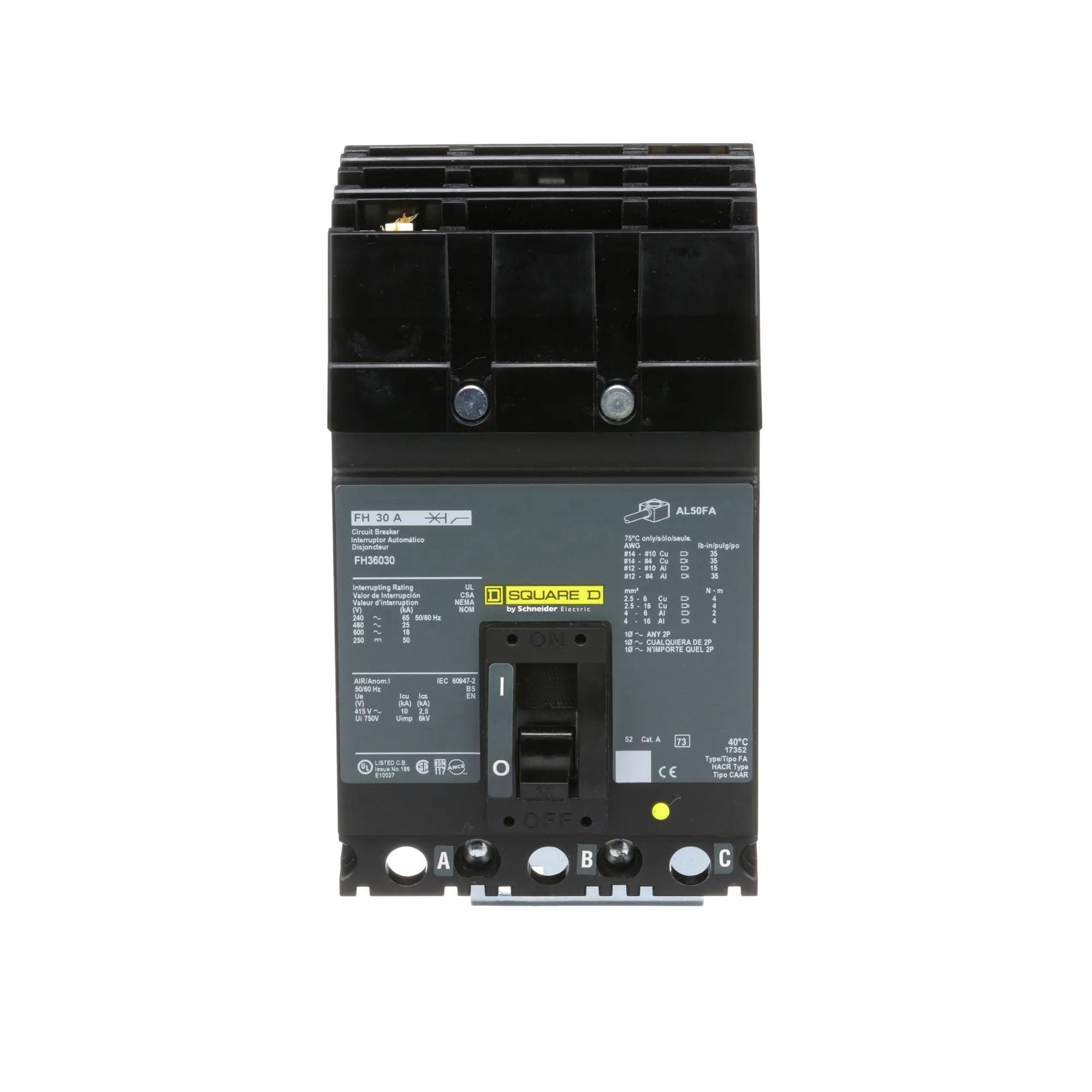

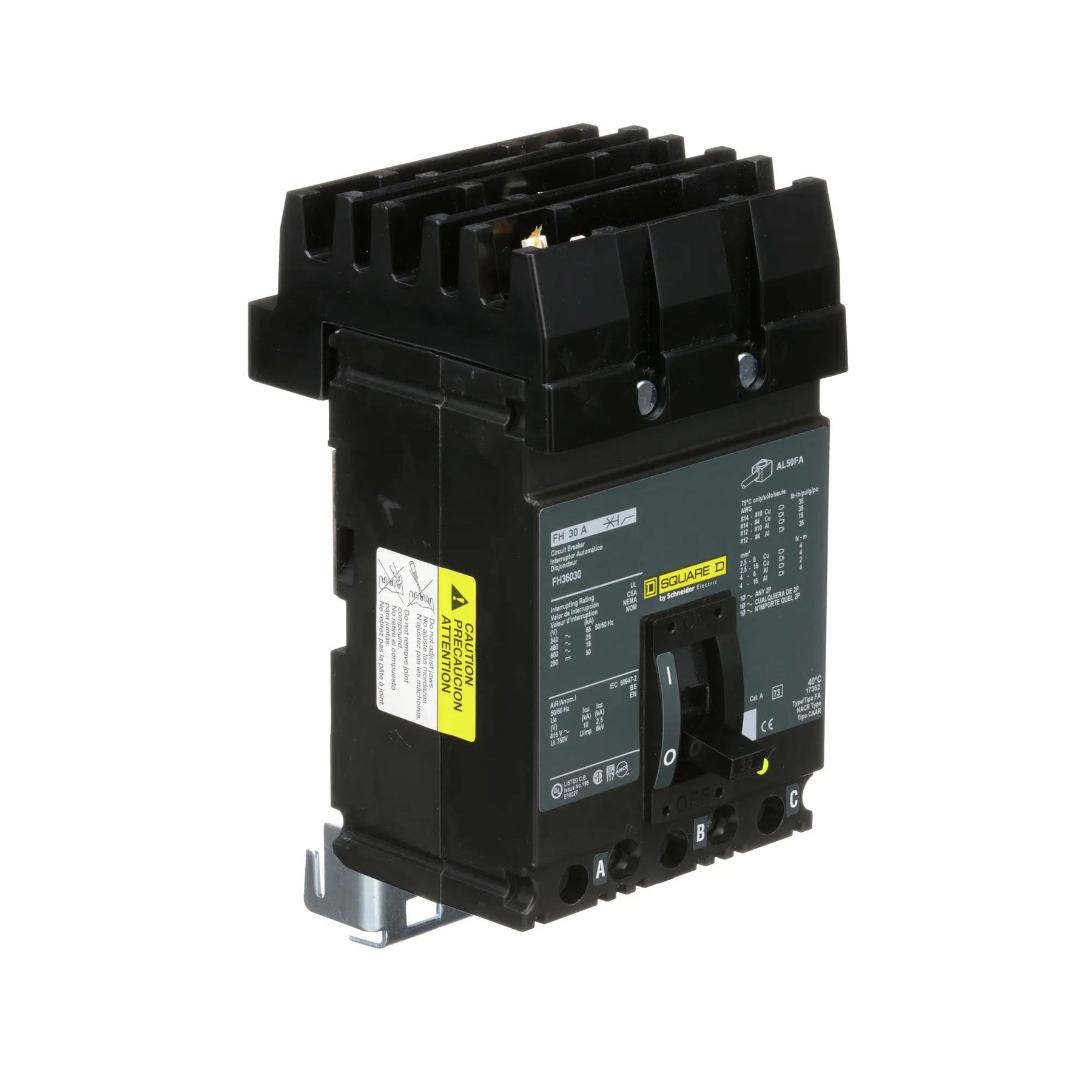

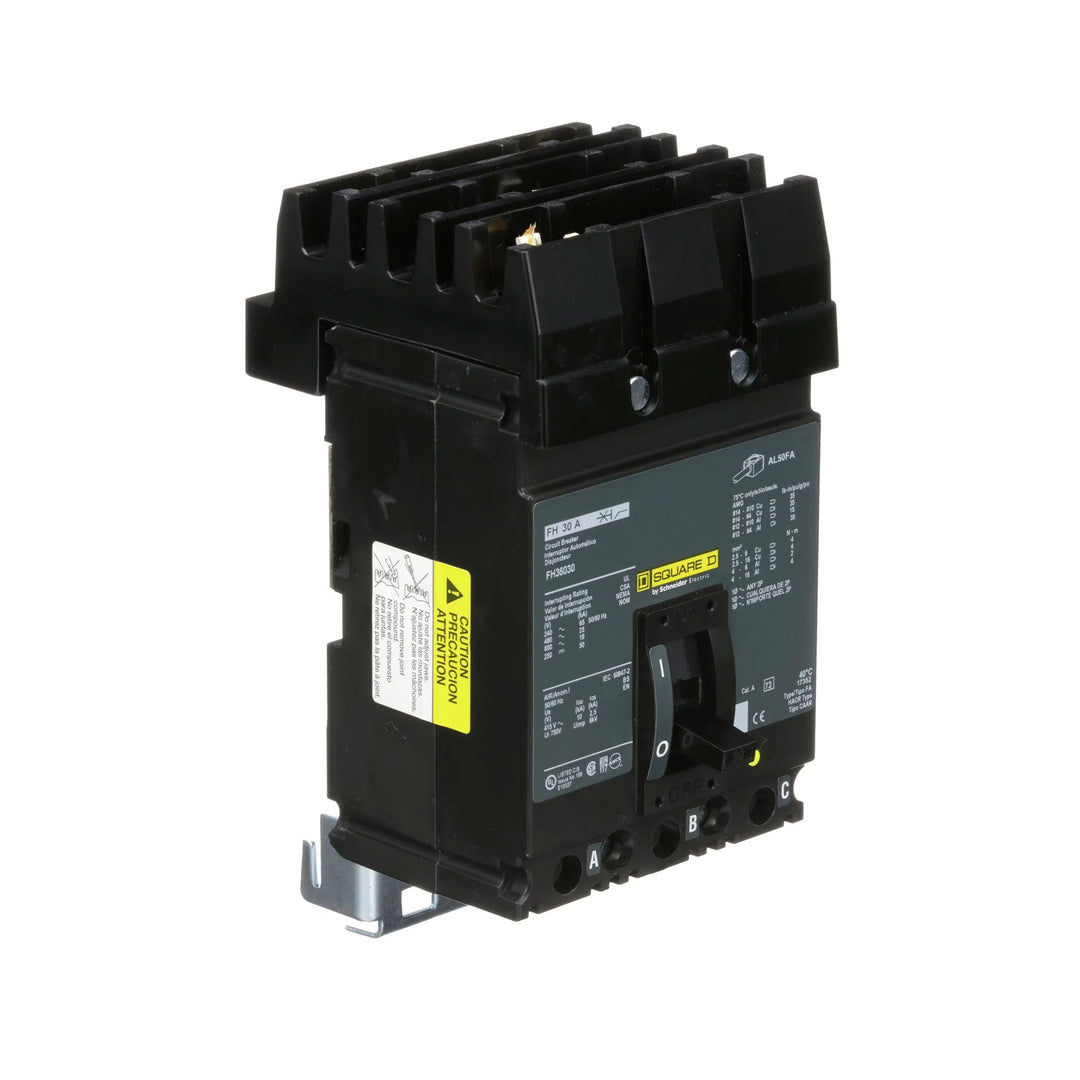

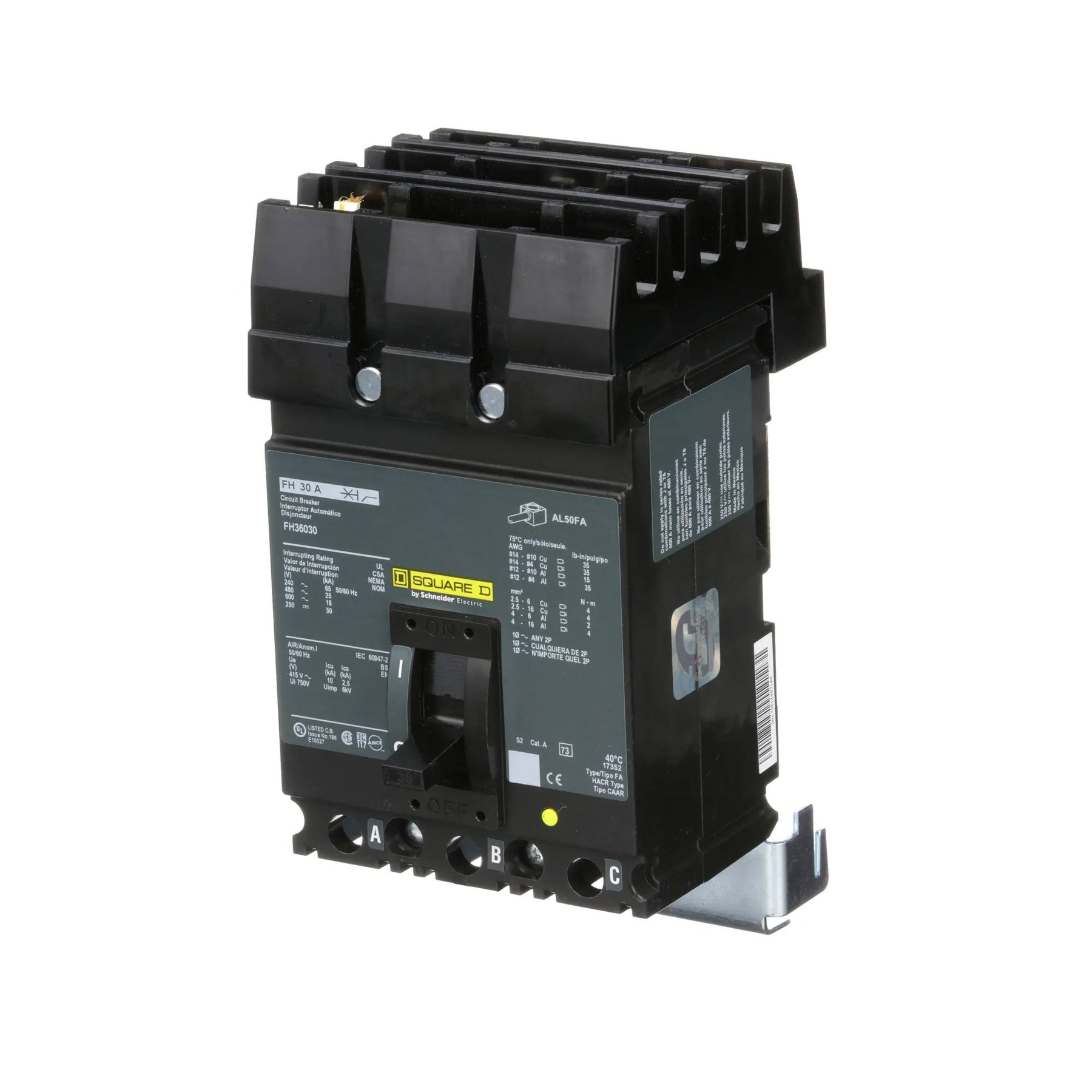

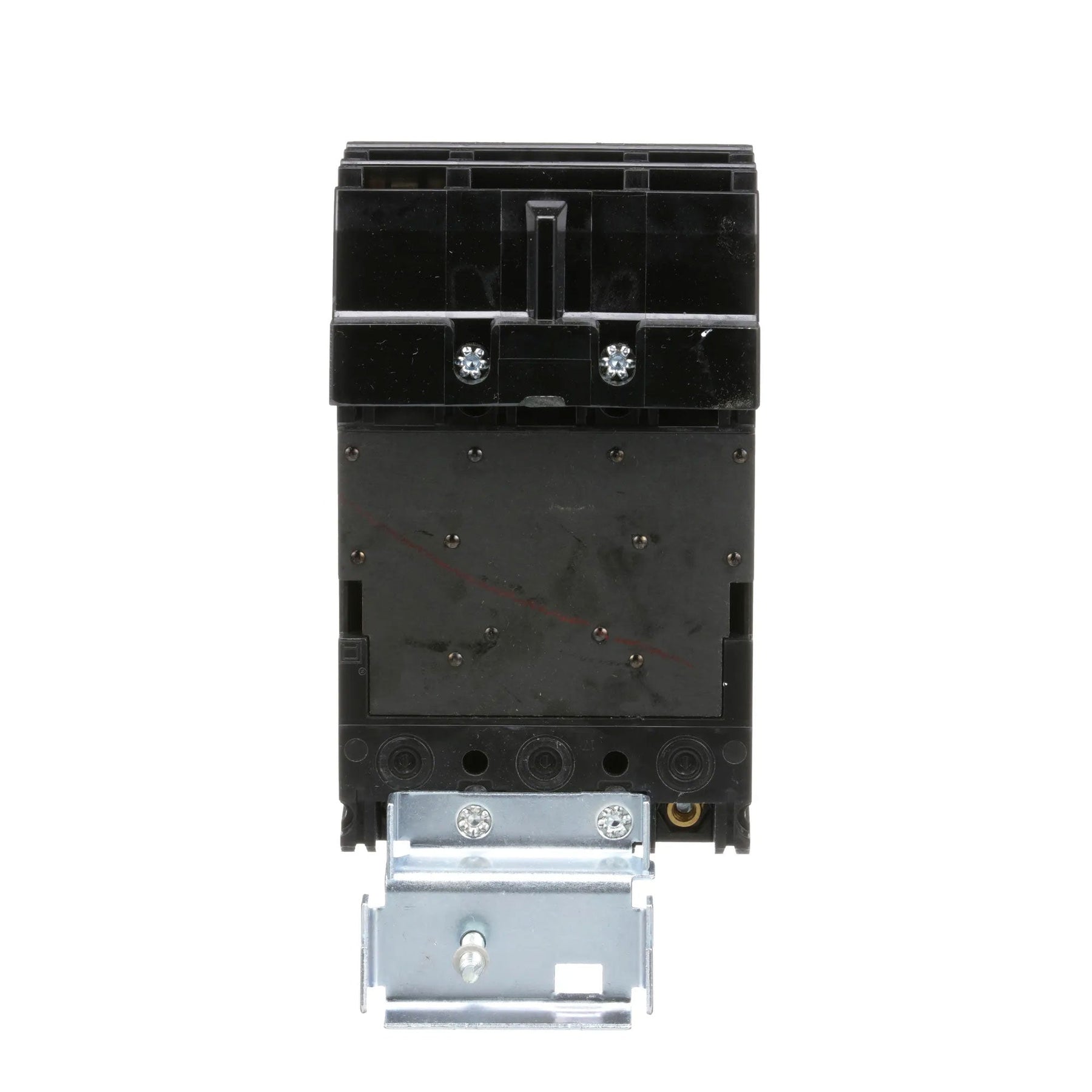

Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker
Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker
Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker
Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker
Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker
Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker
Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker
Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker

Square D FH36030 - 30A 3-Pole Molded Case Circuit Breaker

Square D
Price
Save $-776.55
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
Square D FH36030 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 30A current rating and a 600V voltage rating, housed in a compact F-frame design measuring 162.6 mm H x 114.3 mm W x 104.9 mm D with a weight of 6 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, offers a 25kA interrupting capacity at 480V, and operates within a temperature range of -25 to 70 °C. Its I-Line style plug-in connection facilitates quick installation and is engineered for compliance with relevant industry standards for industrial panelboards and switchgear.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 162.6 mm H x 114.3 mm W x 104.9 mm D (6.4 in x 4.5 in x 4.13 in)
  • Standards: Designed to meet applicable industry standards
  • Applications: Industrial power distribution, panelboards, switchgear
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3-Phase
  • AIC Rating: 25kA @ 480V AC
  • Connection: Plug-In (I-Line Style)
  • Poles: 3
  • Protection: Thermal-Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: F Frame
  • Family: I-Line
  • Country of Origin: Mexico
  • Weight: 6 lb


Product Identification
  • UPC: 785901241348
  • GTIN: 00785901241348
