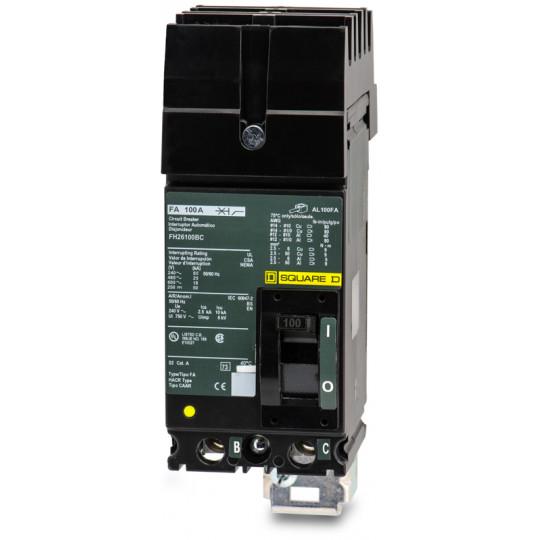

Square D FH26100BC - Molded Case Circuit Breaker 100A 600V 2-Pole
Square D FH26100BC - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D FH26100BC - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D
Price
Save $0
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH26100BC is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 100A current rating and a 600V voltage rating for robust performance in demanding single-phase applications. The breaker is constructed with a compact F-frame design measuring 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D and utilizes a convenient I-Line style plug-in connection for simplified installation. It is UL-certified and complies with industry standards, offering thermal-magnetic protection with long-time and instantaneous (LI) trip functions and an interrupting capacity of 25kA at 480V. This makes it suitable for protecting feeders and branch circuits in panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL Certified
  • Applications: Industrial and Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • AIC Rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Family: I-Line
  • Country of Origin: Mexico
  • Weight: 6 lb


Product Identification
  • UPC: 785901848547
  • GTIN: 00785901848547
