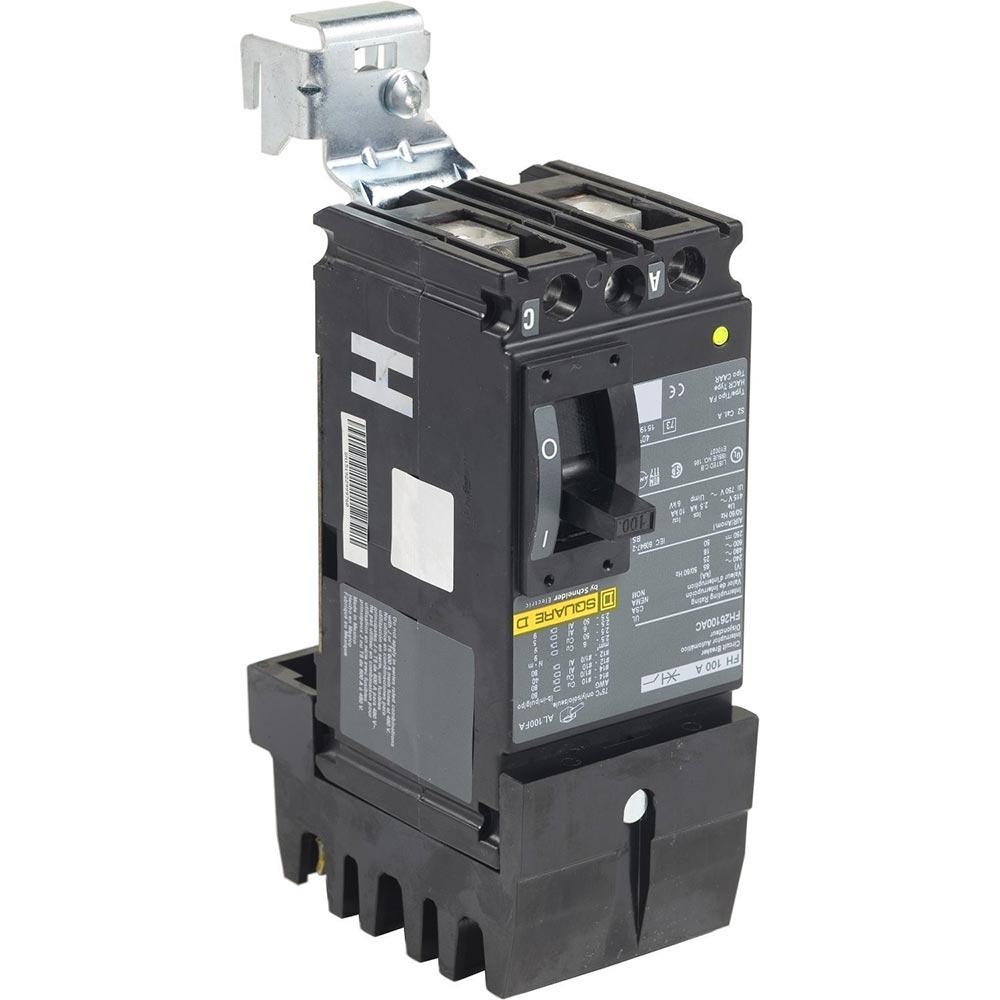

Square D FH26100AC - Molded Case Circuit Breaker 100A 600V 2-Pole
Square D FH26100AC - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D FH26100AC - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D
Price
Save $-534
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D FH26100AC is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous protection, is configured as a 2-pole, single-phase device with an I-Line plug-in connection, and offers an interrupting capacity of 25kA at 480V AC. It is engineered for operation in temperatures from -25 to 70 °C and complies with UL, CSA, NOM, IEC, CCC, and CE standards for global application in panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Standards: UL, CSA, NOM, IEC, CCC, CE
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 25kA @ 480V AC
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Family: I-Line
  • Country of Origin: Mexico
  • Weight: 6 lb


Product Identification
  • UPC: 785901254812
  • GTIN: 00785901254812
