Square D FH26100AB - Molded Case Circuit Breaker, 100A 600V 2-Pole
Square D FH26100AB - Molded Case Circuit Breaker, 100A 600V 2-Pole

Square D FH26100AB - Molded Case Circuit Breaker, 100A 600V 2-Pole

Square D
Price
Save $-529.40
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

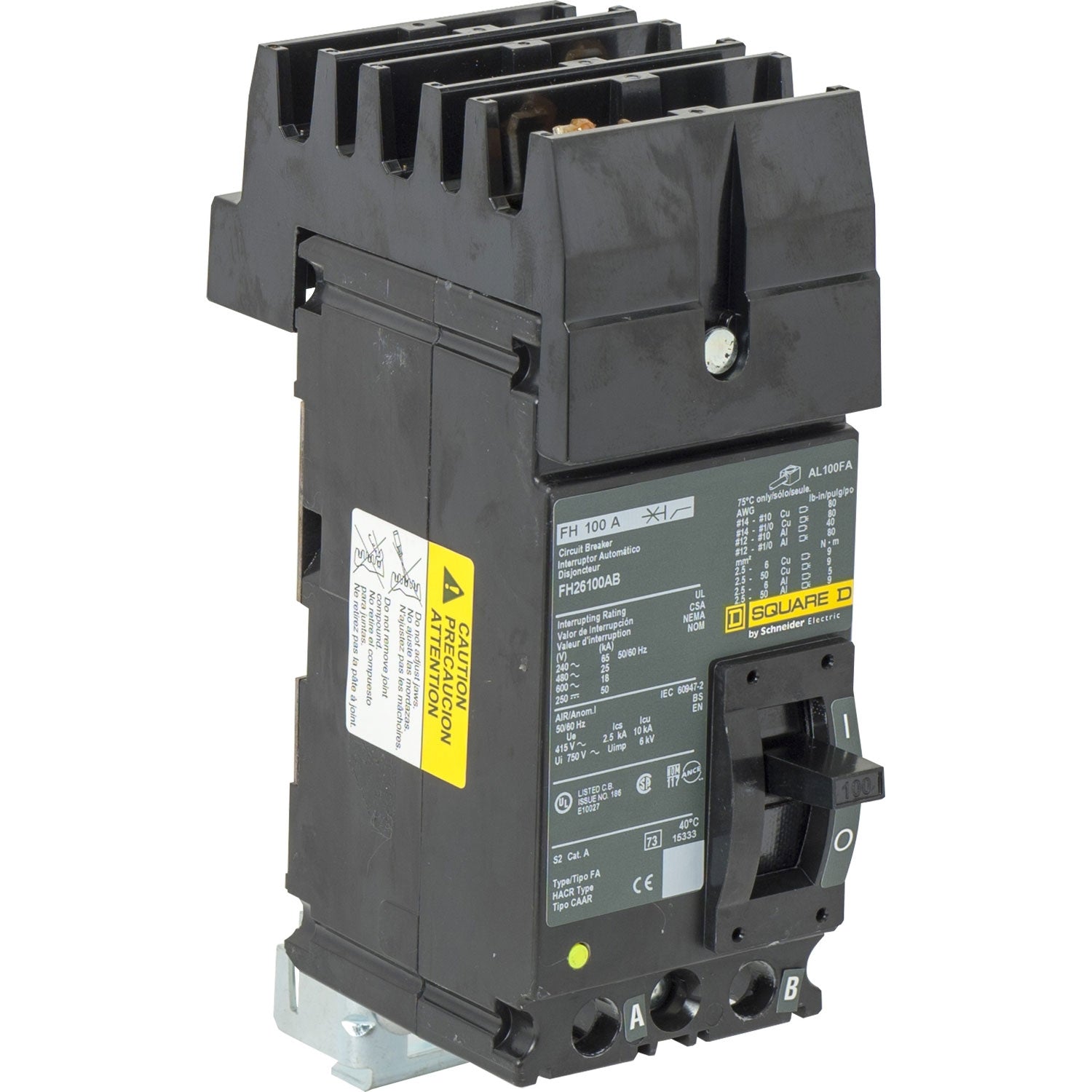

Square D FH26100AB is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 100A current rating and a 600V voltage rating, housed within a compact F-frame measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb. This two-pole, single-phase breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and offers a 25kA interrupting capacity at 480V AC. It is UL and CSA certified for safety compliance and employs a plug-in I-Line connection style for simplified installation, accepting copper wire sizes from AWG 14 to 1/0 and aluminum from AWG 12 to 1/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Standards: UL, CSA
  • Applications: Industrial and Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Phase: 1
  • AIC Rating: 25kA @ 480V AC
  • Connection: Plug-In (I-Line Style)
  • Poles: 2
  • Protection: Thermal-Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Wire Size: AWG 14 to 1/0 (Copper), AWG 12 to 1/0 (Aluminum)
  • Certification: UL, CSA
  • Country of Origin: Mexico
  • Weight: 6 lb


Product Identification
  • UPC: 785901563167
  • GTIN: 00785901563167
