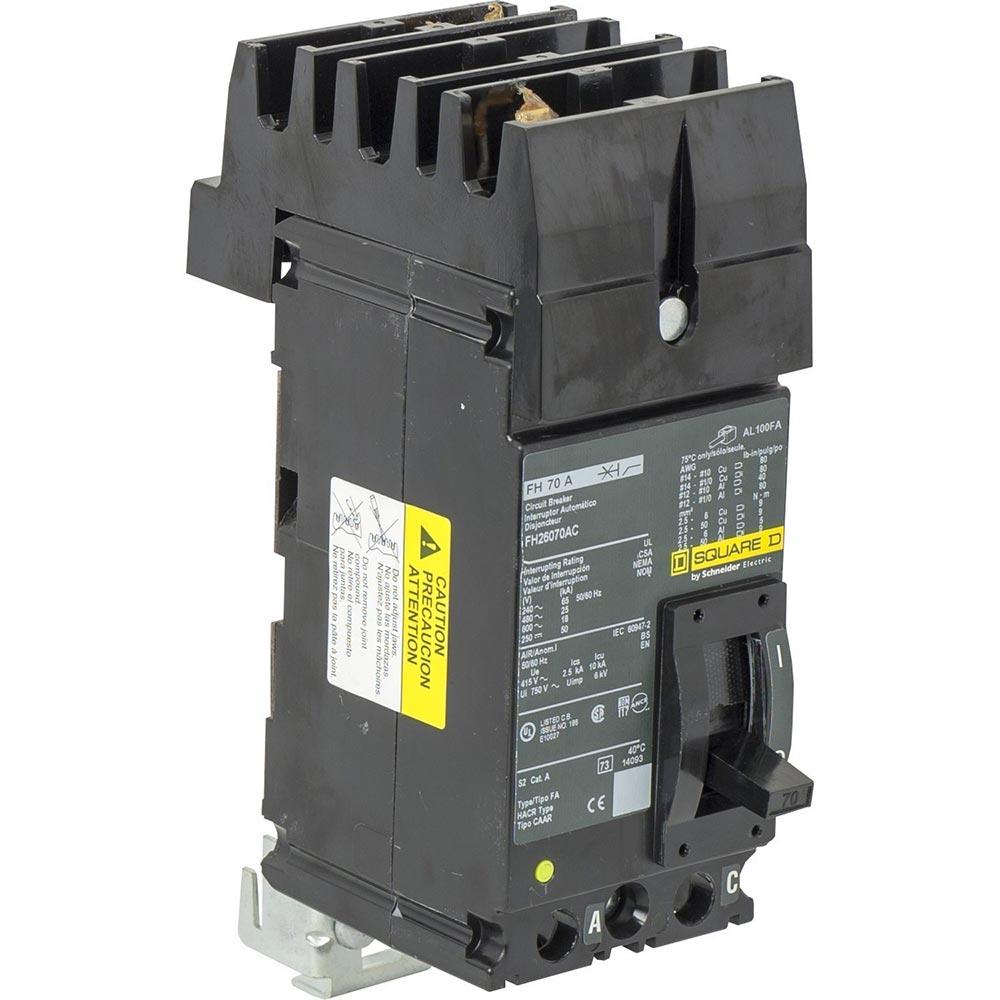

Square D FH26070AC - 70A Molded Case Breaker (600V, 25kA AIC)
Square D FH26070AC - 70A Molded Case Breaker (600V, 25kA AIC)

Square D FH26070AC - 70A Molded Case Breaker (600V, 25kA AIC)

Square D
Price
Save $602.61
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH26070AC is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 70A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb. This two-pole, single-phase breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and offers a 25kA interrupting capacity at 480V. Its I-Line style plug-in connection facilitates installation and is compatible with copper conductors from AWG 14 to 1/0 and aluminum from AWG 12 to 1/0, making it suitable for panelboards and switchboards in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D
  • Standards: Designed for industrial panelboard and switchboard applications
  • Applications: Commercial and industrial electrical distribution
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole
  • Phase: 1
  • AIC Rating: 25kA @ 480V AC
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Wire Size: AWG 14 to 1/0 (Copper), AWG 12 to 1/0 (Aluminum)
  • Weight: 6 lb
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901343325
  • GTIN: 00785901343325
