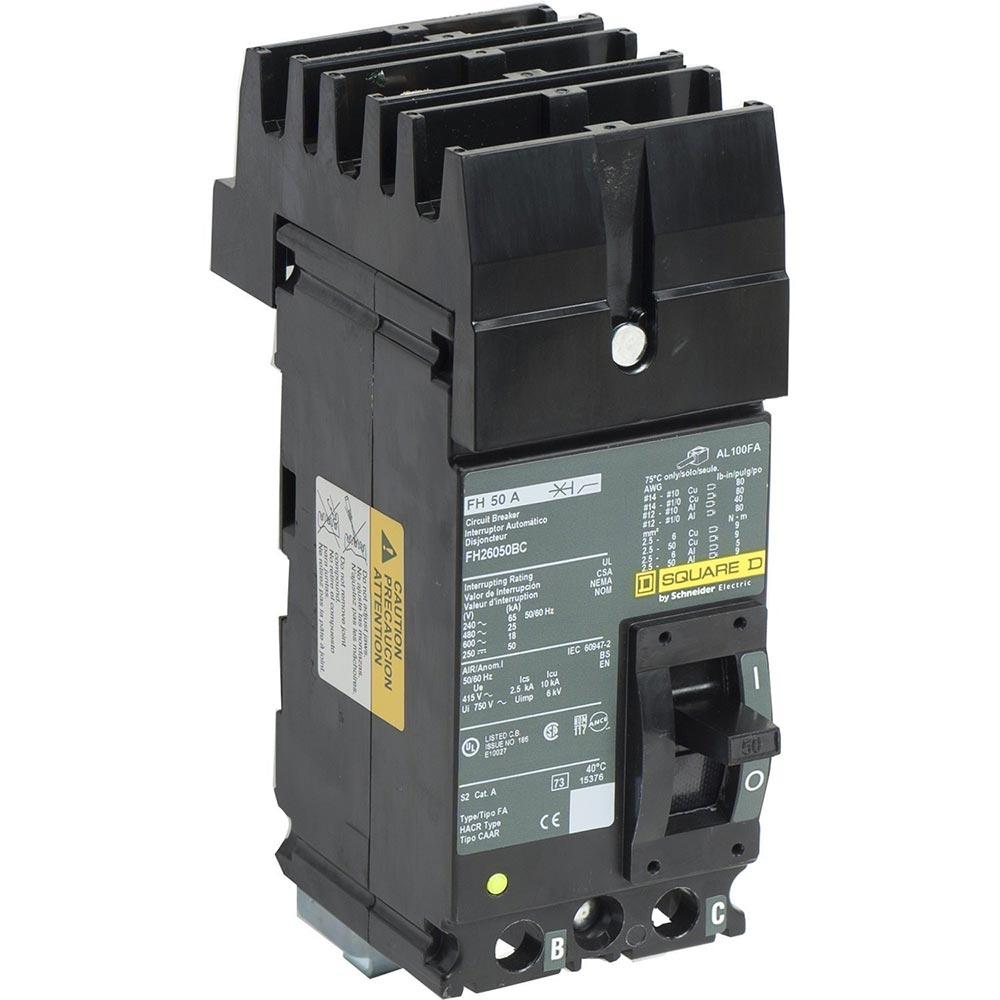

Square D FH26050BC - 50A Molded Case Breaker (600V, 25kA AIC)
Square D FH26050BC - 50A Molded Case Breaker (600V, 25kA AIC)

Square D FH26050BC - 50A Molded Case Breaker (600V, 25kA AIC)

Square D
Price
Save $-936.99
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH26050BC is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 50A current rating and a 600V voltage rating, engineered to handle demanding single-phase applications. The breaker is constructed with a compact F-frame design, measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb, and utilizes a convenient I-Line style plug-in connection for simplified installation. Its thermal-magnetic protection mechanism provides both long-time and instantaneous (LI) trip functions, ensuring compliance with industry standards for circuit protection. This breaker is typically applied in panelboards and switchboards to protect feeders and branch circuits, supporting wire sizes from AWG 14 to 1/0 for copper and AWG 12 to 1/0 for aluminum conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 6.4 in H (162.6 mm) x 3 in W (76.2 mm) x 4.13 in D (104.90 mm)
  • Standards: Designed to meet applicable industry standards for circuit protection
  • Applications: Industrial and commercial panelboards, switchboards, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 50A
  • AIC Rating: 25kA at 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: F Frame
  • Wire Size: AWG 14 to 1/0 (Copper), AWG 12 to 1/0 (Aluminum)
  • Weight: 6 lb


Product Identification
  • UPC: 785901343288
  • GTIN: 00785901343288
