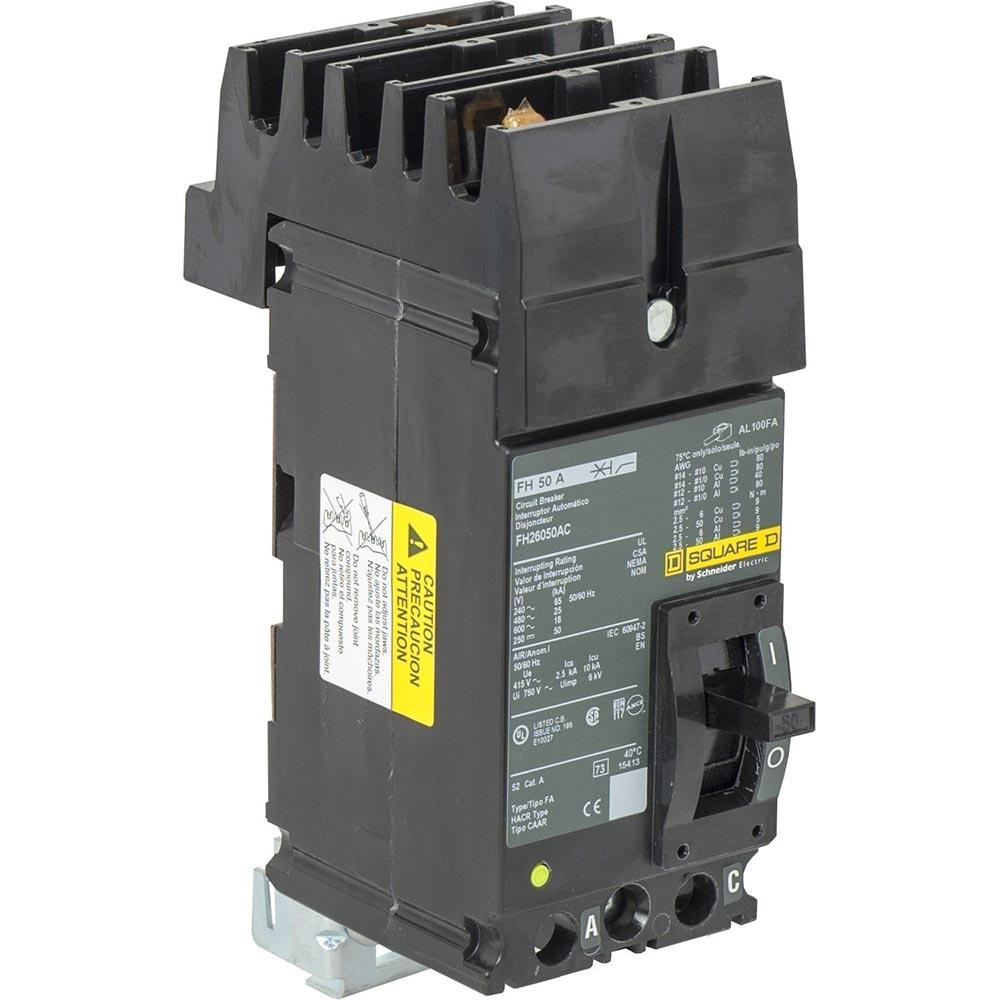

Square D FH26050AC - Molded Case Breaker 50A 600V 2-Pole
Square D FH26050AC - Molded Case Breaker 50A 600V 2-Pole

Square D FH26050AC - Molded Case Breaker 50A 600V 2-Pole

Square D
Price
Save $1,051.85
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FH26050AC is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 50A current rating and a 600V voltage rating, suitable for single-phase applications. The breaker is constructed with a compact F-frame design, measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb, and utilizes a thermal-magnetic trip unit for long-time and instantaneous protection functions. It complies with UL, CSA, NOM, IEC, CCC, and CE standards, ensuring broad international acceptance. Typical applications include protection of feeders and branch circuits in commercial and industrial panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Style Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Standards: UL, CSA, NOM, IEC, CCC, CE
  • Applications: Industrial Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 50A
  • AIC rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Wire Size: 14 to 1/0 AWG AL/CU
  • Certification: UL, CSA, NOM, IEC, CCC, CE
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901254775
  • GTIN: 00785901254775
