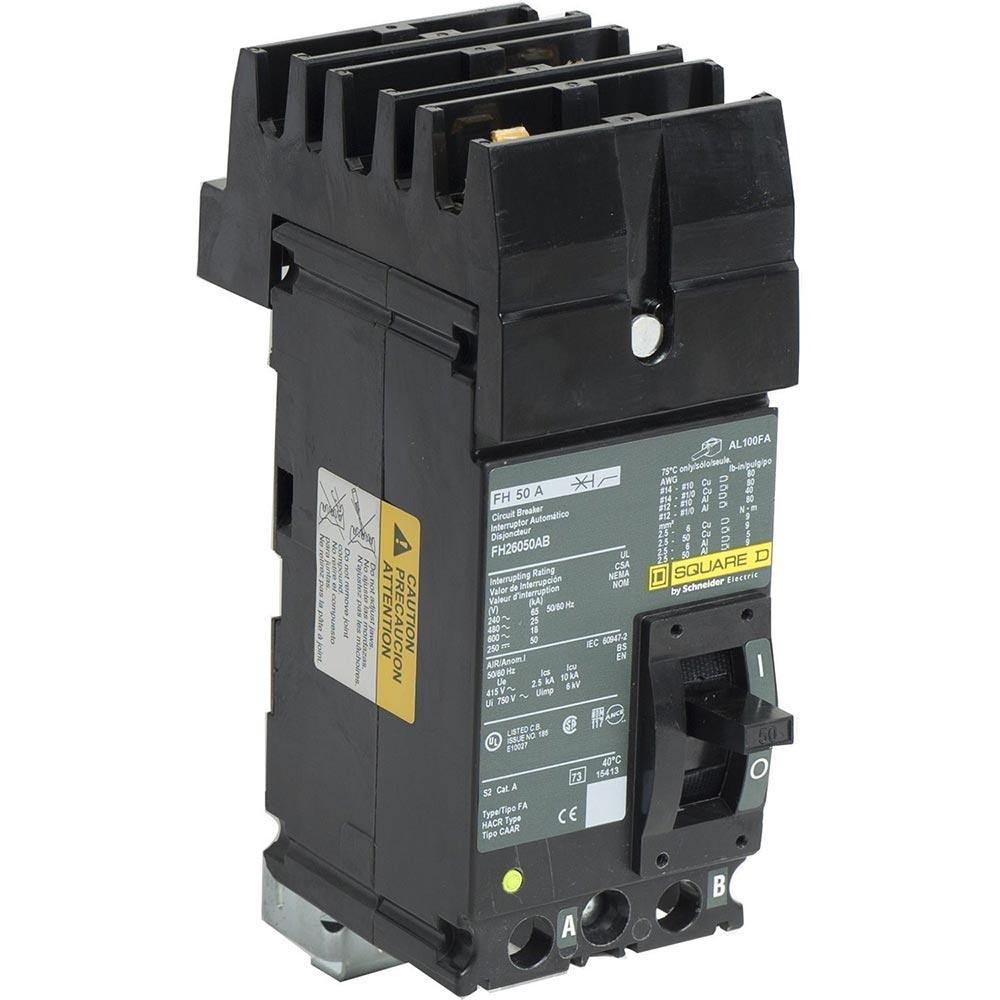

Square D FH26050AB - Molded Case Circuit Breaker 50A 600V 2-Pole
Square D FH26050AB - Molded Case Circuit Breaker 50A 600V 2-Pole

Square D FH26050AB - Molded Case Circuit Breaker 50A 600V 2-Pole

Square D
Price
Save $-975.72
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH26050AB is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 50A current rating and a 600V voltage rating, suitable for single-phase applications. The breaker is constructed with a compact F-frame design, measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb, and utilizes a convenient I-Line style plug-in connection. It complies with industry standards for thermal-magnetic protection, offering both long-time and instantaneous (LI) trip functions. This breaker is typically applied in panelboards and switchboards where a 25kA interrupting rating at 480V is required for circuits with wire sizes from AWG 14 to 1/0 for copper or AWG 12 to 1/0 for aluminum.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 6.4 in H (162.6 mm) x 3 in W (76.2 mm) x 4.13 in D (104.90 mm)
  • Standards: Industry Standard for Molded Case Circuit Breakers
  • Applications: Industrial and Commercial Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 50A
  • AIC rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Wire Size: AWG 14 to 1/0 (Copper), AWG 12 to 1/0 (Aluminum)
  • Weight: 6 lb


Product Identification
  • UPC: 785901343271
  • GTIN: 00785901343271
