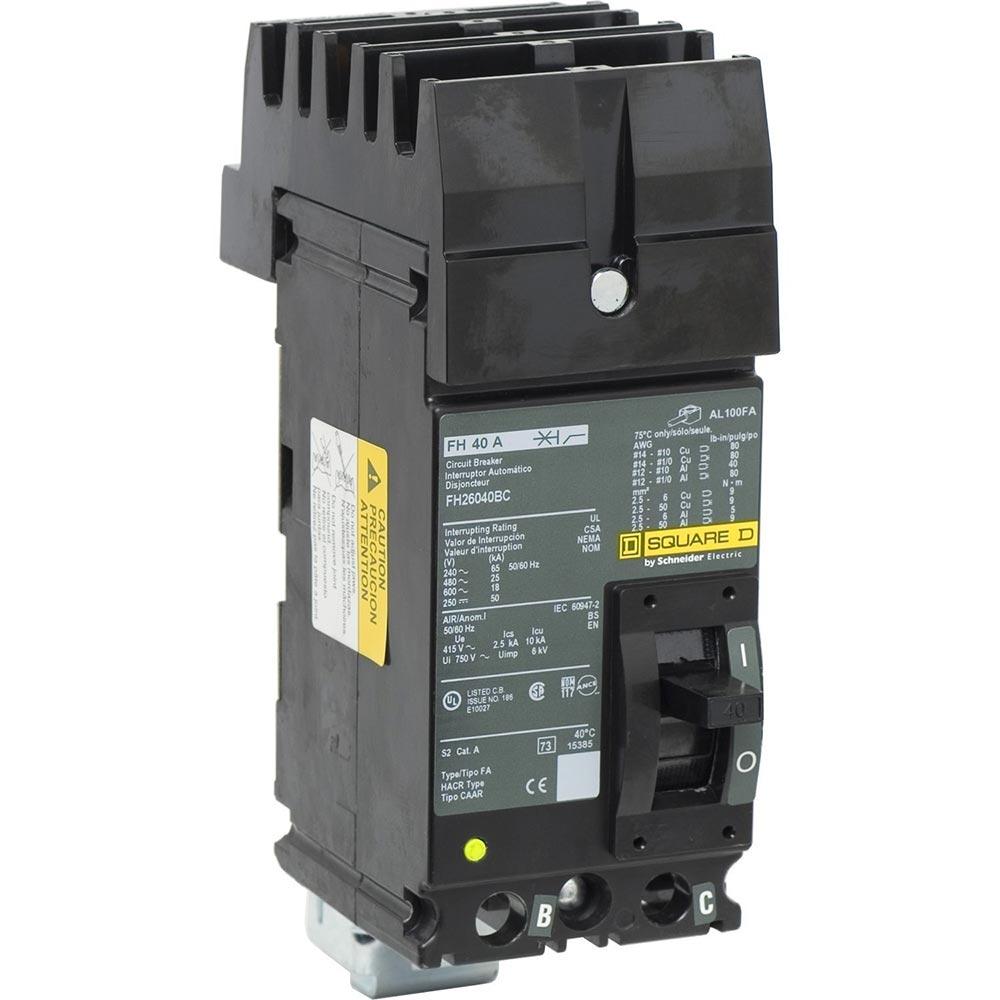

Square D FH26040BC - Molded Case 40A 600V 2-Pole Breaker
Square D FH26040BC - Molded Case 40A 600V 2-Pole Breaker

Square D FH26040BC - Molded Case 40A 600V 2-Pole Breaker

Square D
Price
Save $-882.36
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH26040BC is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 40A current rating and a 600V voltage rating, suitable for single-phase applications. The breaker is constructed with a compact F-frame design measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection. It complies with UL, CSA, NOM, IEC, CCC, and CE standards, ensuring broad international acceptance. Typical applications include protecting feeders, motors, and branch circuits in panelboards and switchboards.

Key Features & Specifications
  • Type: FH Series Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Standards: UL, CSA, NOM, IEC, CCC, CE
  • Applications: Industrial/Commercial Panelboards, Motor Protection, Feeder Circuits
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: As per product dimensions
  • Phase: 1
  • Voltage: 600V
  • Amperage: 40A
  • AIC rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Panel Type: Compatible with I-Line Panelboards
  • Breaker Type: Molded Case
  • Wire Size: 14 to 1/0 AWG AL/CU
  • Certification: UL, CSA, NOM, IEC, CCC, CE
  • Mounting: Plug-In
  • Hz: 50/60 Hz
  • Enclosure: Molded Case
  • Standards: UL 489, CSA C22.2, IEC 60947-2
  • Compatible Frames: I-Line Panelboards
  • Installation Type: Plug-In
  • Item QTY: 1
  • Breaker Frame: F Frame
  • Current Rating: 40A
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 785901343264
  • GTIN: 00785901343264
