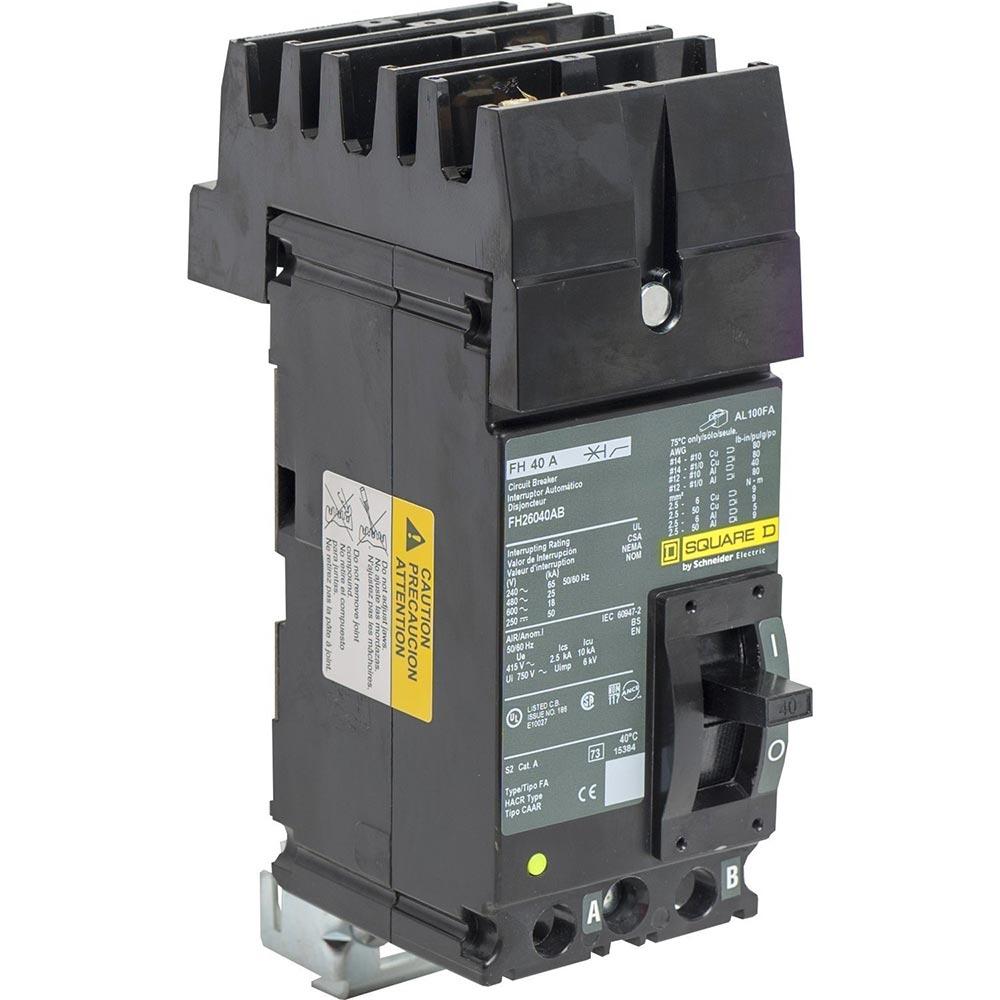

Square D FH26040AB - 40A 2-Pole Molded Case Circuit Breaker
Square D FH26040AB - 40A 2-Pole Molded Case Circuit Breaker

Square D FH26040AB - 40A 2-Pole Molded Case Circuit Breaker

Square D
Price
Save $-882.36
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FH26040AB is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 40A current rating and a 600V voltage rating, suitable for single-phase applications. The breaker is constructed with a compact F-frame design, measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb, and utilizes a thermal-magnetic trip unit for long-time and instantaneous protection functions. It complies with UL, CSA, NOM, IEC, CCC, and CE standards, ensuring broad international acceptance. Typical applications include protecting feeders and branch circuits in panelboards and switchboards, compatible with 14 to 1/0 AWG AL/CU wire sizes and operating in temperatures from -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Style Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Standards: UL, CSA, NOM, IEC, CCC, CE Certified
  • Applications: Industrial and Commercial Feeder/Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 40A
  • AIC Rating: 25kA @ 480V
  • Connection: I-Line Plug-In
  • Poles: 2
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal-Magnetic
  • Wire Size: 14 to 1/0 AWG AL/CU
  • Certification: UL, CSA, NOM, IEC, CCC, CE
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Weight: 6 lb
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901343257
  • GTIN: 00785901343257
