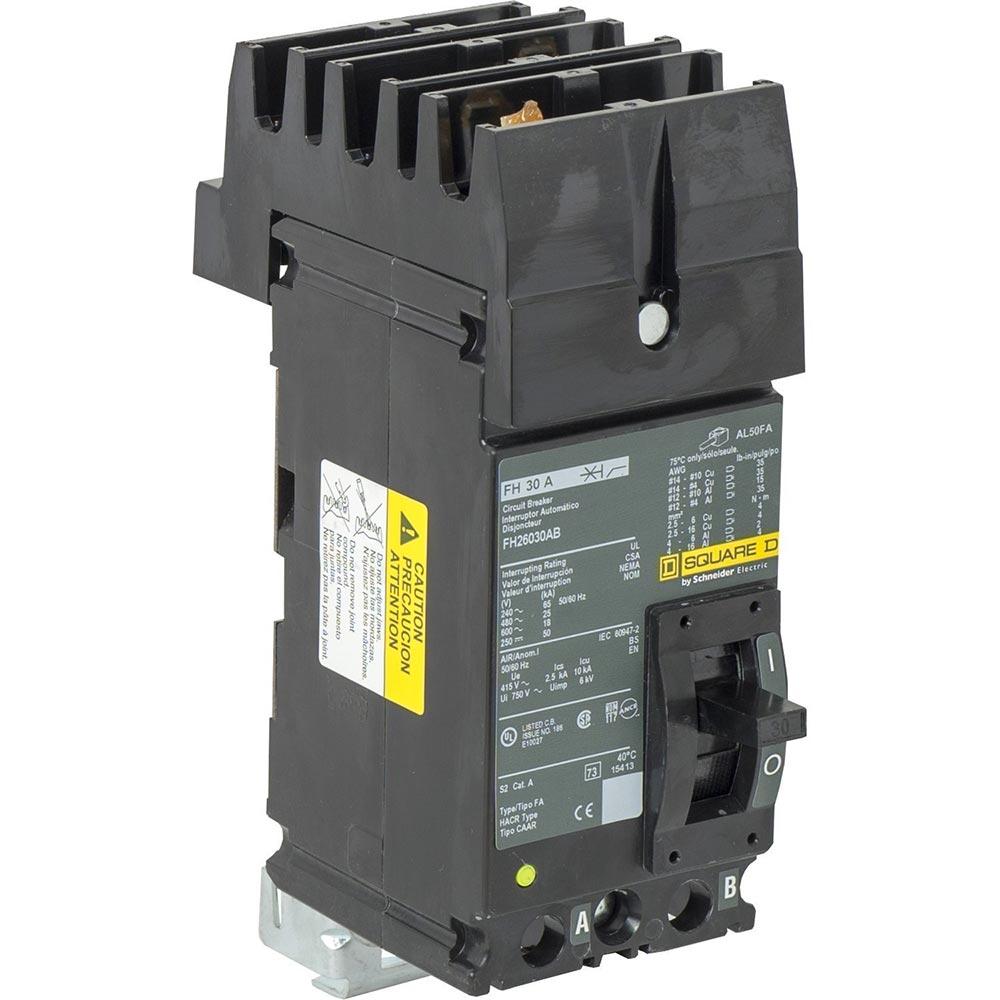

Square D FH26030AB - Molded Case Circuit Breaker, 30A 600V 2-Pole
Square D FH26030AB - Molded Case Circuit Breaker, 30A 600V 2-Pole

Square D FH26030AB - Molded Case Circuit Breaker, 30A 600V 2-Pole

Square D
Price
Save $-461.90
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH26030AB is a molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial electrical systems. It provides a 30A current rating and 600V voltage rating for robust circuit management, housed in a compact F-frame measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb. The breaker meets global standards including UL, CSA, NOM, IEC, CCC, and CE, and is engineered for demanding single-phase applications with its thermal-magnetic protection offering both long-time and instantaneous trip functions. Its I-Line style plug-in connection facilitates efficient installation in compatible panelboards, supporting wire sizes from 14 to 4 AWG for aluminum or copper conductors.

Key Features & Specifications
  • Type: Molded case circuit breaker with thermal-magnetic protection and long-time/instantaneous trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Weight: 6 lb
  • Standards: UL, CSA, NOM, IEC, CCC, CE
  • Applications: Industrial and commercial electrical distribution
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • Amperage: 30A
  • AIC rating: 25kA at 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Wire Size: 14 to 4 AWG AL/CU
  • Certification: UL, CSA, NOM, IEC, CCC, CE
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901254737
  • GTIN: 00785901254737
