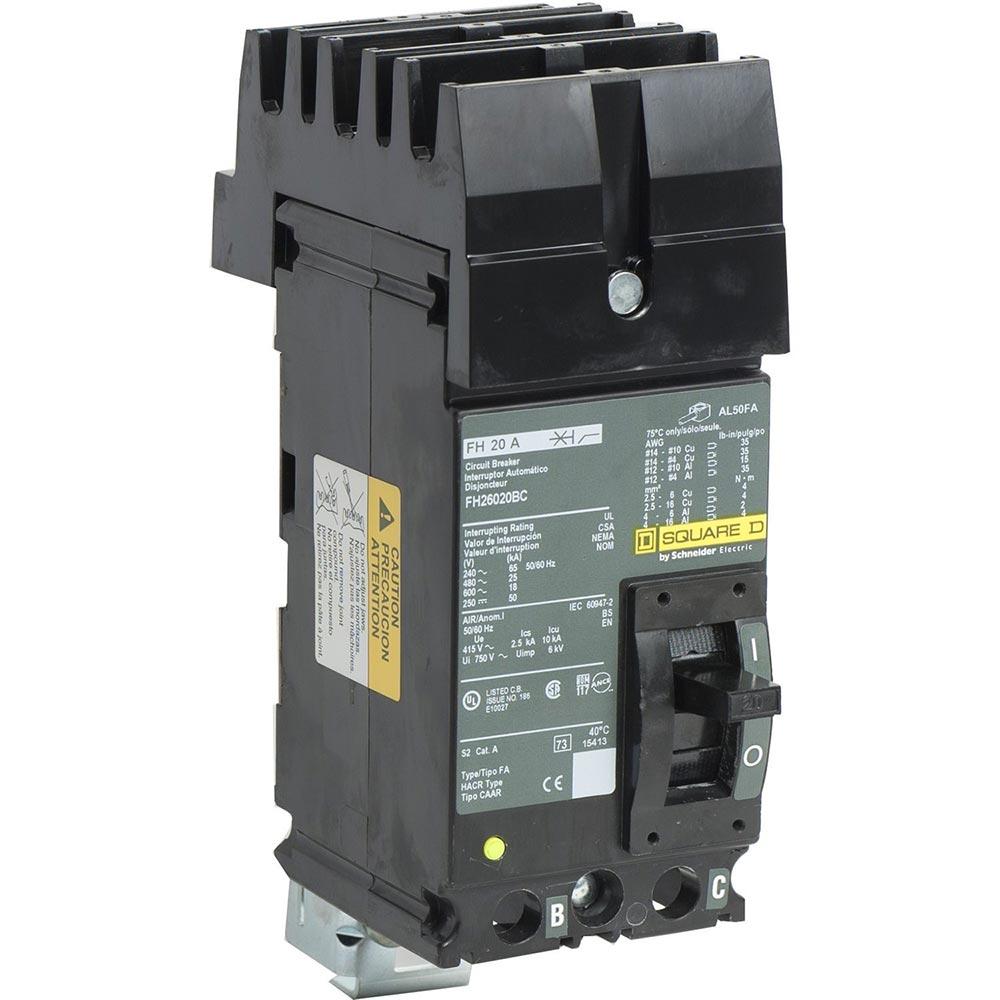

Square D FH26020BC - Molded Case Circuit Breaker, 20A 600V 2-Pole
Square D FH26020BC - Molded Case Circuit Breaker, 20A 600V 2-Pole

Square D FH26020BC - Molded Case Circuit Breaker, 20A 600V 2-Pole

Square D
Price
Save $-882.36
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D FH26020BC is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb. The breaker is constructed for robust performance with a thermal-magnetic trip unit providing long-time and instantaneous protection, and it operates reliably across a temperature range of -25 to 70 °C. It complies with major industry standards including UL, CSA, NOM, IEC, CCC, and CE, ensuring suitability for global installations. Typical applications include protection for feeders, branch circuits, and equipment within industrial control panels, motor control centers, and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip with Long Time and Instantaneous Functions
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 6.4 in H (162.6 mm) x 3 in W (76.2 mm) x 4.13 in D (104.90 mm)
  • Weight: 6 lb
  • Standards: UL, CSA, NOM, IEC, CCC, CE Certified
  • Applications: Industrial Feeder/Branch Circuit Protection, Motor Control Centers, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Wire Size: 14 to 4 AWG AL/CU
  • Family: I-Line
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901254720
  • GTIN: 00785901254720
