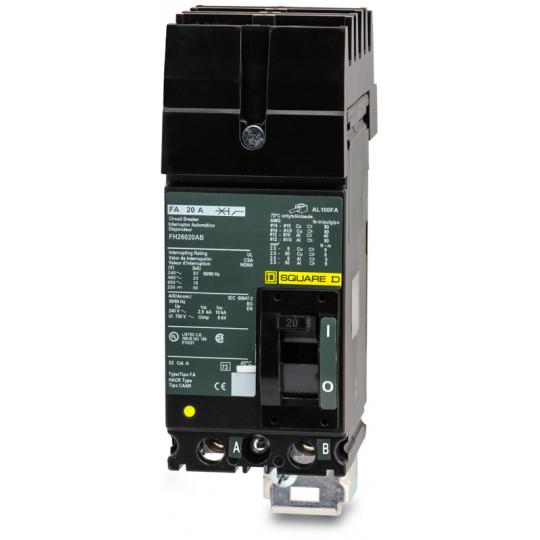

Square D FH26020AB - Molded Case Breaker 20A 600V 2-Pole
Square D FH26020AB - Molded Case Breaker 20A 600V 2-Pole

Square D FH26020AB - Molded Case Breaker 20A 600V 2-Pole

Square D
Price
Save $481.08
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Square D FH26020AB is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for industrial and commercial electrical systems. It features a 20A current rating and a 600V voltage rating, suitable for single-phase applications. The breaker is constructed with a compact F-frame design, measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb, and utilizes a convenient I-Line style plug-in connection. It complies with industry standards for thermal-magnetic protection, offering a 25kA interrupting capacity at 480V and an operational temperature range of -25 to 70 °C. This breaker is typically applied in panelboards and switchboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, I-Line Family, FH Type
  • Voltage Rating: 600V
  • Current Rating: 20A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Standards: Industry Standard Thermal-Magnetic Trip
  • Applications: Industrial and Commercial Panelboards, Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: F Frame
  • Weight: 6 lb


Product Identification
  • UPC: 785901254706
  • GTIN: 00785901254706
