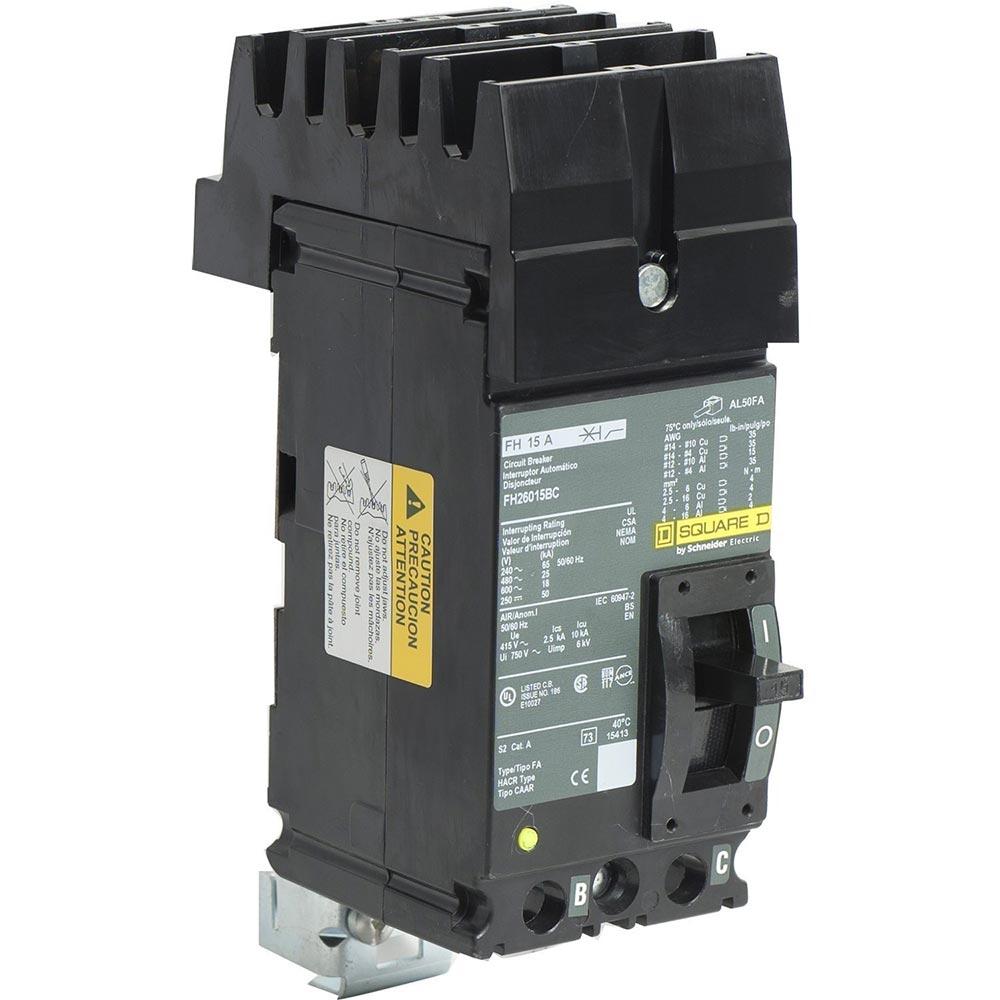

Square D FH26015BC - Molded Case Circuit Breaker (15A, 600V)
Square D FH26015BC - Molded Case Circuit Breaker (15A, 600V)

Square D FH26015BC - Molded Case Circuit Breaker (15A, 600V)

Square D
Price
Save $574.64
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH26015BC is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and weighing 6 lb. The breaker is constructed for robust performance with a thermal-magnetic trip unit offering both long-time and instantaneous trip functions, and it complies with UL, CSA, NOM, IEC, CCC, and CE standards. Its I-Line style plug-in connection and compatibility with 14 to 4 AWG AL/CU wire make it suitable for a wide range of panelboard and switchboard applications in single-phase systems.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Family
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Standards: UL, CSA, NOM, IEC, CCC, CE
  • Applications: Industrial and Commercial Panelboards/Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Wire Size: 14 to 4 AWG AL/CU
  • Certification: UL, CSA, NOM, IEC, CCC, CE
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901254690
  • GTIN: 00785901254690
