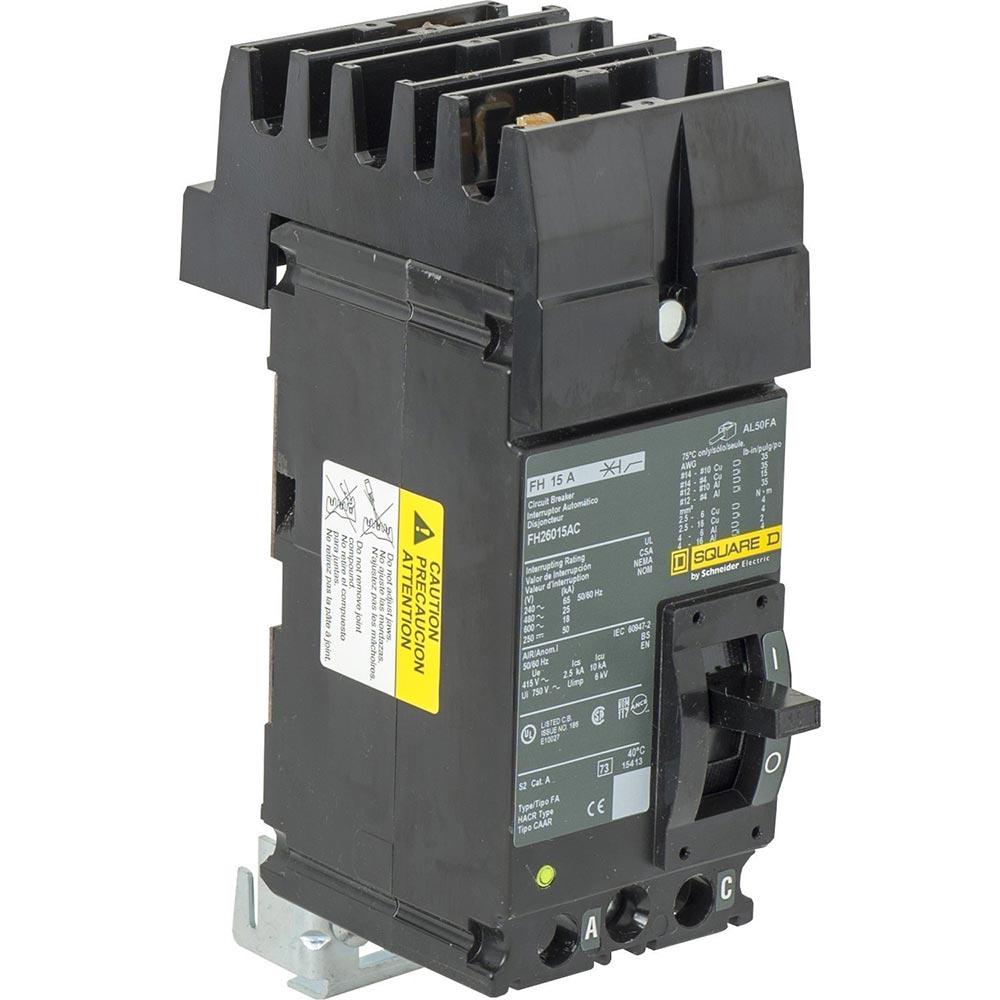

Square D FH26015AC - Molded Case Circuit Breaker, 15A 600V 2-Pole
Square D FH26015AC - Molded Case Circuit Breaker, 15A 600V 2-Pole

Square D FH26015AC - Molded Case Circuit Breaker, 15A 600V 2-Pole

Square D
Price
Save $-882.36
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D FH26015AC is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and a 600V AC voltage rating, housed in a compact F-frame with dimensions of 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D and a weight of 6 lb. This thermal magnetic breaker offers long-time and instantaneous trip functions, is rated for 25kA interrupting capacity at 480V, and operates within a temperature range of -25°C to 70°C (-13°F to 158°F). It complies with UL, CSA, NOM, IEC, CCC, and CE standards and is commonly applied in panelboards and switchboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, I-Line Style Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D
  • Standards: UL, CSA, NOM, IEC, CCC, CE
  • Applications: Industrial and Commercial Panelboards, Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: 6.4 in (162.6 mm) H x 3 in (76.2 mm) W x 4.13 in (104.90 mm) D
  • Phase: 1
  • Voltage: 600V
  • Amperage: 15A
  • AIC rating: 25kA@480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Trip Type: Thermal Magnetic
  • Panel Type: Compatible with I-Line Panelboards
  • Breaker Type: Molded Case
  • Wire Size: 14 to 4 AWG AL/CU
  • Certification: UL, CSA, NOM, IEC, CCC, CE
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: I-Line Style
  • Standards: UL, CSA, NOM, IEC, CCC, CE
  • Compatible Frames: I-Line
  • Installation Type: Plug-In
  • Item QTY: 1
  • Breaker Frame: F Frame
  • Current Rating: 15A
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 785901254683
  • GTIN: 00785901254683
