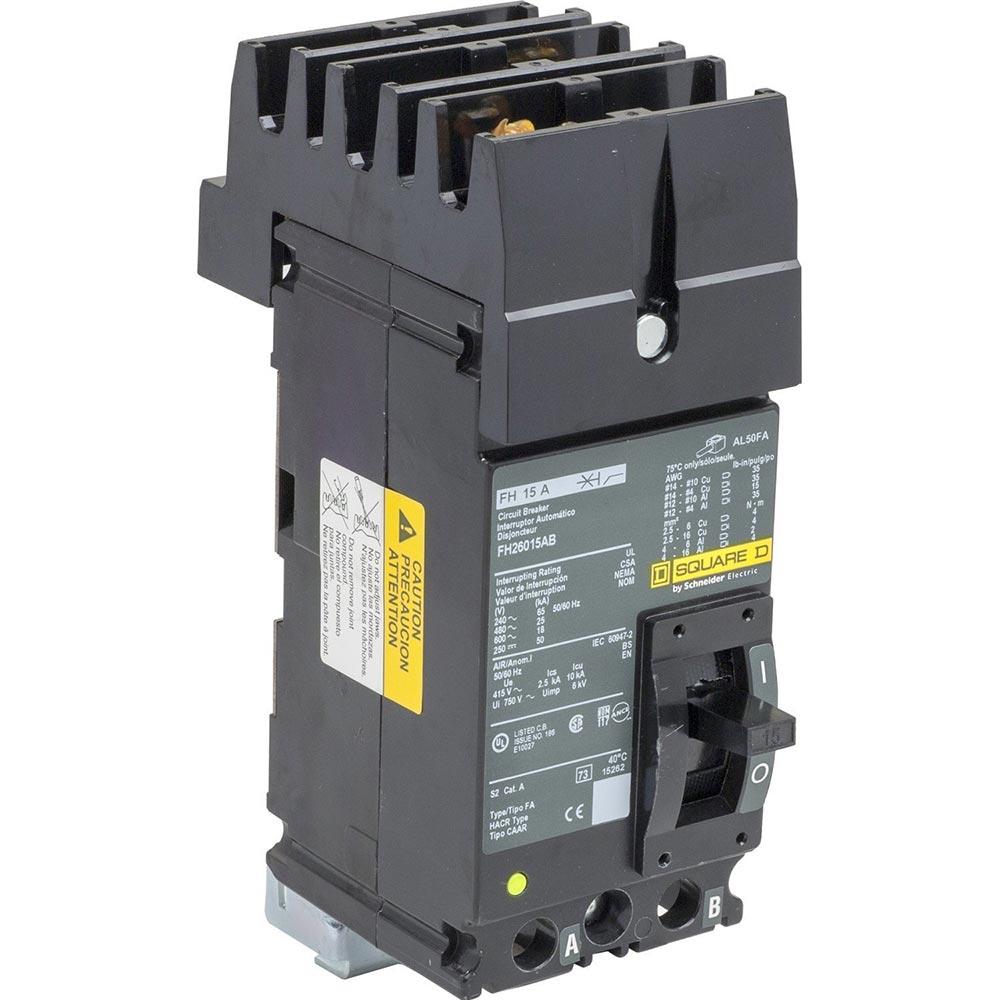

Square D FH26015AB - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D FH26015AB - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D FH26015AB - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D
Price
Save $-882.36
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH26015AB is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 15A current rating and a 600V voltage rating, suitable for single-phase applications. The breaker is constructed with a compact F-frame design measuring 162.6 mm H x 76.2 mm W x 104.9 mm D and utilizes a thermal-magnetic trip unit for long-time and instantaneous protection functions. It complies with UL, CSA, NOM, IEC, CCC, and CE standards, ensuring global regulatory acceptance. Typical applications include protecting feeders and branch circuits in panelboards and switchboards, compatible with 14 to 4 AWG aluminum or copper conductors.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, I-Line Family
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 162.6 mm H x 76.2 mm W x 104.9 mm D (6.4 in x 3 in x 4.13 in)
  • Weight: 6 lb
  • Standards: UL, CSA, NOM, IEC, CCC, CE
  • Applications: Industrial panelboards, switchboards, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • Amperage: 15A
  • AIC Rating: 25kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Wire Size: 14 to 4 AWG AL/CU
  • Certification: UL, CSA, NOM, IEC, CCC, CE
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901254676
  • GTIN: 00785901254676
