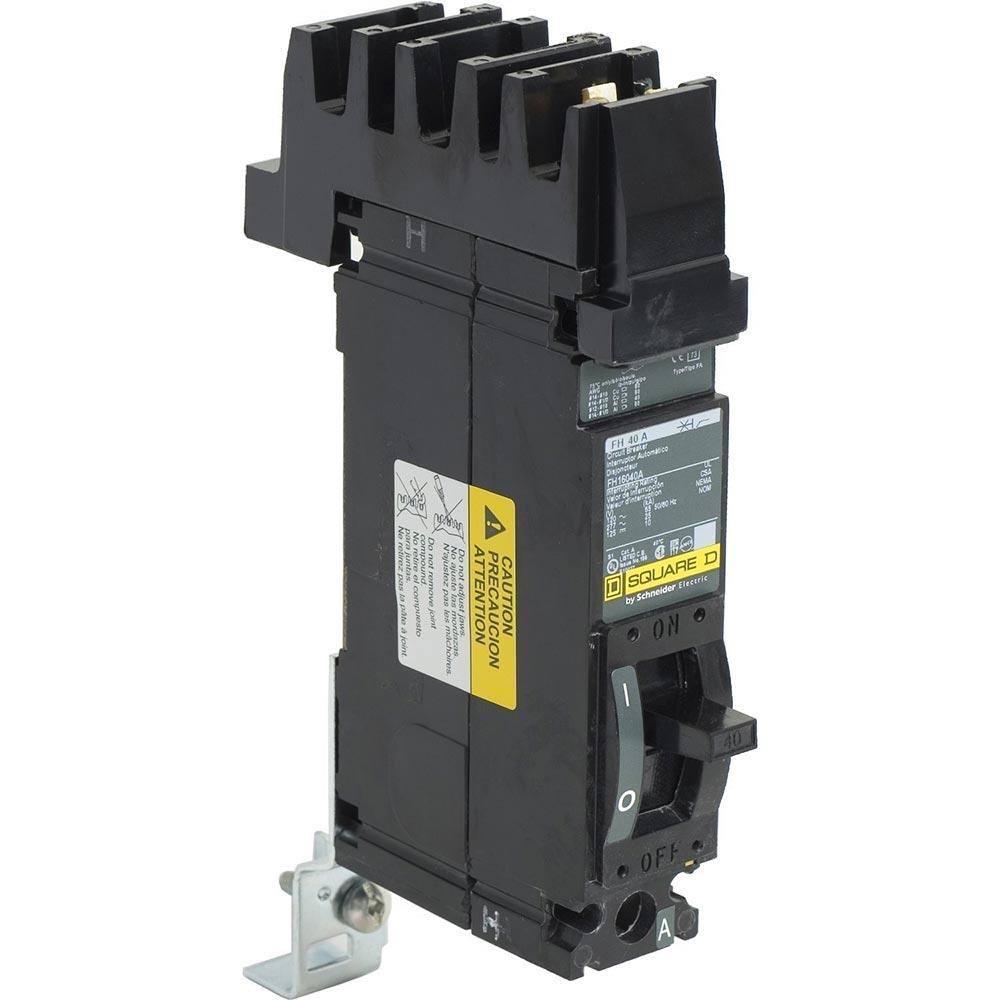

Square D FH16060A - Molded Case Circuit Breaker, 60A 1P (277V AC)
Square D FH16060A - Molded Case Circuit Breaker, 60A 1P (277V AC)

Square D FH16060A - Molded Case Circuit Breaker, 60A 1P (277V AC)

Square D
Price
Save $217.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D FH16060A is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 60A current rating and a 277V AC voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 38.1 mm W x 104.9 mm D and weighing 2.47 lb. The breaker is constructed for robust performance with a thermal-magnetic trip mechanism offering both long-time and instantaneous protection, and it operates reliably across a temperature range of -25 to 70 °C. It complies with industry standards for safety and performance, featuring a 25kA interrupting rating at 240V AC. This single-pole, plug-in I-Line style breaker is typically applied in lighting panels, feeder circuits, and branch circuit protection where its compatibility with aluminum or copper conductors from AWG 14 to 1/0 is utilized.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Style Plug-In Connection
  • Voltage Rating: 277V AC
  • Current Rating: 60A
  • Dimensions: 162.6 mm H x 38.1 mm W x 104.9 mm D (6.4 in x 1.5 in x 4.13 in)
  • Standards: Industry standards for circuit protection
  • Applications: Industrial and commercial lighting panels, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Single Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC rating: 25kA @ 240V AC
  • Connection: Plug-In
  • Poles: 1
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Wire Size: AWG 14 to AWG 1/0, Aluminum/Copper
  • Weight: 2.47 lb


Product Identification
  • UPC: 078590133805
  • GTIN: 00785901338055
