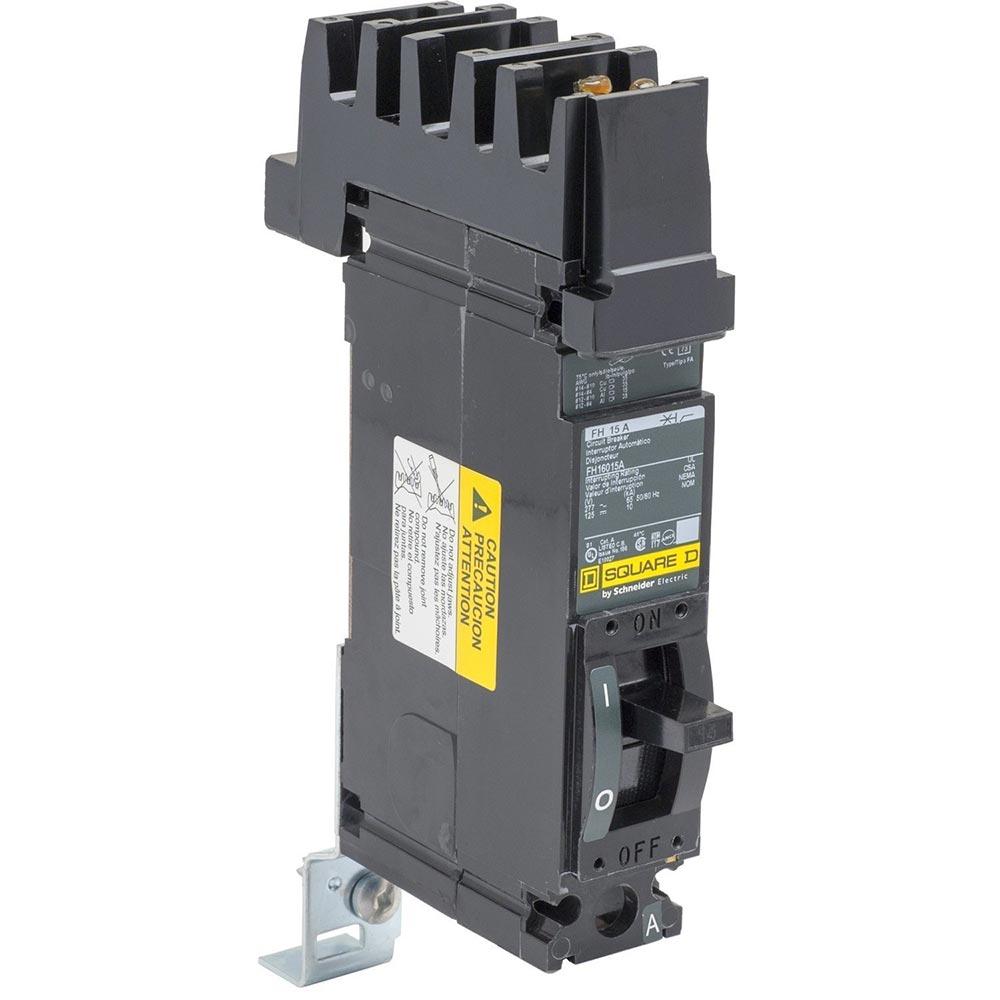

Square D FH16015A - Molded Case Circuit Breaker, 15A 1-Pole
Square D FH16015A - Molded Case Circuit Breaker, 15A 1-Pole

Square D FH16015A - Molded Case Circuit Breaker, 15A 1-Pole

Square D
Price
Save $389.54
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Square D FH16015A is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and a 277V voltage rating, housed within a compact F-frame design measuring 162.6 mm H x 38.1 mm W x 104.9 mm D and weighing 2 lb. The breaker utilizes a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection, is certified to UL and CSA standards, and is configured as a single-pole, plug-in unit for straightforward installation in I-Line panelboards. Its 25kA interrupting rating at 240V and compatibility with copper conductors from AWG 14 to 4 make it suitable for protecting branch circuits in lighting, appliance, and general power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, I-Line Plug-In Connection
  • Voltage Rating: 277V AC
  • Current Rating: 15A
  • Dimensions: 6.4 in (162.6 mm) H x 1.5 in (38.1 mm) W x 4.13 in (104.90 mm) D
  • Weight: 2 lb
  • Standards: UL, CSA Certified
  • Applications: Industrial & Commercial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Phase: 1
  • Amperage: 15A
  • AIC rating: 25kA @ 240V
  • Connection: I-Line Style Plug-In
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Wire Size: AWG 14 to AWG 4 (Copper), AWG 12 to AWG 4 (Aluminum)
  • Certification: UL, CSA
  • Country of Origin: Mexico


Product Identification
  • UPC: 078590156372
  • GTIN: 00785901563723
