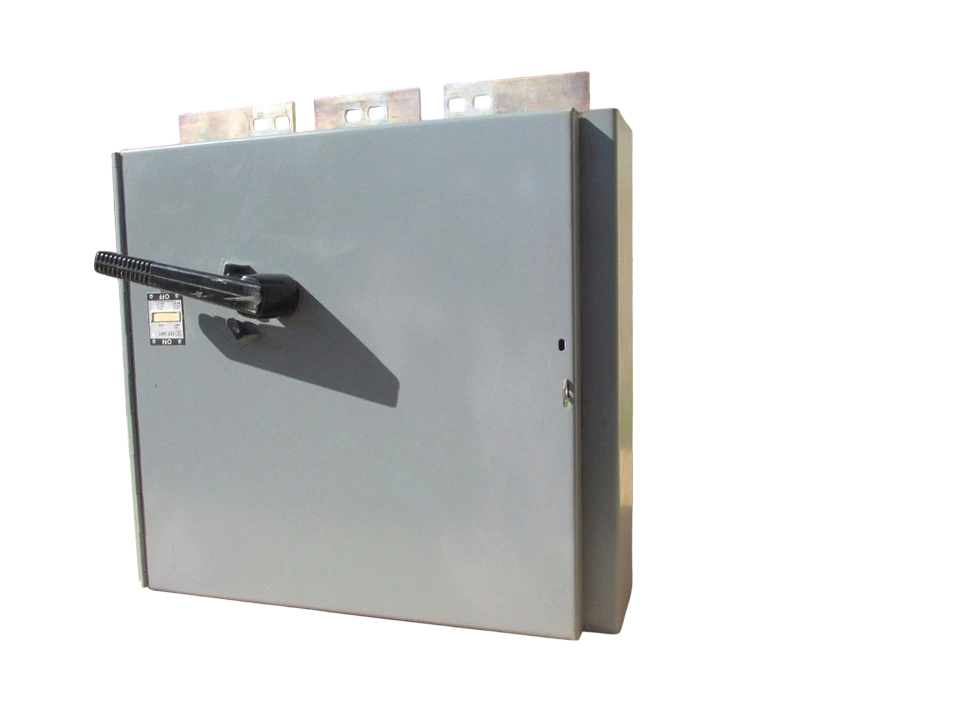

Cutler Hammer FDPS368M - Fusible Safety Switch 600V/1200A (200kA AIC @480V)

Cutler Hammer FDPS368M is a panel-mounted fusible safety switch designed for high-current industrial power distribution systems. This 600V-rated switch features a 1200A current capacity with 200kA interrupting rating at 480V, housed in a NEMA 1 enclosure for basic indoor protection. The three-pole single-configuration unit accepts R, H, and K-class fuses and is compatible with SELA frames, constructed with durable industrial-grade components meeting UL safety standards. Typical applications include motor control centers, industrial machinery, and heavy-duty electrical distribution panels requiring reliable circuit protection.

Key Features & Specifications

• Type: Fusible safety switch, panel mount
• Voltage Rating: 600V AC
• Current Rating: 1200A
• Configuration: Single
• Poles: 3
• Phase: 3-phase
• AIC Rating: 200kA@480V
• Fuse Class: R, H, K
• NEMA Rating: 1
• Compatible Frames: SELA
• Weight: 150 lb
• Standards: UL listed
• Applications: Industrial power distribution, motor control centers, heavy machinery
