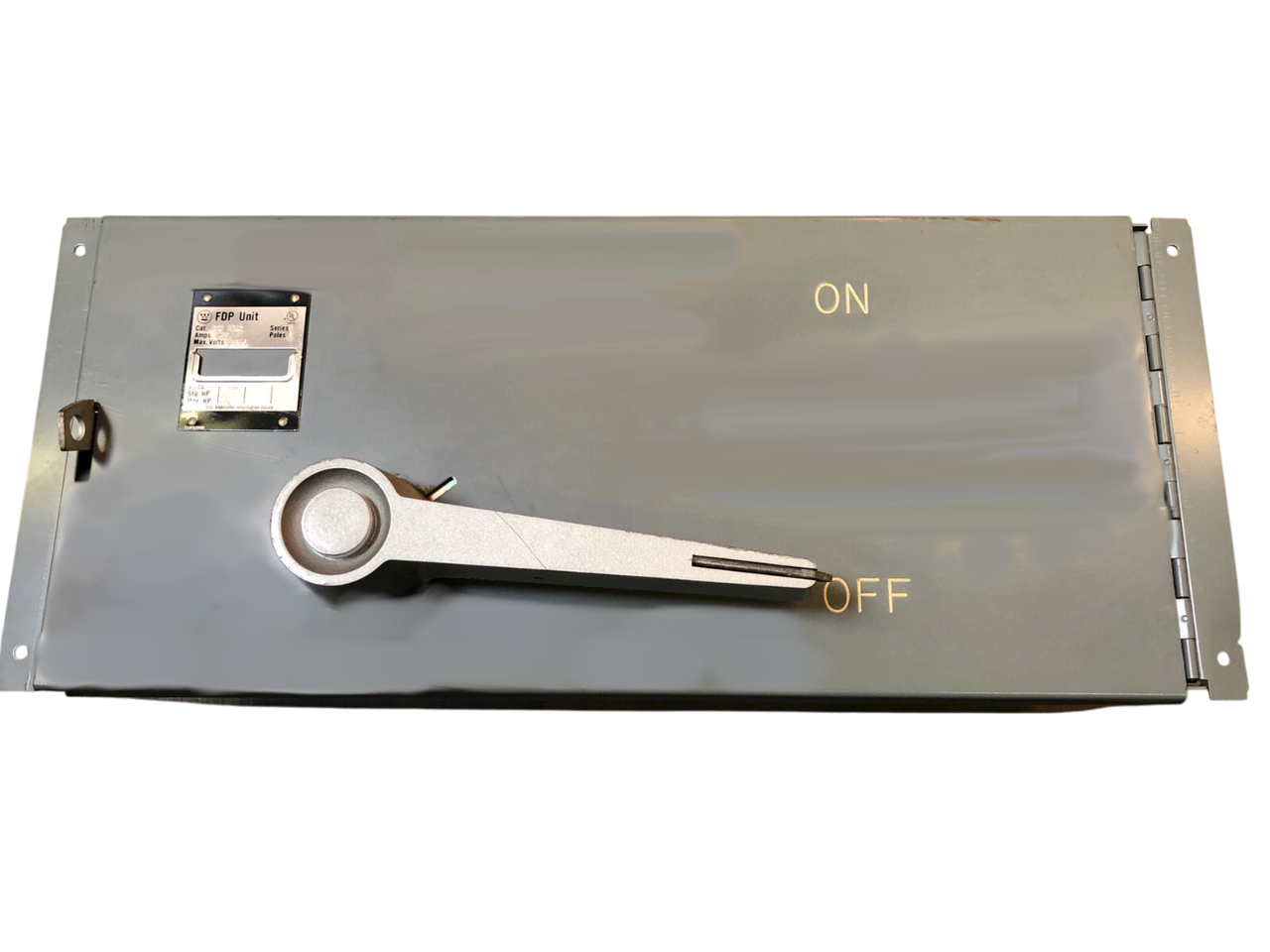

Westinghouse FDP323J - Class J Fusible Safety Switch (200kA AIC @ 240V)

Westinghouse FDP323J is a fusible safety switch designed for industrial power distribution protection. This panel-mounted device features a 240V voltage rating and 100A current capacity with a 200kA interrupting rating at 240V for robust circuit protection. The NEMA 1-rated enclosure houses three poles in a single configuration, constructed with Class J fuses for reliable operation. It complies with industry standards for electrical safety and is compatible with SGLA frames. Typical applications include motor control centers, HVAC systems, and industrial machinery power distribution.

Key Features & Specifications

• Type: Fusible safety switch, panel mount, Class J fuse protection
• Voltage Rating: 240V AC
• Current Rating: 100A
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC Rating: 200kA @ 240V
• NEMA Rating: 1
• Compatible Frames: SGLA
• Switch Style: Fusible
• Weight: 35 lb
• Standards: Industrial electrical safety compliance
• Applications: Motor control centers, industrial power distribution, HVAC systems

Product Identification

• GTIN: 00783164001693
