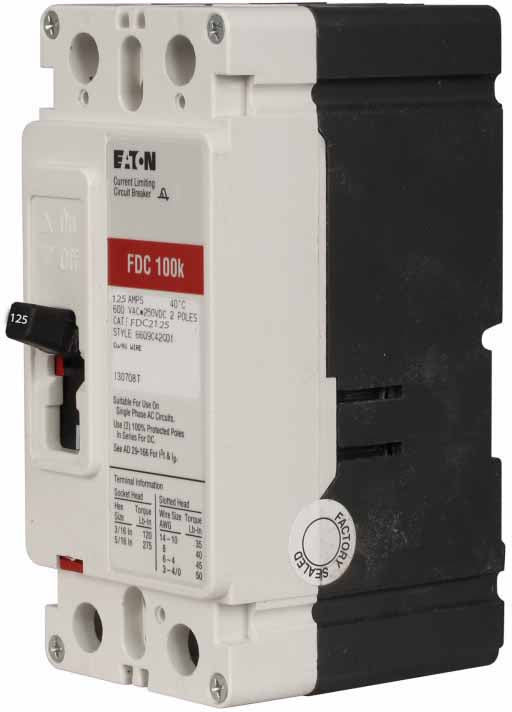

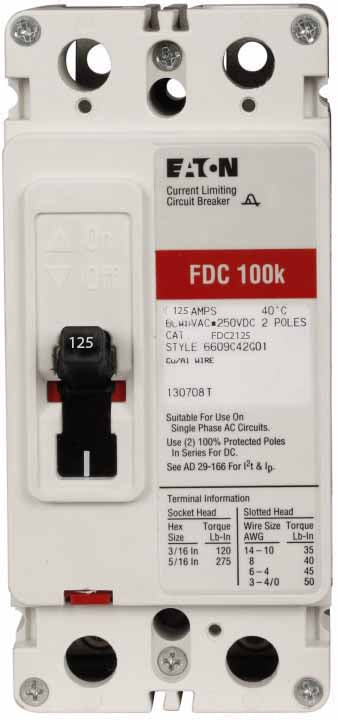

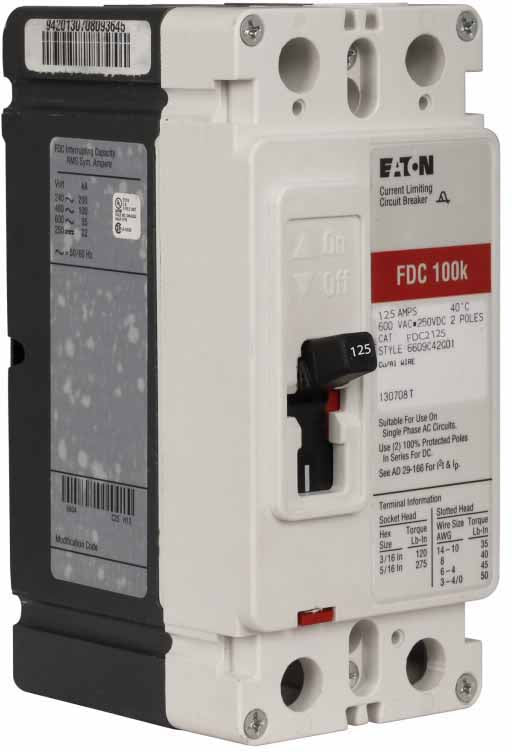

Cutler Hammer FDC2125 - Molded Case Circuit Breaker 125A 600V 2-Pole
Cutler Hammer FDC2125 - Molded Case Circuit Breaker 125A 600V 2-Pole
Cutler Hammer FDC2125 - Molded Case Circuit Breaker 125A 600V 2-Pole
Cutler Hammer FDC2125 - Molded Case Circuit Breaker 125A 600V 2-Pole
Cutler Hammer FDC2125 - Molded Case Circuit Breaker 125A 600V 2-Pole
Cutler Hammer FDC2125 - Molded Case Circuit Breaker 125A 600V 2-Pole

Cutler Hammer FDC2125 - Molded Case Circuit Breaker 125A 600V 2-Pole

Cutler Hammer
Price
Save $9,651.43
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer FDC2125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 125A current rating and a 600V voltage rating, suitable for single-phase applications. The compact, bolt-on unit measures 3.38 in x 2.75 in x 2.75 in, weighs 2 lb, and is constructed with a thermal magnetic trip mechanism offering both long-time and instantaneous trip functions. This UL-certified breaker complies with industry standards and is rated for an interrupting capacity of 100kA at 480V. Its robust design, with an operating temperature range of -25 to 70 °C (-13 to 158 °F), makes it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Series C, FDC Type, Thermal Magnetic Protection
  • Voltage Rating: 600V
  • Current Rating: 125A
  • Dimensions: 3.38 in (Depth) x 2.75 in (Height) x 2.75 in (Width)
  • Standards: UL Certified
  • Applications: Panelboards, Switchboards, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 100kA at 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: F Frame
  • Weight: 2 lb


Product Identification
  • UPC: 786679621257
  • GTIN: 00786679621257
