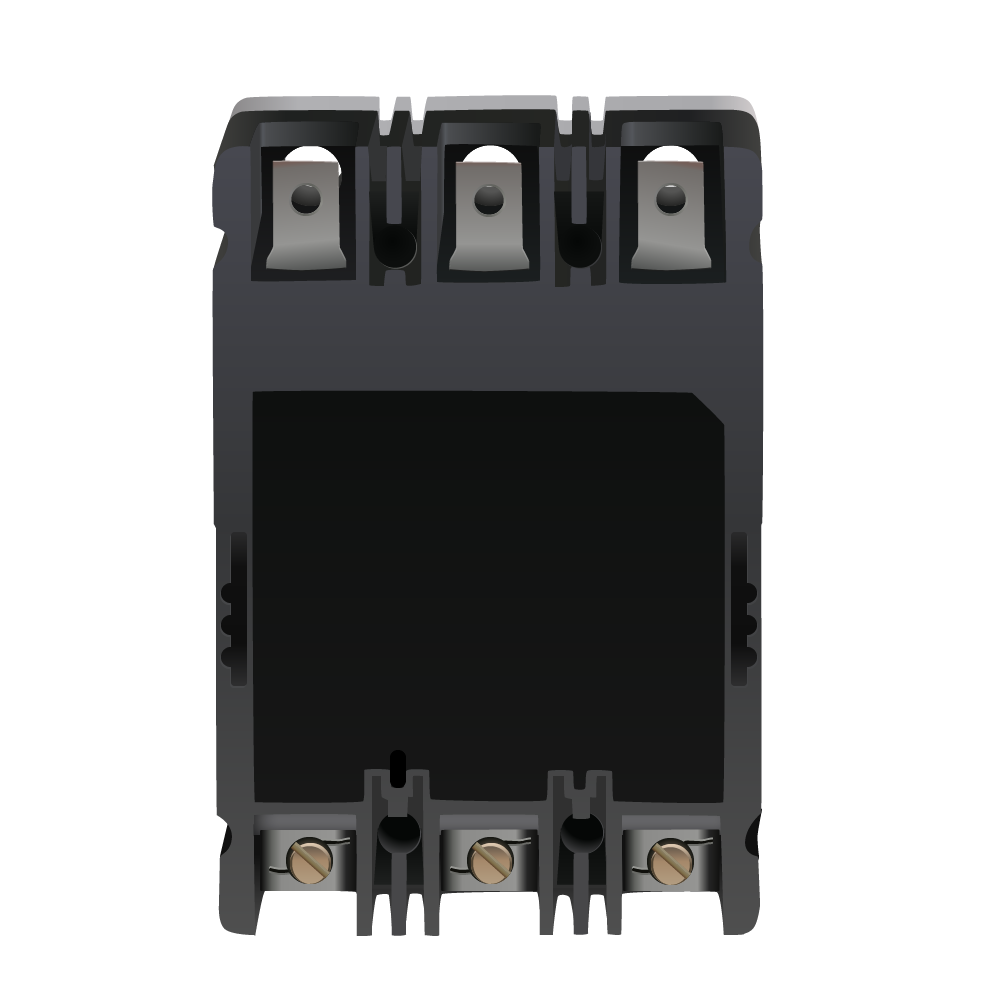

Cutler Hammer FD3200 - Molded Case Circuit Breaker 200A 600V 3P
Cutler Hammer FD3200 - Molded Case Circuit Breaker 200A 600V 3P
Cutler Hammer FD3200 - Molded Case Circuit Breaker 200A 600V 3P
Cutler Hammer FD3200 - Molded Case Circuit Breaker 200A 600V 3P

Cutler Hammer FD3200 - Molded Case Circuit Breaker 200A 600V 3P

Cutler Hammer
Price
Save $4,330.16
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer FD3200 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 200A current rating and a 600V voltage rating, housed within a compact 3.38" x 6" x 4.13" (LxHxW) bolt-on unit weighing 4.5 lb. The breaker is constructed with a 225A frame size and utilizes a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection, ensuring compliance with UL, CSA, and IEC standards. Its 35kA interrupting rating at 480V and three-pole, ABC phase configuration make it suitable for integration into motor control centers, switchboards, and enclosed controls from major manufacturers like Allen-Bradley and Eaton.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Frame Size: 225A/F
  • AIC Rating: 35kA @ 480V
  • Poles: 3
  • Phase Connection: ABC
  • Functions: Long-Time and Instantaneous (LI)
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Weight: 4.5 lb
  • Terminal Connection: Load Side Lug
  • Wire Size Range: 14 AWG to 1/0 AWG
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: UL Listed, CSA Certified, IEC Rated
  • Compatible Panel Types: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Breaker Type: Standard
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679072752
  • GTIN: 00786679072752
