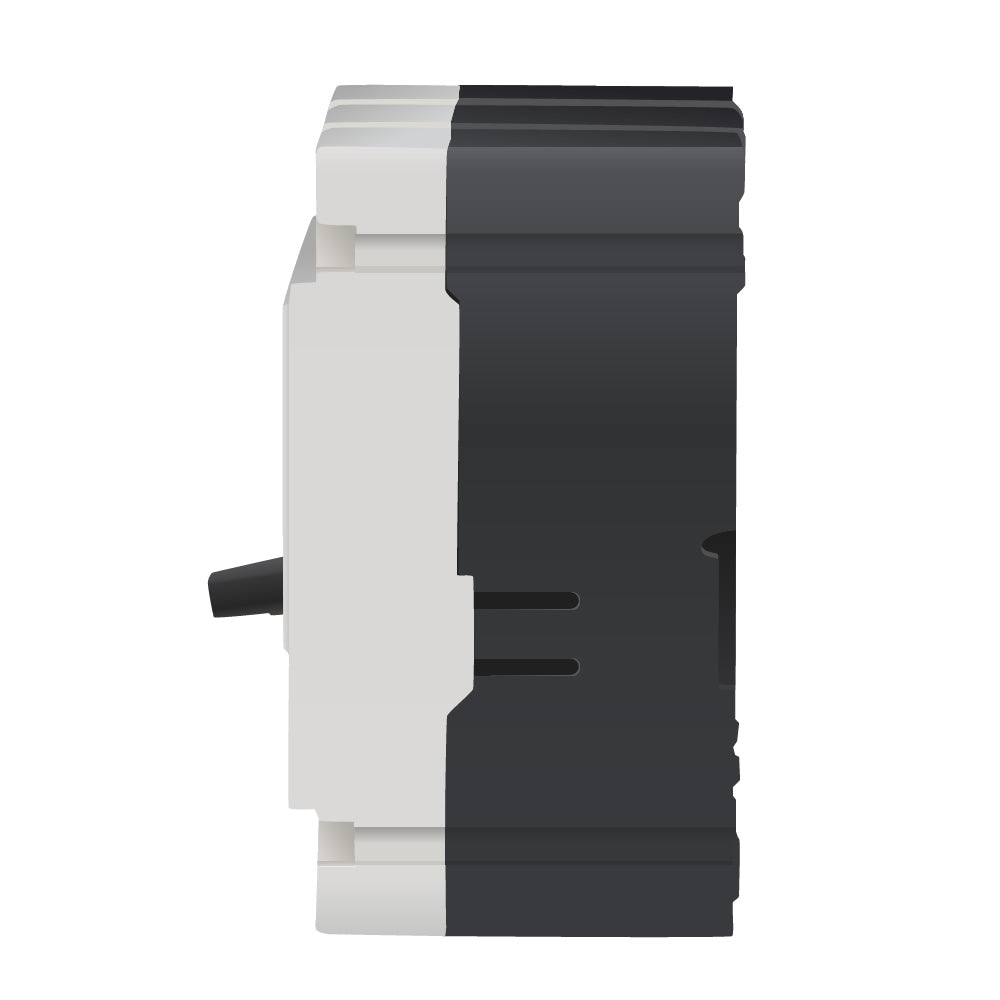

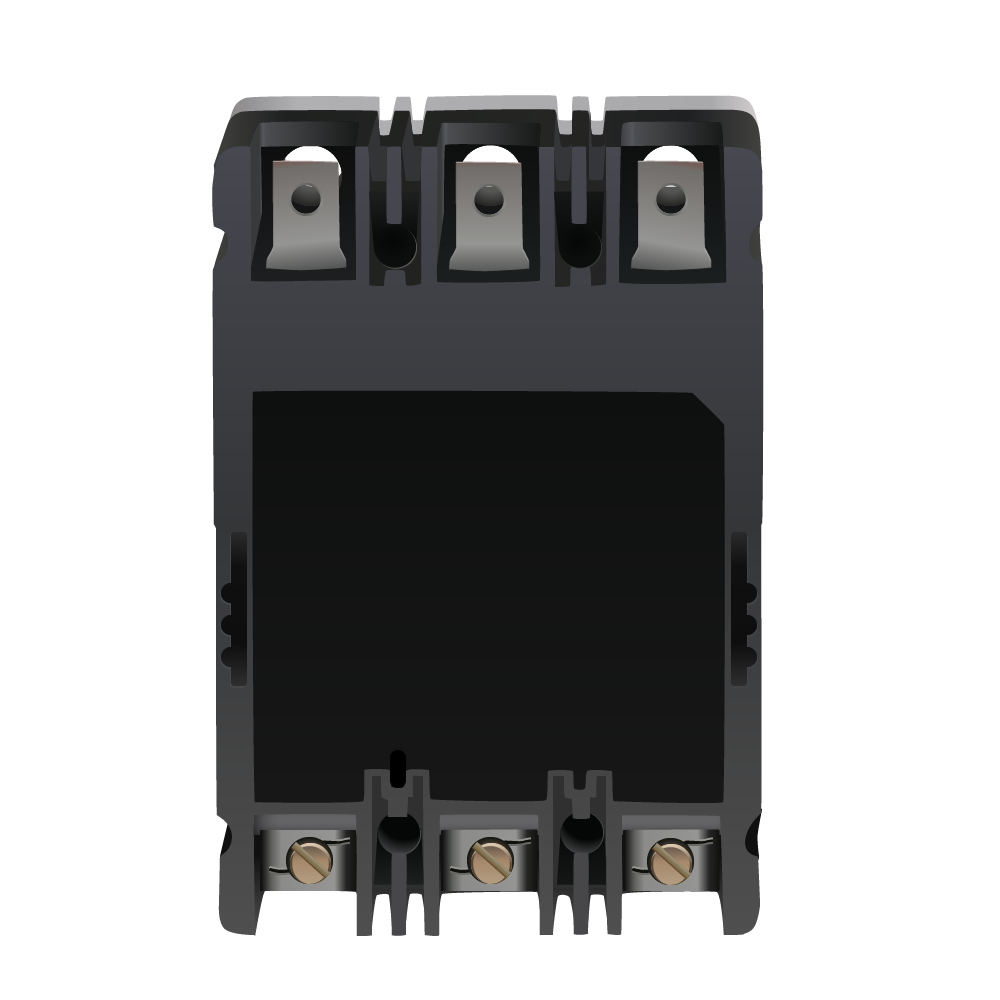

The Cutler Hammer FD3090 is a molded case circuit breaker designed for reliable overcurrent protection in three-phase industrial power systems. It features a 90A current rating and a 600V voltage rating, housed within a compact 225A frame with dimensions of 3.38" D x 6" H x 4.13" W and a weight of 4.5 lb. This thermal magnetic breaker provides both long-time and instantaneous (LI) protection, is CSA, UL, and IEC certified, and offers a 35kA interrupting capacity at 480V for robust fault protection. Its bolt-on connection with load-side lugs and compatibility with a wide range of motor control centers and switchboards makes it suitable for demanding commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Series C Family
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Frame Size: 225A/F
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Bolt-On, Load Side Lug Terminal
  • Protection Functions: Long-Time and Instantaneous (LI)
  • Phase Connection: 3-Phase, ABC
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Weight: 4.5 lb
  • Wire Size Range: 14 AWG to 1/0 AWG
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: UL Listed, CSA Certified, IEC Rated
  • Compatible Panel Types: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Breaker Type: Standard
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679305751
  • GTIN: 00786679305751
