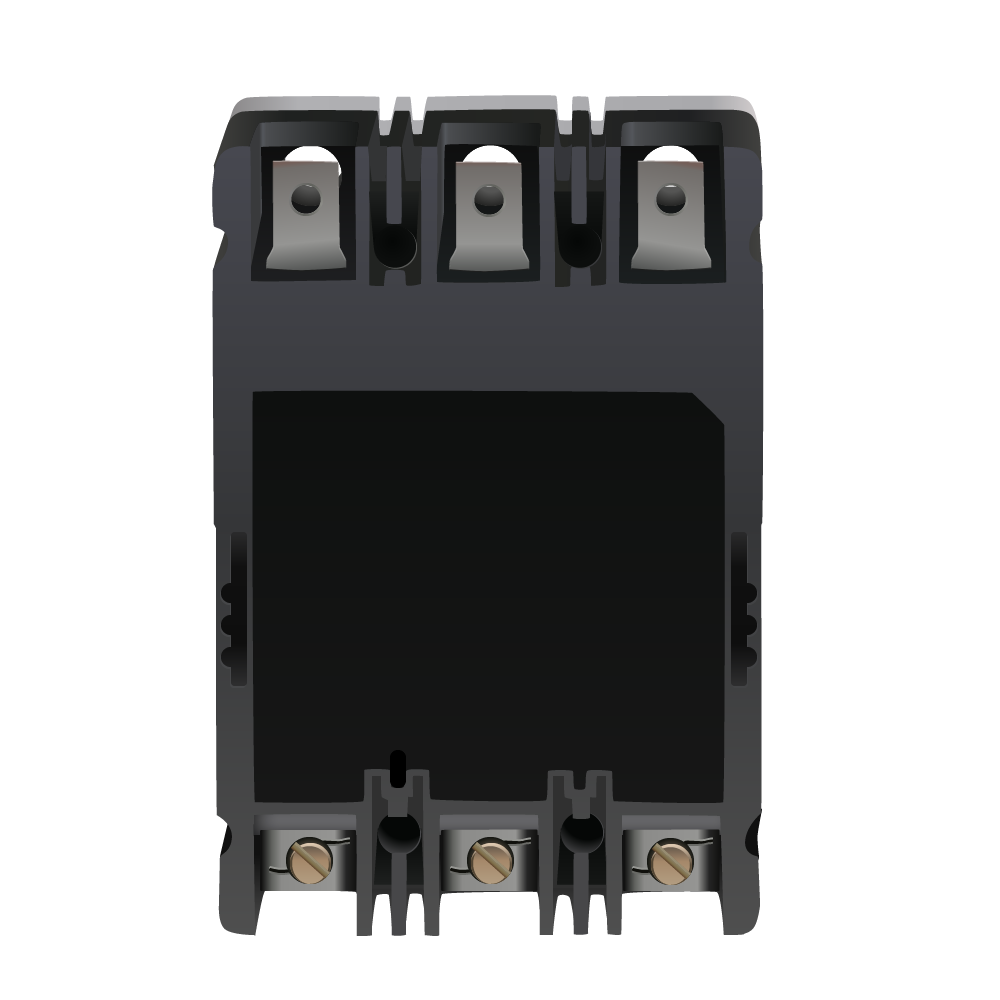

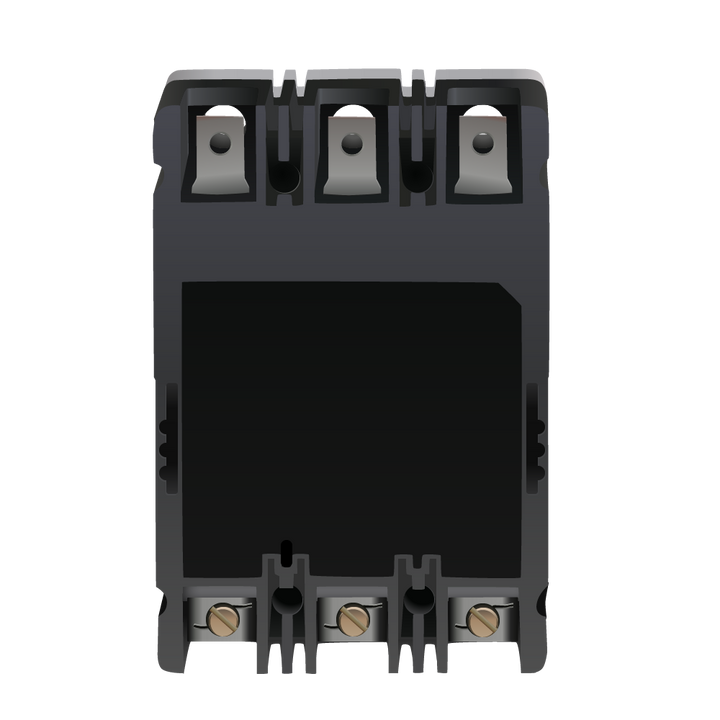

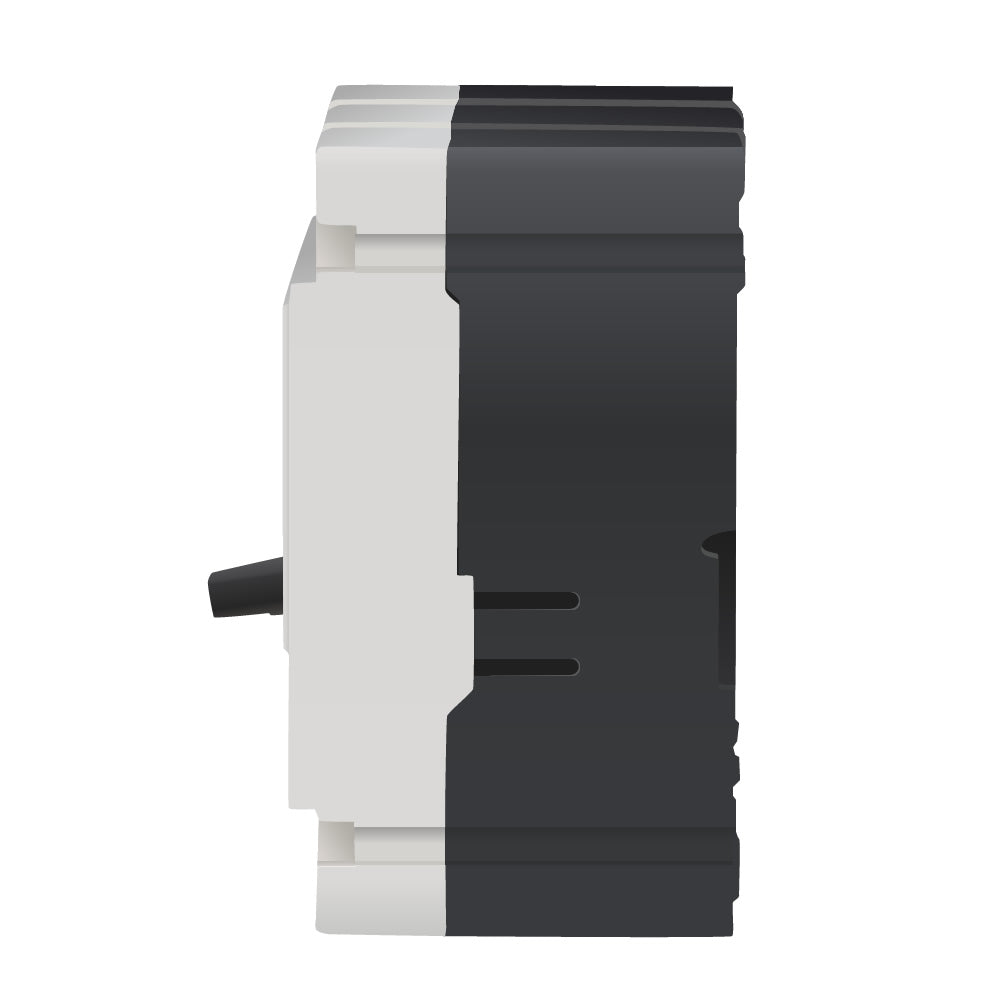

Westinghouse FD3080 - Molded Case Circuit Breaker 80A 600V 3P
Westinghouse FD3080 - Molded Case Circuit Breaker 80A 600V 3P
Westinghouse FD3080 - Molded Case Circuit Breaker 80A 600V 3P
Westinghouse FD3080 - Molded Case Circuit Breaker 80A 600V 3P

Westinghouse FD3080 - Molded Case Circuit Breaker 80A 600V 3P

Eaton
Price
Save $1,866.01
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Westinghouse FD3080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and an 80A continuous current rating within its 225A frame, utilizing a three-pole, bolt-on connection with load side lugs suitable for wire sizes from 14 AWG to 1/0 AWG. The unit is constructed with a compact footprint of 3.38" D x 6" H x 4.13" W and a weight of 4.5 lb, employing a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection with an interrupting capacity of 35kA at 480V. This breaker is certified to UL, CSA, and IEC standards, ensuring compliance for integration into a variety of panel types including Allen-Bradley MCCs, Eaton MCCs, switchboards, and enclosed controls. Its operational temperature range from -4°F to 158°F makes it suitable for demanding industrial environments, providing essential circuit protection for motor control centers and power distribution equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Frame Size: 225A/F
  • Poles: 3
  • Connection: Bolt-On
  • Phase Connection: ABC
  • AIC Rating: 35kA @ 480V
  • Functions: LI (Long-Time and Instantaneous)
  • Terminal Connection: Load Side Lug
  • MCM Size / Wire Range: 14 AWG to 1/0 AWG
  • Dimensions: 3.38 in (D) x 6 in (H) x 4.13 in (W)
  • Weight: 4.5 lb
  • Temp Rating: -4°F to 158°F
  • Standards & Certification: UL Listed, CSA Certified, IEC Rated
  • Panel Type: Compatible with Allen-Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Breaker Type: Standard
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679305744
  • GTIN: 00786679305744
