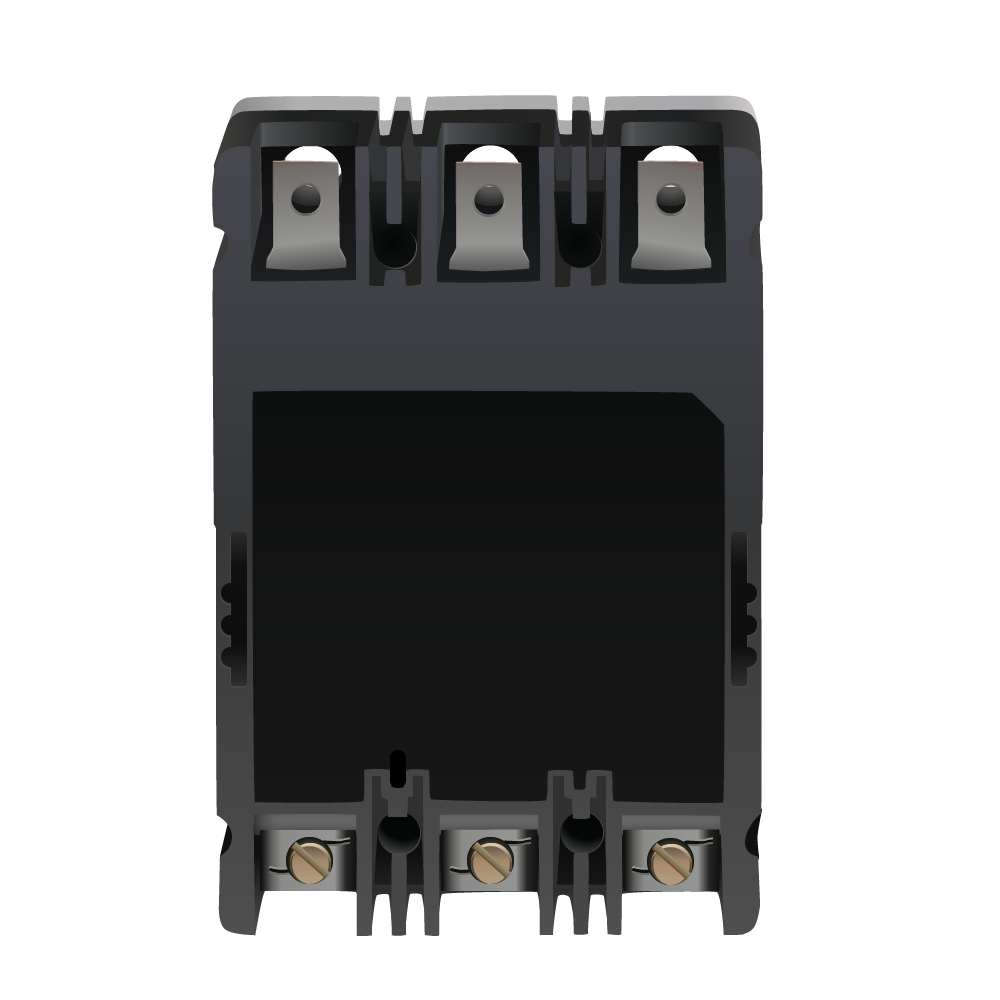

Cutler Hammer FD3020 - 3-Pole Molded Case Breaker 20A 600V
Cutler Hammer FD3020 - 3-Pole Molded Case Breaker 20A 600V
Cutler Hammer FD3020 - 3-Pole Molded Case Breaker 20A 600V
Cutler Hammer FD3020 - 3-Pole Molded Case Breaker 20A 600V

Cutler Hammer FD3020 - 3-Pole Molded Case Breaker 20A 600V

Cutler Hammer
Price
Save $1,988.90
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer FD3020 is a molded case circuit breaker designed for reliable overcurrent protection in industrial power distribution systems. It provides a 20A current rating and 600V voltage rating with a 35kA interrupting capacity at 480V AC for robust short-circuit protection. The breaker features a compact, free-standing design measuring 3.38" x 6" x 4.13" (LxHxW) and a 225A frame size, constructed with thermal-magnetic trip technology for long-time and instantaneous (LI) protection functions. It complies with major industry standards including UL, CSA, and IEC, ensuring safe operation within a temperature range of -4°F to 158°F. This three-pole, standard breaker is typically applied in motor control centers (MCCs), switchboards, and enclosed control panels from manufacturers like Allen-Bradley, Eaton, and Rockwell Automation.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Series C Family, FD Type
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Frame Size: 225A/F
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Phase Connection: 3-Phase (ABC)
  • Protection Functions: Long-Time and Instantaneous (LI)
  • Trip Type: Thermal Magnetic
  • Connection: Free Standing, Load Side Lug Terminals
  • Wire Size Range: 14 AWG to 1/0 AWG
  • Dimensions: 3.38 in (D) x 6 in (H) x 4.13 in (W)
  • Weight: 4.5 lb
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: UL Listed, CSA Certified, IEC Rated
  • Compatible Panel Types: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Breaker Type: Standard
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679305621
  • GTIN: 00786679305621
