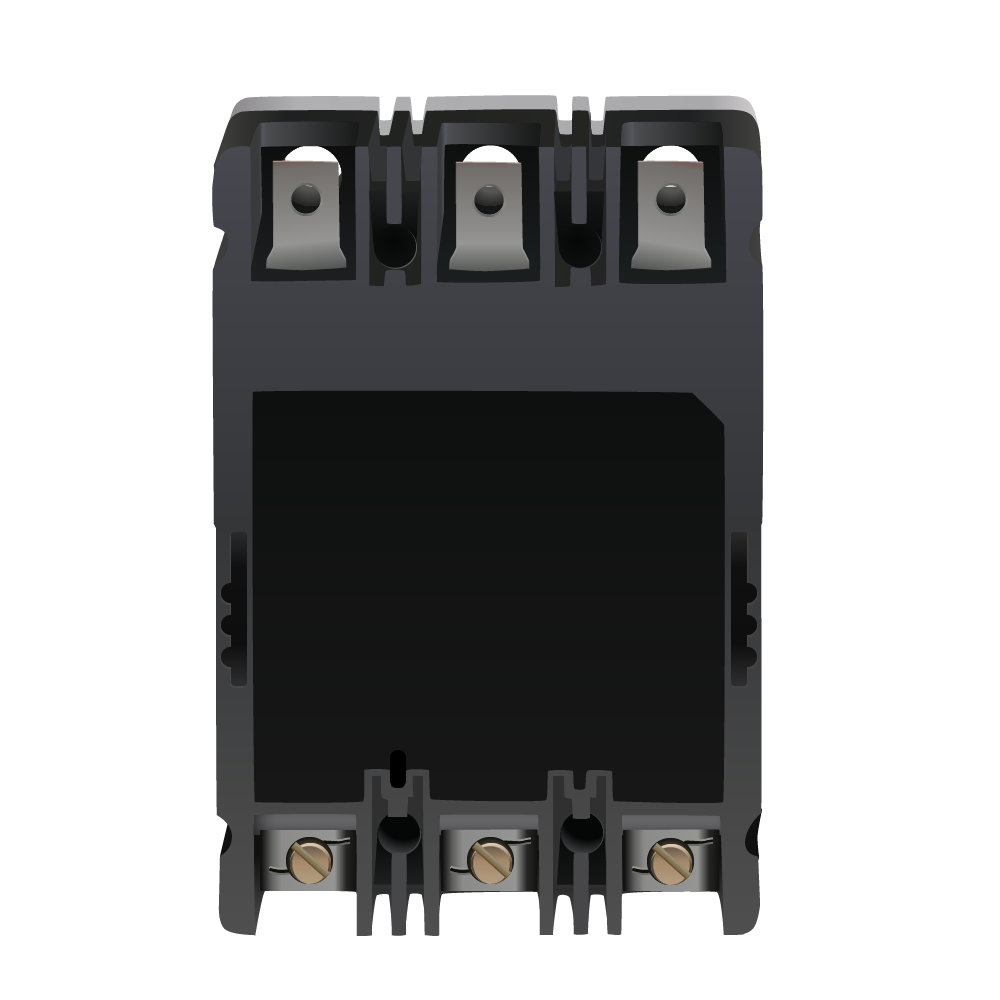

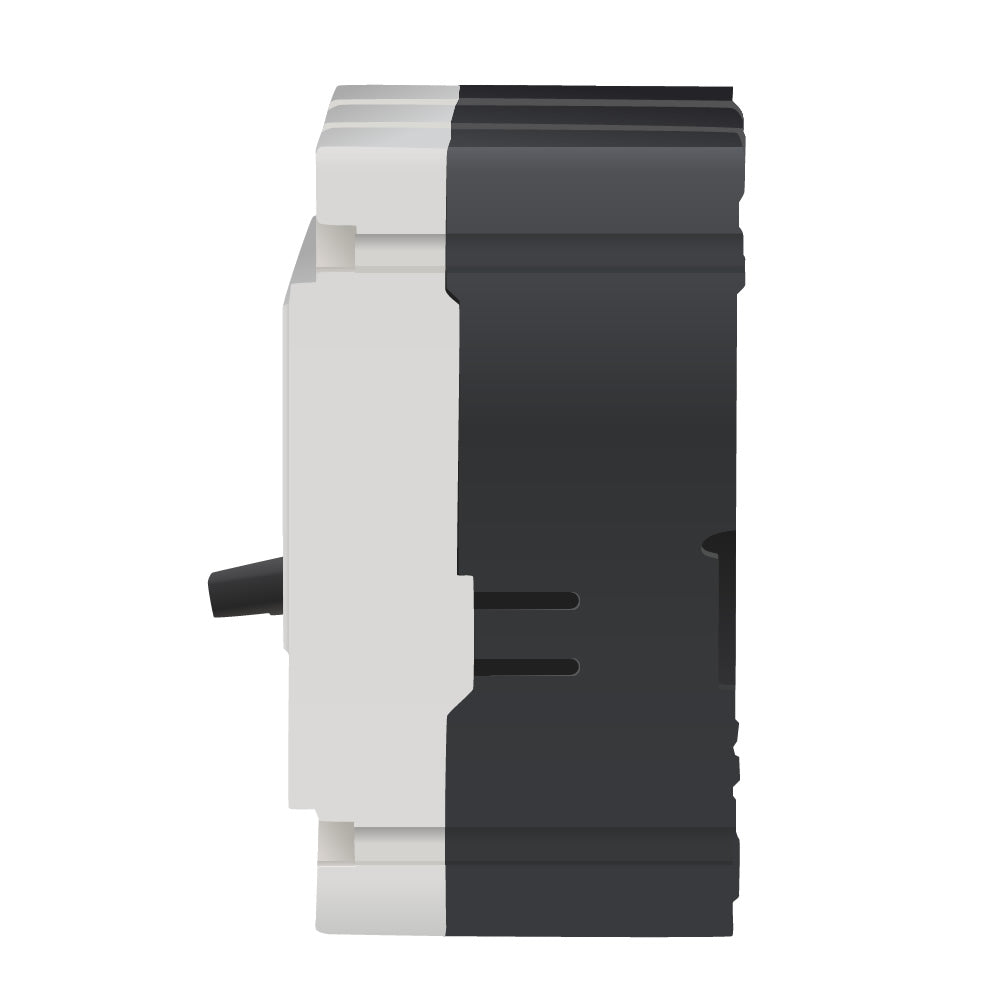

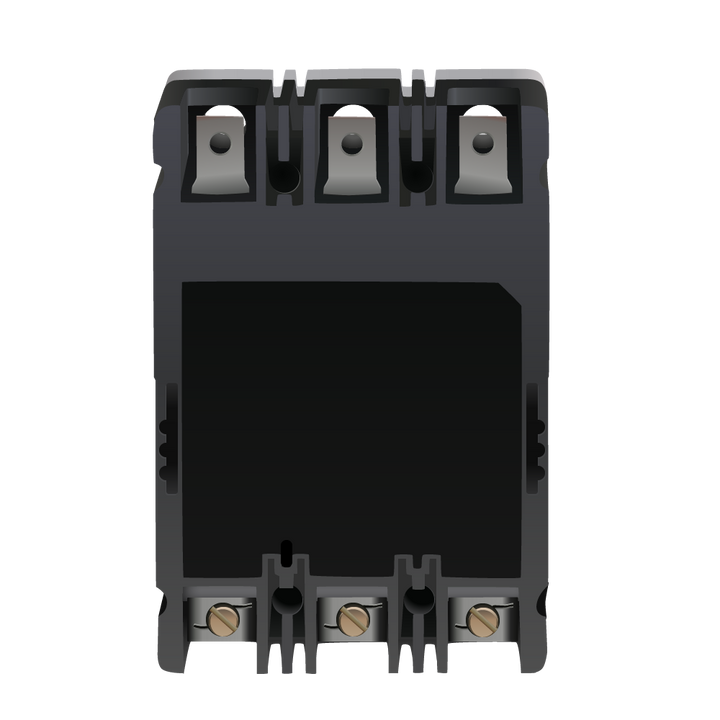

Westinghouse FD3015 - Molded Case Circuit Breaker 15A 600V 3P
Westinghouse FD3015 - Molded Case Circuit Breaker 15A 600V 3P
Westinghouse FD3015 - Molded Case Circuit Breaker 15A 600V 3P
Westinghouse FD3015 - Molded Case Circuit Breaker 15A 600V 3P

Westinghouse FD3015 - Molded Case Circuit Breaker 15A 600V 3P

Eaton
Price
Save $1,582.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Westinghouse FD3015 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power systems. It features a 15A current rating and a 600V voltage rating, housed within a compact 225A frame with dimensions of 3.38" D x 6" H x 4.13" W and a weight of 4.5 lb. The breaker is CSA Certified, IEC Rated, and UL Listed, ensuring compliance with key North American and international standards for safety and performance. Its thermal-magnetic protection with long-time and instantaneous (LI) tripping functions makes it suitable for integration into motor control centers (MCCs), switchboards, and enclosed controls from major manufacturers like Allen-Bradley, Eaton, and Rockwell Automation.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard Type, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Frame Size: 225A/F
  • Poles: 3
  • AIC Rating: 35kA at 480V
  • Connection: Bolt-On, Load Side Lug Terminal
  • Phase Connection: ABC
  • Functions: LI (Long-Time and Instantaneous)
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Weight: 4.5 lb
  • Temp Rating: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: CSA Certified, IEC Rated, UL Listed
  • MCM Size / Wire Range: 14 AWG to 1/0 AWG
  • Panel Type: Compatible with Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679305607
  • GTIN: 00786679305607
