Westinghouse FD2110 - Molded Case Circuit Breaker 110A 2P (35kA AIC)
Westinghouse FD2110 - Molded Case Circuit Breaker 110A 2P (35kA AIC)
Westinghouse FD2110 - Molded Case Circuit Breaker 110A 2P (35kA AIC)
Westinghouse FD2110 - Molded Case Circuit Breaker 110A 2P (35kA AIC)
Westinghouse FD2110 - Molded Case Circuit Breaker 110A 2P (35kA AIC)
Westinghouse FD2110 - Molded Case Circuit Breaker 110A 2P (35kA AIC)

Westinghouse FD2110 - Molded Case Circuit Breaker 110A 2P (35kA AIC)

Cutler Hammer
Price
Save $4,329.79
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

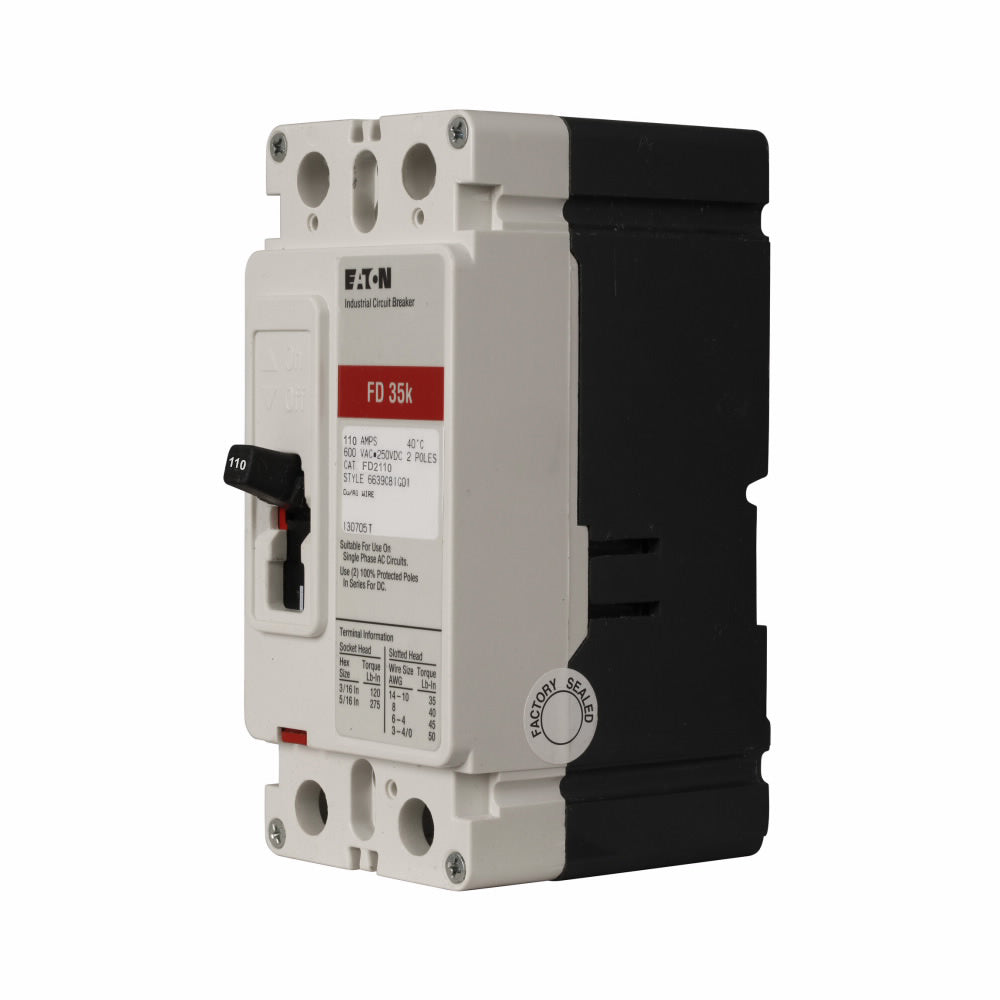

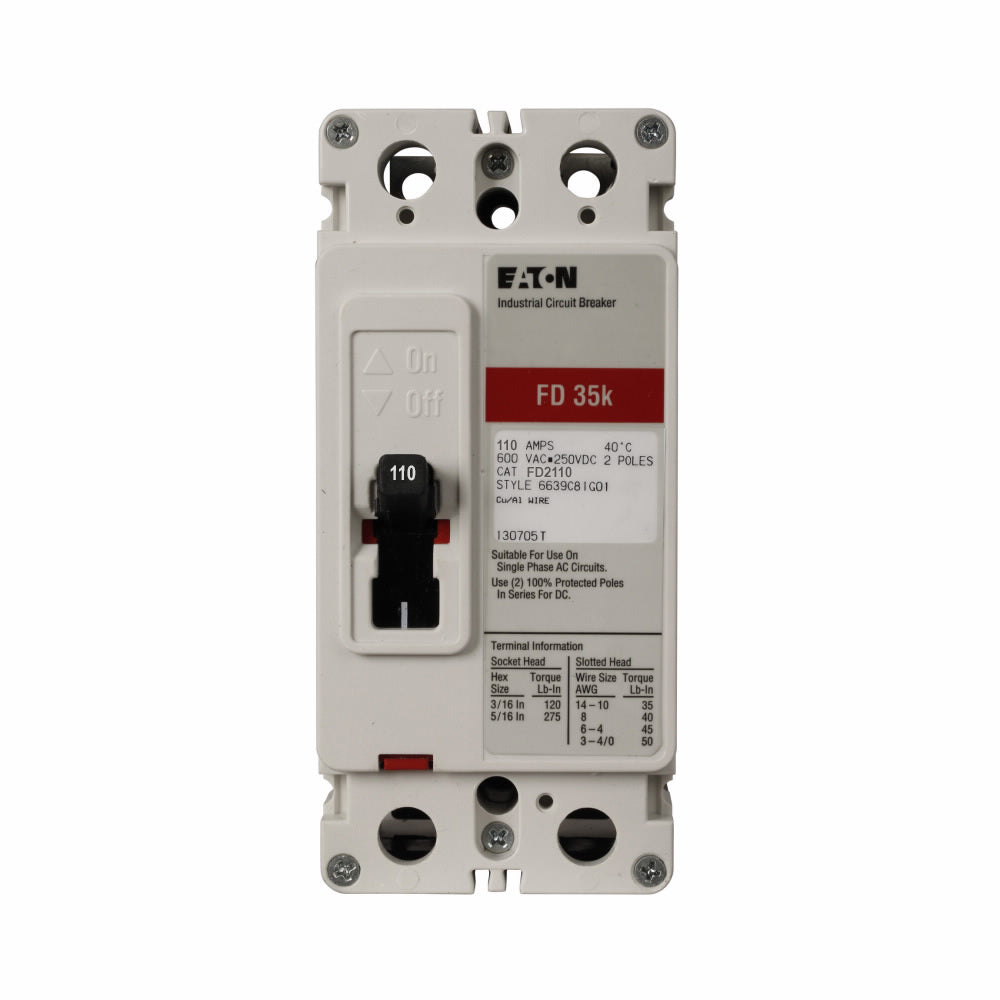

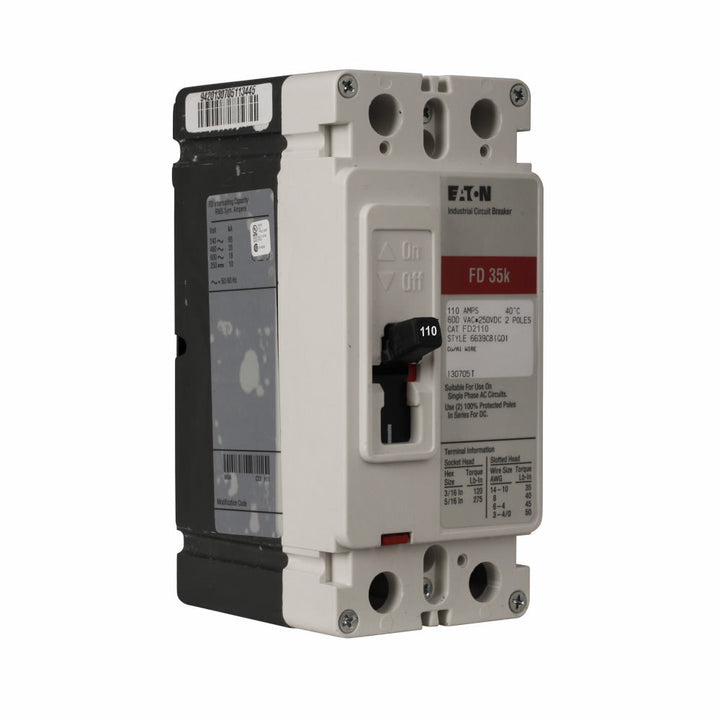

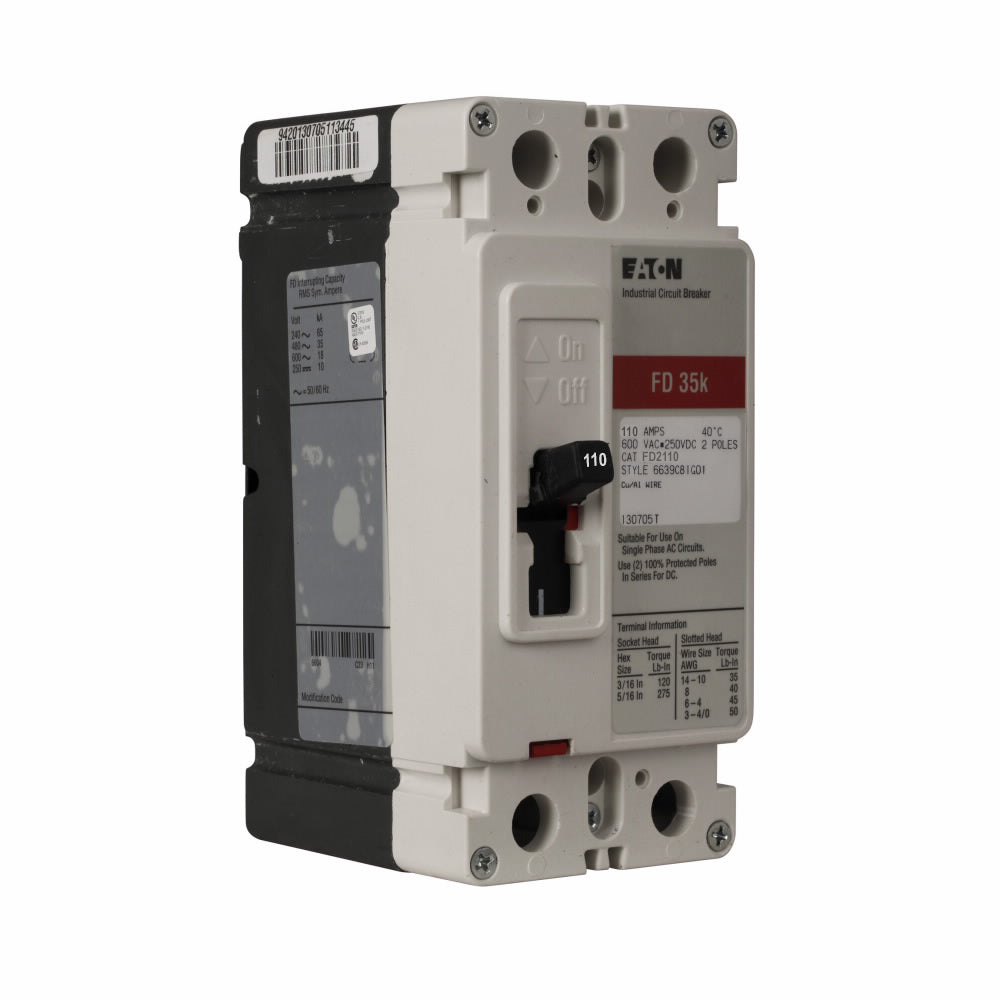

Westinghouse FD2110 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial electrical systems. It features a 110A current rating and a 600V AC voltage rating, housed within a compact F-frame measuring 3.38 in (depth) x 6 in (height) x 5 in (width) and weighing 4 lb. This UL-listed, thermal-magnetic breaker offers both long-time and instantaneous (LI) trip functions and provides a 35kA interrupting capacity at 480V for robust short-circuit protection. Its two-pole, single-phase, bolt-on configuration makes it suitable for a wide range of commercial and industrial panel applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 110A
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 5 in (Width)
  • Standards: UL Listed
  • Applications: Industrial & Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: 2-Pole, Single Phase
  • AIC rating: 35kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: F Frame
  • Phase: 1
  • Certification: UL Listed
  • Weight: 4 lb


Product Identification
  • UPC: 786679004357
  • GTIN: 00786679004357
