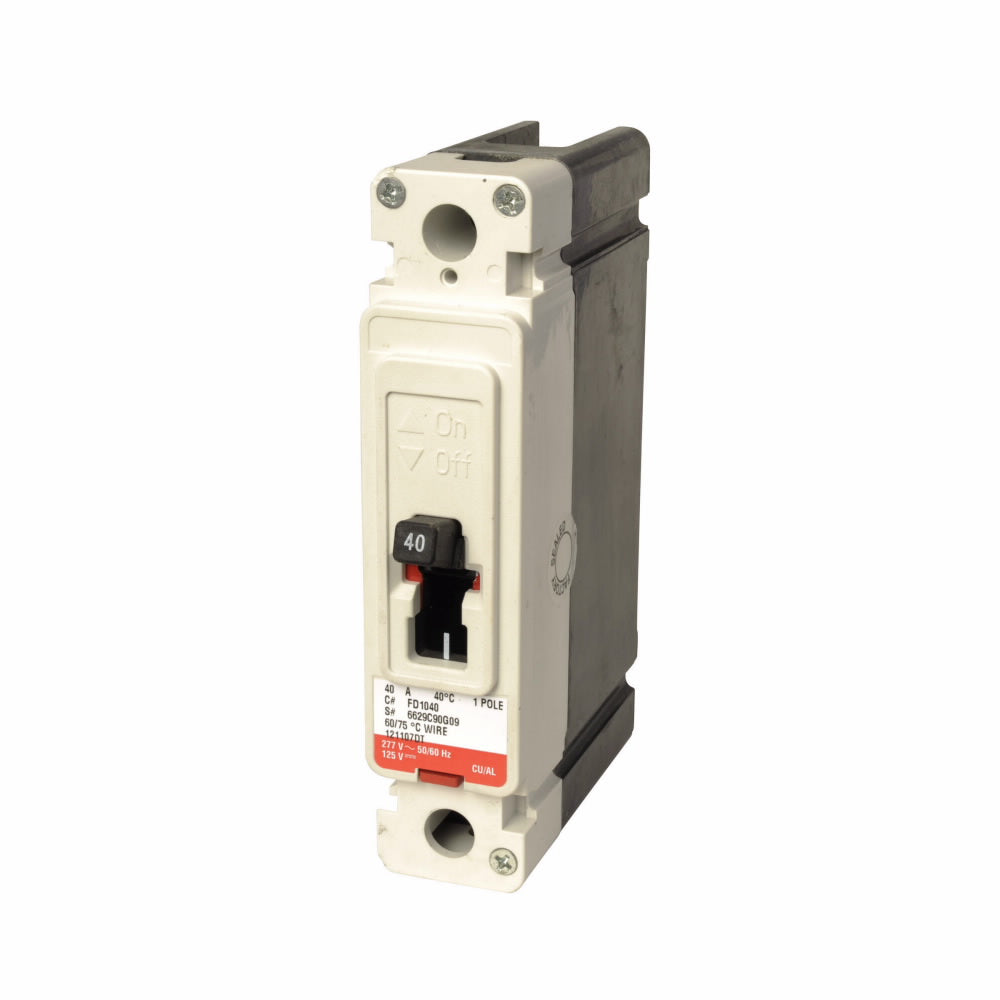

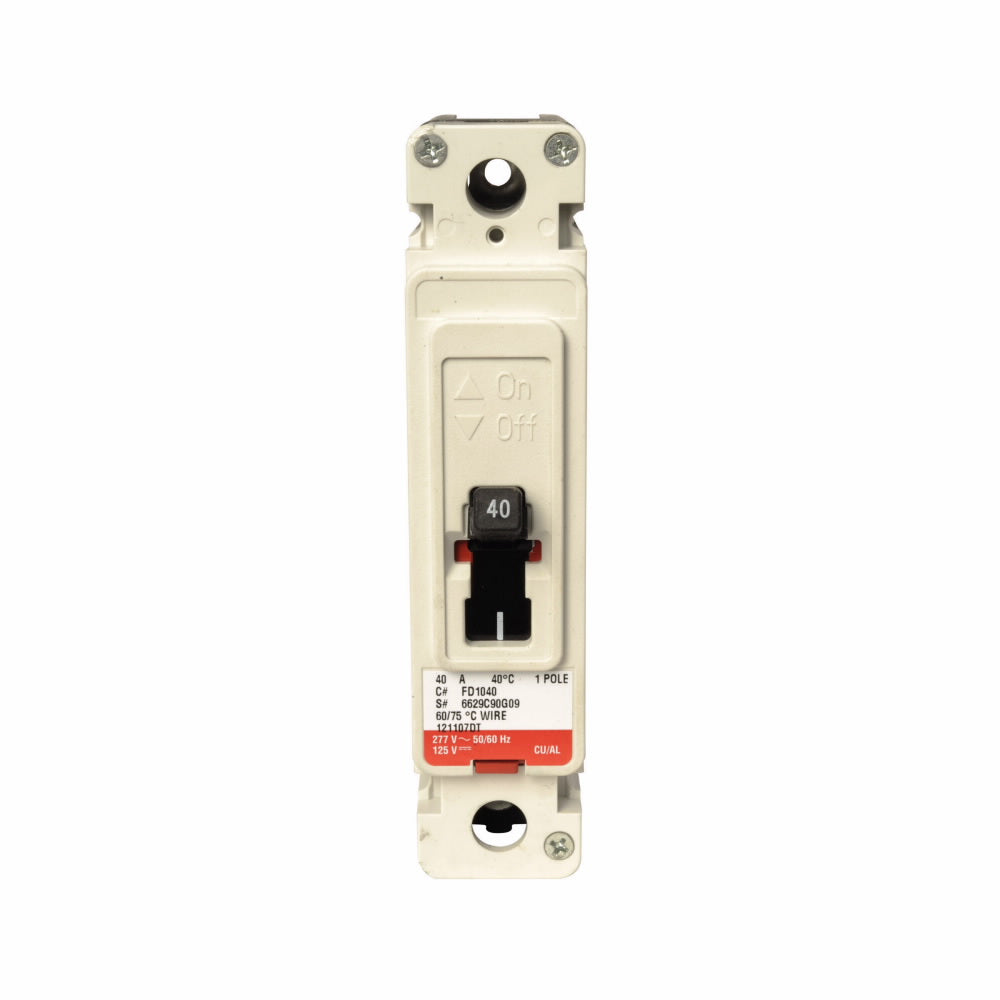

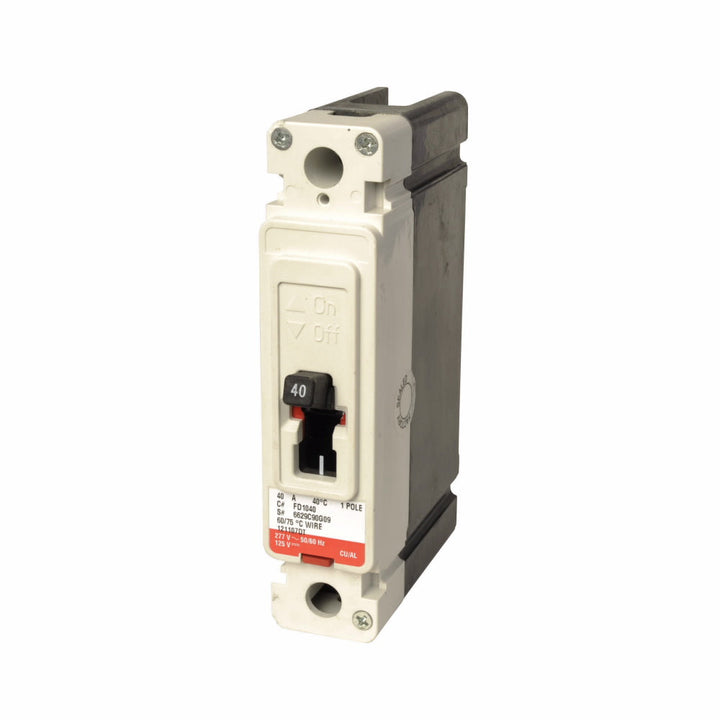

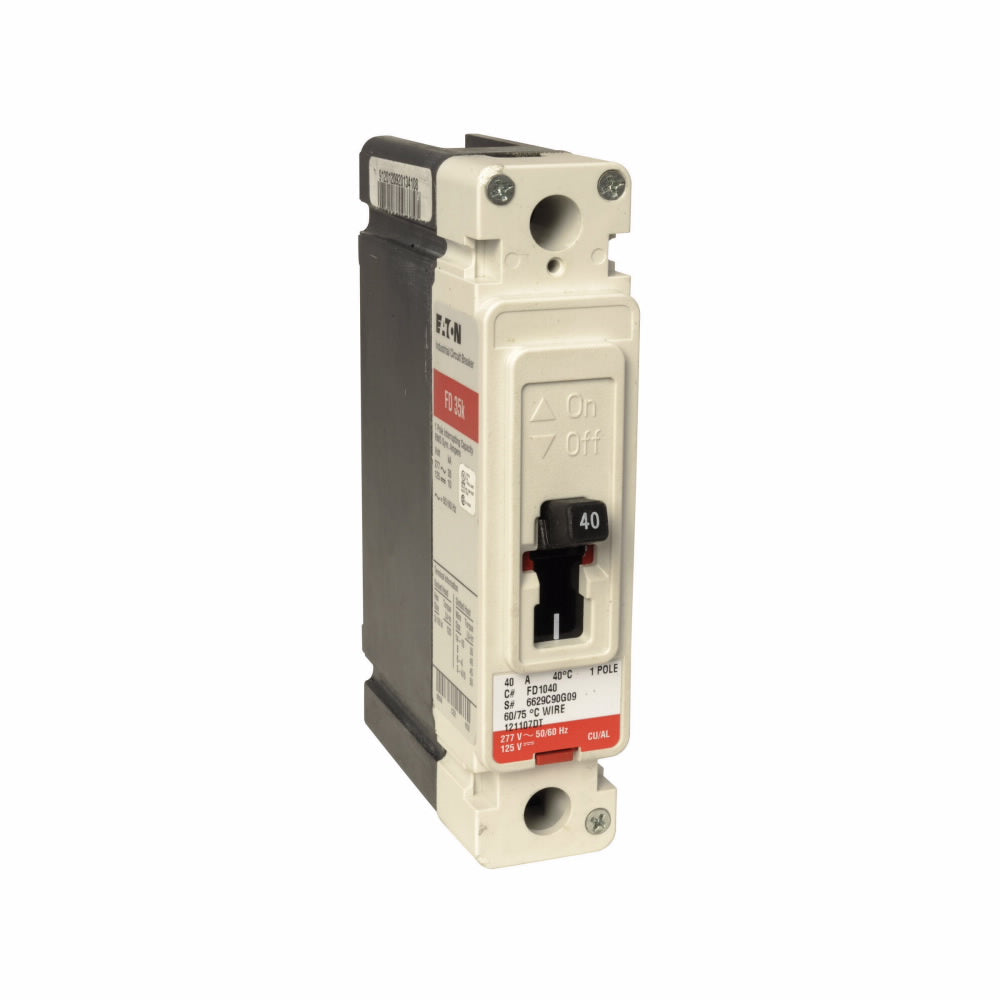

Cutler Hammer FD1030 - Molded Case Circuit Breaker 30A 277V 1P
Cutler Hammer FD1030 - Molded Case Circuit Breaker 30A 277V 1P
Cutler Hammer FD1030 - Molded Case Circuit Breaker 30A 277V 1P
Cutler Hammer FD1030 - Molded Case Circuit Breaker 30A 277V 1P
Cutler Hammer FD1030 - Molded Case Circuit Breaker 30A 277V 1P
Cutler Hammer FD1030 - Molded Case Circuit Breaker 30A 277V 1P

Cutler Hammer FD1030 - Molded Case Circuit Breaker 30A 277V 1P

Cutler Hammer
Price
Save $823.63
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Cutler Hammer FD1030 is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for industrial electrical systems. It features a 30A current rating and a 277V AC voltage rating, housed within a compact 225A frame with dimensions of 3.38" D x 6" H x 1.38" W and a weight of 1.65 lb. This thermal magnetic breaker is CSA Certified, IEC Rated, and UL Listed, ensuring compliance with key industry standards for safety and performance. Its single-pole, bolt-on configuration with load side lugs makes it suitable for integration into motor control centers, switchboards, and enclosed control panels from major manufacturers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Type
  • Voltage Rating: 277V AC
  • Current Rating: 30A
  • Frame Size: 225A/F
  • AIC Rating: 35kA @ 277V
  • Poles: 1
  • Connection: Bolt-On
  • Terminal Connection: Load Side Lug
  • Phase: 1
  • Phase Connection: A
  • Functions: LI (Long-Time and Instantaneous)
  • Standards/Certification: CSA Certified, IEC Rated, UL Listed
  • Dimensions: 3.38 in (D) x 6 in (H) x 1.38 in (W)
  • Weight: 1.65 lb
  • Temp Rating: -4°F to 158°F (-20°C to 70°C)
  • MCM Size / Wire Range: 14 AWG to 1/0 AWG
  • Panel Type: Compatible with Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679312131
  • GTIN: 00786679312131
